Summary of Contents for PowerMax 50-0550

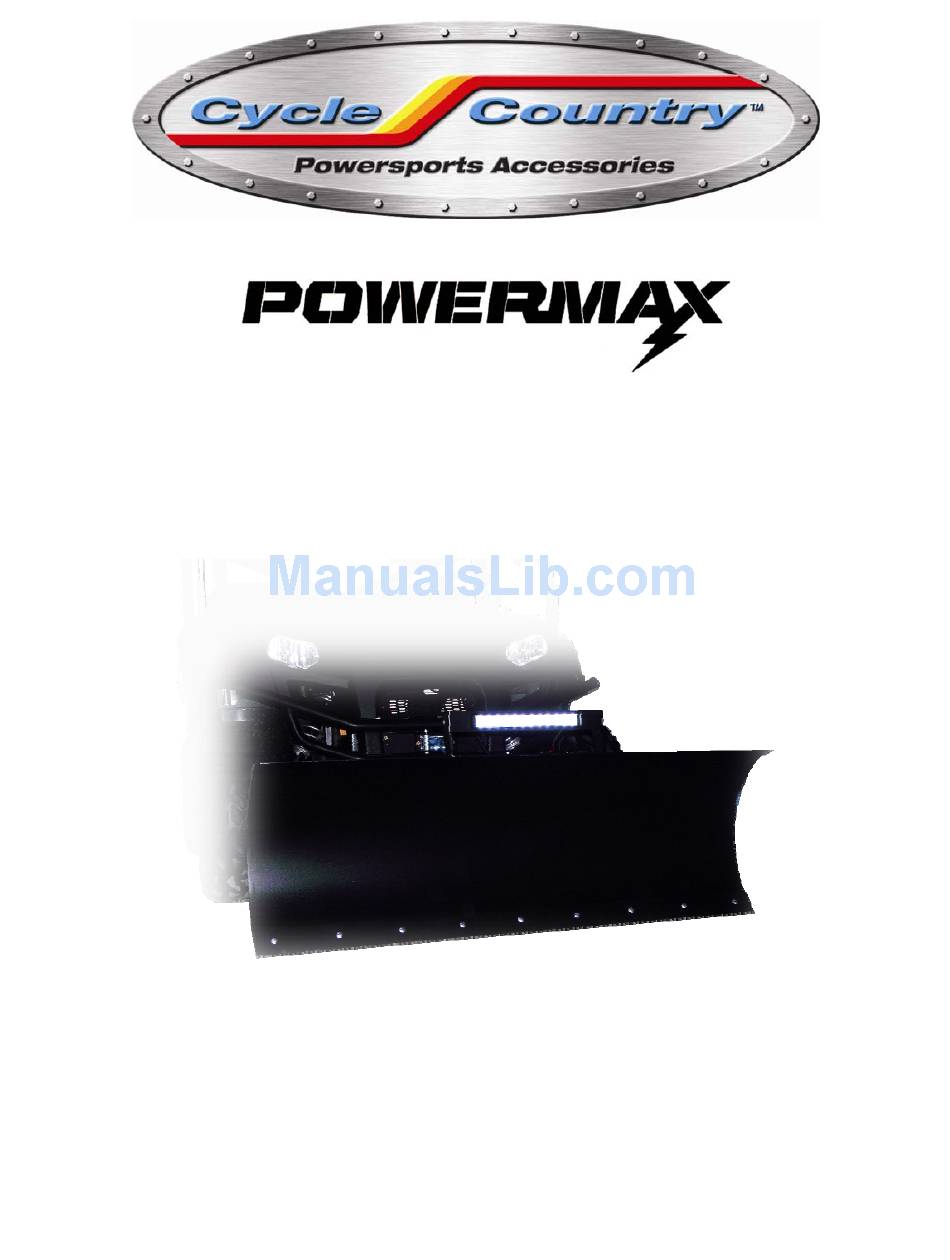

- Page 1 LED BLADE LIGHT ASSEMBLY / OWNER’S MANUAL Part No: 50-0550 MAN0363 Rev. 00 © 2011 Cycle Country Accessories Corporation...
-
Page 2: Operating Instructions
OPERATING INSTRUCTIONS Congratulations! You’ve just purchased the most durable plow component in the industry. Our plow systems work great for summer or winter plowing. With proper care and maintenance, your Cycle Country plow system will last for years to come! Please read and understand all assembly instructions, notices and warnings before assembling and operating your Cycle Country plow system. - Page 3 PARTS ORDERING INFORMATION: Items #1, #7 and #13 are sold as an assembly and cannot be ordered individually. Replacement fasteners are common-type and can be purchased locally. Use minimum Grade 5 galvanized fasteners. © 2010 Cycle Country Accessories Corporation...
-
Page 4: Before You Begin
ASSEMBLY INSTRUCTIONS: BEFORE YOU BEGIN: Please read and understand all instructions. Verify all parts and tools are accounted for. To ensure a satisfactory installation, follow all steps correctly and in the sequence described. All directions referring to right and left are when the rider is sitting on the machine TOOLS REQUIRED: ... - Page 5 2A - MOUNTING HIGHLITE TO A CYCLE COUNTRY PRO SERIES BLADE: Install Highlite onto the Pro Series plow blade accessory mount bar using fasteners #8 and #11. Torque fasteners to specification. Refer to Illustration 2A. Item #8, #11 FASTENER TORQUE: 17 ft.
- Page 6 2C - MOUNTING HIGHLITE TO A CYCLE COUNTRY POLY ‘XT’ (21” \ 53.3 cm) BLADE: 1. Remove the bolts, washers and locknuts from the upper blade support. Illustration 2C-1. NOTE: Retain locknuts and washers. Bolts are not re- used. Ill. 2C-1 2.
- Page 7 2D - MOUNTING HIGHLITE TO CYCLE COUNTRY or AFTERMARKET STEEL BLADES: Remove the blade springs and install the Highlite onto the steel blade mount as shown, using washers, Item #9 and fasteners, Items #8 and #11. Torque fasteners to specification. Reinstall the blade springs onto the Highlite bracket in the locations shown.
- Page 8 TO FINISH MOUNTING HIGHLITE TO BLADE: 1. Connect the power cord to the Highlite, threading the knurled knob clockwise to lock it in place. OPTIONAL: Secure the power cord using tie straps, Item #6. NOTE: If Hightlite is mounted to the blade, allow sufficient power cable slack for blade tripping.
- Page 9 One Year Limited Warranty For the period of one (1) year from the purchase date, Cycle Country Accessories Corporation will replace for the original purchaser, free of charge, any part or parts found upon examination by Cycle Country Accessories Corporation to be defective in material, workmanship, or both. All transportation costs incurred submitting product to Cycle Country for warranty consideration must be borne by the purchaser.
