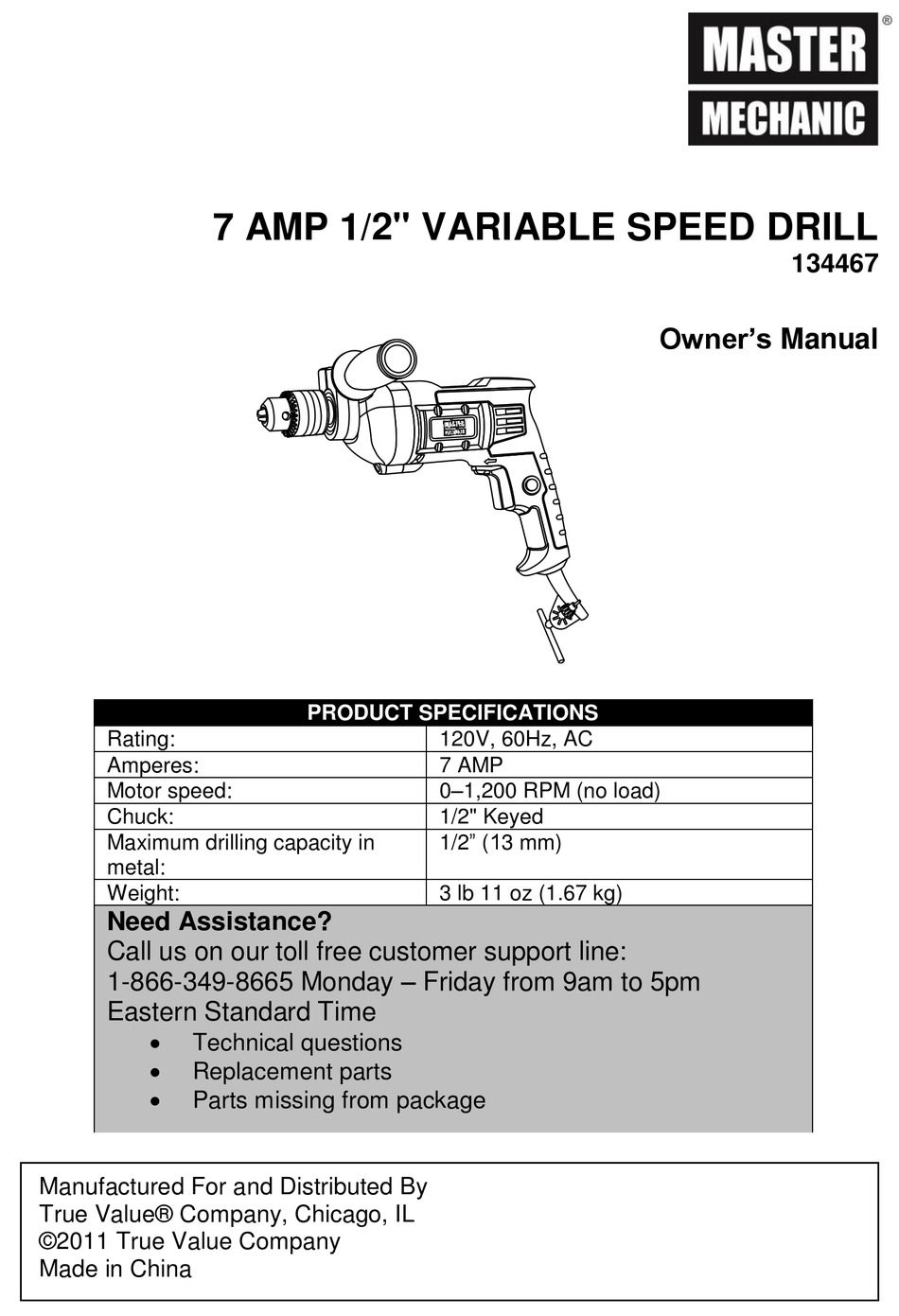

True Value 134467 Owner's Manual

Master mechanic. 7 amp 1/2 inch variable speed drill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Rating:
Amperes:
Motor speed:
Chuck:
Maximum drilling capacity in
metal:
Weight:
Need Assistance?
Call us on our toll free customer support line:
1-866-349-8665 Monday – Friday from 9am to 5pm
Eastern Standard Time
Technical questions
Replacement parts
Parts missing from package
Manufactured For and Distributed By
True Value® Company, Chicago, IL
©2011 True Value Company
Made in China
7 AMP 1/2" VARIABLE SPEED DRILL
PRODUCT SPECIFICATIONS
120V, 60Hz, AC
7 AMP
0–1,200 RPM (no load)
1/2" Keyed
1/2" (13 mm)
3 lb 11 oz (1.67 kg)
134467
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 134467 and is the answer not in the manual?

Questions and answers

Summary of Contents for True Value 134467

  • Page 1 Call us on our toll free customer support line: 1-866-349-8665 Monday – Friday from 9am to 5pm Eastern Standard Time  Technical questions  Replacement parts  Parts missing from package Manufactured For and Distributed By True Value® Company, Chicago, IL ©2011 True Value Company Made in China...
  • Page 2 TABLE OF CONTENTS Product specifications ………….……………………………………………………. Table of contents ……………………………………………………………………... General safety warnings …………………………………………………………….. 3–4 Eye, ear & lung protection …………………………………………………………… 3–4 Electrical safety ………………………………………………………………………. Power tool safety ……………………………………………………………………... 5–6 General safety rules ………………………………………………………………….. Work area ………………………………………………………………….………….. Electrical safety ………………………………………………………………………. Personal safety ………………………………………………………………………..

  • Page 3: General Safety Warnings

    GENERAL SAFETY WARNINGS WARNING: Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible situations. It must be understood that common sense and caution are factors which cannot be built into the product.

  • Page 4: General Safety Warnings

    GENERAL SAFETY WARNINGS WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT. WARNING: Dust that is created by power sanding, sawing, grinding, drilling, and other construction activities may contain chemicals that are known to cause cancer, birth defects, or other genetic abnormalities.

  • Page 5: Power Tool Safety

    POWER TOOL SAFETY WARNING: Read all safety warnings Do not abuse the cord. Never use the and instructions. Failure to follow the cord for carrying, pulling or unplugging the power tool. Keep cord away from warnings and instructions may result in electric shock, fire and/or serious injury.

  • Page 6: Power Tool Safety

    POWER TOOL SAFETY PERSONAL SAFETY – cont’d Store idle power tools out of the reach of children and do not allow persons Remove any adjusting key or wrench unfamiliar with the power tool or these before turning the power tool on. A instructions to operate the power tool.

  • Page 7: Service

    POWER TOOL SAFETY Service Do not drill material too small to be securely held. Have your power tool serviced by a qualified repair person using only Always keep hands out of the path of the identical replacement parts. This will drill bit.

  • Page 8: Extension Cord Safety

    EXTENSION CORD SAFETY WARNING: Keep the extension MINIMUM GAUGE (AWG) cord clear of the working area. Position EXTENSION CORDS (120V use only) the cord so it will not get caught on the Amperage workpiece, tools or any other obstructions rating Total length while you are working with the power tool.

  • Page 9: Symbols

    SYMBOLS WARNING: Some of the following symbols may appear on the drill. Study these symbols and learn their meaning. Proper interpretation of these symbols will allow for more efficient and safer operation of this tool. Direct current Volts Amperes No load speed Alternating or direct Hertz current...

  • Page 10: Know Your Drill

    KNOW YOUR DRILL Auxiliary handle Chuck Air vents Lock-on button Forward/reverse switch Chuck Variable speed trigger switch ACCESSORIES AVAILABLE ACCESSORIES Before using any accessory, carefully read the instructions or the owner’s manual for WARNING: Use only accessories the accessory.  that are recommended for this drill.

  • Page 11: Contents

    CONTENTS CONTENTS DRILL COMPONENTS DESCRIPTION Carefully unpack the drill. Compare the Drill contents against the “DRILL Chuck key COMPONENTS” chart at right. Auxiliary handle Owner’s Manual NOTE: See illustration of the drill below. WARNING: To avoid fire or toxic reaction, never use gasoline, naphtha, acetone, lacquer thinner or similar highly volatile solvents to clean the tool.

  • Page 12: Assembly And Operating

    ASSEMBLY AND OPERATING FORWARD/REVERSE SWITCH The forward/reverse switch (1) is conveniently mounted in front of the trigger switch (2) (Fig. 1). To make the drill rotate clockwise for drilling, push the forward/reverse switch to the right. To make the drill rotate counter-clockwise, push the forward/reverse switch to the left.

  • Page 13: Installing Drill Bits

    ASSEMBLY AND OPERATING INSTALLING DRILL BITS WARNING: Never hold the chuck body with one hand and use the drill power to rotate the drill body to loosen or tighten bits. Serious injury may result. Remove drill plug from the power source.

  • Page 14: Removing Drill Bits

    ASSEMBLY AND OPERATING WARNING: Do not insert the drill bit into the chuck and tighten as shown in Fig. 4. The drill bit MUST be properly inserted with all three of the chuck jaws holding the bit centered in the chuck. Failure to properly insert the drill bit could cause the drill bit to be thrown from the chuck, resulting in possible...

  • Page 15: Installing The Auxiliary Handle

    ASSEMBLY AND OPERATING INSTALLING THE AUXILIARY HANDLE Install the auxiliary handle (1) for two handed operation of the drill (Fig. 6). This is particularly important for drilling in concrete. Rotate the auxiliary handle counter clockwise to open the mounting collar (2).
  • Page 16 ASSEMBLY AND OPERATING WARNING For safety reasons, the operator must read the sections of this Owner’s Manual entitled "GENERAL SAFETY WARNINGS", "POWER TOOL SAFETY", "SPECIFIC SAFETY RULES", "EXTENSION CORD SAFETY" and "SYMBOLS" before using this drill. Verify the following every time the drill is used: Safety glasses, safety goggles, or face shield is being worn.

  • Page 17: Drilling

    ASSEMBLY AND OPERATING DRILLING When drilling into smooth, hard surfaces such as metal, use a center punch to mark the desired hole location. This will prevent the drill bit from slipping off center as the hole is started. The workpiece to be drilled should be secured in a vice or with clamps to keep it from turning as the drill bit rotates (Fig.

  • Page 18: Drilling

    ASSEMBLY AND OPERATING DRILLING – cont’d Move the drill bit into the workpiece applying only enough pressure to keep the bit cutting. Do not force the drill bit or apply sideways pressure to elongate the hole. WARNING: Be prepared for binding and bit breakthrough.

  • Page 19: Assembly And Operating

    ASSEMBLY AND OPERATING REMOVING THE CHUCK To remove the chuck: Remove the drill plug from the power source. Insert a 5/16” (8 mm) or larger hex key (1) into the chuck (2) and tighten the chuck jaws securely (Fig. 8). Make sure each of the chuck jaws (3) is seated on the flat surfaces of the hex key.

  • Page 20: Retightening A Loose Chuck

    ASSEMBLY AND OPERATING RETIGHTENING A LOOSE CHUCK After installing a chuck that has previously been removed, the chuck may become loose on the spindle and develop a wobble. Also, the chuck screw may become loose, causing the chuck jaws to bind and prevent them from closing.

  • Page 21: Maintenance

    MAINTENANCE GENERAL WARNING: When servicing, use only identical replacement parts. The use of any other part may create a hazard or cause product damage. DO NOT use solvents when cleaning plastic parts. Plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.

  • Page 22: Exploded View

    EXPLODED VIEW...

  • Page 23: Parts List

    PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the drill. Any attempt to repair or replace electrical parts on this drill may create a safety hazard unless repairs are performed by a qualified technician.

  • Page 24: Parts List

    PARTS LIST Key # Part # Part Name Quantity 2030070041 Brush holder 1230010096 Carbon brush 2020150060 Middle cover 4010010050 Bearing 609Z 3140090015 Buffer 1020010005 Stator 3011020004 Housing 1010010006 Rotor 1061050001 Switch 4010010034 Bearing 607Z 3140040003 Bearing sleeve 4030010099 Screw ST3.9x14 2030050002 Cord clamp 1140020048...

  • Page 25: Warranty

    3-Year Limited Warranty: This product is warranted for 3 years against any defects in material and workmanship. If defective the product will be repaired or replaced free of charge. Simply provide proof of purchase and return the tool to your place of purchase.
