Summary of Contents for Arrow BINGO
- Page 1 ARROW BINGO CONVERTER Operator’s Manual ______________________________________________________ Arrow International, Inc.
- Page 2 Arrow International, Inc.
- Page 3 Introduction The Arrow Bingo converter is a state of the art systems conversion and testing tool. The converter allows non compatible bingo systems to work with each other. Most bingo systems can be upgraded or added to with out changing the existing flashboards.
- Page 4 Arrow International, Inc.
-
Page 5: Supported Systems
Arrow International Bingo King ______________________ ____ ____________ Statesman System 80 BK A systems Presidential System 90 BK B systems Senator System 100 1.2 Contacting Service For Service information or technical assistance, contact the Arrow Technical Assistance Center 1-800-277-6214 Arrow International, Inc. -
Page 6: Damage Action Process
Your Arrow Bingo Converter contains delicate electronic equipment. It is imperative that you thoroughly inspect the contents of each package before accepting product delivery from the carrier. In case of severe damage, refuse the equipment from the carrier. Contact your distributor or Arrow International for immediate replacement. -
Page 7: Controls And Indicators

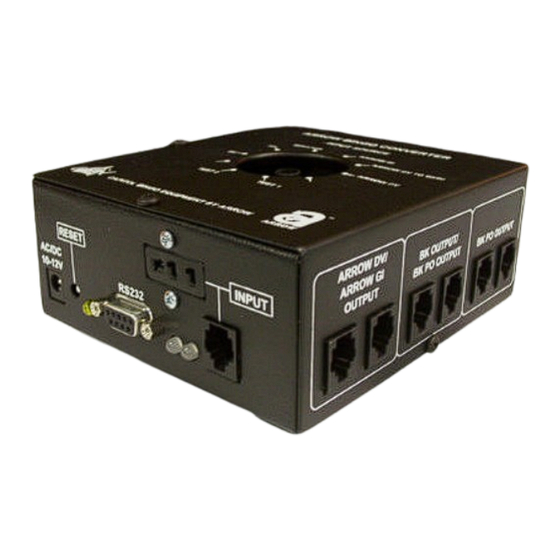

Section 2.0 Controls and Indicators Figure 2.0 The Arrow Bingo Converter is user friendly and simple to use. The diagram above shows the basic user controls. Senator--------------------------Arrow International Senator Bingo console TPI------------------------------- Trade Pro Bingo Console. (See chart in section 1.1 for a list of supported systems) BK-------------------------------- Bingo King console. - Page 8 Figure 2.1 Figure 2.1 illustrates the input and status panel of the Arrow Bingo Converter. This panel consists of the following: Power Input------ Receptacle for the external power supply or the (optional) battery pack. Reset Button---- Resets the Arrow Bingo Converter Power Indicator LED----- Illuminates Yellow when proper voltage is applied to the unit.
-
Page 9: Outputs
2.1 Set up To set up the Arrow Bingo Converter for use, Follow the procedure below and refer to figure 2.2. 1. Plug in the external power supply 2. Press the reset button on the Arrow Bingo Converter 3. Set the selector knob to the type of input you have 4. -
Page 10: Accessories
2.2 Outputs The Arrow Bingo Converter has two output panels. The main output panel consists of 6 RJ-12 connectors. The secondary sets are the dedicated senator and TPI outputs. Figure 2.3 Figure 2.4 The set of BK data and Payout outputs are duel purpose. Each output puts out both the BK data and the BK prize payout data. -
Page 11: Limited Warranty
Arrow dealer and the date of the discovery of the defect, provided that written notice of the defect and its nature is given to Arrow as soon as practical after discovery of the defect, but in no event later than 90 days from the date of the discovery of the defect. - Page 12 With respect to any claim that the Equipment is defective, Arrow will be allowed a reasonable time to inspect the Equipment, in place. Of the Equipment is altered or removed before Arrow has made such inspection or waived its right to do so, the obligations of Arrow under this Limited Warranty will be deemed to have been satisfied.
