Summary of Contents for Uavframe CW8

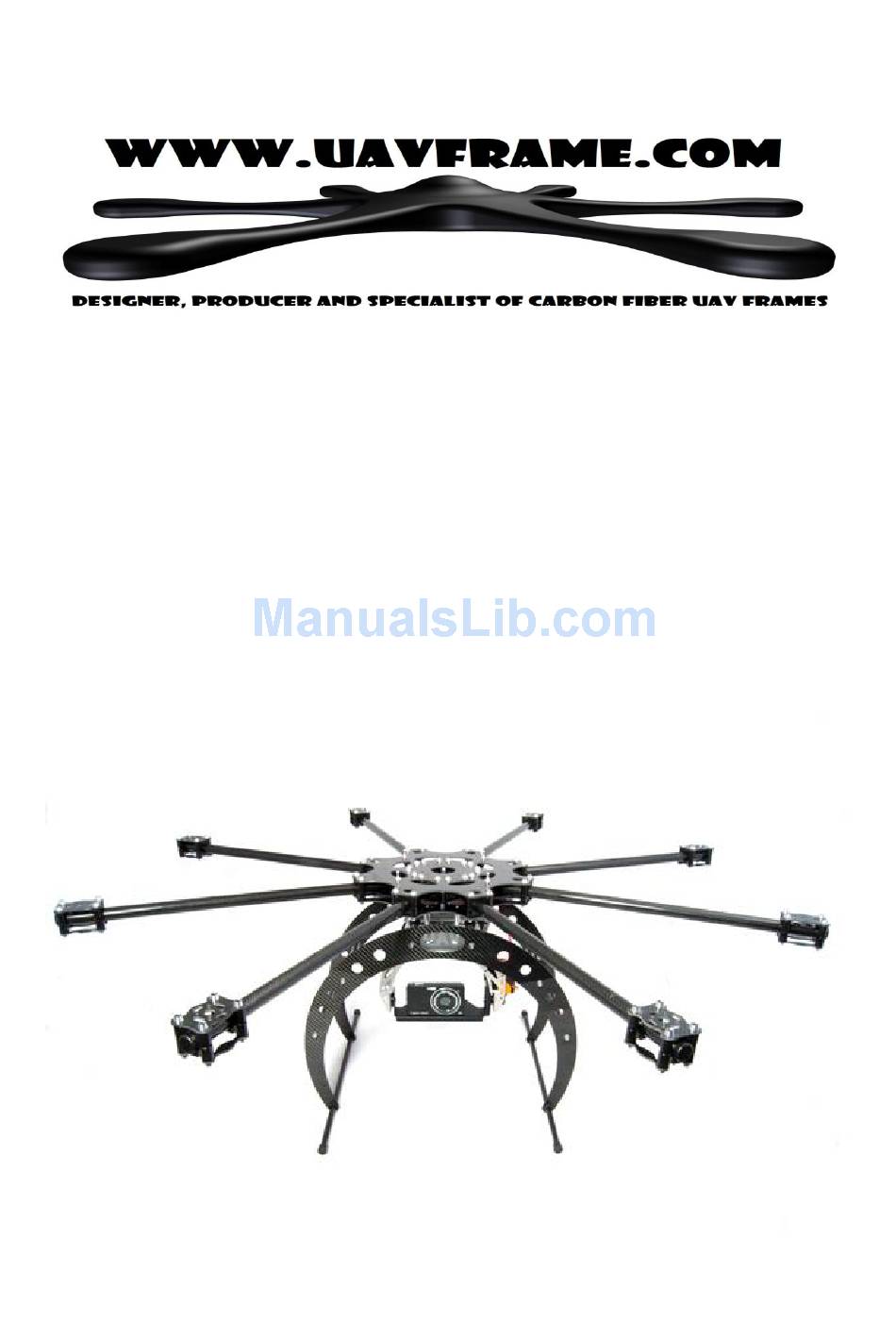

- Page 1 Uavframe CW8 Assembly manual...
- Page 2 Assembly is required. Take care when unpacking and assembling. Kit contains small parts and can have sharp edges For replacement parts, ask your supplier of this frame or contact us. Contact details : Email : info@uavframe.com Website : www.uavframe.com...
- Page 3 Kit contents : (basic frame without upgrades) Item Upper centerplate Lower centerplate Motormounting plates Motorclamp position plates Carbon fiber tubes Endcaps for tubes Aluminum caps Boomclamps (pairs) Countersunk m3 x 35 bolts M3 x 35 allen cap bolts M3 x 6 allen cap bolts M3 washers M3 lock nuts First check if all are in the kit, if parts are missing please contact us.
- Page 4 Take the upper centerplate (you can recognize this plate with the countersunk holes). Let the logo (cw8) point upwards. Mount the 4 spacers of your mounting plate (big or small) when bought/upgraded or in the kit Put all 16 countersunk bolts m3 x 35 in the holes...
- Page 5 Mount the aluminum brackets/ wiredampersystem (if bought separately) to the bottom centerplate, you can let the logo “cw8” point up or downwards, choose here to fly in + or x mode, the holes are for both modes already pre- drilled as well for bigger and...
- Page 6 Now you can take the allen cap bolts m3 x 35 and the aluminum caps, 8 pairs of boomclamps, 16 locknuts and 16 m3 washers mount them as picture above and below All bolts and locknuts are still only hand tightened...
- Page 7 Now it’s time for mounting your 8 motors. Use the m3 x 6 allen cap bolts, and the m3 washers. Use as well some locktite. Make sure the cables of your motor are pointing to right side. Take the endcap and drill the holes (1 big or 3 small) for you cables and put the cables through On the left you see the motorplates with the aluminum caps, with allen cap bolts m3 x 35,(this is an upgrade)
- Page 8 Use for each motor plate 2 pairs of clamps, 4 m3 washers, 2 motorplate position plates, 4 m3 x 35 bolts and 4 m3 locknuts, just tighten them with your hands Now you can mount the motor plates to the tube, and put the endcap in the tube, just like on the picture, make sure your cables are connected inside the tubes correctly or make sure the cables are long enough to reach your esc.
- Page 9 Now you put all arms into the centerunit. And lock the bolts and nuts. Make sure all motors are leveled correctly in line of the centerunit. Further assembly is about some upgrades or other parts On the picture is the “mounting plate small” shown, make sure you position it for + or x mode (picture is x mode)
- Page 10 The “WKM protection plate” In combination with “mounting plate small” The “mounting plate big for the cw8”is shown on the picture. Underneath the plate you can easily mount the esc. On top of it your flightcontroller.
- Page 11 Here you see the “mounting plate big for CW8” in combination with the “wkm protection plate” for further questions, just contact us by mail. Good luck with the maiden...
