Versa™ DRIVE C1
User Manual
DRAFT COPY
Revised March 30, 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Versa Drive C1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Element Labs Versa Drive C1

Summary of Contents for Element Labs Versa Drive C1

  • Page 1 Versa™ DRIVE C1 User Manual DRAFT COPY Revised March 30, 2005...
  • Page 2 Element Labs, Inc. claims no proprietary interest in trademarks and trade names owned by others. Information and specifications in this document are subject to change without notice. Element Labs, Inc. assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. Versa DRIVE C1...

  • Page 3: Introduction

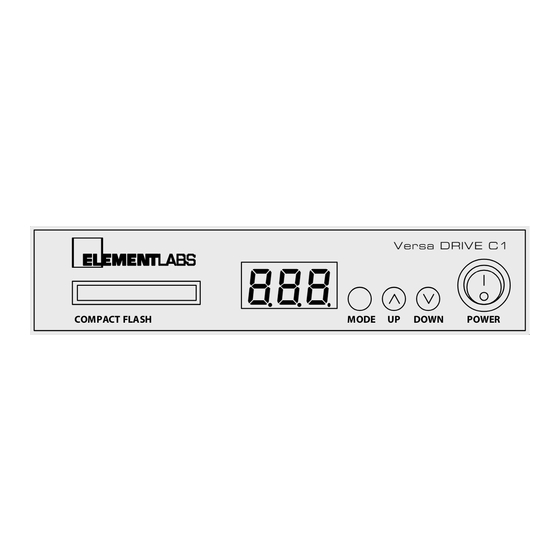

    Connect Power & Data Cables. Create map and patterns in RasterMAPPER and save to Compact Flash Card. Adjust C1 and panel values. 3. General Information 3.1 Front Panel Versa DRIVE C1 COMPACT FLASH MODE DOWN POWER The Versa DRIVE has the following controls and displays on its front panel: •...

  • Page 4: Setup

    Local Data Serial Data AC Power Input Closure Output Output The Versa DRIVE C1 has the following connectors on its rear panel: • IEC AC Power Input (85-264VAC, 50/60Hz) • DB-9 Connector for Contact Closure Input • DMX Input – 5 pin XLR •...

  • Page 5: Modifying Parameters

    UP and DOWN buttons can be used immediately; you do not need to wait for the display to change to the mode’s value. The Versa DRIVE C1 modes are as follows: (Pattern): Selects the current pattern from 0-255...

  • Page 6: Playback

    0 – 63. 5.3.7 Reference Voltage Similar to the Brightness function, the Reference Voltage value will affect the output level. The value can be adjusted 1–15. Versa DRIVE C1 Revised March 30, 2005 User Manual Page 6 of 11...

  • Page 7: Firmware

    Female DB-9 The contact closures use 5VDC at 1mA per closure. A dry contact switch can be connected at a distance of up to 1,000 meters using 24 AWG wire. Versa DRIVE C1 Revised March 30, 2005 User Manual Page 7 of 11...
  • Page 8 DMX resolution modes. The values are probably not 100% accurate since we now have two test patterns (the SS shows only 1). ADD LIST - CPV Versa DRIVE C1 Revised March 30, 2005 User Manual Page 8 of 11...

  • Page 9: Direct Color

    8. Direct Color The Versa DRIVE C1 offers a unique feature called "Direct Color." Using DMX channels, over 16 million solid colors can be mixed and output by the C1. In addition, these colors can be added to or subtracted from any of the patterns, in effect, colorizing the output.

  • Page 10: Specifications

    WARNING Severe risk of electric shock. No user-serviceable parts inside. Information and specifications in this document are subject to change without notice. Element Labs, Inc. assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. Versa DRIVE C1...

  • Page 11: Contacting Element Labs

    7. Contacting Element Labs www.elementlabs.com info@elementlabs.com Element Labs, Inc. 9421 Neils Thompson Drive Austin, TX 78758 USA +1 512 491 9111 tel +1 512 491 9122 fax Element Labs GmbH Lindener Str. 15 D-38300 Wolfenbüttel Germany +49 5331 905660 tel...
