- Page 1 X300 USER GUIDE AMI Marine Ltd Registered in England & Wales Tel: +44 (0) 2380 480450 Email: sales@amimarine.com Unit 9 Crosshouse Centre, Registration No. GB 195442583 Crosshouse Road, Southampton, SO14 5GZ, United Kingdom Quality Standard ISO9001:2008 Web: www.amimarine.com...

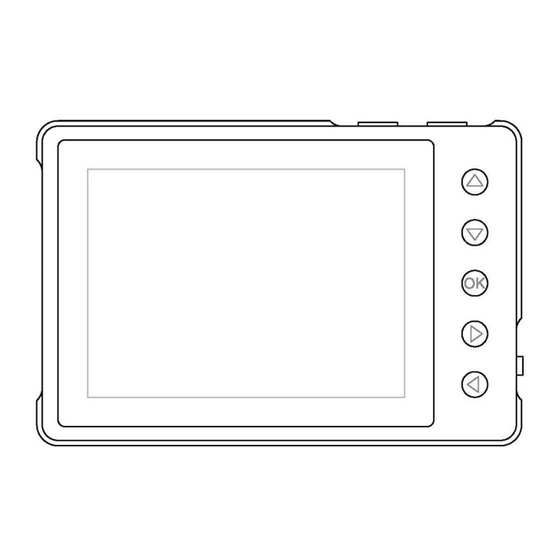

- Page 2 Overview: X300 is a compact and ultra-light NMEA 0183 testing tool with oscilloscope function. Contents: 1x X300 2x Probe Lead Sets 1x Protective casing 1x Mini USB Cable 1x User Guide Dimensions: Features: Controls: 2.8” TFT LCD Screen 1. Up/Down: Navigate through menu item.
- Page 3 CAUTION: SAFETY INSTRUCTIONS TO AVOID THE RISK OF DAMAGE TAKE CARE NOT TO CONNECT THE PROBES TO THE WAVE OUT PORT Specification ANALOGUE BANDWIDTH 0 ~ 1MHz, 12Bits MAX. INPUT VOLTAGE 80Vpp (NMEA and Oscilloscope) HORIZONTAL SENSITIVITY 1us/Div ~ 10s/Div TRIGGER MODE Auto, Normal, Single, Scan and Fit Rising/Falling edge/level trigger...
- Page 4 Automatic Baudrate Detection: Hold the ‘A’ button for more than 1 second will auto detect the incoming data baud rate. The X300 will detect the input data baudrate automatically, from 1,200 to 115,200 baud. Summary mode the display will show the analysed NMEA data and any associated errors.
