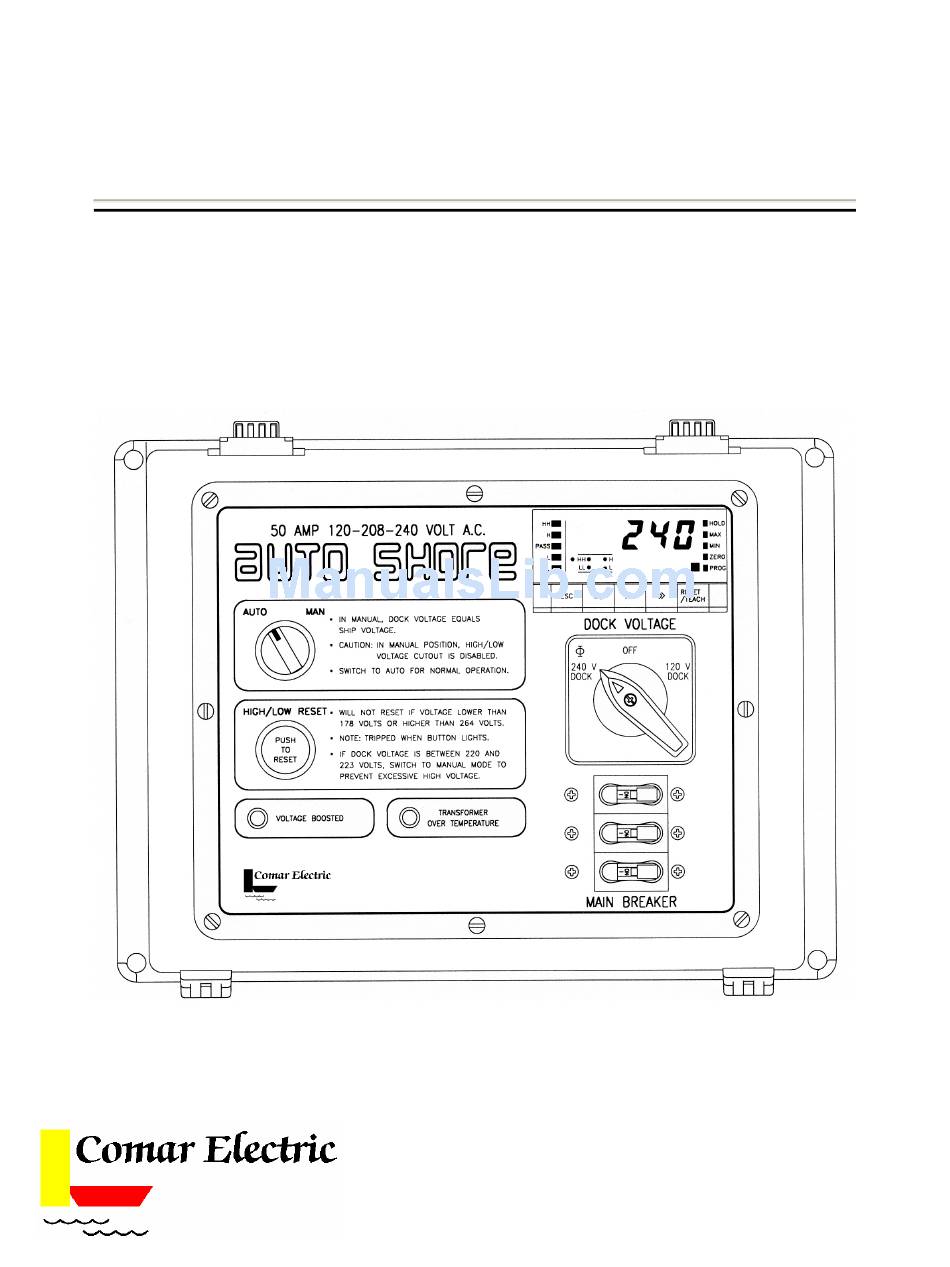

- Page 1 Owner’s Manual Revision 1.08 NA Model No. 50-120-240 60Hz 50 Amp AutoShore Comar Electrical Services Ltd. 114 – 1515 Broadway Street Port Coquitlam, BC Canada V3C 6M2 Tel: (604) 941-7646 Fax: (604) 941-7610 Email: info@comarelectric.com...
- Page 2 Table of Contents Important Safety Instructions Pg. 3 Introduction Pg. 4 Description of Operation Pg. 5 Pg. 6 Installation Specifications Pg. 7 Pg. 8 Performance Graphs Limited Pg. 9 Warra nty...
-
Page 3: Important Safety Instructions
Before using the AutoShore, read all instructions and cautionary markings on (1) AutoShore control box and (2) transformer. Do not expose AutoShore to rain, snow or moisture of any type. Do not disassemble the AutoShore; have only a qualified electrician perform service or repairs. -
Page 4: Introduction
Introduction Congratulations With the installation of the Comar Electrical Services AUTO SHORE unit you have the ability to automatically boost low dock voltage insuring the supply of usable voltage from virtually any dock. The unit also provides protection from excessively high and excessively low dock voltage and provides isolation to combat electrolysis a nd reduce personal shock hazard. -
Page 5: Description Of Operation
Description of Operation The AutoShore 50-120-240 is designed to monitor incoming shore voltage and boost the voltage if appropriate. Safety cutouts are also provided to protect the boat’s electrical system from excessively high shore voltage and, equally as destructive, low dock voltage (brown outs). The output transformer also provides isolation between the dock shore power and the boats electrical system. -
Page 6: Installation
Installation Refer to the following diagram for proper installation: Temp Sense Transformer Shore Receptacle Control Box Output to Ships Distribution Note: A Circuit Breaker may be required between the Shore Receptacle and Control Box. Consults local codes and regulations. -
Page 7: Specifications
Transformer: Epoxy Potted Complies with ABYC 8.20.1 (see below). Dimensions: Autoshore Control Box: 14-1/4” x 11-1/4” x 9” (W x D x H) 12 kW Transformer: 18” x 12” x 18” (W x D x H) Transformer weight: 267 pounds ABYC: ISOLATION OF GALVANIC CURRENTS 8.20.1... - Page 8 Performance Graph...
-
Page 9: Warra Nty
Limited Warranty Comar Electrical Services Ltd. warrants its power products against defects in material and workmanship for a period of one (1) year from date of purchase and extends this warranty to all purchasers or owners of the product during the warranty period. Comar Electrical Services does not warrant its products against any and all defects: (1) Arising out of material or workmanship not provided or furnished by Comar Electrical Services Ltd.
