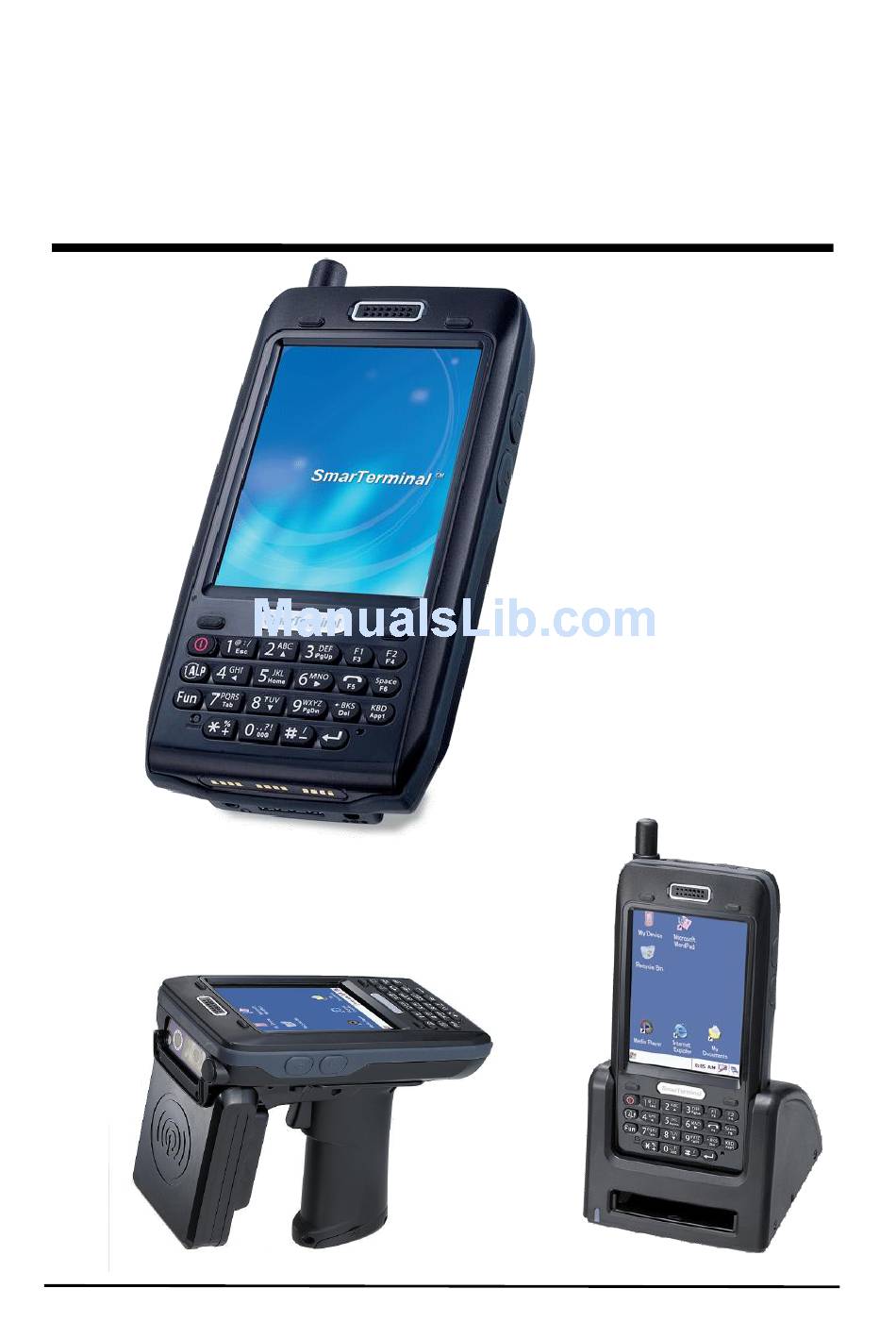

- Page 1 SDK Reference Guide SmartAT-870 Windows CE .NET Rugged PDA ® SmarTerminal Ver 1.0, Jun 2009 Disclaimer AT870O/S Update...
- Page 2 Disclaimer SmarTerminal is registered trademarks of Sammi Information Systems Co., Ltd. All other brand names, product names, or trademarks belong to their respective holders. Head Quarters 11F Kolon Digital Tower Aston Bldg, 505-14, Gasan-dong Geumcheon-gu, Seoul, 153-803, Korea Tel. 82 -2-790-5508 / Fax. 82-2-790-5509 Email.
- Page 3 SmartAT-870 OS Update Module Chap 1. SmartAT-870 OS update Module ..................4 1.1 User OS Version confirmation ................... 4 1.2 SmartAT-870 O/S Update ....................5 1.2.1 Start ..........................5 1.2.2. PDA Update Order....................... 6 1.3 Setting up Demo program after the OS update ..............7...
- Page 4 The fact is updating PDA with new version of OS is a very important procedure. The following contents in the document explain the details of the OS update procedure. Note: During OS update always keep SmartAT-870 connected to AC power. 1.1 User OS Version confirmation The O/S confirmation which is established: (OI, OG, OC) Hold the stylus pointer on My Device icon till the pop-up menu appears.
- Page 5 To update SmartAT-870 O/S please refer to the following procedure 1.2.1 Start Take out the main battery from SmartAT-870 and below the battery you will see the SD card insertion slot. Please insert the new SD memory card with new O/S files in the SD slot. (Always keep PDA connected to AC power.)
- Page 6 < Micro SD Card OS Data File > 1.2.2. PDA Update Order Press Power and Reset button simultaneously, after a while only keep pressing Power button and not the reset button. Power button and Reset button After a second you will see the Following message on the screen. Step 1: To Update, Insert Card , Insert the SD card with appropriate files To Update, Insert Card AT870O/S Update...
- Page 7 Step 2: You will see the following messages in sequence “Read OS Image …”and “Write OS Image…” Read OS Image… Write OS Image… Step 3: Wait till the “Complete” message appears on Screen. Please do the warm reset after the OS update is over.
