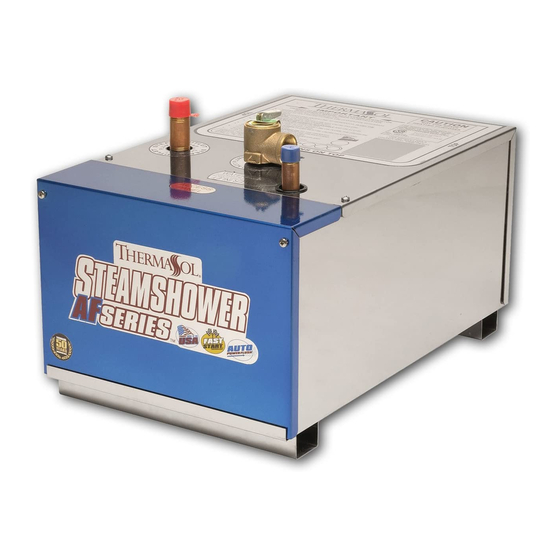

Installation Instructions
Steam Shower Series
If you are a plumber installing this unit, please leave
this owners manual & warranty card with the owner
when you finish the installation.
This Instruction supercedes all previous information provided by ThermaSol
DO NOT USE THIS PRODUCT UNLESS YOU HAVE CONSULTED YOUR DOCTOR AND RECEIVED WRITTEN PERMISSION TO DO SO.
USE OF THIS PRODUCT MAY BE HAZARDOUS TO YOUR HEALTH.
STEAM IS HOT! DO NOT TOUCH OR GO NEAR THE STEAMHEAD FROM THE TIME THE UNIT IS "ON", UP TO ONE HOUR FROM THE
TIME THE UNIT IS OFF. SEVERE BURN WILL OCCUR IF YOU COME IN CONTACT WITH THE STEAMHEAD OR STEAM EMITTING FROM
THE STEAMHEAD.
NEVER ATTEMPT TO FILL AROMA THERAPY RESERVOIR ON THE STEAMHEAD WHEN UNIT IS IN THE "ON" POSITION. SEVERE
BURNS WILL OCCUR.
DO NOT USE THERMASOL AROMA THERAPY OILS OR SKIN CARE PRODUCTS OR ANY PRODUCT IN CONJUNCTION WITH YOUR
THERMASOL UNIT WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE
HAZARDOUS TO YOUR HEALTH.
YOUR SHOWER MAY BE A SLIP AND FALL HAZARD CHECK WITH YOUR CONTRACTOR OR FLOORING MANUFACTURER
REGARDING THE SAFE USE OF YOUR FLOORING IN A STEAM APPLICATION. SLIPPING AND FALLING INTO THE STEAMHEAD
ITSELF OR INTO THE STREAM OF STEAM EMITTING FROM THE STEAMHEAD WILL CAUSE SERIOUS BURNS, OR PHYSICAL INJURY.
DO NOT USE STEAM ROOM WHILE UNDER THE INFLUENCE OF ALCOHOL OR DRUGS, AS THIS CAN BE HAZARDOUS TO YOUR
HEALTH.
IF YOU ARE FEELING UNCOMFORTABLE, DIZZY, FAINT, OR STARTING TO FALL ASLEEP IMMEDIATELY EXIT THE STEAM ROOM.
DO NOT USE STEAM ROOM IF YOU ARE UNDER THE AGE OF 16 UNLESS SUPERVISED BY AN ADULT.
Note: Before contacting Customer Service for Technical Support, please have the model number,
serial number and date code (located on a circle to the lower right of the serial number), include
all numbers and letters.
2255 Union Place, Simi Valley, CA 93065 – (800) 776-0711
26 Industrial Avenue, Fairview, NJ 07022 – (800) 631-1601
DOC NO. 81078
With Fast Start Technology
Manufacture Post 2005
CONSUMER WARNING
Headquarters & Technical Support
Mon – Thur 7:00 – 5:00, Fri 8:00 – 12:00 PST
Eastern Sales Office
Mon – Thur 7:00 – 5:00, Fri 8:00 – 12:00 EST
www.thermasol.com
Page 1 of 18

Thank You!

Rev D 3/06 GM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS-84 and is the answer not in the manual?

Questions and answers

Tom Pancoast
February 6, 2025

My unit keeps shutting off

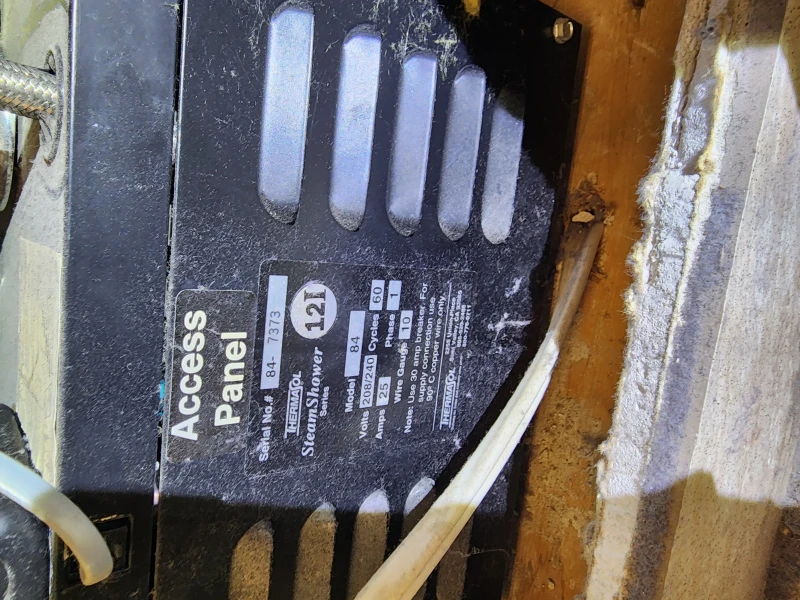

User image 67a4e401ba1ce
1 comments:
Mr. Anderson
February 10, 2025

The ThermaSol SS-84 unit may keep shutting off due to several possible reasons:

1. Automatic Water Fill System – The unit is designed to stop filling once it reaches the required water level. If there is an issue with water supply or blockage, it may shut off.
2. Steam Line Installation Issues – If the steam line is improperly installed, such as running down and then up, it may create a steam trap, blocking steam flow and causing the unit to shut off.
3. Pressure Relief Valve Misconfiguration – If the pressure relief valve is plumbed into the steam line, it may create hazardous conditions, potentially triggering a shutdown.
4. Powerflushing Requirement – If the unit has not been powerflushed after 50 uses, sediment buildup could cause malfunction, requiring maintenance.
5. Health and Safety Features – The unit may have built-in safety mechanisms that shut it off if there are risks such as overheating or improper use.

Checking installation, performing maintenance, and ensuring proper water flow can help resolve shutdown issues.

This answer is automatically generated

Summary of Contents for Thermasol SS-84

  • Page 1: Installation Instructions

    BURNS WILL OCCUR. • DO NOT USE THERMASOL AROMA THERAPY OILS OR SKIN CARE PRODUCTS OR ANY PRODUCT IN CONJUNCTION WITH YOUR THERMASOL UNIT WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO YOUR HEALTH.
  • Page 2 ** NOTICE ** THERMASOL WARNING LABEL CONTROL THERMASOL STEAMHEAD SHOWER FLOOR YOU MUST ATTACH THIS STATIC CLING USER WARNING LABEL IN THE SHOWER NEXT TO THE CONTROL UPON COMPLETION OF INSTALLATION DOC NO. 81078 Page 2 of 18 Rev D 3/06 GM...
  • Page 3 Warranty card • Static cling warning label All ThermaSol steam generators are designed to build NO PRESSURE during operation. This is for your safety. Note: Failure to follow installation instructions specifically will cause the warranty to be void. ELECTRICAL BOX...
  • Page 4 Propane torch • Other tools as required Note: ThermaSol steam bath generators are for indoor use only. They should never be located outside the home. Note: ThermaSol steam bath generators are NOT designed to be used for space heating purposes.
  • Page 5 POSITION. SEVERE BURNS WILL OCCUR. WARNING DO NOT USE THERMASOL AROMA THERAPY OILS OR SKIN CARE PRODUCTS OR ANY PRODUCT IN CONJUNCTION WITH YOUR THERMASOL UNIT WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO YOUR HEALTH.
  • Page 6 10. Make the final connection and turn on water. All ThermaSol generators are equipped with an automatic water fill system. The water will stop after unit is filled.
  • Page 7 Figure 2 Various options for the ThermaSol steam bath generator location. Important: MAXIMUM WATER PRESSURE not to exceed 70 P.S.I. Warning: The Steamhead is HOT! Do not install Steamhead near a seat or bench hot steam will burn you. Keep at least 12-14 inches away from hot steam exiting the Steamhead.
  • Page 8 POSITION. SEVERE BURNS WILL OCCUR. WARNING DO NOT USE THERMASOL AROMA THERAPY OILS OR SKIN CARE PRODUCTS OR ANY PRODUCT IN CONJUNCTION WITH YOUR THERMASOL UNIT WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO YOUR HEALTH.
  • Page 9 • NoTouch Steamhead housing (included w/generator) Material Needed • Clear silicone • 1/2” drop elbow • ThermaSol NoTouch Steamhead (in desired finish) • Other materials as required Tools Needed • 1” deep socket and ratchet • 2-1/2” hole cutting tool •...
  • Page 10 2. Connect a 1/2" NPT brass pipe or tubing to the steam outlet on the generator running the pipe to the 2-1/2” diameter hole in wall to connect with the Steamhead housing. Use Figure 4 as a guide. It is very important that the pipe is firmly secured to the wall, so that when the Steamhead is installed it doesn’t push the housing back into the wall.
  • Page 11 POSITION. SEVERE BURNS WILL OCCUR. WARNING DO NOT USE THERMASOL AROMA THERAPY OILS OR SKIN CARE PRODUCTS OR ANY PRODUCT IN CONJUNCTION WITH YOUR THERMASOL UNIT WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO YOUR HEALTH.
  • Page 12: Electrical Installation

    Electrical Installation Note: All electrical wiring must be done per National/Local Electrical Codes. ** ThermaSol requires that a licensed electrician perform all electrical work. ** Note: USE COPPER WIRE ONLY. Wire sizes recommended by NEC (2002 Version). Minimum wire temperature rating 90°C. Type THHN.
  • Page 13 POSITION. SEVERE BURNS WILL OCCUR. WARNING DO NOT USE THERMASOL AROMA THERAPY OILS OR SKIN CARE PRODUCTS OR ANY PRODUCT IN CONJUNCTION WITH YOUR THERMASOL UNIT WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO YOUR HEALTH.
  • Page 14 OneTouch Or Elite Control Installation Instructions Warning: Power to the generator must be off prior to connecting any control. 1. The OneTouch digital control (shown in Figure 7) can be located inside or outside the enclosure. 2. The Elite control (shown in Figure 8) MUST be located INSIDE the enclosure. 3.
  • Page 15 9. THESE STEPS MUST BE TAKEN OR YOUR WARRANTY WILL BE VOID. Coat the entire control back with supplied waterproof silicon. Completely seal the control to the wall so moisture does not get behind it. Place the control on the wall pressing firmly. You may need to tape the control into place until the silicone dries.
  • Page 16 (refer to Figure 1) for 5-7 minutes, then close. Allow generator to finish the 45-minute session. See following document for more detail about powerflushing. ** ThermaSol recommends one powerflush cycle after every fifty uses. ** Warning: IT IS IMPORTANT THAT NO ONE BE INSIDE THE SHOWER ENCLOSURE DURING THE POWERFLUSH CLEANING CYCLE.
  • Page 17 3. After 5-7 minutes close the powerflush ball valve. Allow generator to finish the 45-minute session. ** ThermaSol recommends one powerflush cycle after every fifty uses or at least twice a year. ** Warning: IT IS IMPORTANT THAT NO ONE BE INSIDE THE SHOWER ENCLOSURE DURING THE POWERFLUSH CLEANING CYCLE.
  • Page 18 POSITION. SEVERE BURNS WILL OCCUR. WARNING DO NOT USE THERMASOL AROMA THERAPY OILS OR SKIN CARE PRODUCTS OR ANY PRODUCT IN CONJUNCTION WITH YOUR THERMASOL UNIT WITHOUT CONSULTING WITH YOUR ALLERGIST OR DOCTOR BEFORE USE. THESE PRODUCTS MAY BE HAZARDOUS TO YOUR HEALTH.
