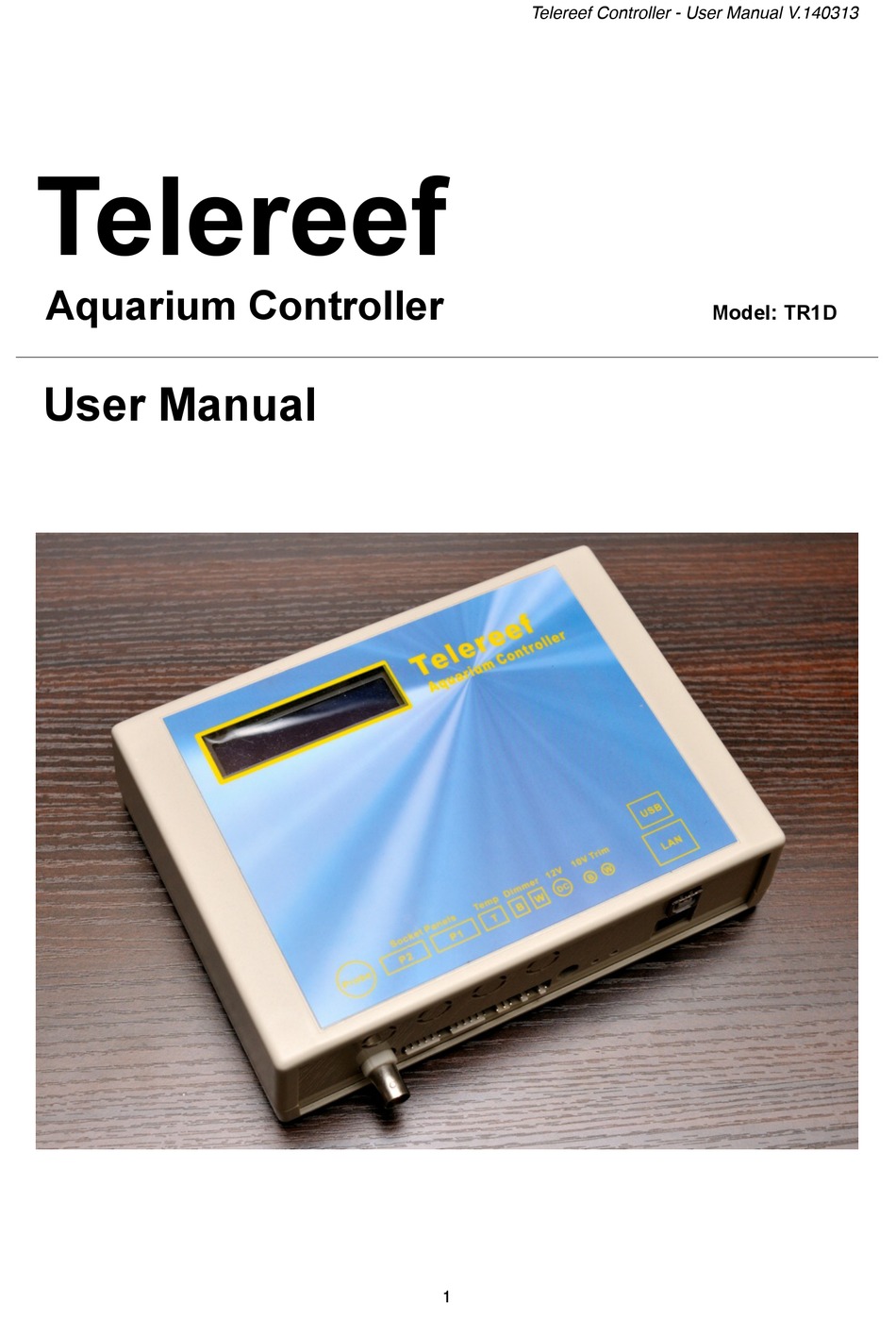

Telereef Controller - User Manual V.140313!
!
Telereef
Aquarium Controller
Model: TR1D
User Manual


1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR1D and is the answer not in the manual?

Questions and answers

Summary of Contents for Telereef TR1D

  • Page 1 Telereef Controller - User Manual V.140313! Telereef Aquarium Controller Model: TR1D User Manual
...
  • Page 2 Aquarium live image (IP Cam)! Trusted IP! Wireless Network Connection! Factory Reset and Network Reset! Firmware update! If problem persists, please contact us at info@telereef.com for help.! 19! Set WDP in pair mode! Details of Telereef’s Web interface! Home page! Setup page!

  • Page 3: Understand Your Telereef Controller

    Scientific pH Circuit which provides continually pH measurement to the aquarium with one touch calibrating feature. Please follow “First Time Setup” section to setup your Telereef Controller. You may need to do a Network Reset if the Telereef Controller was ever connected to other network, please refer to “Network Reset and Factory Reset”...

  • Page 4: First Time Setup

    • Obtain IP Address and set up system time! Because of simplified no button design, the only way to set up Telereef Controller is through the Telereef’s Web Interface. First thing to do is find out how to connect to Telereef Controller through the network connection.

  • Page 5: Setup An Internal Fixed Ip Address And New Password

    5. Push “Save” button to save the settings. If you forgot the password or a wrong IP address has been used then you may not able to connect to Telereef Controller any more, the only way to fix it is perform a system reset...

  • Page 6: Setup Temperature Probe

    • Setup Temperature Probe!
 There is a temperature sensor on Telereef main board; it used to report the internal temperature of Telereef Controller to prevents overheating problem. The temperature which is display on Home page is referred to the internal temperature sensor before an external temperature probe has been setup.
...

  • Page 7: Adjust 10V Dimmer Output

    • Adjust 10V dimmer output!
 Telereef TR1D provides two dimming channels for LED dimmable driver (eg. Mean Well ELN-60-48D), one for White LEDs and one for Blue LEDs. Two dimming channels output 0 - 10V to controls the brightness of each channel. These dimming channels have been factory adjusted 10V at 100% output before shipping;...

  • Page 8: Lcd Display

    Telereef Controller - User Manual V.140313! LCD Display! The LCD on Telereef Controller provides some useful information for both setup and daily usage. When system starting, LCD shows model, firmware version and IP Address.



 After system started, LCD cycling 4 pages with different information •...

  • Page 9: Further Setup

    Make sure the relay has enough rating to controls the device.

 You can connect Telereef Controller to Relays/Sockets module with a signal cables. You can purchase this cable from our reseller, or make it by yourself easily. Most Relay...

  • Page 10: Temperature Controller For Chiller And Heater

    Controller activates the chiller and heater, so it will not affect the normal operation of Telereef Controller, it also works as secondary emergency cut off in case the relay module is out of order or wrong setting is applied on Telereef Controller.

  • Page 11: Timers

    • Timers!
 There are six different kinds of timer can be set up in Telereef Controller
 Regular Timer : Turn on and turn off specific socket in specific time range, weekly schedule can also be applied.
  • Page 12 Telereef Controller - User Manual V.140313!
 For example, if you connected a traditional dosing pump (not Telereef WDP) on S5, the dosing pump has been adjusted a dosing speed at 1ml/s, the target dosage of additive is 12 ml per day, the setting of this Interval Timer will be like this
...

  • Page 13: Wireless Dosing Pumps

    5. Put only ONE WDP device in Pair Mode (See instruction on WDP manual) 6. Reload Wireless Dosing Pump settings page. 7. If WDP Device is in range and found, message "Found unpaired Telereef WDP" will display together with the Device ID and Firmware Version.

  • Page 14: Settings Export/Import And Micro Sd Memory

    API Key to API Key field inside System Settings page.! Install Notify My Android from Google Play! https://market.android.com/details?id=com.usk.app.notifymyandroid! To test the Push notification, turn off Telereef Controller and turn on again, you will a push notification on your Smart Phone. ! • Settings Export/Import and Micro SD Memory! Telereef Controller pre installed a 2GB Micro SD memory card (located on Ethernet Shield) used to store system settings, logs, and devices current usage information.

  • Page 15: Ftp Server For Logs Backup

    file is in simple CSV text format that can be easily open by any text editor or import to the spreadsheet program and named with the date format. Upcoming Telereef iOS App also uses the data in log file to draws graph for each sensor.!

  • Page 16: Aquarium Live Image (Ip Cam)

    S8ON ! - Socket 8 time usage in seconds! • Aquarium live image (IP Cam)
 The web interface of Telereef Controller can put the live aquarium still image on Home page, so you can see the change after made an instruction.! To put the still image on Home page, an IP Cam with the image upload feature and a simple web server is needed.

  • Page 17: Trusted Ip

    URL, if you can see the image that means the configuration is correct, next step is input this URL into Telereef Controller.! Login to Telereef Web Interface from Smart Phone and go to Setup page, scroll download to “More” section near the bottom of Setup page push “System” button.! Inside the System Setting page, you will find a setting "Image URL,"...

  • Page 18: Factory Reset And Network Reset

    Telereef Controller will be online and ready!! • Factory Reset and Network Reset! Telereef Controller comes with a Reset Plug which used to put Telereef Controller back to factory setting. The Reset Plug is a six pins connector which used to plug into P1 or P2 port to reset the system.!

  • Page 19: Set Wdp In Pair Mode

    Telereef Controller - User Manual V.140313! 1. From the LCD display.
 2. From the footer of Web Interface

 We recommend to export the settings before performing firmware update. Please refer to “Settings Import/Export and Micro SD Memory” section for details.! A Desktop computer running Windows XP or Windows 7 is needed to performing firmware update (Mac OS X version will be available later).!

  • Page 20: Details Of Telereef's Web Interface

    Telereef Controller - User Manual V.140313! Now, WDP is in pair mode. Use your smartphone connect to your Telereef Controller, click into Pair Wireless Dosing Pump, an unpaired WDP will be found. WDP Beep Sound and LED Indicator Event Beep Sound...

  • Page 21: Setup Page

    Socket Name Setting page. For power consumption, operating cost or usage estimation. a. Pump # - Pump number of Telereef Wireless Dosing Pump and the chemical name which assign to this pump. b. 1ml Button - Instant add 1ml of chemical to the aquarium.
  • Page 22 Q. Reference unit - rate / power consumption and unit of this socket.
 R. Pair Button - Push this button to go into Wireless Dosing Pump Setting page to discover and pair New Telereef Wireless Dosing Pump unit. S. Edit Button - Setup chemical name, pump speed and calibrate wireless dosing pumps.

  • Page 23: Timer Settings Page

    Telereef Wireless Dosing Pump. You just simply setup how much dosage need to be dose within a defined period of time, Telereef will calculate how much and how often to run the pumps. A. Start - Starting time of the schedule. Time format is hh:mm:ss, system accept input time without second (ie hh:mm).
  • Page 24 Telereef Controller - User Manual V.140313! Dimming Timer Dimming Timer is used to setup brightness of the LED lighting schedule by varying the DC output of 0-10V dimmer. A. Start - Starting time of the schedule. Time format is hh:mm:ss, system accept input time without second (ie hh:mm).

  • Page 25: System Settings

    Telereef Controller - User Manual V.140313! C. DOW - Day of Week selection, select which day the schedule is enabled. D. Socket - The socket to be switch off during the time period. Interval Timer Interval Timer is used to setup a schedule which continually switch on and switch off a socket relay for specified interval of time.

  • Page 26: Socket Name Settings

    Telereef Controller - User Manual V.140313! N. FTP User - Login user name of the FTP Server. O. FTP Password - Login password of the FTP Server. P. FTP Folder - The folder name on FTP Server used to store the log files.

  • Page 27: Ph Sensor Settings

    Telereef Controller - User Manual V.140313! • pH Sensor settings! A. Raise pH Upper - The upper pH value of the raise pH equipment. pH level raise above this value will switch off related relay/socket. B. Raise pH Lower - The lower pH value of the raise pH equipment.
  • Page 28 Telereef Controller - User Manual V.140313! D. Stock(ml) - Amount of additive remains in storage. Please update this value each time after refilled the stock.! E. 1 min Run button - Button used to run the dosing pump one minute for testing and calibrate purpose.! F.
