Summary of Contents for Compac MAL-BS52 series

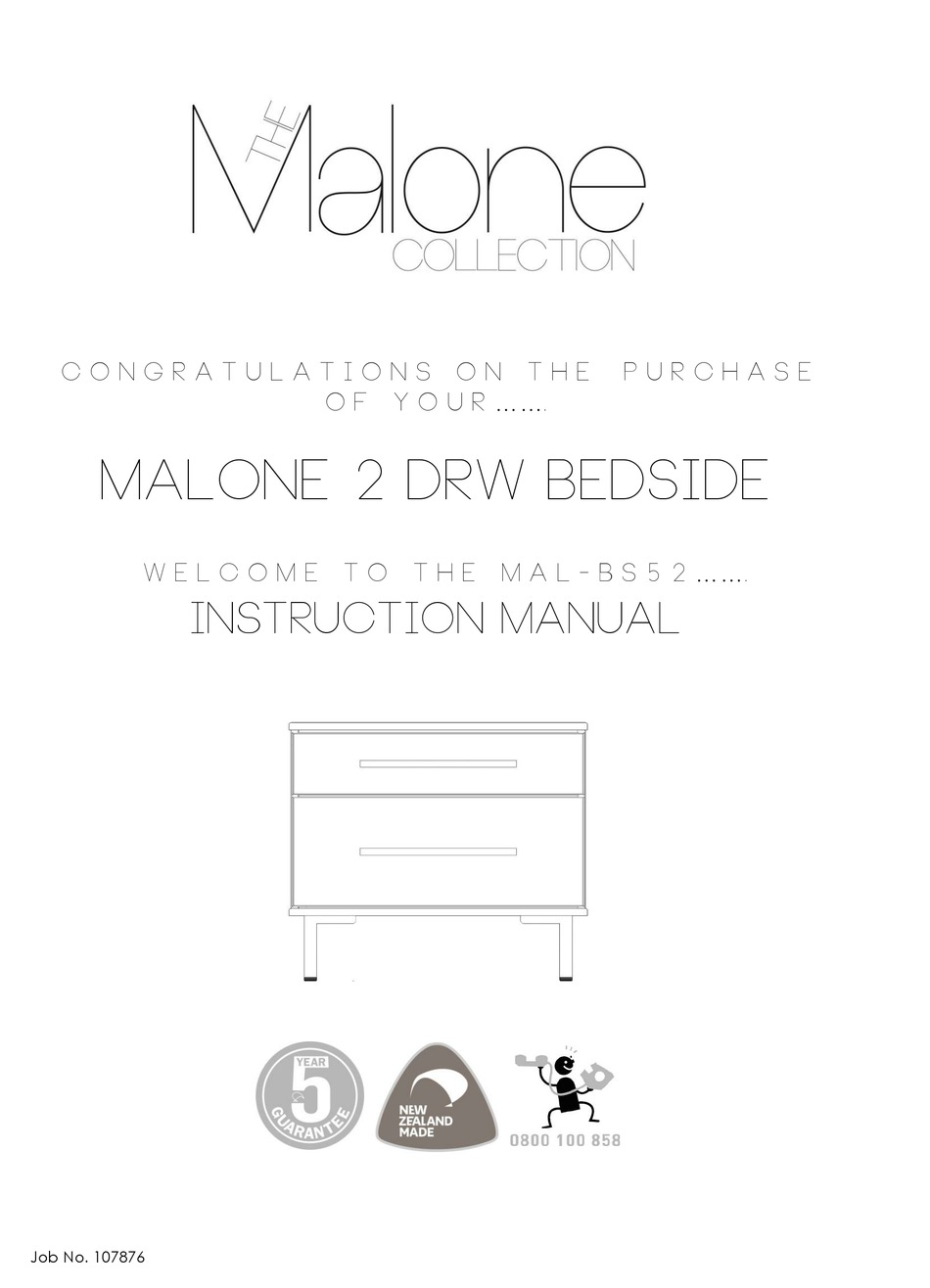

- Page 1 C o n g r a t u l a t I o n s O N t h e p u r c h a s e o f y o u r ……. Malone 2 Drw bedside W e l c o m e t o t h e M A L – b s 5 2 ……. Instruction Manual Job No.
- Page 2 MALONE – MAL-BS52 Did you know…… ……the Malone Collection is manufactured right here in New Zealand - by New Zealanders, for New Zealanders. Honest Kiwi Quality that is backed by our signature 5 Year Guarantee*. If by any chance you have a problem during this period, OUR promise to YOU is that we will repair or replace.
-
Page 3: Parts List
MALONE – MAL-BS52 PARTS LIST Please check you have all the necessary parts before beginning to assembling your Bedside. measurements provided will help you to identify each part. If any parts are missing or damaged please contact the manufacturers directly, either via our website or our 0800 number. Do not call the store you bought the cabinet from as they will be unable to help you. - Page 4 MALONE – MAL-BS52 HARDWARE LIST CABINET HARDWARE PART NAME ASSEMBLY CODE PICTURE MANUFACTURERS CODE Connecting Bolts 102649 15mm Cams 102511 Dowels 102515 Small Silver Screws 106618 Large Screws 102648 Metal Drawer Slide sets 102482 Bar Handles 102472 Gold Panhead Screws 106118 Tall Feet 106092...
- Page 5 MALONE – MAL-BS52 CAM INSTALLATION & OPERATION GUIDE The Cam and Connecting Bolt system is used to put your unit together. Below is an explanation of how this system works. To see a demonstration click on the assembly assistance tab at www.warehousefurniture .co.nz DRAWER SLIDES GUIDE Your pack will contain 2 sets of Full Extension Drawer Slides.
- Page 6 MALONE – MAL-BS52 INSTALL THE HARDWARE STEP 1 - TOP Lay the Top of the unit finished side down on a clean, clear surface. Screw four H1 Connecting Bolts into the holes as indicated in the drawing below STEP 2 –...
- Page 7 MALONE – MAL-BS52 STEP 3 – RH END Lay the RH End on a smooth clean surface with holes facing upwards. Attach two Cabinet Drawer Slides to the RH End using the H61 Small Silver Screws . Use the holes as indicated in the diagram below - each slide requires two screws.
- Page 8 MALONE – MAL-BS52 STEP 5 – Back Panel Carefully turn the bedside onto its Top. Take the Back Panel. Slide this into place between the grooves in the Ends. STEP 6 - BASE Attach the Base using the four H5 Large Screws. Ensure the finished side of the Base faces into the inside of the Bedside STEP 7 - BASE...
- Page 9 MALONE – MAL-BS52 ASSEMBLE THE DRAWERS Your Malone 2 Drawer Bedside has two drawers. Both Drawers are constructed from the same parts and are therefore assembled the same way. To see a demonstration of drawer together, click RH Drw Side assembly assistance tab at www.farmersfurniture.co.nz STEP 8 -...
- Page 10 MALONE – MAL-BS52 STEP 9 – sides and bottom Lay the Drawer Front face down on a smooth, clean surface. Attach the LH and RH Drawer Sides by fitting them into place over the Connecting Bolts installed in the Drawer Front.
- Page 11 MALONE – MAL-BS52 STEP 11 - ATTACH HANDLES AND FIT DRAWERS INTO CABINET Turn the drawer over and attach the handle using the screws provided. Fit the drawers into the cabinet. Start with the top drawers and work your way down. Holding the Drawer level, fit the Slides installed on the Drawers to the slides installed in the cabinet.
