Carrobot C2 Lite User Manual

Hide thumbs

Table of Contents

Quick Links

Download this manual

Carrobot Lite User Manual

Table of Contents

Need help?

Do you have a question about the Carrobot C2 Lite and is the answer not in the manual?

Questions and answers

Summary of Contents for Carrobot Carrobot C2 Lite

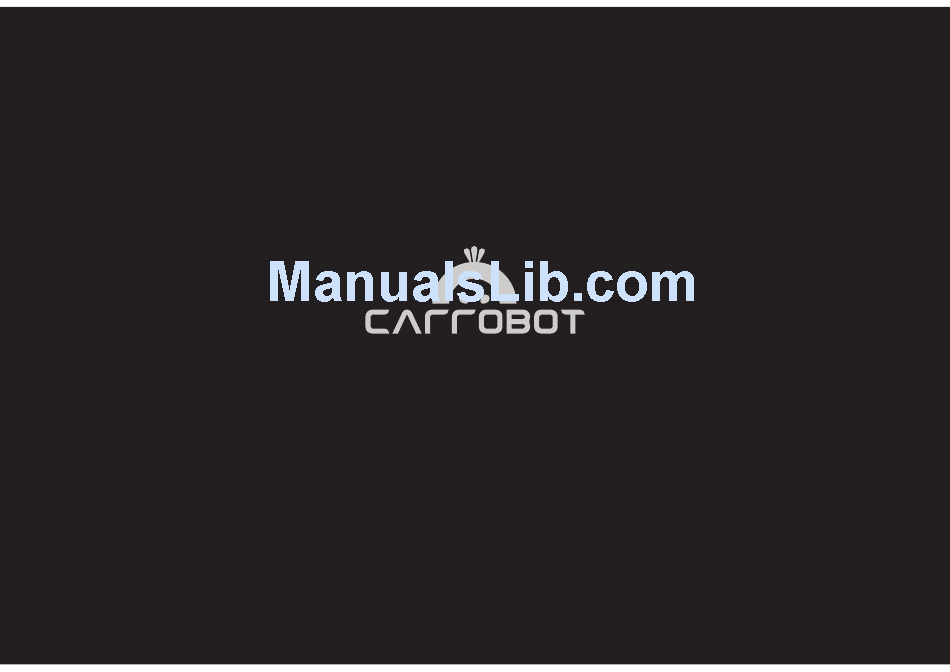

Page 1 Carrobot Lite User Manual...
Page 2 Table of Contents Introduction Disclaimer Carrobot components Installation Power supply instructions Button descriptions Screen cast instructions Troubleshooting Warranty...
Page 3: Introduction

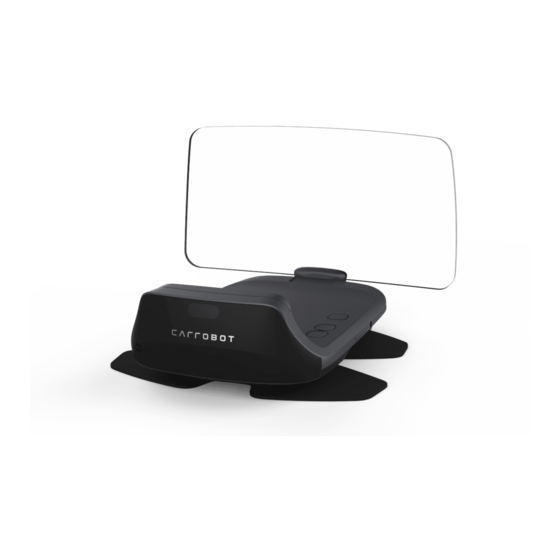

Product Introduction Carrobot Lite is your personal driving assistant which can project your phone's screen on an HUD.It works both with Android phones and iPhones. It is designed to keep you safe and make your journey more efficient and enjoyable.
Page 4: Disclaimer
Looking away from the road can be dangerous. Watching display screens may increase your risk of distraction and accident. Carrobot is not responsible for any damage, injury, or death due to the use of this product. Users assume all liability...
Page 5: Carrobot Components
Carrobot components Standard components: Carrobot, Carrobot power cord Carrobot OBD-II Cigarette Lighter Cable Clamp Cable Connection Terminal Hexagon Spanner...
Page 6: Installation
Installation Install Carrobot on base Adhere Carrobot base to dashboard and adjust angle with hexagon spanner Connect Carrobot with Carrobot OBD-II Open reflective screen and /Cigarette lighter (Carrobot power cord) adjust to appropriate angle...
Page 7: Power Supply Instructions
When Carrobot is connected with Carrobot OBD-II/Cigarette lighter(Carrobot power cord), it will charge whenever you turn it on. We recommend that you charge your Carrobot with the provided Carrobot OBD-II /Cigarette lighter cable. While connected to your car with Carrobot OBD-II/Cigarette lighter cable, the unit can be turned on or off automatically when you operate your vehicle.
Page 8: Button Descriptions
Button descriptions There are three buttons on Carrobot. You can switch between Android screen cast or iPhone screen cast very easily with a short press on the “Model adjustment button”. Model adjustment button Volume up button Volume down button...
Page 9: Screen Cast Instructions
Screen cast instructions Android You can choose either wired or wireless connections to mirror your phone screen to the HUD. Please verify that the HUD is in the correct state to pair with the device before connecting. Wired connection method...
Page 10 Switch Carrobot to Android screen cast mode Note: The Carrobot interface is inactive when the mobile phone is disconnected...
Page 11 Connect the Charger Cable to the HUD OTG Cable...
Page 12 Use the charger cable to connect both the wired connection cable and the phone OTG Cable Charger Cable...
Page 13 Turn on the phone settings and set the USB tethering mode (which is generally located in the system settings - Tethering&portable hotspot)
Page 14 Please choose “allow the use of this computer debugging” in the pop-up prompt box, then click OK and wait until the Carrobot connects, you can now screen cast. Note:All sounds will play from phone...
Page 15 Wireless connection method Switch Carrobot to Android screen cast mode Note: The interface is inactive when mobile phone is disconnected...
Page 16 Please choose “Multi-cast” in your phone setting screen Note: It will display in different names for different brand phone, such as “Cast”, “Multi-cast”...
Page 17 Connect your phone with "C2-Lite-xxxxxx" device, when the Carrobot receives the signal, you can then begin the screen cast. Note: If the projection image is displaying vertically on Carrobot's HUD screen, attempt to rotate phone into landscape position and check the phone's display settings if needed.
Page 18 iPhone You can choose either wired or wireless connections to mirror your phone screen to the HUD. Please verify that the HUD is in the correct state to pair with the device before connecting. Wired connection method...
Page 19 Switch Carrobot to iOS screen cast mode Note: The interface is inactive when the mobile phone is disconnected...
Page 20 Connect Charger Cable to the HUD OTG Cable...
Page 21 Use the Charger Cable to connect both OTG Cable and the phone OTG Cable Charger Cable...
Page 22 Choose “Trust” in the pop-up prompt box...
Page 23 &KRRVH WKH V\VWHP VHWWLQJV WKHQ WXUQ RQ \RXU SKRQH·V KRWVSRW ZDLW IRU WKH WRS tip "personal hot spots: 1 connection"...
Page 24 Turn on ”AirPlay mirroring", select the "C2-Lite-xxxxxx" device. Once the Carrobot receives the signal, you can then begin to screen cast. Note: If the projection image is displaying vertically on Carrobot's HUD screen, attempt to rotate phone into landscape position and check the phone's display settings if needed.
Page 25 Wireless connection method Switch Carrobot to iOS screen cast mode Note: This interface is inactive when the mobile phone is disconnected...
Page 26 Turn on “Wi-Fi”,connect your phone with "C2-Lite-xxxxxx" device...
Page 27 Turn on ”AirPlay mirroring", select the "C2-Lite-xxxxxx" device. Once the Carrobot receives the signal, you can then begin to screen cast. Note: If the projection image is vertical screen display screen, please try to cross screen phone rotation state and check the settings if needed.
Page 28: Troubleshooting
What is the difference between Carrobot Lite and Carrobot Pro? Carrobot Lite must be operated with the Phone APP on your mobile device while Carrobot Pro can operate as a standalone device Can I insert a SIM card into Carrobot Lite for Internet? 1R \RX FDQ·W...
Page 29 Will GPS navigation be interrupted when the phone is ringing? Yes, it will, as the GPS navigation application is installed on the phone. Can I cast any phone app to Carrobot? Yes. (Note: For your safety, restrict screen casting to GPS navigation app while driving.)
Page 30 Is that OK if I cast phone screen to Carrobot with both wired and wireless method? No, it may cause some unpredictable problems. We recommend screen casting in 'Wired Mode' for best results.
Page 31 Carrobot Lite Carrobot C2 Lite Carrobot C2 Lite OBD-II Accessories Cigarette lighter adapter 1-core Pair with Mobile App Operating Mode 160.08mm about 8ft. Projected Distance 162mm 18 inches Virtual image size Automobile standard TFT LCD Display Multi-layer nanometer optical coated acrylic Screen Type 8o2.11 b/g/n,support WIFI connecting and hotspot...
Page 32: Warranty
1 YEAR LIMITED WARRANTY This Warranty for Carrobot Lite (the "Device") is provided by Beijing iLeja Tech. Co., Ltd. The provider of this warranty is sometimes referred to herein as "we." We warrant the Device against defects in materials and workmanship under ordinary consumer use for one year from the date of original retail purchase.
Page 33 If you are having trouble with the product, please contact our technical support at email: carrobot@carrobot.com with your questions or comments. If your product is eligible to receive warranty, request for warranty service online by visiting http://en.carrobot.com/.
Page 34 Accessories Warranty We also provide warranty policy for Carrobot accessories which are purchased from Carrobot or our licensed distributors. Note: Gifts are not included...
Page 35 Product warranty card Product warranty card Product Name: Carrobot Lite EAN: S/N: Purchasing date: Customer information Customer Name: Customer phone number: Customer address:...
Page 36 FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 37 Beijing iLeja Tech Co.Ltd Beijing iLeja Tech. Co., Ltd., Tencent Incubator, No. 338 Huilongguandong Street, Changping District, Beijing, China Contact us:carrobot@carrobot.com...
