SCION
Preparation
Part Number: PT374-02090
Kit Contents
Item #
Quantity Reqd.
1
1
2
1
3
1
Hardware Bag Contents
Item #
Quantity Reqd.
1
2
2
1
3
1
4
1
5
9
6
6
7
1
8
1
Additional Items Required For Installation
Item #
Quantity Reqd.
Conflicts
Non-sunroof models
Recommended Tools
Personal & Vehicle
Protection
Blankets, Towels
Special Tools
None
Installation Tools
Ratchet
Socket
Torx Head Driver
Small Screwdriver
Pliers
Side cutters
Nylon Panel Removal Tool
Dark Towel or Cloth
Torque Wrench
Special Chemicals
Cleaner
Issue: C
05/20/13
tC
Description

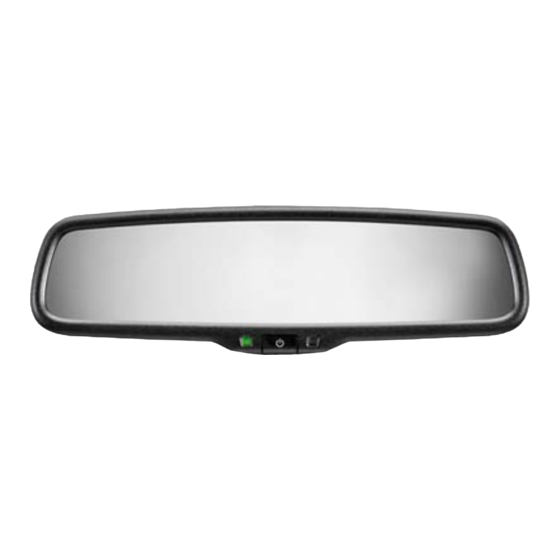

AD Mirror Assembly
w/ PRNDL Light
Hardware bag
Instructions
Description
T-tap Connectors, Red 3M
Wire Cover (short)
Wire Cover (long)
EC Wire Harness
Foam Tape
Wire Ties, small
Corrugated tubing
Operation Instruction Card
Description
Notes
Notes
Notes
10 mm
T20
Flat Blade
Needle Nose
e.g. Panel Pry Tool #1
Toyota SST# 00002-06001-01
For Testing
48 lbf-in
Notes
VDC approved
2011 -
General Applicability
All models with sunroof.
Recommended Sequence of Application
Item #
Accessory
1
2
3
4
TM
Vehicle Service Parts
Item #
Quantity Reqd.
1
Legend
STOP: Damage to the vehicle may occur. Do not
proceed until process has been complied with.
OPERATOR SAFETY: Use caution to avoid risk of
injury.
CAUTION: A process that must be carefully observed
in order to reduce the risk of damage to the
accessory/vehicle and to ensure a quality installation.
TOOLS & EQUIPMENT: Used in Figures calls out the
specific tools and equipment recommended for this
process.
REVISION MARK: This mark highlights a change in
installation with respect to previous issue.
SAFETY TORQUE: This mark indicates that torque is
related to safety.
Page 1 of 11 pages
EC REARVIEW MIRROR
*Mandatory
(may be required for reassembly)
Description
Advertisement
Related Manuals for Scion PT374-02090
Summary of Contents for Scion PT374-02090
- Page 1 SCION 2011 - EC REARVIEW MIRROR Preparation Part Number: PT374-02090 Kit Contents General Applicability Item # Quantity Reqd. Description All models with sunroof. AD Mirror Assembly Recommended Sequence of Application w/ PRNDL Light Item # Accessory Hardware bag Instructions Hardware Bag Contents Item # Quantity Reqd.
- Page 2 Vehicle Disassembly/Reassembly (panel removal, part storage, etc.). Electrical Component Disassembly/Reassembly (battery disconnection, connector removal, etc.). Please see your Scion dealer for a copy of this document. 10 mm Wrench 1. Remove Battery Cable. (a) Protect fender before starting.
- Page 3 SCION 2011 - EC REARVIEW MIRROR Procedure (c) Pull downward to remove overhead console. (1) Ensure removal of all (4) white plastic clips. (Fig. 2-3) Clip Clip Fig. 2-3 (d) Carefully pull down the dome light assembly to expose the light connector. (Fig. 2-4)
- Page 4 SCION 2011 - EC REARVIEW MIRROR Procedure 3. Install T-taps. (a) Locate the disconnected 5 pin dome light connector. (Fig. 3-1) 5-Pin Connector Fig. 3-1 (b) Attach a T-tap to the BROWN wire (Pin #2) with needle nose pliers approximately 1 inch from the connector.
- Page 5 SCION 2011 - EC REARVIEW MIRROR Procedure 4. Install EC Mirror. Foam Tape (a) Apply one (1) piece of foam tape to the pinch Pinch Weld weld between the windshield and the headliner above the center of the mirror. (Fig. 4-1) (1) Do not use excessive force when pulling Fig.
- Page 6 SCION 2011 - EC REARVIEW MIRROR Procedure Foam Tape (g) Wrap one (1) piece of foam tape around EC mirror connector and EC harness connector. (Fig. 4-5) EC Mirror / Harness Fig. 4-5 Connector (h) Install the SHORT wire harness cover over the wire harness.
- Page 7 SCION 2011 - EC REARVIEW MIRROR Procedure (k) Plug the BLACK/RED wire spade end of the EC mirror harness into T-tap connector on the LIGHT GREEN wire from the 10 pin sunroof motor connector. (Fig. 4-9) (1) Ensure that the spade end is properly seated in the T-tap.
- Page 8 SCION 2011 - EC REARVIEW MIRROR Procedure (o) Place bundle in an open area located to the Foam Block right of the dome lamp opening. (Fig. 4-13) Wire Harness Bundle Fig. 4-13 (p) Secure the bundle to the headliner using (2) Foam Block pieces of foam tape.
- Page 9 SCION 2011 - EC REARVIEW MIRROR Procedure 5. Testing (a) If not installed, install the short pin located in Compass the engine compartment fuse box. Display Window (b) Temporarily reconnect the vehicle’s negative AUTO battery cable. Rearward Green LED Photocell (c) Turn ignition switch to ON.
- Page 10 SCION 2011 - EC REARVIEW MIRROR Procedure 6. Final Assembly. Windshield Headliner (a) Reinstall the visor clips. Stem (b) Reinstall the overhead console. (1) Reconnect any disconnected connectors. High position (2) Ensure components are securely fastened and do not interfere with existing OE or EC harnesses.
- Page 11 SCION 2011 - EC REARVIEW MIRROR Checklist - these points MUST be checked to ensure a quality installation. Check: Look For: Accessory Function Checks Vehicle should be in a fairly well lit area. Turn ignition (ACC power) to ON. Verify green LED is on. If it is not ON press On / Off button - confirm LED is ON.
