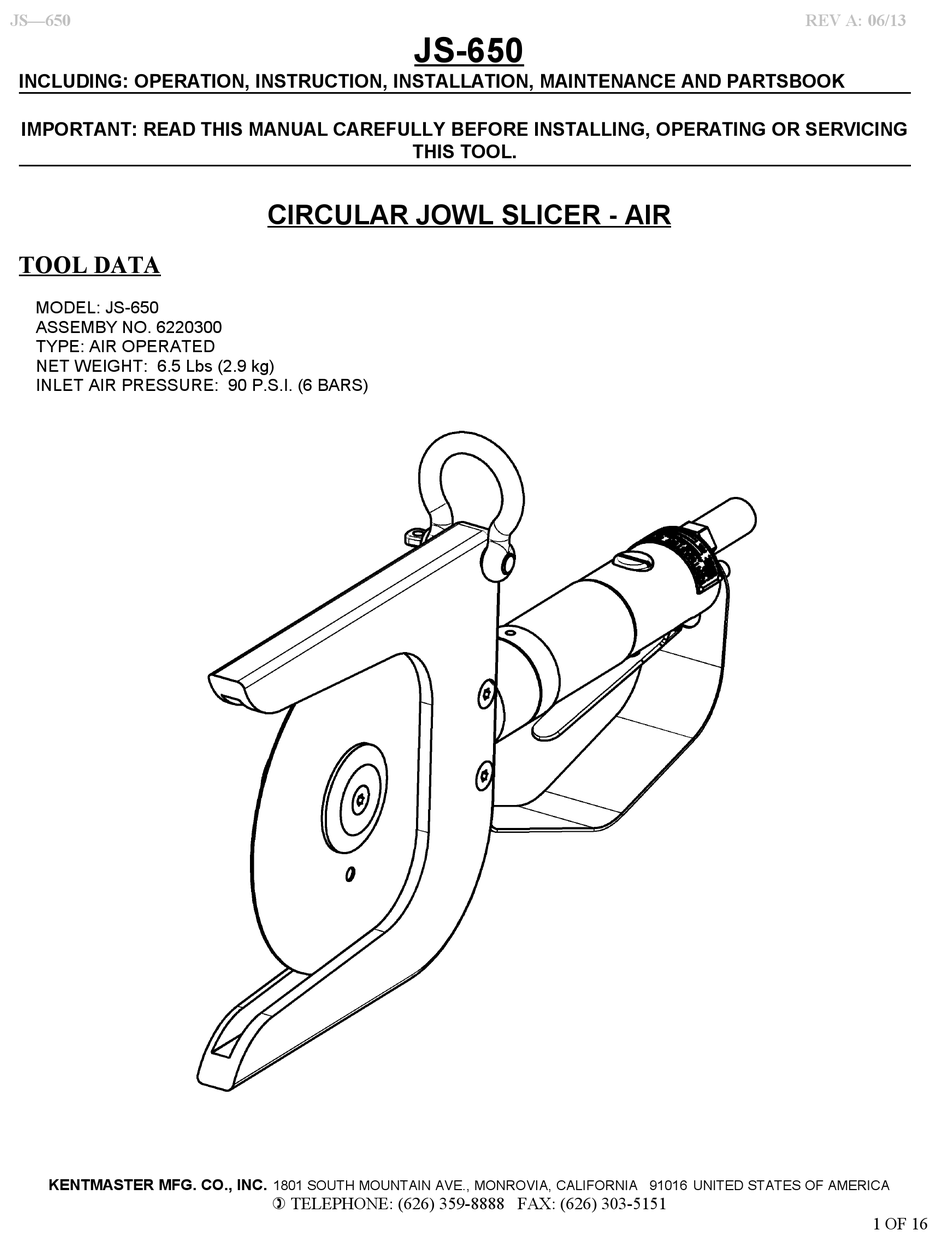

JS—650

INCLUDING: OPERATION, INSTRUCTION, INSTALLATION, MAINTENANCE AND PARTSBOOK

IMPORTANT: READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING

TOOL DATA

MODEL: JS-650

ASSEMBY NO. 6220300

TYPE: AIR OPERATED

NET WEIGHT: 6.5 Lbs (2.9 kg)

INLET AIR PRESSURE: 90 P.S.I. (6 BARS)

KENTMASTER MFG. CO., INC.

JS-650

THIS TOOL.

CIRCULAR JOWL SLICER - AIR

1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA

 TELEPHONE: (626) 359-8888 FAX: (626) 303-5151

REV A: 06/13

1 OF 16

Need help?

Do you have a question about the JS-650 and is the answer not in the manual?

Questions and answers

Summary of Contents for KENTMASTER JS-650

Page 1: Tool Data
TYPE: AIR OPERATED NET WEIGHT: 6.5 Lbs (2.9 kg) INLET AIR PRESSURE: 90 P.S.I. (6 BARS) KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 1 OF 16...
Page 2 THE NOISE EMISSION (SOUND PRESSURE LEVEL) AT THE WORKSTATION MAY EXCEED 80 dB (A). EAR AND SOUND PROTECTION GEAR IS REQUIRED. WARNING KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151...
Page 3: Operating Instructions
TOOL REQUIRES GREASING AT START OF EVERY SHIFT. GREASE USING KENTMASTER GREASE (PART NO. 7903070). FLUSH AIR MOTOR AT END OF EACH DAY’S USE BY SQUIRTING A FEW SQUIRTS OF KENTMASTER AIR OIL MIST (PART NO. 7903050) DIRECTLY INTO THE AIR INLET PORT. RUN TOOL A FEW SECONDS TO COAT AND PROTECT THE AIR MOTOR AND INTERNAL PARTS OF TOOL.
Page 4 SERVICE KEEP GOOD RECORDS OF ALL SERVICE ACTIVITY AND INCLUDE TOOL IN PREVENTIVE MAINTENANCE PROGRAM. USE ONLY GENUINE KENTMASTER REPLACEMENT PARTS TO ASSURE PROPER PERFORMANCE OF TOOL. CONTACT THE KENTMASTER SUPPLIER NEAREST YOU FOR PARTS AND CUSTOMER SERVICE INFORMATION. PARTS BOOK KENTMASTER MFG.
Page 5 JS—650 REV A: 06/13 MODEL JS-650, CIRCULAR JOWL SLICER Figure 1 MODEL JS-650 KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 5 OF 16...
Page 6 SET SCREW 8462040 ANCHOR SHACKLE 8620080 8640030 DRIVE SCREW Figure 2 BOM FOR MODEL JS-650 KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 6 OF 16...
Page 7 6201230 RETAINER NUT 6201240 SLEEVE 8236020 SCREW 8255460 SCREW Figure 4 6200230: DRIVEN CARTRIDGE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 7 OF 16...
Page 8 PINION GEAR 6201210 SHIM WASHER 6221021 SLEEVE 8503120 8600420 Figure 5 6220201: DRIVE CARTRIDGE ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 8 OF 16...
Page 9 4501430 WRENCH, SLEEVE HOLDER (1-1/4) ITEM DESCRIPTION SPECIAL TOOLS (OPTIONAL) Figure 6 : SPECIAL TOOLS (OPTIONAL) KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 9 OF 16...
Page 10 3. REPLACE PARTS AS NEEDED. 4. REASSEMBLE PARTS IN REVERSE ORDER. Figure 7 GEAR HOUSING ASSEMBLY PROCESS KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 10 OF 16...
Page 11 2. REPLACE PARTS AS NEEDED. 3. REASSEMBLE PARTS IN REVERSE ORDER. Figure 8 6210800: AIR MOTOR ASSEMBLY, SC-550 & SC-650 KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151...
Page 12 6211620 PLANETARY CARRIER 6211630 GEAR, RING 8620060 PIN, PLANETARY GEAR Figure 9 6210810: PLANETARY GEAR ASSEMBLY KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE., MONROVIA, CALIFORNIA 91016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 12 OF 16...
Page 13 [ENGLISH] GENERAL INFORMATION MODELS JS-650 : CIRCULAR JOWL SLICER – AIR (6220300) _______________________________________________________________________________ SERVICE CENTER KENTMASTER MFG. CO., INC. 1801 SOUTH MOUNTAIN AVE. MONROVIA, CALIFORNIA 910016 UNITED STATES OF AMERICA  TELEPHONE: (626) 359-8888 FAX: (626) 303-5151 KENTMASTER MFG. CO., INC.
Page 14 8. If this tool is sold or change in ownership takes place, you must provide the new owner all safety instructions, notices and maintenance instructions you were originally provided. You can obtain additional copies of the instructions from Kentmaster, free of charge upon request. 9. Give copies of instructions to: (A) Tool Operators...
Page 15 Kentmaster Worldwide Location Kentmaster Equipment (Aust) PTY.LTD. Kentmaster South Africa (PTY) LTD. Unit 2,24 Central Court Johannesburg - S. Africa Browns Plains Qld. 4118 Unit 54 Sunnyrock Park Australia Sunrock Close, Germiston South Africa Telephone: (07) 3806-8400 Fax: (07) 3806-7933 Telephone: (27) 11-455-3748 Australia@Kentmaster.com...
Page 16 INDEX......................................16 FIGURES - INDEX..................................16 FIGURES - INDEX Figure 1 MODEL JS-650................................5 Figure 2 BOM FOR MODEL JS-650............................6 Figure 3 6201250: GEAR HOUSING ASSEMBLY........................7 Figure 4 6200230: DRIVEN CARTRIDGE ASSEMBLY......................7 Figure 5 6220201: DRIVE CARTRIDGE ASSEMBLY........................8 Figure 6 : SPECIAL TOOLS (OPTIONAL)..........................9 Figure 7 GEAR HOUSING ASSEMBLY PROCESS........................10...
