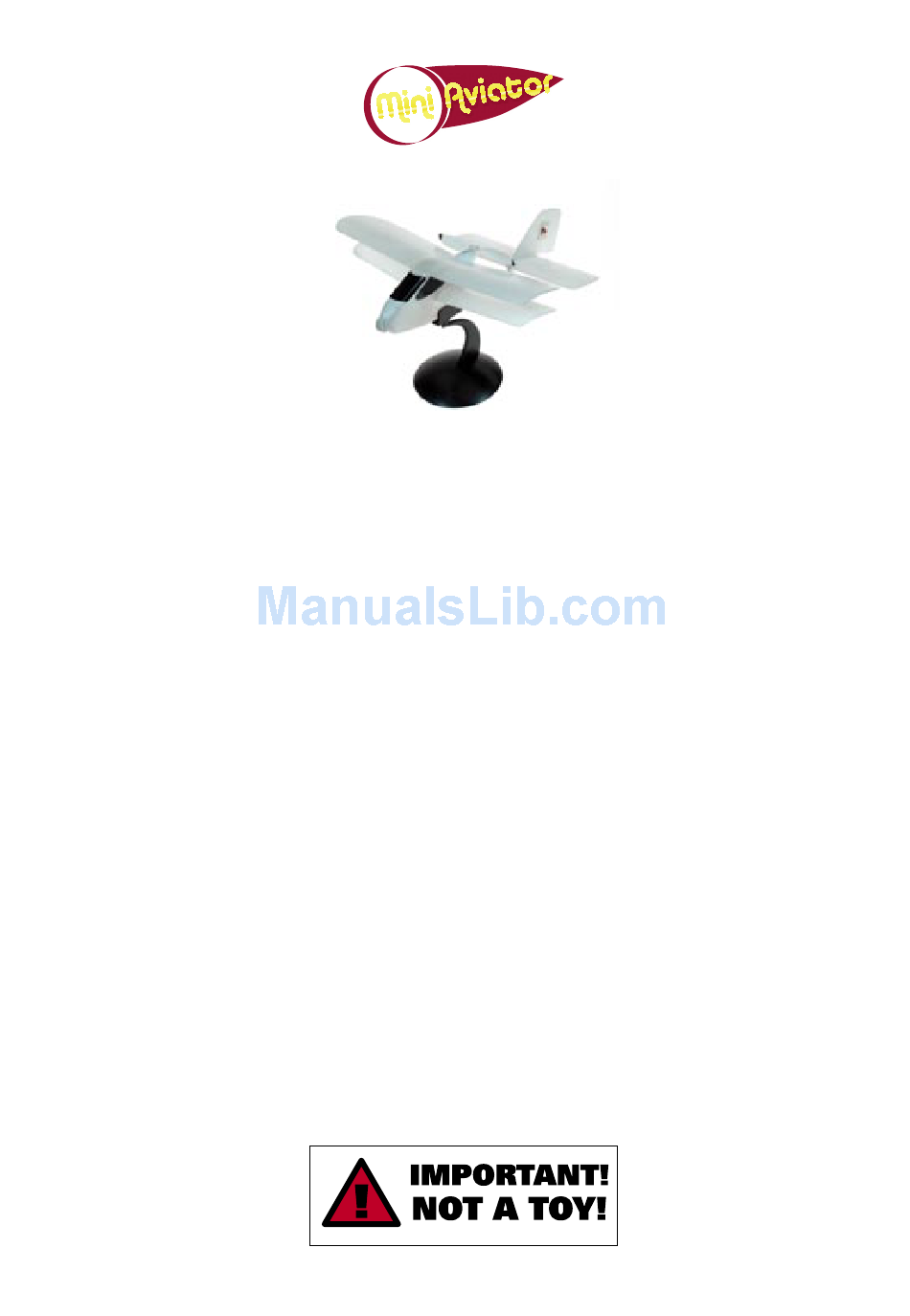

Living Room R/C Flyer
Instruction Manual
& Flight Guide
Specifications
Wingspan ............................ 200mm .................... 8ins
Length .................................. 220mm .................... 8.75ins
Flying weight....................... 8.4g.......................... 1/3oz
Range ................................... 12m.......................... 40ft
Flying speed ........................ 2m/sec.................... 6.6ft/sec
Remote control ................... rudder and motor control
Flight time ............................ approx. 10 minutes
Features
❏ Living Room R/C action!
❏ Ready to fly indoors- just add batteries and charge
❏ Proportional throttle and steering controls
❏ Perform climbing, descending, turning and landing flight
❏ Transmitter rudder trim for precision flying
❏ Rechargeable Li-poly battery built into model
❏ Recharge aircraft from the transmitter
❏ Around 10 minutes flying time per charge
Items required
AA alkaline batteries ......... x4
#5500250
Advertisement
Table of Contents
Summary of Contents for Mini Aviator Living Room R/C Flyer
-
Page 1: Instruction Manual
Living Room R/C Flyer Instruction Manual & Flight Guide Specifications Wingspan ......200mm ....8ins Length ........220mm ....8.75ins Flying weight....... 8.4g......1/3oz Range ........12m......40ft Flying speed ......2m/sec....6.6ft/sec Remote control ....rudder and motor control Flight time ...... - Page 2 Before assembling and flying this model, please read this manual thoroughly. The Mini Aviator uses the very latest materials, battery and electronics technology to provide the ultimate professional indoor flying experience with flight durations of around 10 minutes per charge. The manoeuvrability and flight handling of the model is exceptional and provides a great deal of fun for both...
-
Page 3: Kit Contents
Be very gentle - the model is made from very lightweight - and in some cases, delicate materials. Note that alkaline batteries for the transmitter are not included 1. Transmitter 2. Mini Aviator 3. Display stand 4. Instruction manual Fitting transmitter batteries ▼... -
Page 4: Transmitter Features
Transmitter features Familiarise yourself with the transmitter features illustrated below: Power indicator LEDs Infra-red emitters Charging indicator Rudder stick Throttle stick left and right climb and descent Rudder trimmer Charge lead compartment On/Off/Charge Transmitter flight functions switch Familiarise yourself with the transmitter functions and how they will affect your aircraft in flight: Push throttle stick forward to climb Push left to turn left Push right to turn right... - Page 5 Open the charge lead compartment door and remove the charge lead as in the photo below. ▼ 2. Plug the charge lead into the charge socket (under the nose of the plane) of the Mini Aviator. IMPORTANT! The charge lead is polarised and fits displaying a small moulded triangle uppermost as illustrated below.
- Page 6 ▼ �4. When the onboard Li-poly battery is fully charged, the LED will change from red to green. The Mini Aviator is ready for flight. Carefully disconnect the charge lead from the model and stow the lead in the transmitter.
- Page 7 2 channel RC series How to fly: Launch technique Make sure you are familiar with the controls and that you are in the largest room you can find with as few obstacles as possible. ▼ � Move throttle stick halfway (to half power) and launch the model gently from shoulder height and with the wings level and fuselage horizontal.
- Page 8 Living Room R/C Flyer Australasia agents: Model Engines, Melbourne, Australia www.modelengines.com.au European agents: J Perkins Distribution, Lenham, England www.jperkinsdistribution.co.uk Copyright J Perkins Distribution Ltd, Model Engines (Aust.) Pty. Ltd 2007.
