Summary of Contents for Nu-Set 7010
- Page 1 Smart-Box™ Series Electronic Lockbox User Manual Model: 7010, 7060 www.nuset.com...
- Page 2 © 2010-2012 NU-SET, Division of Loyal International, Inc.. All rights reserved. Reproduction prohibited without prior written permission. NU-SET and Smart-Box are either registered trademarks or trademarks of Loyal International Incorporated in the United States and/or other countries. All other trademarks may be used in this document are the property of their respective owners.
- Page 3 Important Notice Before using the unit, please read this user manual carefully and test all functions thoroughly by following the instructions in this manual. ❖ This product is designed for a working voltage of 6V only. Any attempt to input a larger voltage will result in irreversible damages which are not covered by warranty.
- Page 4 Smart-Box™ Layout ………………………………………………………………………………… 6 Setting Up the Smart-Box™ ………………………………………………………………………… … 7 Installing Batteries ………………………………………………………………………………… 7 Locking & Unlocking Shackle (7010 Model Only) …………………………………… 7 Changing Shackle Combination (7010 Model Only) ………………………………… 7 Mounting Wall-Mount Lockbox (7060 Model Only) ………………………………… 7 Saving the Application ….………………………………………………………………………...
-
Page 5: Introduction
Introduction Thank you for purchasing the NU-SET® Smart-Box™ Series electronic lockbox. To get your lockbox ready, please read this manual thoroughly. Should you experience technical difficulties using our products, please call our customer support at 1-800-606-8738 for assistance. ▀ Items Included ✔... -
Page 6: Hardware Interface

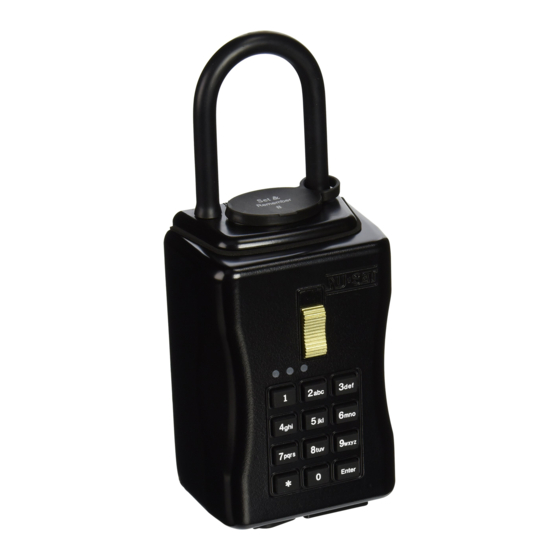

❺ #7010 #7060 ➊ Combination Locking Shackle (7010 Model Only) A 4-number combination lock which protects lock box from unauthorized removal. ➋ Sliding Lever Lock Battery powered lever lock. Slide up ↑ to lock and slide down ↓ to unlock ➌... -
Page 7: Setting Up The Smart-Box
Refer to the software session on how to setup the owner passwords and to define the user access codes. ▀ Locking & Unlocking Shackle (7010 Model Only) ➊ To unlock the shackle, simply roll the dials to the last preset combination and lift the shackle. -
Page 8: Saving The Application
Always perform the setup as a member of the Administration group. ▀ Saving the Application Locate the “NU-SET Smart-Box” folder, click and drag the whole folder onto the local ➊ drive (for Windows) or onto the Applications folder (for Mac OS X). When complete, the following folder should be visible. - Page 9 When the “Open” window pops up, select the USB drive from the drop down list, click on the file named “logfile”, and click “open”. ❽ The serial number of the new Smart-Box will be displayed at the top drop-down list. NU-SET Smart-Box Series Lockbox User Guide...
-
Page 10: Using The Smart-Box
For security reason, users are strongly encouraged to change all of the above passwords before using the lockbox. Click “Save Password & PINs” at the bottom of the screen and click “OK” to save a copy of the pin file to the USB flash drive. NU-SET Smart-Box Series Lockbox User Guide... -
Page 11: Setting Up Access Pin
Click the [GENERATE] button to generate PINs based on your setting. e. Click the [CLEAR] button to delete all PINs generated. To edit PIN, Access Duration or Remark, click the corresponding cell to enter new data. Hit the ENTER key on keyboard to save. NU-SET Smart-Box Series Lockbox User Guide... - Page 12 One Time PINs do not need to be saved or programmed to the Smart-Box. They can be generated (as soon as the Smart-Box is properly set up) remotely and are 8-digit in length. a. Click on the [New One-Time Pin] button on the application. A new window will appear. NU-SET Smart-Box Series Lockbox User Guide...
- Page 13 Enter a remark in the Remark field. Click the [GENERATE PIN] button to generate the one time PIN. The one time PIN appears at the bottom, as well as on the main application screen. NU-SET Smart-Box Series Lockbox User Guide...
-
Page 14: Saving Pin
Objective: Program and transfer PINs to lockbox using Program Password 22222222. ☞ + Enter ✍ The 8-digit manufacturer program password is preset to '22222222'. Refer to the "Changing Owner Password" section to reset a new Program Password. NU-SET Smart-Box Series Lockbox User Guide... -
Page 15: Locking & Unlocking Lockbox
Unplug the USB drive from the Smart-Box and plug into the computer’s USB port. The computer should recognize the USB drive automatically and assign a drive letter (i.e., E:\). ❻ On the application window, click on the “Access Log” tab, and click on the “Upload Access Log” button. NU-SET Smart-Box Series Lockbox User Guide... -
Page 16: Printing Pin
The serial number of the Smart-Box (which the logfile originates from) will be displayed at the top drop-down list, and the access log is displayed on the main screen. ▀ Printing PIN Click on the [Print] button on the Pin Generation tab to print generated PINs. NU-SET Smart-Box Series Lockbox User Guide... -
Page 17: Setting Up Administration Password
Admin Password” field. Enter the same password in the “Confirm” field and hit [Save]. ➋ Click [OK] on the confirmation screen and restart the application. ➌ The “Administration” tab cannot be viewed until the correct password is entered. NU-SET Smart-Box Series Lockbox User Guide... -
Page 18: Backing Up & Restoring Database
Database] button. This feature backs up all serial numbers registered onto the application, as well as all corresponding PINs and access log information. ➋ Click [Save] to save the zip file onto the “NU-SET Smart-Box” folder. ➌ To restore database, click on [Restore Backup] under the “Administration”>”Applicaton” tab, and click [OK] when the below warning message pops up. -
Page 19: Terms & Warranty Information
Product. No action arising out of any claimed breach of this warranty by NU-SET may be brought by the Original User more than one (1) year after the cause of action has arisen.
