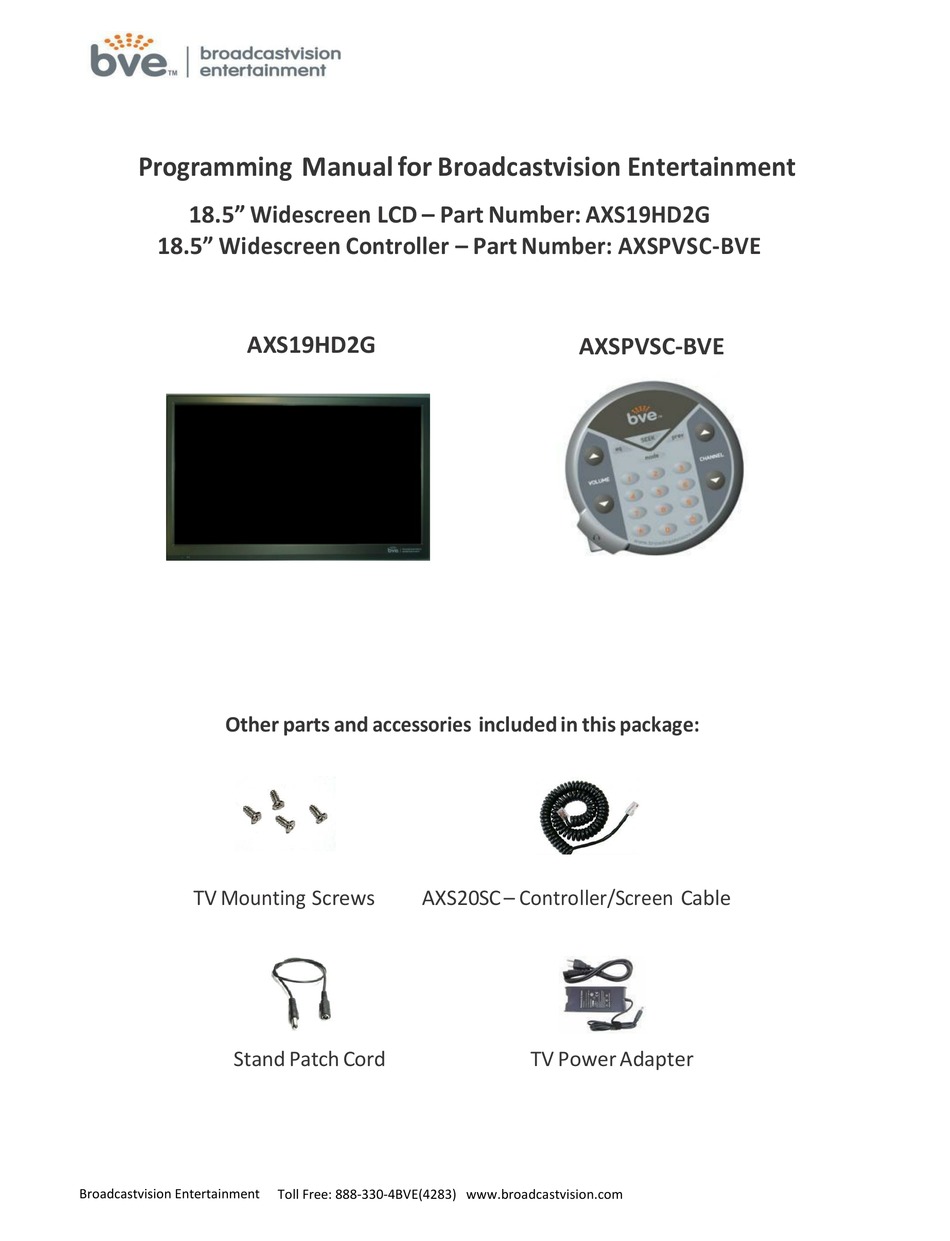

Programming Manual for Broadcastvision Entertainment

18.5" Widescreen LCD – Part Number: AXS19HD2G

18.5" Widescreen Controller – Part Number: AXSPVSC-BVE

AXS19HD2G

AXSPVSC-BVE

Other parts and accessories included in this package:

TV Mounting Screws

AXS20SC – Controller/Screen Cable

Stand Patch Cord

TV Power Adapter

Broadcastvision Entertainment  Toll Free: 888-330-4BVE(4283) www.broadcastvision.com

Table of Contents

Need help?

Do you have a question about the AXS19HD2G and is the answer not in the manual?

Questions and answers

Summary of Contents for BVE AXS19HD2G

Page 1 Programming Manual for Broadcastvision Entertainment 18.5” Widescreen LCD – Part Number: AXS19HD2G 18.5” Widescreen Controller – Part Number: AXSPVSC-BVE AXS19HD2G AXSPVSC-BVE Other parts and accessories included in this package: TV Mounting Screws AXS20SC – Controller/Screen Cable Stand Patch Cord TV Power Adapter...
Page 2 READ FIRST Please note the following before installing your personal screen and controller.  Do not plug the controller into the screen until the channels are programmed. The TV will not program using the wireless remote if the controller is connected to the ...
Page 3 Table of Contents Summary Screen Features Safety Information Remote Features Picture Menu Sound Menu Time Menu Setup Menu 9-10 Lock Menu Channel Menu QUICK SETUP GUIDE & CONTROLLER PROGRAMMING FEATURES 13-16 Broadcastvision Entertainment  Toll Free: 888-330-4BVE(4283) www.broadcastvision.com...
Page 4 Thank you for your purchase of the Broadcastvision Personal Viewing Screen. This product has been designed specifically for use in the health and fitness industry ensuring maximum performance and longevity. With proper care, this product will provide years of high-quality entertainment. Screen Features Broadcastvision Entertainment Screen Size...
Page 5: Safety Information
Before You Begin Important Safety Information IMPORTANT! Read all instructions for installation & maintenance of this product before installing and using it. Follow all cautionary labeling on the product.  In order to prevent personal injury or product damage, do not expose this product to rain or excessive moisture.
Page 6  Avoid dropping anything on or spilling anything inside the product. Fluids will damage the product.  Do not attempt to disassemble or otherwise service the product. There are no user-serviceable parts inside.  Do not allow foreign objects to enter the product. This may cause personal injury and/or cause damage to the product.
Page 7: Remote Features
Remote Features POWER: To set the TV to standby or power on MUTE: To disable or enable the sound MODE: To display TV input source menu MENU: To display LCD TV menu RECALL: Return to previous channel. VOL+/-: To adjust sound level NUMBER KEY: Used to select channel, in Teletext mode.
Page 8: Picture Menu
PICTURE MENU This first item of the menu is the PICTURE menu You can adjust the following, such as PICTURE MODE, CONTRAST, BRIGHTNESS, COLOR, TINT, SHARPRESS and ADVANCED VIDEO. 1. Press buttons to move the cursor to the item to be selected. 2.
Page 9 Sharpness Press buttons and then use to adjust the sharpness level of picture. Color temper: Press buttons to select normal/cool/warm. Blue Screen: Press buttons to select on/off. Broadcastvision Entertainment  Toll Free: 888-330-4BVE(4283) www.broadcastvision.com...
Page 10: Sound Menu
SOUND MENU The second item of the menu is the SOUND MENU 1. Press buttons to move the cursor to the item to be selected. 2. Press button to adjust. 3. When you are satisfied with your adjustments, press the MENU or EXIT to exit the main menu.
Page 11: Time Menu
Audio Language Press buttons to select one of the audio languages such as English/French and Spanish, but the language code must be programmed for this option to be available. If there is no selection it has not been programmed for this model. TIME MENU 1.
Page 12: Setup Menu
SETUP MENU 1. Press the button to move the cursor to the item to be selected. 2. Press the buttons to make adjustments. 3. When you are satisfied with your adjustments, press the MENU button to exit the main menu. Menu Language Press buttons and then use...
Page 13 Closed Caption CC Mode Press buttons and then use buttons to show CC mode and select on/off. Basic Selection Press buttons and then use buttons to show CC1/CC2/CC3/CC4 mode. Advanced Selection Press buttons and then use buttons to show Service1/2/3/4/5/6 mode. Restore Default Press buttons and then use...
Page 14: Lock Menu
Lock Menu After input the password, you can open the lock menu, the default password is 0000. Broadcastvision Entertainment  Toll Free: 888-330-4BVE(4283) www.broadcastvision.com...
Page 15: Channel Menu
Channel Menu 1. Press buttons to move the cursor to the item to be selected. 2. Press buttons to adjust. 3. When you are satisfied with your adjustments, press the MENU to exit the main menu. Air/Cable Press buttons to move the cursor to select Air/Cable mode and buttons to select air or cable mode.
Page 16 damage to the screen. Programming instructions for 18.5” AXS19HD Screen & AXS19TVC2 Screen Controller. In order to program the screen you must follow these steps first:  Connect the TV to an active cable line. Power the TV by plugging in the supplied power adapter. ...
Page 17 Using the channel up and down buttons, select AIR/CHANNEL . You will have 2 options, either CABLE or AIR. AIR will give you limited analog channels where as CABLE will give you all channels including digital. Select the proper option by pressing the volume button on the wireless remote.
Page 18 Programming the Controller and Special Features The screen has many built in features that can be simply added by programming special code sequences in the controller. Below is a list of code sequences based on your requirements.   Auto-off feature This feature will enable the screen to automatically turn off after 15 minutes if no controller buttons are pressed and if there is no headphone inserted in the headphone jack.
Page 19  Enable ‘SOURCE’ Button to Function as Selecting Multiple Sources This feature will allow the user to simply press the Source key to select different sources that may be connected to one of the inputs on the screen, example: IPOD, DVD Player, etc. Enter the following button sequence *, 1, source, 1, 9, source ...
