Andover Controls UI-8-10 Technical Manual

Hide thumbs

Advertisement

Table of Contents

UN-RELEASED
REVIEW COPY
2/20/98
Technical Manuals Online! - http://www.tech-man.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UI-8-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Andover Controls UI-8-10

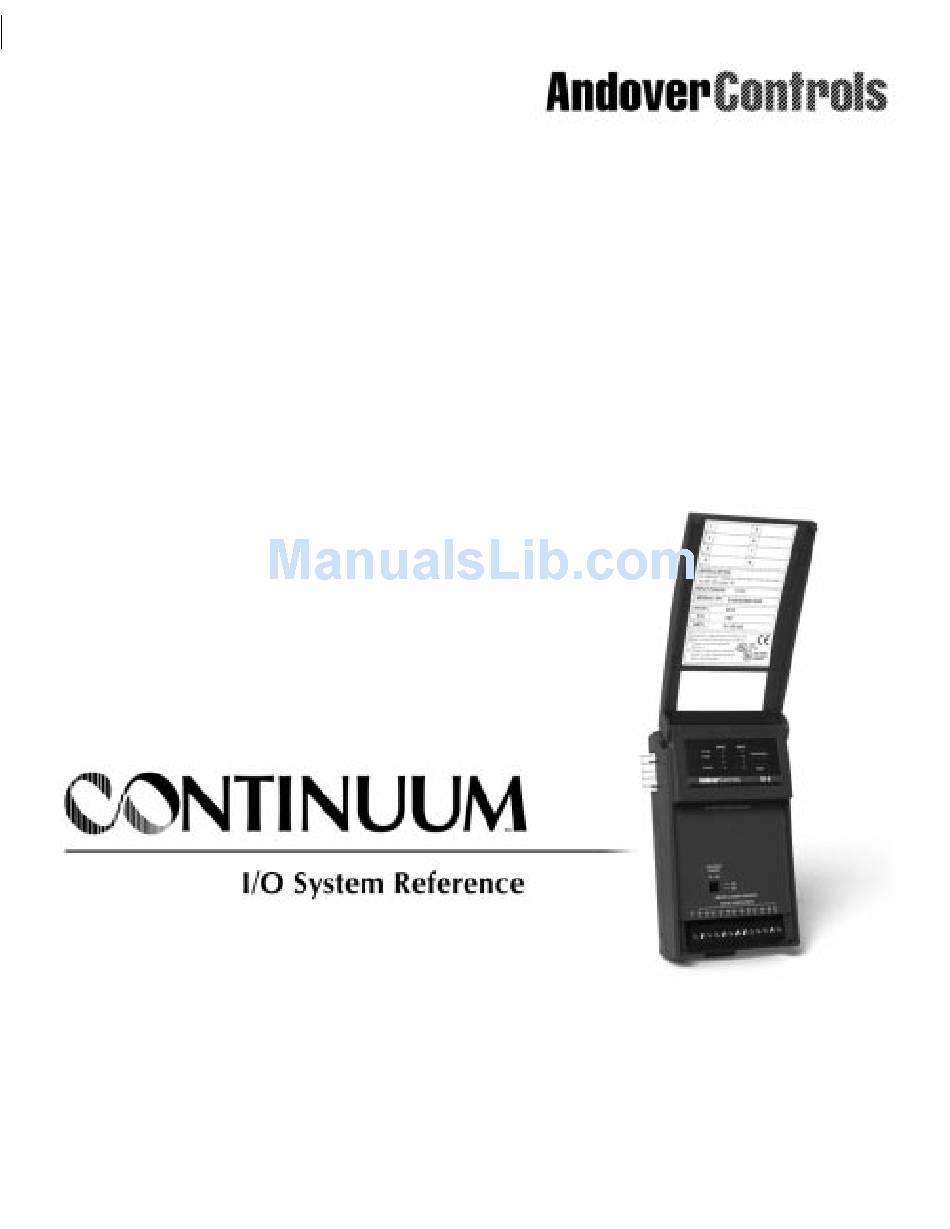

  • Page 1 UN-RELEASED REVIEW COPY 2/20/98 Technical Manuals Online! - http://www.tech-man.com...
  • Page 2 Andover Controls Corporation. Produced in the United States of America. Infinity is a trademark of Andover Controls Corporation. All other trademarks are the property of their respective owners. Continuum I/O Reference, Version: REVIEW February, 1998...
  • Page 3 Radio Interference This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications.
  • Page 4 Andover Controls Corporation Technical Manuals Online! - http://www.tech-man.com...
  • Page 5 Maximum Length of I/O Bus.............12 Connecting Remote I/O Modules with RS-485......12 Termination Guidelines ............13 Individual Module Characteristics........ 17 General Wiring Concerns............17 INPUT Modules UI-8-10 / UI-8-10-10V ..............19 DI-6-AC / DI-6-AC-HV ..............35 DI-8 ....................43 MI-6....................53 OUTPUT Modules DM-20 ..................61 AO-4-8 / AO-4-8-O ..............73 DO-4-R / DO-4-R-O ..............83...
  • Page 6 Andover Controls Corporation Technical Manuals Online! - http://www.tech-man.com...
  • Page 7 This document covers the standard Input and Output modules. For information regarding the special Continuum enclosure door-mounted display modules consult the Andover Controls Continuum Display Module Reference . Continuum I/O System Reference Technical Manuals Online! - http://www.tech-man.com...

  • Page 8: Introduction

    They connect directly and communicate with the CPU. The following is a typical architecture drawing of a Continuum System: Power Supply Controller I/O Modules Continuum I/O modules are available in INPUT, OUTPUT, MIXED and DISPLAY varieties. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 9 The INPUT modules available are: • UI-8-10; Universal Input Module • UI-8-10-10V; Universal Input Module • DI-6 AC; AC Digital Input Module • DI-6 AC HV; AC Digital Input Module • DI-8; Digital Input Module • DM-20; Digital Input/Output Module (for DIO-20) •...

  • Page 10: Mechanical Installation

    Note: In order to meet agency requirements, it is necessary that the modules along with the power supply and controller be housed in another metal enclosure i.e., a NEMA box or the new Andover Controls Continuum enclosure. The standard I/O module plastic case is illustrated below: Status Indicators &...
  • Page 11 Wiring to controlled points or sensors is accomplished via a standard removable screw terminal block located at the bottom of the module behind the door. An open area at the bottom of the case allows wires to exit in an appropriate manner. On the back of each module are molded DIN rail guide fingers.
  • Page 12 Once the module is in the desired position, it is locked to the rail by pushing the bottom clamps inward. After the bottom is secure, press the top clamp inward to complete the operation. Andover Controls Technical Manuals Online! - http://www.tech-man.com...

  • Page 13: Overall Dimensions

    Overall Dimensions The overall dimensions of the standard I/O case are as shown: 6.70'' (170.2 mm) 3.50 '' 2.50 '' (88.5 mm) (63.5 mm) Continuum I/O System Reference Technical Manuals Online! - http://www.tech-man.com...
  • Page 14 Enclosure-Mounted Modules The modules that are designed to be mounted to the new Andover Controls Continuum enclosure fit into openings left by removing panels in the front door. The new enclosure provides a place to mount a power supply, CPU and up to ten DIN rail mounted I/O modules.
  • Page 15 The front door of the enclosure contains removable sections into which special operator display and control modules may be mounted. Alternately, Plexiglas panels may be used to view the status lights of all internal modules when the door is closed. Removable Display Panels Spacers for...

  • Page 16: Power-Cpu Connections

    Communications between the CPU and I/O modules is through a two-signal serial interface that can be internally configured as either RS 485 or Echelon LON FTT-10. Pins 1 and 2 (Comm B and Comm A) provide the electrical connection for this interface. Andover Controls Technical Manuals Online! - http://www.tech-man.com...

  • Page 17: Connection Of I/O Modules

    Connection between the modules is one-to-one straightforward wiring as shown below: This connector is available from Andover Controls under part number 01-2050-283; Wieland manufactures it under part number 25.340.0553.0. Continuum I/O System Reference...

  • Page 18: Maximum Number Of I/O Modules

    When locating an I/O module remotely it is necessary to add a 120 terminator to the bus to compensate for the distance. The terminator must be connected at both ends of the bus for proper operation. Andover Controls Technical Manuals Online! - http://www.tech-man.com...

  • Page 19: Termination Guidelines

    Termination Guidelines The following are typical installations that indicate the placement of the terminator: Simple CPU and 1 remote I/O Module: The I/O Bus that needs to be terminated is the one formed by the cable attaching the remote module to the CPU. In this case, a terminator resistor is connected across the communications lines (pins 1 &...
  • Page 20 (pins 1 & 2) at the NetController and again at the remote I/O module. Local Local 120 Ω Resistor 120 Ω Remote Resistor Module Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 21 CPU with local and several remote I/O Modules: The I/O Bus that needs to be terminated is the one formed by the cable that starts at the NetController and ends at the first remote module. The bus that extends from the NetController through the local I/O stack and the one that starts at the first remote module and extends through subsequent modules do not need termination.
  • Page 22 I/O modules, the terminator is placed at the first module of the stack as indicated in the scenario described on the previous page. 120 Ω Resistor Remote 120 Ω Remote Resistor Module Module Andover Controls Technical Manuals Online! - http://www.tech-man.com...

  • Page 23: Individual Module Characteristics

    Individual Module Characteristics This section of the document describes the various I/O modules and presents interfacing information. Each module is presented in its own mini-section. The part number designator for the module being described is printed on the outer edge of each page. General Wiring Concerns for All Modules Do not remotely ground any part of the input sensor wiring.
  • Page 24 Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 25 0-5 volt input range and 10 bit A/D conversion. The UI-8-10-10V model is available for 0-10V applications. It provides the identical point type selection; but is equipped with individual voltage divider DIP switches on each input, allowing each to be configured for a 0-10 volt range.
  • Page 26 24V AC/DC allowed to any single input (40V transient voltage suppressor on each input – UI-8-10-10V) Input Impedance: 5 MΩ w/pull-up disabled; 10 KΩ w/pull-up enabled – UI-8-10 (4.4 KΩ w/pull-up enabled in 0-10V mode UI-8-10-10V) Input Connections: Two-piece, 13-position removable terminal block...
  • Page 27 UI-8-10 I/O Connections The actual input connections are located on a twelve-position removable screw terminal connector located at the bottom of the module. Input wires should enter from either the top or bottom wiring troughs, and should come from the left side of the rack (by convention).
  • Page 28 Each Universal input is read every 100 milliseconds. This reading is independent of the controller scan time. The following is a simplified schematic of both the UI-8-10 and the UI-8-10-10V Universal inputs:...
  • Page 29 UI-8-10 Each input includes a low-pass filter after the pull-up formed by a series resistor and a parallel capacitor. The resistor is utilized for over-voltage protection in limiting current to two protection diodes (not shown). Note also that all input returns are combined and must be directly connected to earth ground.
  • Page 30 UI-8-10 Input Voltage Range Selection Switches (UI-8-10-10V Only) The UI-8-10-10V module allows you to choose from two input voltage ranges. Selection is accomplished by using a switch arrangement that is similar to the operation of the pull- up resistor switches. The Voltage Range switches allow you to select a range (0-5 V) or (0-10 V) for each input.
  • Page 31 UI-8-10 Measuring Temperature UI-8-10 inputs may be configured to sense temperature by configuring one of the module’s inputs appropriately. This is done by setting the Electrical Type to either ACC Temp (DEG F) or ACC Temp (DEG C) . Connect a resistive thermistor sensor to that input terminal.
  • Page 32 UI-8-10 Wire Gauges and Corresponding Maximum Runs for Sensing Temperatures Up to 70 °F (21 °C) 1/2 °F (.28 °C) Error 1/4 °F (.14 °C) Error 1/10 °F (.06 °C) Error Gauge 26,700 ft. 13,300 ft. 5,300 ft. 8150 m...
  • Page 33 UI-8-10 Wire Gauges and Corresponding Maximum Runs for Sensing Temperatures Up to 150 °F (65 °C) 1/2 °F (.28 °C) Error 1/4 °F (.14 °C) Error 1/10 °F (.06 °C) Error Gauge 4,100 ft. 2,000 ft. 800 ft. 1250 m...
  • Page 34 UI-8-10 Measuring DC Voltages The UI-8-10 inputs may be configured to sense DC voltage by setting the Electrical Type to Voltage and connecting the input terminals to a DC voltage source within the range of the module’s input specifications. The following is a schematic representation of the...
  • Page 35 The circuit shown above is a simple two-resistor voltage divider connected to one of the UI-8-10 module’s inputs. The input circuitry of the module can measure a maximum of either 5 Volts or 10 Volts (UI-8-10-10V only). Therefore, the voltage measured across Rinput must not exceed this maximum.
  • Page 36 UI-8-10 Assuming you know the maximum voltage reading you are trying to measure (V source perform the following steps to determine the resistance values necessary to condition the input for the module. 1. First, determine the current that will flow through the divider. Pick a value that your source can supply.
  • Page 37 UI-8-10 Sensing Digital Inputs or Contact Closures Digital input points are designed to allow the monitoring of logic level signals or contact closures across an input (contact wired between the input and return). • When monitoring a digital logic level signal, the pull-up resistor must be disabled (set to OFF).
  • Page 38 UI-8-10 Counting Pulsing Signals or Contact Closures Counter inputs are designed to allow the monitoring of digital pulse trains or contact closures across an input just like digital inputs, but they accumulate a total of those closures and act like a counter.
  • Page 39 UI-8-10 Status/Control Panel Status Indicators The UI-8-10 module includes a complete indicator status panel on the front of the module. POWER COMMISSION COMM STATUS RESET UI-8 This panel includes indicators reporting on the status of the following: This green indicator illuminates when DC power is applied through the POWER Power/IO Bus.
  • Page 40 Andover Controls Technical Manuals Online! - http://www.tech-man.com...

  • Page 41: Di-6-Ac / Di-6-Ac-Hv

    DI-6-AC The DI-6-AC, Continuum’s digital AC input module, has six digital (“wet”) AC inputs for cost-effective ON-OFF status indication of fan motor starters, solenoid valves, control relays, or external power supplies, and similar applications that require a quick and easy way to detect voltage.
  • Page 42 DC Input Voltage Range: 20-132V 90-250V DC Input Current: 5mA max. 2mA max. DC Voltage “ON” Threshold: (Above this voltage is considered “ON”) DC Voltage “OFF” Threshold: (Below this voltage is considered “OFF”) Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 43 DI-6-AC I/O Connections The actual input connections are located on a twelve-position removable screw terminal connector located at the bottom of the module. Input wires should enter from either the top or bottom wiring troughs, and should come from the left side of the rack (by convention).
  • Page 44 Converter 275V DI-6-AC OptoCoupler 100K IN x AC to DC Converter 275V 100K DI-6-AC-HV The main difference between the two is the DI-6-AC-HV circuit includes a front end that supports the higher voltages. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 45 DI-6-AC Sensing AC or DC Digital Inputs Digital input points are designed to provide an ON or OFF reading of a signal (wired between the input and return). Normally you would associate an AC or DC voltage input with a value measurement, however, the DI-6 modules include a voltage level trigger that senses the presence of a range of voltages and converts those readings to ON and OFF indications.
  • Page 46 More information on using this indicator may be found in the Troubleshooting section of this manual. These red indicators (one for each channel) illuminate when an ‘ON’ INPUT condition is sensed. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 47 DI-6-AC This panel also includes two operator switches that perform the following: After physical installation and during configuration through the COMMISSION Continuum workstation, pressing this button registers the module’s address with the system. For more information, refer to the section on Configuring I/O found earlier in this manual.
  • Page 48 Andover Controls Technical Manuals Online! - http://www.tech-man.com...

  • Page 49: Di-8

    DI-8 The DI-8, Continuum’s digital input module, is used for cost-effective sensing of multiple dry digital inputs in applications such as equipment status monitoring or alarm point monitoring. The DI-8 has eight digital inputseach can be software configured to accept a digital (contact closure or 0-5 volt input) or counter signal.
  • Page 50 Channels 1 and 2 in HI-speed mode: Frequency: 10KHz max. Pulse Width: 50 µs min. Current: 0.5mA Channels 3 through 8; and Channel 1 and 2 in LO-speed mode: Frequency: 10Hz max. Pulse Width: 50 ms min. Current: 0.5mA Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 51 DI-8 I/O Connections The actual input connections are located on a twelve-position removable screw terminal connector located at the bottom of the module. Input wires should enter from either the top or bottom wiring troughs, and should come from the left side of the rack (by convention).
  • Page 52 “slide switch”. Pressing the raised slide marker to the side marked “ON” closes or enables the switch thereby enabling high speed counting. To open or disable the switch position, press the slide marker over to the “OFF” side. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 53 DI-8 Input Circuitry The following is a simplified schematic of the DI-8 Digital Input module: IN x Channels 1 and 2 can be configured to allow high speed counting. The switches on the front of the module substitute different value components for the low pass filter formed by the combination of R and C.
  • Page 54 ‘On’ will occur when the input is at Vref because the contact is open, and ‘Off’ occurs when the input is at 0 volts because the contact is closed. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 55 DI-8 Counting Pulsing Signals or Contact Closures Counter inputs are designed to allow the monitoring of digital pulse trains or contact closures across an input just like digital inputs, but they accumulate a total of those closures and act like a counter. Interfacing is similar to a digital input, however, you set the Electrical Type attribute to Counter instead.
  • Page 56 More information on using this indicator may be found in the Troubleshooting section of this manual. These red indicators (one for each channel) illuminate when an ‘ON’ INPUT condition is sensed. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 57 DI-8 This panel also includes two operator switches that perform the following: After physical installation and during configuration through the COMMISSION Continuum workstation, pressing this button registers the module’s address with the system. For more information, refer to the section on Configuring I/O found earlier in this manual.
  • Page 58 Andover Controls Technical Manuals Online! - http://www.tech-man.com...

  • Page 59: Mi-6

    MI-6 The MI-6, Continuum’s milliamp input module, allows for a direct connection of a 2-wire 0-20mA or 4-20mA sensor to any of the module’s six inputs. The need for an external resistor and an external power supply are eliminated. The MI-6 module is a perfect match for temperature transmitters, humidity and pressure transducers, gas monitors, and other industry-standard sensors with either a 0-20mA or 4-20mA output.
  • Page 60 19.0 to 26.0V (varies with +24V DC input voltage) Input Protection: Each input and the Sensor voltage output includes a transient voltage suppressor (TVS) and a resettable fuse. Input Connections: Two-piece, 13-position removable terminal block Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 61 MI-6 I/O Connections The actual input connections are located on a thirteen-position removable screw terminal connector located at the bottom of the module. Input wires should enter from either the top or bottom wiring troughs, and should come from the left side of the rack (by convention).
  • Page 62 They reset when the current supplied is within range. Note: In some extreme instances, the fuses may require that you remove power to the module temporarily to reset their state. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 63 MI-6 Sensing Current The current supplying sensor is connected as indicated in the following illustration: Supply Loop-Powered Sensor Signal To measure current on an input, configure an input point with an Electrical Type of Current . Continuum I/O System Reference Technical Manuals Online! - http://www.tech-man.com...
  • Page 64 More information on using this indicator may be found in the Troubleshooting section of this manual. This green indicator illuminates when 24V DC power is available to EXTERNAL external sensors. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 65 MI-6 This panel also includes two operator switches that perform the following: After physical installation and during configuration through the COMMISSION Continuum workstation, pressing this button registers the module’s address with the system. For more information, refer to the section on Configuring I/O found earlier in this manual.
  • Page 66 Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 67 DM-20 The DM-20, Continuum’s Digital Input and Output module, provides high density, versatile I/O for many control applications. When coupled with the optional DIO-20 Expansion Board, the DM-20 allows you to mix and match up to 20 digital inputs and outputs.
  • Page 68 Output Resolution: 0.1 sec. For Pulse Width Modulation (PWM) control Output Protection: Transient voltage suppressor (TVS) and current limiting resistor on each channel. I/O Connections: 25-position DB25 Female and one removable three- terminal block. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 69 DM-20 I/O Connections The actual I/O connections are located on a 25-position DB25-type female connector located at the bottom of the module. A separate three-conductor removable screw connector provides 24VDC power to external devices. The inputs are labeled I/O1, I/O2, I/O3, and so forth. Each input/output occupies a single position of the connector.
  • Page 70 They reset when the current draw is back within range. Note: In some extreme instances, the fuses may require that you remove power to the module temporarily to reset their state. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 71 DM-20 Using the DM-20 The DM-20 is primarily designed to directly interface with the DIO-20 or the GA-40 / GA- 80 Graphic Annunciator Panels. However, it can also be used as a general purpose digital I/O module containing 20 points. DIO-20 Interface The DIO-20 Expansion Module provides a connection for up to 20 solid state input or output modules for the I/O channels of the DM-20.
  • Page 72 In both cases, the I/O points are set up to have an Electrical Type of Digital no matter what type of solid-state module is installed. For more information on the DIO-20, refer to its User Manual. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 73 DM-20 GA-40/ GA-80 Interface The GA-40 and GA-80 Graphic Annunciator Panels provide the capability of creating custom display and control panels attached to the Continuum NEMA enclosure or to an auxiliary panel. These panels provide a connection for up to 40 (GA-40) or 80 (GA-80) input switches or output LEDs.
  • Page 74 In both cases, the I/O points are set up to have an Electrical Type of Digital no matter what type of device is installed. For more information on the GA-40/80, refer to its section found in the Continuum Display Module Reference Manual. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 75 DM-20 General Purpose DM-20 Digital Interface The DM-20 can be used to provide 20 general purpose digital inputs and outputs. It is not necessary to interface the module with an external expansion product to use its capabilities. Each channel can be used to output as digital signal or read a digital signal or contact closure.
  • Page 76 This indicator can be manually illuminated from the Continuum workstation and used as a troubleshooting aid when locating a particular module. More information on using this indicator may be found in the Troubleshooting section of this manual. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 77 DM-20 This panel also includes two operator switches that perform the following: After physical installation and during configuration through the COMMISSION Continuum workstation, pressing this button registers the module’s address with the system. For more information, refer to the section on Configuring I/O found earlier in this manual.
  • Page 78 Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 79 AO-4-8 The AO-4-8, Continuum’s analog output module, has four analog outputs with eight-bit resolution, which can be configured as either voltage (0-10VDC) or current (0-20mA) outputs. The AO-4-8 is the perfect choice for valves, dampers, variable speed drives, and similar equipment that demand high control accuracy. An AO-4-8-O model with full override capabilities is also available.
  • Page 80 ±0.2 mA Load Resistance: 650Ω max. Output Overrides: 3-position manual override switch and override (AO-4-8-O only) potentiometer on each output, with software feedback. LED override status indicator. Output Connections: Two-piece, 13-position removable terminal block Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 81 AO-4-8 I/O Connections The actual output connections are located on a thirteen-position removable screw terminal connector located at the bottom of the module. Output wires should enter from either the top or bottom wiring troughs, and should come from the right side of the rack (by convention).
  • Page 82 They reset when the current draw is back within range. Note: In some extreme instances, the fuses may require that you remove power to the module temporarily to reset their state. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 83 AO-4-8 Override Controls The AO-4-8-O model includes an output override switch and manual variable voltage control for each output. MANUAL AUTO ADJUST The output of the module can be directed from program control to manual control. The output can be disabled completely as well. The following describes the actions associated with each position of the override controls: The analog signal generated by the module is controlled...
  • Page 84 Connect the device across the following terminals: OUTx I OUTx V Device ≥ 2K Ω Load Resistance Ω Note: The load resistance (of the external device) must be greater than or equal to 2 K Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 85 AO-4-8 Current Output The current output is a current-sourcing, ground referenced circuit. This output can source 0 - 20 mA with a maximum load impedance of 650 ohms. Configure the output point with an Electrical Type of Current . Connect the device across the following terminals: OUTx I Device Load...
  • Page 86 More information on using this indicator may be found in the Troubleshooting section of this manual. This red indicator illuminates whenever any of the override switches is in OVERRIDE a position other than AUTO. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 87 AO-4-8 This panel also includes two operator switches that perform the following: After physical installation and during configuration through the COMMISSION Continuum workstation, pressing this button registers the module’s address with the system. For more information, refer to the section on Configuring I/O found earlier in this manual.
  • Page 88 Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 89 DO-4-R The DO-4-R, Continuum’s digital output module, has four Form C relay outputs, rated at 5 amps, 240 VAC. These versatile outputs make the DO-4-R an excellent choice for switching motor starters and other inductive loads up to 240 VAC, with either two position (on/off) or pulse-width modulation (PWM) control.
  • Page 90 3-position manual override switch on each output, with software feedback. LED override status indicator (DO-4-R-O only) Override Feedback: Override detection and feedback provided for each output. Output Connections: Two-piece, 13-position removable terminal block Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 91 DO-4-R I/O Connections The actual output connections are located on a thirteen-position removable screw terminal connector located at the bottom of the module. Output wires should enter from either the top or bottom wiring troughs, and should come from the right side of the rack (by convention).
  • Page 92 (OUTx NO) close and the normally closed contacts (OUTx NC) open. To use the Form C output in your system, configure an output point with an Electrical Type of Digital . Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 93 DO-4-R Override Controls The DO-4-R-O model includes an output override switch for each output. AUTO The output of the module can be directed from program control to manual control. The output can be disabled completely as well. The following describes the actions associated with each position of the override controls: The output relay is energized to an ‘ON’...
  • Page 94 Configure the output point of the first point (OUT1 or OUT3) with an Electrical Type of Tri-state . Connect the two outputs together as follows: OUT 1 NC OUT 1 NO + ON OUT 1 COM Common OUT 2 NC OUT 2 NO OUT 2 COM Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 95 DO-4-R Status/Control Panel Status Indicators The DO-4-R module includes a complete indicator status panel on the front of the module. OUTPUT POWER COMMISSION COMM OVERRIDE STATUS RESET DO-4 This panel includes indicators reporting on the status of the following: This green indicator illuminates when DC power is applied through the POWER Power/IO Bus.
  • Page 96 For more information, refer to the section on Configuring I/O found earlier in this manual. Should the module become inoperable, pressing this button resets the RESET module. It does not erase its memory. Andover Controls Technical Manuals Online! - http://www.tech-man.com...

  • Page 97: Do-6-Tr

    DO-6-TR The DO-6-TR, Continuum’s triac output module, has six Form A triac-based outputs, rated at 0.5 amps, 24 VAC, for cost-effective on/off or pulse-width modulation (PWM) control of lighting, heat, and fan units. The PWM feature permits the modulation of valves and dampers to 0.1 second resolution.
  • Page 98 0.5A, 24 VAC, (Cannot switch DC loads) Output Accuracy: 0.1 sec. for Pulse Width Modulation (PWM) control Output Protection: 2500V optical isolation Metal oxide varistor and snubber on each output Output Connections: Two-piece, 13-position removable terminal block Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 99 DO-6-TR I/O Connections The actual output connections are located on a thirteen-position removable screw terminal connector located at the bottom of the module. Output wires should enter from either the top or bottom wiring troughs, and should come from the right side of the rack (by convention).
  • Page 100 These output contacts operate as a solid state relay. When the output is set to an ‘ON’ state, the contacts close allowing current to flow between the output terminals. To use the Form A output in your system, configure an output point with an Electrical Type of Digital . Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 101 DO-6-TR Switching Loads with Triacs Although the Triac-based outputs of this module appear as relay contacts in the sche- matics provided, they are actually solid-state switches that have limitations on the loads they can switch. AC vs. DC The first limitation is that they cannot be used with DC loads. A Triac switches AC only . Minimum Load Current The second limitation involves the minimum load current.
  • Page 102 2 minutes upon reset or powerup before being program-controlled. Connect two outputs together to form a tristate output as follows: OUT 1 + ON OUT 1 Common OUT 2 OUT 2 Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 103 DO-6-TR Status/Control Panel Status Indicators The DO-6-TR module includes a complete indicator status panel on the front of the module. OUTPUT OUTPUT POWER COMMISSION COMM STATUS RESET DO-6 This panel includes indicators reporting on the status of the following: This green indicator illuminates when DC power is applied through the POWER Power/IO Bus.
  • Page 104 For more information, refer to the section on Configuring I/O found earlier in this manual. Should the module become inoperable, pressing this button resets the RESET module. It does not erase its memory. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 105 LO-2 The LO-2, Continuum’s lighting control module, can control 2 high voltage lighting circuits, using externally mounted GE RR7 or RR9 lighting relays, rated for 277 VAC and 20 amps (347 VAC option for Canada). The RR9 relay provides status feedback of the relay position, using a built-in pilot contact.
  • Page 106 Transient voltage suppressors (TVS) on outputs. GE relays provide isolation. Overrides: Momentary override toggle switches (LO-2-O model only) Power/Output Connections: Two-piece, 12-position removable terminal block Lighting Relay Connections: 5-position male connector accepts standard GE female plug-in connector. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 107 LO-2 I/O Connections The actual I/O connections are located on a combination of a twelve-position removable screw terminal connector located at the center of the module and two five-pin Molex relay connectors at the bottom. Wires should enter from either the top or bottom wiring troughs, and outputs should come from the right side of the rack, inputs from the left (by convention).
  • Page 108 The output relay is de-energized to an ‘OFF’ state manually by setting the switch to OFF. The spring-loaded momentary action of the switch moves the switch back to the center position after pressing. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 109 LO-2 External Override Capabilities Two Class II low voltage manual override inputs, one for each relay output, are provided for override capabilities. These inputs directly control the lighting relays, independent of any schedule or program. Wall switches, occupancy sensors, or a combination of both may be wired to these inputs.
  • Page 110 Externally mounted sensors such as proximity sensors require power to operate as well. The LO-2 module provides a connection for these devices to receive half wave rectified 24V power as indicated below: 24 VDC (half-wave rectified AC) to External Sensors 24 VAC RECT Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 111 LO-2 Relays The GE relays are mounted on an external bracket with integral connecting cable. This cable terminates in a five-pin Molex-style connector that mates easily with one of the two provided at the bottom of the module as shown below: The connector is keyed so that it locks into place after insertion.
  • Page 112 Each relay contains a set of input connections for the control. Connect the external control(s) as shown: Mechanical Switch with and without Integral Indicator Momentary Switch OVERRIDE Momentary Switch OVERRIDE Indicator Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 113 LO-2 Controlling both Outputs with One Switch OVERRIDE Momentary Switch OVERRIDE Continuum I/O System Reference Technical Manuals Online! - http://www.tech-man.com...
  • Page 114 Controlling both Outputs with One Occupancy Sensor To control both relays with the same Occupancy sensor, simply wire the red and black connections of each input bank together as indicated on the drawing on the previous page. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 115 LO-2 Controlling ON/OFF and HI/LO with Occupancy Sensor Momentary Switch OUT 2 OVERRIDE (ON) (OFF) OUT 1 Occupancy Sensor OVERRIDE (COM) 24VAC RECT. (POWER) Out 1 Fluorescent Tubes Out 2 Fluorescent Tubes Continuum I/O System Reference Technical Manuals Online! - http://www.tech-man.com...
  • Page 116 These red indicators (one for each channel) illuminate when an ‘ON’ OUTPUT condition is set. These indicators operate with RR-9 relays only. This green indicator illuminates when 24-30 VAC power is supplied to 24 VAC the module by an external source. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 117 LO-2 This panel also includes two operator switches that perform the following: After physical installation and during configuration through the COMMISSION Continuum workstation, pressing this button registers the module’s address with the system. For more information, refer to the section on Configuring I/O found earlier in this manual.
  • Page 118 Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 119 AC-1 The AC-1, Continuum’s access control module, provides full I/O for an access controlled door or portal in one compact module. The AC-1 can be remotely located at a door reader for localized control and reduced wiring costs; or several AC-1 modules can be grouped together and DIN rail-mounted for centralized control.
  • Page 120 5000V isolation 270V MOVs on each output Overrides: 3-position manual override switch on each output for manual control of relay. LED override status indicator. Override Feedback: Override detection and software feedback provided for each output. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 121 AC-1 I/O Connections The actual I/O connections are located on a combination of a sixteen-position removable screw terminal connector located at the bottom of the module. Wires should enter from either the top or bottom wiring troughs, and outputs should come from the right side of the rack, inputs from the left (by convention).
  • Page 122 ID number (PIN), or keypad only. The door’s operating mode can even be changed based on time-of-day or other events for optimum flexibility through Andover Controls’ easy-to-use Plain English programming language. Each keypad can also permit entry of a duress alarm code that can initiate an alarm sequence at any AC-1 controller or at the Continuum workstation.
  • Page 123 AC-1 Connecting a Reader/Keypad Reader/Keypad Inputs The AC-1 includes a full interface to a single Wiegand (AC-1) or an ABA (AC-1-ABA) access card reader. The modules were designed to allow keypads that have similar interfaces (Wiegand or ABA) to be connected in place of a reader. Integral reader/keypad units are also supported.
  • Page 124 AC-1 The Dorado ABA reader or keypad unit is connected to the AC-1 module as shown below: 12 V DATA / I DATA Reader or Keypad CLK / 0 Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 125 AC-1 Connecting Inputs All AC-1 and AC-1-ABA inputs are supervisory inputs. The following drawings depict the six types of supervisory inputs that exist—three normally closed and three normally open types. After the drawings, there is an explanation of which types are recommended for access control installations.
  • Page 126 Shorting the input causes it to look like a normal “door closed” condition. In this case the door could be forced open and the system would not detect the change in condition. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 127 AC-1 Normally Closed Supervisory Inputs NC Series Parallel With this type of input wiring, two external resistors are added to the input, one in series and the other in parallel. When the door switch is closed (normal position) the door is assumed to be closed.
  • Page 128 Shorting the input causes a zero ohm reading which should result in an error condition. Cutting the wire causes it to look like a normal “door closed” condition. In this case the door could be forced open and the system would not detect the change in condition. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 129 AC-1 Normally Open Supervisory Inputs NO Parallel With this type of input wiring, a resistor is placed in parallel (across) with the input. When the door switch is open (normal position) the door is assumed to be closed. The circuit presents a reading of the external resistance at the input.
  • Page 130 Shorting the input causes a zero ohm resistance. Both a short and an infinite resistance (open) should result in an error condition. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 131 AC-1 Recommended Input Circuits We recommend NO Parallel and NO Series and Parallel types for access control installations. The following pages explain how to wire these types of inputs for door switches and motion detectors. Wiring Door Switches There are three supervisory inputs for door switches. The maximum length wire you may use is 500 ft of #18 gauge wire (152 m of 1.0 mm wire) or 200 ft of #22 gauge wire (60 m of 0.35 mm...
  • Page 132 #22 gauge wire (60 m of 0.35 mm wire). The following shown a typical motion detector circuit: Motion DOOR Detected Normally Open Ω 10 K PIR Motion Detector Motion Detected DOOR Normally Open Ω 10 K PIR Motion Detector Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 133 AC-1 Connecting Outputs The AC-1 and AC-1-ABA modules include two Form C single-pole double-throw relay outputs. The following is a simplified schematic of each output channel: OUT x NC OUT x NO OUT x COM Both channels resemble the circuit shown above. These output contacts operate as a standard relay.
  • Page 134 (APHV) for UL listed systems) This configuration shows a normally de-energized lock (when secured) in a fail secure mode. Always be sure to use “panic” hardware that allows emergency exit from the secured area. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 135 AC-1 The following represents a typical door output installation when the circuit is normally closed: Electromagnetic Door Lock (UL listed burglary- resistant electric locking mechanism (CVXY) for 12/24V UL listed systems) Power Supply (UL listed power supply (APHV) for UL listed systems) This configuration shows a normally de-energized lock (when secured) in a fail secure mode.
  • Page 136 These red indicators (one for each channel) illuminate when an ‘ON’ OUTPUT condition is set. READER POWER These green indicators illuminate when either voltage is selected as the +5V, +12V reader power source. Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 137 AC-1 This panel also includes two operator switches that perform the following: After physical installation and during configuration through the COMMISSION Continuum workstation, pressing this button registers the module’s address with the system. For more information, refer to the section on Configuring I/O found earlier in this manual.
  • Page 138 Andover Controls Technical Manuals Online! - http://www.tech-man.com...
  • Page 139 30-3001-499 Continuum I/O System Reference Rev REVIEW 2/98 Technical Manuals Online! - http://www.tech-man.com...
