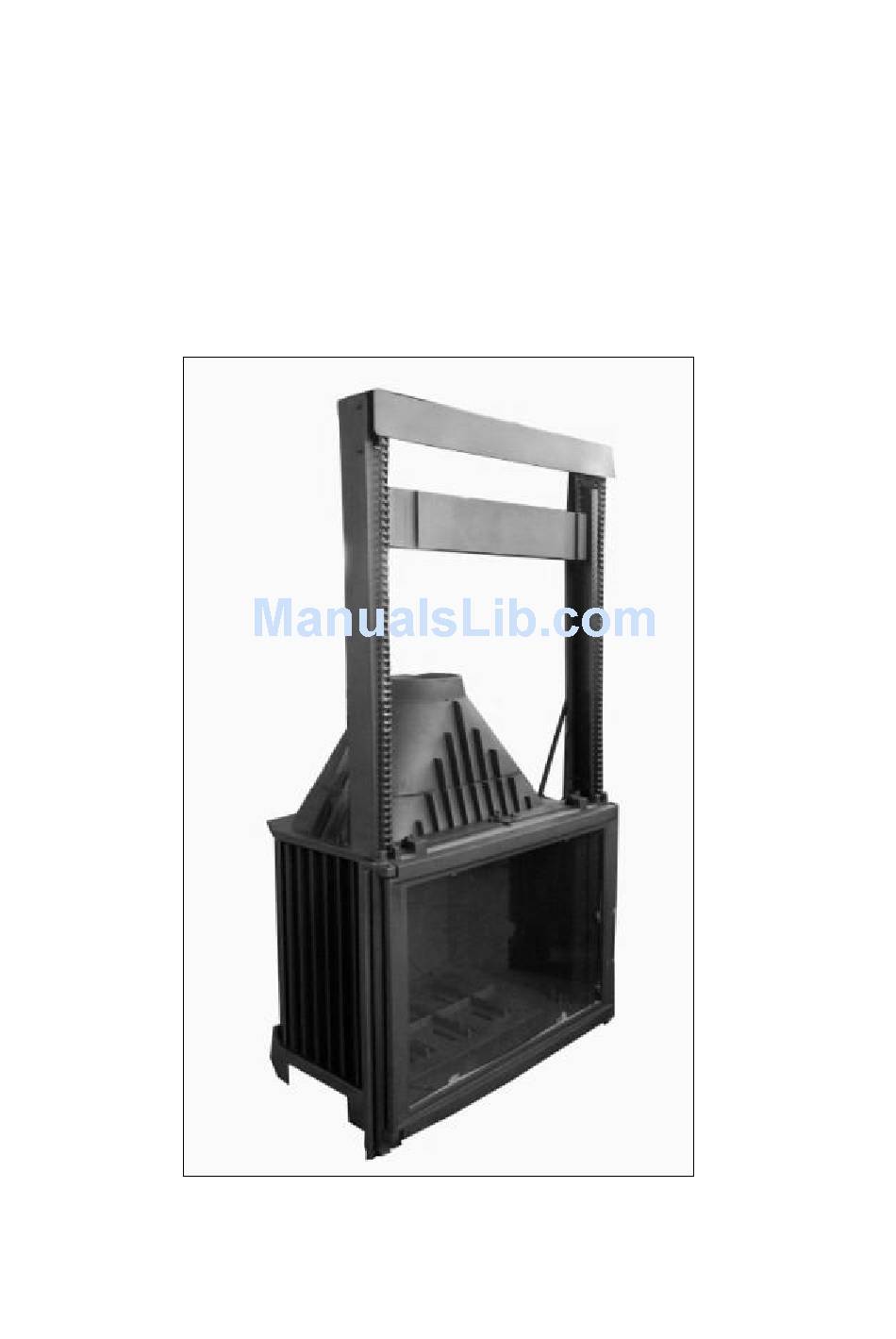

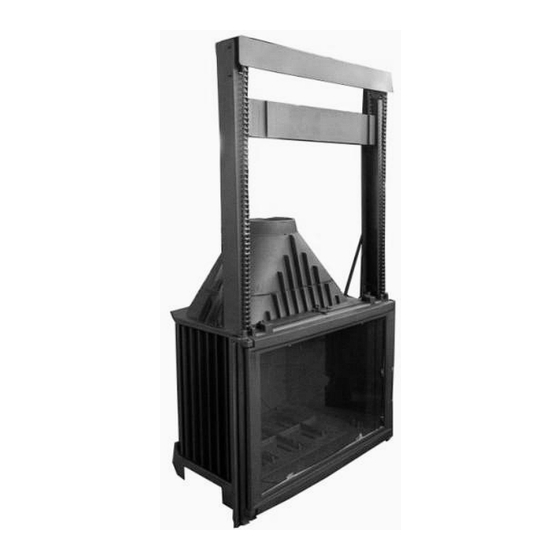

- Page 1 Vienna GL70 Cast Iron Insert Fireplace Installation and Operating Instructions...
- Page 2 Check local building regulations before installing the appliance. The Vienna GL70 has been tested to ensure that it will meet the appropriate safety Standard requirements if the instructions in this manual are followed. As the safety and emissions performance can be affected by altering the appliance, no modifications are allowed without written permission from the manufacturer.
-
Page 3: Floor Protector
INSTALLING THE HEATER The Vienna GL70 is designed to be installed in a concrete, brick or stone fireplace which is attached to a chimney and has a non-combustible floor protector. The flue kit must be installed according to the manufacturer’s instructions. The 7” flue spigot in the heater must be fitted with a reducer so that it can be installed with a 6”... - Page 4 The floor protector must extend a minimum 400mm in front of the heater, and minimum 200mm either side of the door opening (minimum 930mm wide). Side and Rear Clearances a) Standard (parallel) Installation Rear wall = 1150mm Side wall = 1050mm...
- Page 5 b) Corner Installation Side wall = 1000mm Reducing clearances to combustible walls If it is necessary to install a heater closer to a combustible surface than the stated requirements in this Installation manual, it must be done in accordance with Australian Standard AS/NZS 2918:2001 Section 3, Tables 3.1 &...
-
Page 6: Air Control
OPERATING THE HEATER Before use of this appliance please read these instructions fully. WARNING: ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN WRITING BY THE TESTING AUTHORITY IS CONSIDERED AS BREACHING AS/NZS 4013. WARNING: DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS TO START OR REKINDLE THE FIRE. - Page 7 TECHNICAL DRAWINGS Front View Side View Top View...
