Summary of Contents for Oro Technology W401

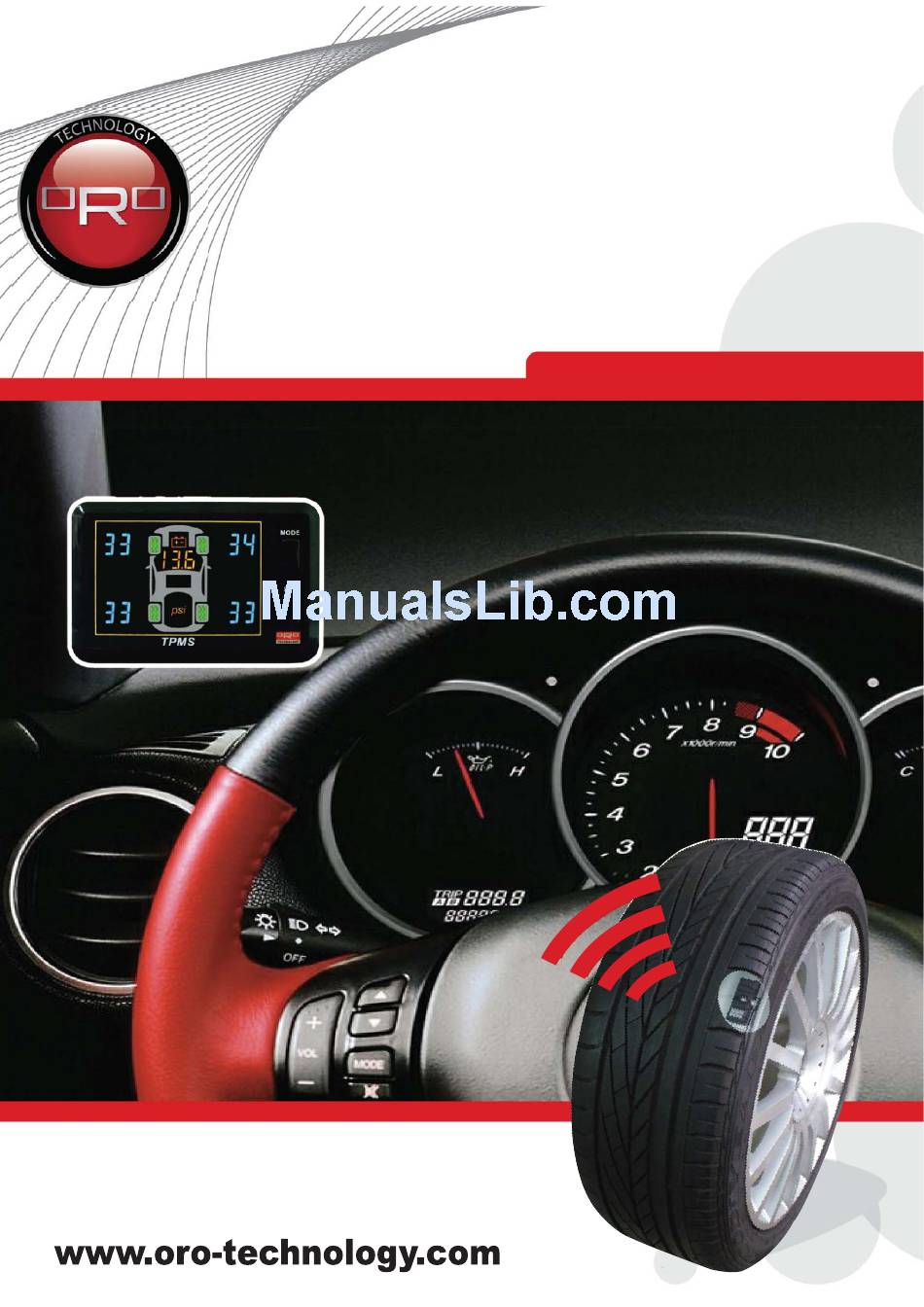

- Page 1 Tire Pressure Monitoring System TPMS Installation User Manual Wireless Direct Safe Driving with TPMS Model : W401...
- Page 2 Tire Temperature-Over Temperature Setting Mode..........11 Power On Setting Mode..................11 7.W401 System Alarm Mode Description..............12 8.W401 Reset for Tire Change and Rotation............14 Mode 1：Front and Rear Tire Parallel Exchange...........15 Mode 2：Tire Diagonal Exchange................15 Mode 3：Front Tire Diagonal Exchange, Rear Tire Parallel Change to Front..15 Mode 4：Rear Tire Diagonal Exchange, Front Tire Parallel Exchange to Rear..16...
-
Page 3: Notice
Notice This device complies with FCC Rules. Operation is subject to the following conditions: (1) Incorrect installation, improper usage or radio waves interference may cause unexpected operation of this device. (2) If this device does cause harmful interference to any electronic products or appliances, the user may increase the distance between the electronic product and this device or remove this device. -
Page 4: W401 Tire Pressure Monitoring System
ORO-W401 Tire Pressure Monitoring System, includes 4 tire sensors and 1 receiver display, the TPMS can monitor the pressure/temperature by snap-in installation into the tire, and transmit the tire information to the receiver by wireless. The TPMS display will trigger an alarm when any abnormalities happen to the tire in order to prevent any possible accidents which may happen to the driver/vehicle. -
Page 5: W401 Tpms Accessories
W401 TPMS Accessories Accessories Pictures Accessories Picture Display Nylok Screw New Adjustable Tire Sensor Multi Angle Holde Velcro & 3M Cigarette Double Side Power Cable Adhesive Aluminum Manual Valve W401 TPMS Installation 1 . Display Unit Installation New adjustable multi angle holder... - Page 6 Upon decided where to paste, tear out 3M adhesive from the base and stick on the holder. The user can decide to use the adhesive in the box or 3M double side adhesive: Velcro 3M double side adhesive NOTE The display (STAND and PASTE type) shall be 180 degree reverse up and down with opposite direction when is using 3M double side adhesive.
-
Page 7: Tire Sensor Installation
If the user wants to connect the power directly, please visit an electrical auto shop, dismantle the cigar plug and solder the red and green cable to the AC power, the black and white cables are for grounding. 2. Tire Sensor Installation Steps Operaion Process Photographs... - Page 8 3. Put on the circle screw (washer)from the outside of the wheel. 4. Tighten the valve with the nylok screw from the outside of the wheel. 5. Use the alan key provided to tighten. Put the marked No. 1 tire sensor to the tire which is marked No.
- Page 9 Place the No. 2 tire sensor to the tire which is marked No.2, and set up the other 2 sensors in the same manner as shown in the step “c”. Make sure there is no other liquid or dust present around the area of the tire sensor. After installation, inflate the tire to the appropriate air pressure as suggested in each vehicle’s user manual.
-
Page 10: W401 System Operation
Display clearly and not be affected by external lighting. 2. Operation to Change Display Mode W401 has 3 different modes, they are Tire Pressure Display Mode, Temperature Display Mode, and Pressure-Temperature Rotation Mode. The display will show the tire pressure... -
Page 11: Operation To Change Unit Of Tire Pressure And Temperature
3. Operation to Change Unit of Tire Pressure and Temperature W401 displays 3 kinds of pressure units, bar, kPa and psi. For temperature, F are the units displayed. The factory default for pressure unit is psi, the user can change the pressure... -
Page 12: Rear Tire Standard Cold Tire Pressure Setting Mode
Pressing the MODE button once, will increase the cold tire pressure value by 1 unit; and the unit increases by 1 psi with each press of the button, when it has reached 50 psi, pressing the button again will return the system unit to 27 psi. -
Page 13: Tire Temperature-Over Temperature Setting Mode
Tire Temperature-Over Temperature Setting Mode Steps Operating Process Photographs The system will enter the Tire Temperature- Over Temperature Setting Mode automatically after setting up the Rear Tire-Cold Tire Pressure Setting. The display will show the factory default temperature limit for the tires (80 C) in blue. -
Page 14: W401 System Alarm Mode Description
Power On Setting Mode and back to the normal operation mode to monitoring tire pressure/temperature and battery voltage. W401 System Alarm Mode Description Mode Warning Condition and Warning Method Display Figure Warning Situation: When the present tire pressure >... - Page 15 Warning System: A beeping sound is heard as a warning when the abnormal tire condition signal is displayed and the abnormal tire symbol is displayed in red. Warning Situation: When the temperature is higher than set up limit. Factory default is 80 C and 176 Warning System:...
- Page 16 Upon completion of changing or rotation of tires, the user should also reset the position of the tires on the display unit. W401 has provided 7 modes where users can reset quickly and keep the tire position as it on the display unit.
-
Page 17: Mode 1：Front And Rear Tire Parallel Exchange
Set Up Process for Enter the Tire Changing and Rotation Depress the SET button MODE button simultaneously for 3 sec., and the system will enter set up mode 1, pressing once each time will allow the user to traverse from mode 1 to mode 7 and back to normal display. -
Page 18: Mode 4：Rear Tire Diagonal Exchange, Front Tire Parallel Exchange To Rear
Mode 4: Rear Tire Diagonal Exchange, Front Tire Parallel Exchange to Rear Fig. 1 Fig. 2 Mode 5: Right Side and Left Side Tire Parallel Exchange Fig. 1 Fig. 2 Mode 6: Random Repositioning The user should install the tire to their desired position before entering mode 6. When the display shows a yellow “6”, this means that it is now in mode 6. -
Page 19: Mode 7：Single Sensor Replaced
The user should confirm whether the all sensors are manufactured by ORO before carrying out any changes or replacement. The system will not work with non ORO Technology sensors. The monitor will display No.7 in yellow which means the system is in mode 7. -
Page 20: Oro Warranty Policy
Any other question which related to the warranty policy, please feel free to contact with your nearest authorized distributor or contact directly with ORO by emailing: sales@oro-technology.com For ORO TPMS latest and updated news, please go to: www.oro-technology.com ORO Technology thanks you for your using ORO TPMS and wishes you “Safe Driving.”... -
Page 21: Appendix
Appendix Tire pressure unit, 1 bar 0.1N/ mm Tire pressure unit, 1 psi 0.0689 bar. Tire pressure unit, 1 kPa 0.01 bar Temperature unit, Centigrade = (Fahrenheit-32) x 5/9 Fahrenheit... - Page 22 Warranty Card W401 Model No. Serial No. Purchase (Year/Month/Date) Date Dealers Stamp Customer information Name Telephone Maintenance Record Date Fault Conditions Content Signature h t t p : / / w w w . o r o - t e c h n o l o g y . c o m...
