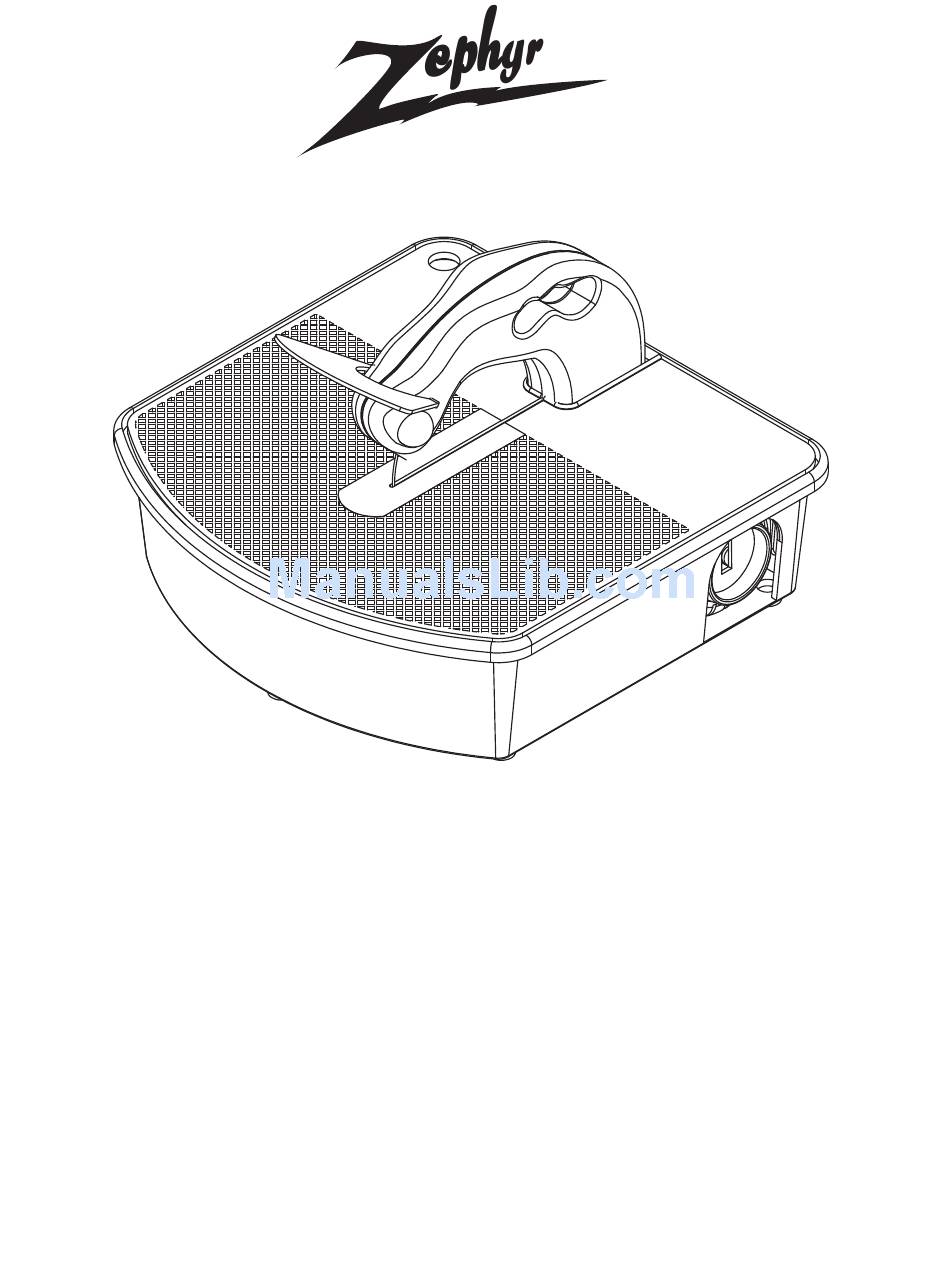

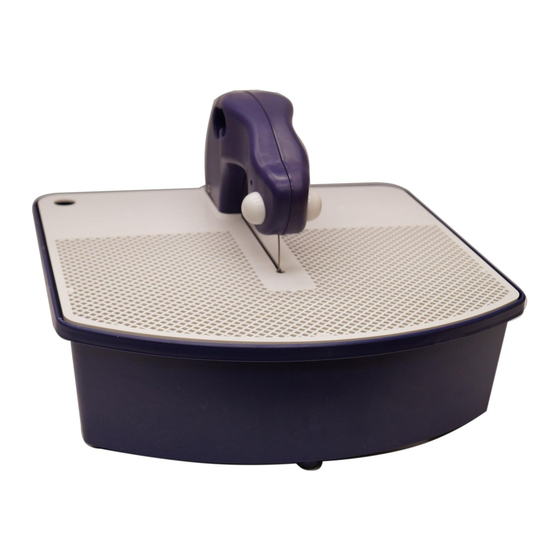

Gryphon
Ring Saw
Instructions
Safety Considerations
• Always wear eye protection and use the snap-on face shield that is supplied with your saw•
• Do not run blade dry- use plenty of water, but do not over-fill •
• Keep fingers and clothing clear of moving parts •
• Do not operate with side cover removed •
• When removing work surface, wipe water from surface first so that it cannot spill into the motor
compartment •
Warranty:
Your new Gryphon Zephyr Ring Saw is warranted for three years from date of purchase. All mechanical parts with the
exception of the blade, drive belt, drive wheels and wheel bearings are guaranteed against failure for three years. If such a
failure occurs for any reason other than abuse or misuse during this period, it will be repaired (or at our option replaced) free
of charge FOB our factory. Retain your sales receipt for proof of purchase. Should repairs ever be required, return the saw to:
Gryphon Corporation • 12417 Foothill Blvd. • Sylmar • California • 91342 • (818) 890-7770
For latest videos and helpful hints, please visit www.gryphoncorp.com/ZephyrFAQ.html
