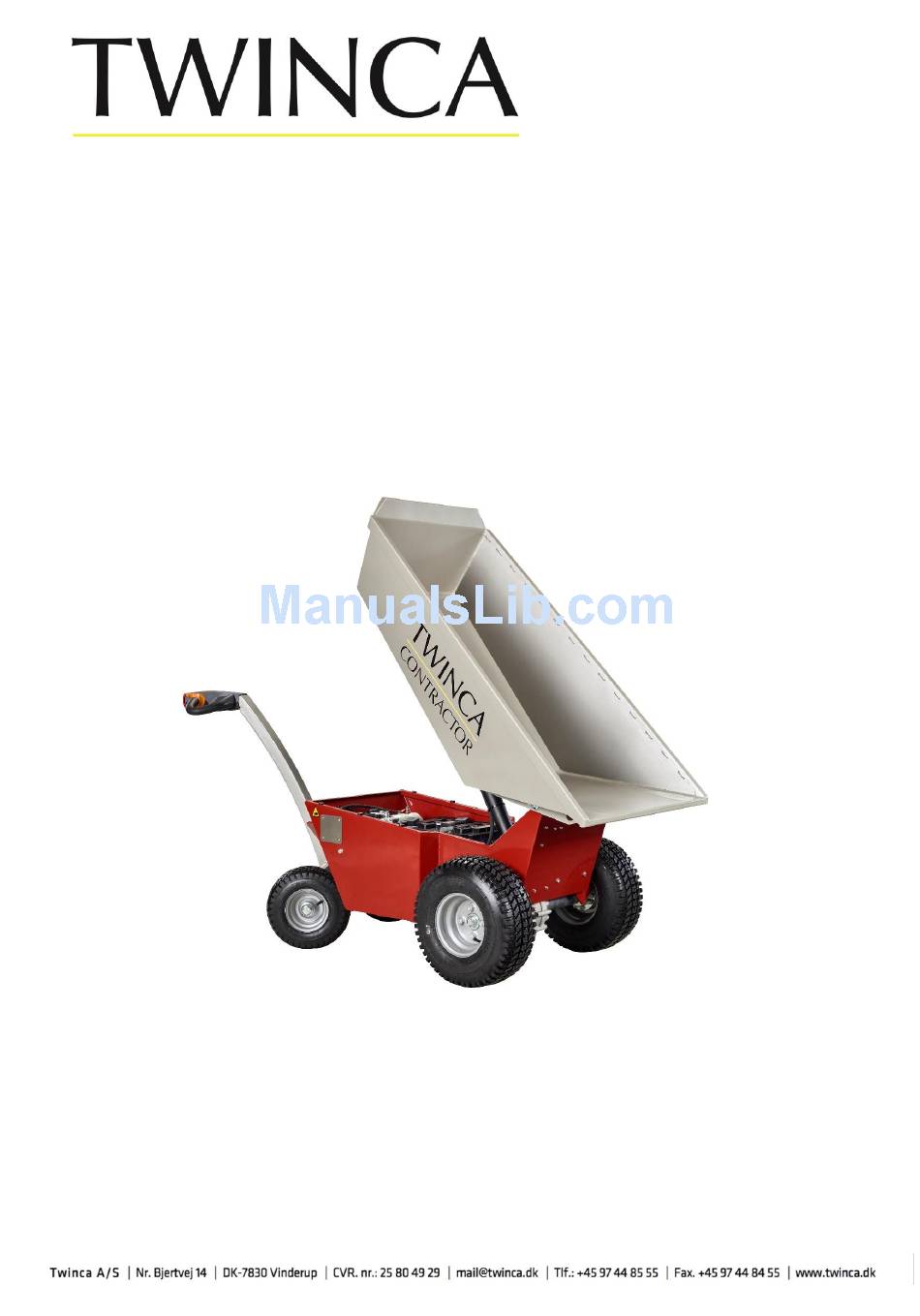

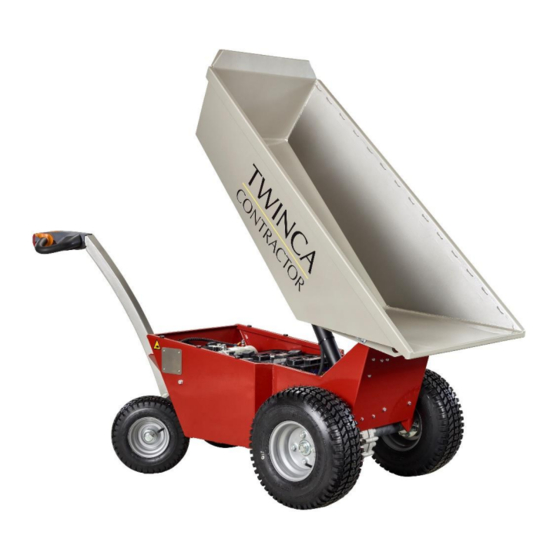

  • Page 1 User Manual E-800...
  • Page 2 8. How to operate the machine 9. Troubleshooting guide 10. Service and maintenance 11. Pictographs 12. Hydraulic diagram 13. Current diagram 14. Warranty 15. A-declaration Twinca A/S reserve the right to change the specifications of the machine without a prior binding notice...
  • Page 3 1 How to operate the machine Contractor is for transportation of primarily soil, granulates, stone, concrete and organic materials. Contractor has a unique ergonomic steering system. Contractor is easy to manoeuvre in a way that hard physical strain during operation of heavy goods is minimized. Contractor makes the working procedures on the site easier.

  • Page 4: Environmental Protection

    2 Environmental protection For the protection of the environment, it is important that discarded machine parts and accessories be delivered to relevant recycling depots, as the machine contains reusable materials. Machine parts Material Steering wheel Steel Frame Steel Battery Hydraulic gear pump Aluminium and steel Variable hydraulic pump Steel and brass...

  • Page 5: Technical Data

    3 Technical data Contractor Width (mm) Length (mm) 2150 Height (control lever)(mm) 1120 Height (dump bed (mm) Battery TE35 4 units 6V Maximum speed - forwards (km/h) Maximum speed -backwards (km/h) Bed capacity -loading volume (litre) Bed capacity - maximum volume (kg) Machine weight (kg) Noise level (db(A)) <70...

  • Page 6: Personal Safety

    If you feel uncertain as to the correct handling and use of the Contractor mini dumper, it is important that you get in contact with the seller or Twinca A/S. Warning A faulty maintenance could be risky. Read and understand the sections before carrying out any kind of maintenance, service or repair of the machine.
  • Page 7 4 Personal safety Always mount safety fittings at the front on cylinder for the dump bed before working on the engine, hydraulic devices and other kind of service of the machine. How to position safety fittings when not in use. ( fig.1, pos.1 How to position safety fittings when in use.

  • Page 8: Transportation Of The Machine

    5 Transportation of the machine Lifting/transportation of the machine. When lifting the machine, always mount wire or chain in all 4 hooking points. In this way, you ensure the most stable lifting. Lashing the machine Secure the machine in each of the four hooking points during transportation,...

  • Page 9: Driving In Terrain

    6 Driving in terrain Driving in a terrain with a gradient exceeding 10 degrees is not allowed, as there is a risk that the machine will tilt. Furthermore, never drive forward downhill.

  • Page 10: Check Before Starting

    7 Check before starting Inspection before starting The following inspection before starting describes what to be checked before starting and what to be checked after an ongoing use for four hours. We refer to the service section for a more detailed instruction. In case of any error, do not use the Contractor mini dumper until the error has been rectified.

  • Page 11: How To Operate The Machine

    8 How to operate the machine The machine is fully electrically powered. When you deactivate the rocker arm, the speed of the machine is reduced to a full stop in the course of 3 seconds. In order to advance, lift the rocker arm upwards (fig.1,pos 2)(forwards) In order to reverse, press down the rocker arm d (fig.1,pos 2)(backwards).
  • Page 12 8 How to operate the machine Warning If it is necessary to drive with a full load down a slope, sloping more than 8% - you should turn the machine and go backwards down the slope. How to empty the dump bed ...

  • Page 13: Troubleshooting Guide

    Hydraulic oil Change the hydraulic oil once a year. In case of any sign of leakage, switch off the machine and contact your local dealer or Twinca A/S. How to clean the machine For cleaning - use only a brush and water.

  • Page 14: Service And Maintenance

    10 Service and maintenance Routine maintenance Daily Every Every 20 hours 50 hours the hydraulic to be made cylinder the hydraulic cylinder Greasing points for to be made tilting point to the dump bec Greasing points on to be made the steering Check acid to be made...

  • Page 15: Pictographs

    11 Pictographs Machine sign Warning signs Risk of being trapped Info signs: Leashing point...

  • Page 16: Hydraulic Diagram

    12 Hydraulic diagram 1. Oil tank 2. Valve 3. Electrical motor 4. Hydraulic cylinder 5. Hydraulic pump 6. Hose rupture valve...

  • Page 17: Current Diagram

    13 Current diagram...
  • Page 18 13 Current diagram...

  • Page 19: Warranty

    Claim form All warranty claims shall be passed on to Twinca A/S by telephone, e-mail or in writing. Contact in case of claim: Tel: +45 9744 8555 #5 E-mail: RMA@twinca.dk...

  • Page 20: A-Declaration

    15 A-declaration: EU declaration of conformity. appendix II Manufacturer: Company name : Twinca A/S Address : Nr.Bjertvej 14 Postal code / City : 7830 Vinderup Country : Denmark Telephone : +45 9744 8555 Vat.No. : 2580 4929 In charge of the technical dossier: Managing Director : Klaus Strøm Kristensen...
