GWU-310 User Manual
GWU-300/310/320 User Manual
(Mobile WIMAX 2.3/2.5/3.5GHz USB Dongle Modem)
Document Number: IGIM0904WLSWUMWG005
Version: 0.6
Issued: April 12
Version 0.6
st
, 2010
Copyright © 2010 IGI Mobile, Inc.. All rights reserved.
Confidential and Proprietary
Subject to Non-Disclosure Obligations
Page 1 of 19
Advertisement
Table of Contents
Summary of Contents for IGI Mobile GWU-300

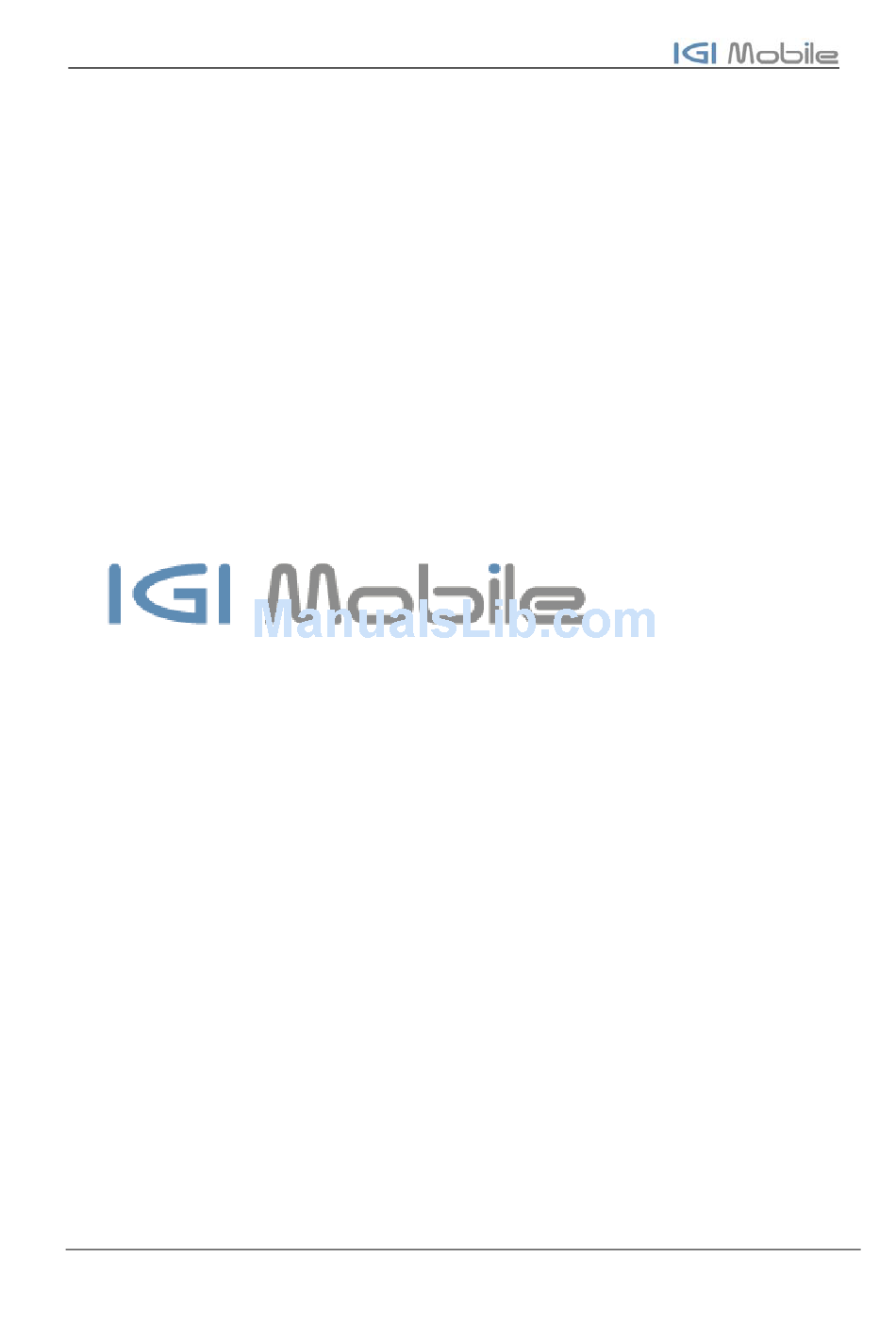

- Page 1 GWU-300/310/320 User Manual (Mobile WIMAX 2.3/2.5/3.5GHz USB Dongle Modem) Document Number: IGIM0904WLSWUMWG005 Version: 0.6 Issued: April 12 , 2010 Version 0.6 Copyright © 2010 IGI Mobile, Inc.. All rights reserved. Page 1 of 19 Confidential and Proprietary Subject to Non-Disclosure Obligations...
-
Page 2: Revision History
Reproduction or use of editorial or pictorial content in any manner is prohibited without written permission. Specifications and content may change without notice. The IGI Mobile name and logo and other designated names, marks, and phrases are trademarks or registered trademarks of IGI Mobile, Inc. - Page 3 EAP-TLS , EAP-TTLS ................15 4.3.2 Connectting ....................17 Device Change ..................18 Internet Test ....................19 Internet Explorer ..................19 Version 0.6 Copyright © 2010 IGI Mobile, Inc.. All rights reserved. Page 3 of 19 Confidential and Proprietary Subject to Non-Disclosure Obligations...
-
Page 4: Introduction
O/S : Windows 2000, XP, VISTA, WIN7, MAC OS Dimension : 29 x 66 x 8 mm Weight : 14 g Version 0.6 Copyright © 2010 IGI Mobile, Inc.. All rights reserved. Page 4 of 19 Confidential and Proprietary Subject to Non-Disclosure Obligations... -
Page 5: Appearance
STATUS LED HINGE COMPONENT DESCRIPTION USB CONNECTOR HINGE USB Connector hinge STATUS LED GWU-310 RF status display LED Version 0.6 Copyright © 2010 IGI Mobile, Inc.. All rights reserved. Page 5 of 19 Confidential and Proprietary Subject to Non-Disclosure Obligations... -
Page 6: Installation
GWU-310 CM supports English and Korean. Select language option and click “Next”. 3.1.2 Welcome After you selecting language options, you can see a welcome view. Click “Next”. Version 0.6 Copyright © 2010 IGI Mobile, Inc.. All rights reserved. Page 6 of 19 Confidential and Proprietary Subject to Non-Disclosure Obligations... -
Page 7: Select Destination Folder
If you select device type to USB Modem, you must connect USB Modem to PC for installing device driver on your PC 3.1.4 Select Destination Folder Select installation folder that you want. Version 0.6 Copyright © 2010 IGI Mobile, Inc.. All rights reserved. Page 7 of 19 Confidential and Proprietary Subject to Non-Disclosure Obligations... -
Page 8: Install Confirm
If you finished selection install option, click “Next”. If you change option again, click “Back” and change option. 3.1.6 CM Installation GWU-310 CM Installation view. Version 0.6 Copyright © 2010 IGI Mobile, Inc.. All rights reserved. Page 8 of 19 Confidential and Proprietary Subject to Non-Disclosure Obligations... -
Page 9: Install Finished
Device Driver Installation GWU-310 CM Install wizard will install device driver and protocol driver automatically. 3.1.8 Install Finished Version 0.6 Copyright © 2010 IGI Mobile, Inc.. All rights reserved. Page 9 of 19 Confidential and Proprietary Subject to Non-Disclosure Obligations... -
Page 10: How To Use Cm (Connection Manager)
(Click “Wimaxion” logo at above UI for users and then type “igimobilecm” + “Enter Key”, Then you can see a debug view like below! Version 0.6 Copyright © 2010 IGI Mobile, Inc.. All rights reserved. Page 10 of 19 Confidential and Proprietary Subject to Non-Disclosure Obligations... -
Page 11: Channel Configuration
At this dialog box, you can add, remove and change the channels. For example, Click “New” button, and then you may create below channel values. Version 0.6 Copyright © 2010 IGI Mobile, Inc.. All rights reserved. Page 11 of 19 Confidential and Proprietary... - Page 12 “Networks” menu. If MS does not find WIMAX networks, disable “Enable Radio” and then enable “Enable Radio” again. Version 0.6 Copyright © 2010 IGI Mobile, Inc.. All rights reserved. Page 12 of 19 Confidential and Proprietary Subject to Non-Disclosure Obligations...
- Page 13 This Connection Manager supply various Authentication Setting function which are supported EAP-TLS, EAP-TTLS and EAP-AKA. 4.3.1 EAP-AKA Select “Networks” menu. Version 0.6 Copyright © 2010 IGI Mobile, Inc.. All rights reserved. Page 13 of 19 Confidential and Proprietary Subject to Non-Disclosure Obligations...
- Page 14 33 44 55 66 77 88 99 00 aa bb cc dd ee ff” in “OPc:”. The number is separated by space. Version 0.6 Copyright © 2010 IGI Mobile, Inc.. All rights reserved. Page 14 of 19 Confidential and Proprietary...
-
Page 15: Eap-Tls , Eap-Ttls
GWU-310 User Manual 4.3.2 EAP-TLS , EAP-TTLS Select “Networks” menu. Version 0.6 Copyright © 2010 IGI Mobile, Inc.. All rights reserved. Page 15 of 19 Confidential and Proprietary Subject to Non-Disclosure Obligations... - Page 16 “Identity:”. But, enter any string to “Indentity :” for test. For the “Certificates”, you may select certification file in specific directory location. Version 0.6 Copyright © 2010 IGI Mobile, Inc.. All rights reserved. Page 16 of 19 Confidential and Proprietary...
- Page 17 “Enalbe Radio” and then enable “Enable Radio” button again. If there is available networks, then click “CONNECT” button at UI for normal users. Version 0.6 Copyright © 2010 IGI Mobile, Inc.. All rights reserved. Page 17 of 19 Confidential and Proprietary...
- Page 18 Just click MODEL and change Model. All other configuration will be changed automatically. After changing MODEL types, Restart CM. Then it will find device and connect if available. Version 0.6 Copyright © 2010 IGI Mobile, Inc.. All rights reserved. Page 18 of 19 Confidential and Proprietary Subject to Non-Disclosure Obligations...
-
Page 19: Internet Test
GWU-310 User Manual Internet Test Internet Explorer Start Internet Explorer on your PC and then use internet. Version 0.6 Copyright © 2010 IGI Mobile, Inc.. All rights reserved. Page 19 of 19 Confidential and Proprietary Subject to Non-Disclosure Obligations...
