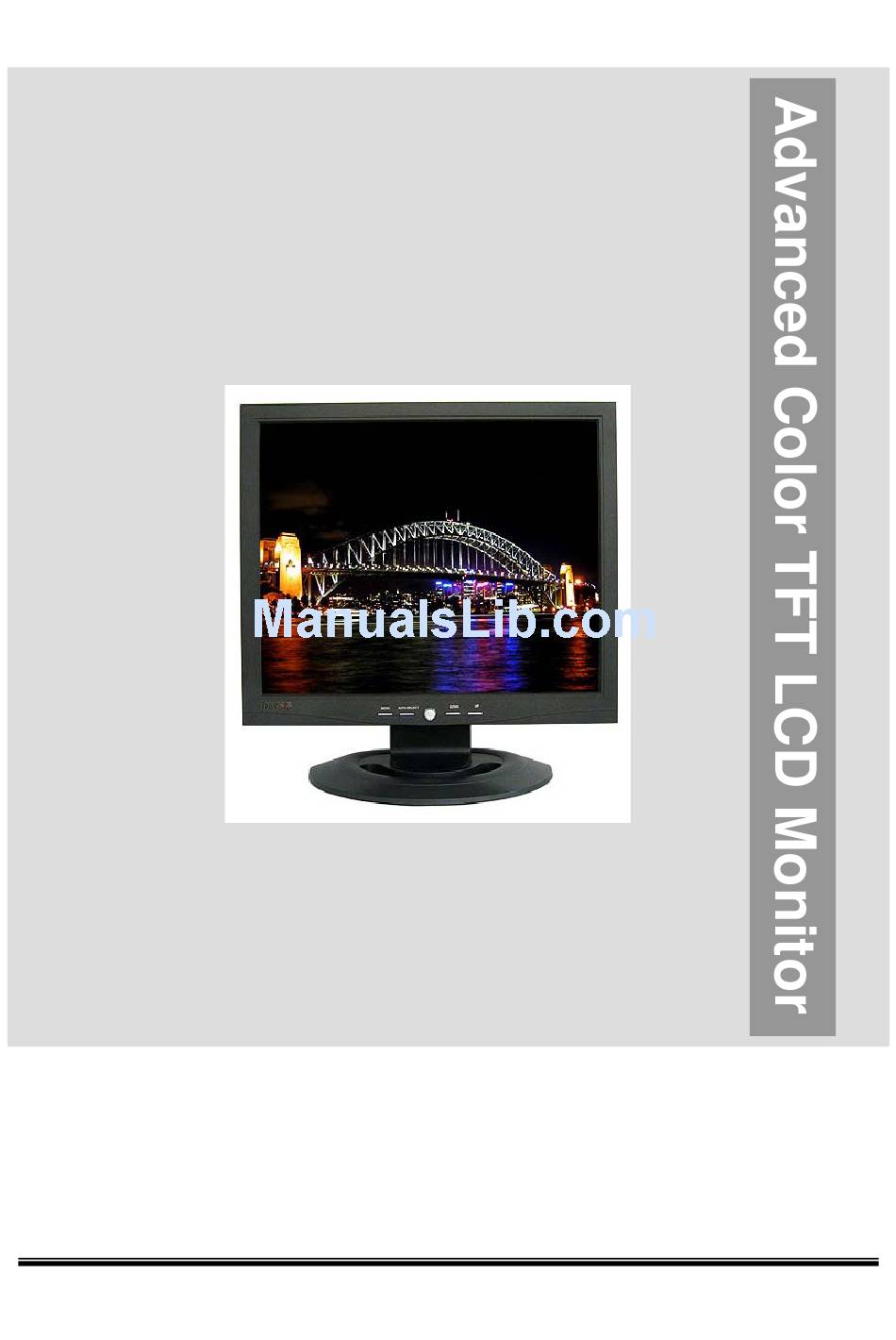

TFT
-
LCD MONITOR
TFT
-
LCD MONITOR
User Manual
User Manual
Before operating the unit, please read this manual
Before operating the unit, please read this manual
thoroughly and retain it for future reference.
thoroughly and retain it for future reference
The information presented in this document may form a part of quotation or contract
under the agreement of both parties. Otherwise, this datasheet is subjected to be hanged
without notice.
17 inch SXGA TFT LCD Color Monitor
(17 INCH)
(17 INCH)
Page 1
Advertisement
Table of Contents
Summary of Contents for DAYSYSTEM DS174
- Page 1 17 inch SXGA TFT LCD Color Monitor LCD MONITOR LCD MONITOR User Manual User Manual (17 INCH) (17 INCH) Before operating the unit, please read this manual Before operating the unit, please read this manual thoroughly and retain it for future reference. thoroughly and retain it for future reference The information presented in this document may form a part of quotation or contract under the agreement of both parties.
- Page 2 17 inch SXGA TFT LCD Color Monitor CONTENTS 0. Connections 1. Quick Start 2. U.S. FCC Class B Notice 3. Product Overview 4. Plug & Play 5. Usage Notice 6. Package Checklist 7. Front Button 8. OSD Operation 9. Troubleshooting 10.
-
Page 3: Connections
17 inch SXGA TFT LCD Color Monitor 0. CONNECTIONS Speaker Audio Digital Audio Analog (Option) DC in PC / RGB Cable PC / DVI Cable (option) 12V Adapter PC Sound Output Page 3... -
Page 4: Quick Start
17 inch SXGA TFT LCD Color Monitor 1. QUICK START (1) Connect the 15-pin D-sub or DVI connector to the VGA port of PC. (2) Connect the opposite side of VGA cable to TFT LCD monitor. (3) Plug in the Audio cable to the proper connector of your monitor. (4) Plug in the power cord to AC/DC adapter power inlet and 110V / 220V consent. -
Page 5: Product Overview
17 inch SXGA TFT LCD Color Monitor 3. PRODUCT OVERVIEW This 17” SXGA TFT LCD Monitor, accepts standard analog RGB signal. This monitor supports SXGA and lower resolutions at the frame frequency up to 75Hz. Lower resolution modes can be expanded to full screen through the expansion algorithm. -
Page 6: Usage Notice
17 inch SXGA TFT LCD Color Monitor 5. USAGE NOTICE Warning Please do not open or disassemble the products, because it may cause electric shock. Please be advised all the warnings, precautions, and maintenance advice as recommended in this user’s manual in order to maximize the life of your monitor. •... -
Page 7: Package Checklist
17 inch SXGA TFT LCD Color Monitor 6. PACKAGE CHECKLIST LCD MONITOR * Attention Monitor and stand part are packed disassembled. Please be careful not to drop the stand part when you take the monitor out of protecting styrofoam. User’s Manual AC/DC Adaptor Power Cord VGA Cable... -
Page 8: Front Button
17 inch SXGA TFT LCD Color Monitor 7. FRONT BUTTON DOWN MENU AUTO/SELECT OSD Function Button FUNTION STATE Hot Key Power ON/OFF ON/OFF Green (ON)/Red (Stand By Mode ) Indicates operation Orange (Flicker) : NO SIGNAL status Activate menu/Exit Menu BRIGHTNESS/CONTRAST/COLOR/ MENU Exit Sub-Menu/... -
Page 9: Osd Operation
17 inch SXGA TFT LCD Color Monitor 8. OSD OPERATION 8.1 BRIGHTNESS CONTROL - This control allows you to make adjustments to brightness of the display screen Menu > Left / Right Move to Brightness Control menu > Select Button (Selection of Menu) > Down / Up (Increase/Decrease Value) 8.2 CONTRAST CONTROL - This control allows you to make adjustments to the contrast of the display screen... - Page 10 17 inch SXGA TFT LCD Color Monitor 8.4 V-POSITION - Select this control menu, and then use the Down and Up buttons to center the image vertically on the screen. 8.5 CLOCK - Select this control menu, and then use Down and Up buttons to optimize screen quality by removing noise.
- Page 11 17 inch SXGA TFT LCD Color Monitor 8.7 COLOR CONTROL - Select this control menu, then scroll to the desired color temperature among 9300K, 6500K or USER for custom setting. In User Mode, adjust R,G,B color control. 8.8 LANGUAGE - Select this control menu, choose from English (ENGLISH), German (DEUTSCH), Spanish (ESPAÑOL), Italian (ITALIANO), French (FRANÇAIS).
- Page 12 17 inch SXGA TFT LCD Color Monitor 8.10 OSD - Select this control menu, and then use the button to select the duration time for the OSD menu. Use the ◀ and ▶ buttons to select the time, to center the OSD image horizontally & vertically on the screen.
-
Page 13: Troubleshooting
17 inch SXGA TFT LCD Color Monitor 9. Troubleshooting Warning Please do not open the monitor, because it may cause electric shock to the customer. Also, the warranty program may not support the damages, which user causes. When problem persists in spite of trying the following troubleshooting advice, please contact dealer or the repair center listed. -
Page 14: Specifications
17 inch SXGA TFT LCD Color Monitor 10. Specifications Model 17 inch SXGA TFT LCD Color Monitor Display Type 17” Color Active Matrix TFT LCD Color 16.7Million (8 bit/color) Pitch 0.264(H) x 0.264(W) mm Screen size 337.9(H) x 270.3.0(V) mm Back light 4 CCFLs Resolution (max.) -
Page 15: Video Mode Support
17 inch SXGA TFT LCD Color Monitor 11. VIDEO MODE SUPPORT The modes are detected when presented to the input and previous alignments for setup are automatically recalled. A true multi-sync monitor emulation is implemented. The factory preset supported modes include: Mode Resolution Refresh rate...
