Head Up Display

User Manual

Please read these instructions carefully and retain for future reference.

HUD main features

1. Automatic adaptation for most modern vehicle makes, suitable for vehicles with
OBDII or EUOBD (onboard automatic diagnostic system). Plug and Play.
2. 3" screen and high-definition display.
3. Multi-color design makes the screen more vibrant and easier to read.
4. The use of nano-technology to eliminate unwanted reflections and can make
display information sharper.
5. Comprehensive information: speed, revs speed, water temperature, battery voltage,
low voltage alarm, high temperature alarm, speed alarm.
6. Auto power on and off when vehicle is started or stopped, providing effective
protection of the car battery; while retaining the manual switch mode, so easier to
control HUD.
7. Automatic and manual brightness adjustment mode, aiding driving without excess
glare.

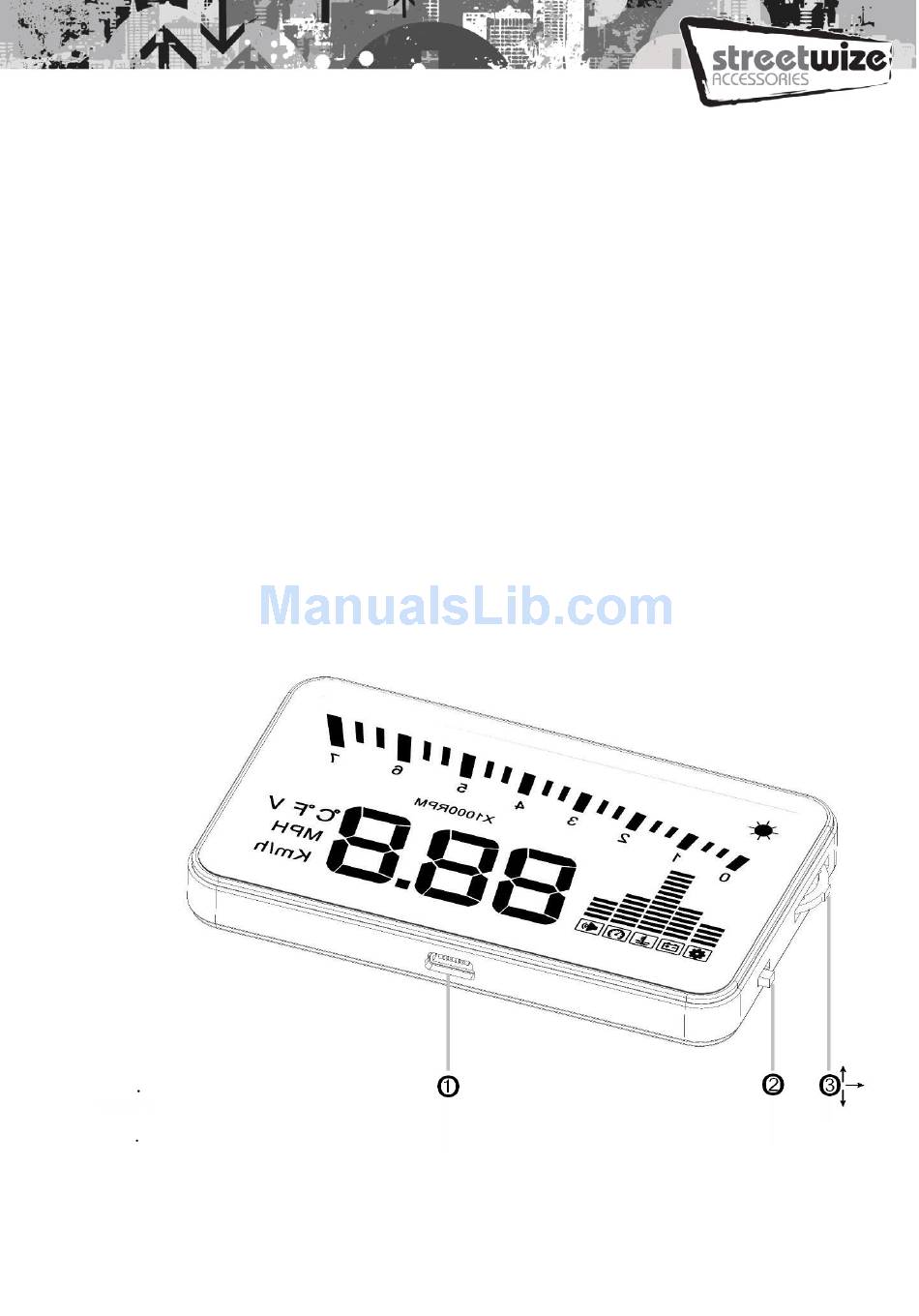

HUD
Button function
1 OBDII interface, to connect
the vehicle OBDII interface.
Button for power On and Off.
2
3. Swivel button: Up button (Push the swivel button up to scroll up), OK button
(press in to select), Down button (Push the swivel button down to scroll down).
