Pittsburgh Automotive 63184 Owner's Manual & Safety Instructions

Pittsburgh Automotive 63184 Owner's Manual & Safety Instructions

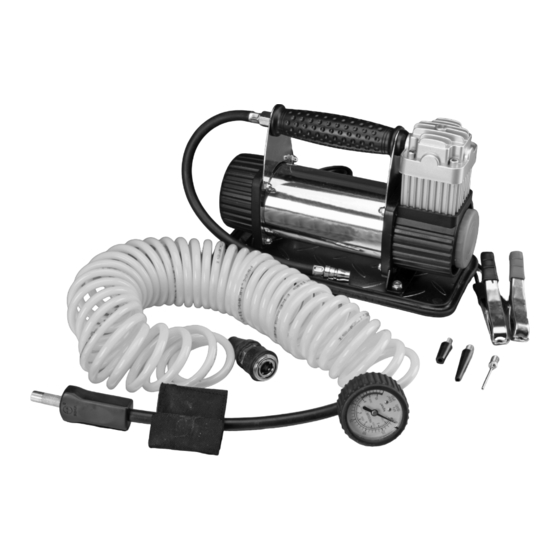

12 volt, 150 psi compact

Advertisement

Owner's Manual & Safety Instructions
Owner's Manual & Safety Instructions
Save This Manual
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
Keep this manual and the receipt in a safe and dry place for future reference.
When unpacking, make sure that the product is intact
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
please call 1-888-866-5797 as soon as possible.
©
©
Copyright
2016 by Harbor Freight Tools
Copyright
2016 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
Email our technical support at: productsupport@harborfreight.com
®
®
. All rights reserved.
. All rights reserved.
Read this material before using this product.
Read this material before using this product.
Failure to do so can result in serious injury.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
SAVE THIS MANUAL.
REV 16f

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 63184 and is the answer not in the manual?

Questions and answers

thomas stein
May 4, 2025

does this compressor have a pressure relief valve

Summary of Contents for Pittsburgh Automotive 63184

  • Page 1 Owner’s Manual & Safety Instructions Owner’s Manual & Safety Instructions Save This Manual Save This Manual Keep this manual for the safety warnings and precautions, assembly, Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the operating, inspection, maintenance and cleaning procedures.
  • Page 2 Indicates a hazardous situation which, if not avoided, could result in death or serious injury. Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. Addresses practices not related to personal injury. Page 2 For technical questions, please call 1-888-866-5797. Item 63184...
  • Page 3: Item

    Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source or moving the compressor. Item 63184 For technical questions, please call 1-888-866-5797. Page 3...
  • Page 4: Air Compressor Safety Warnings

    Raynaud’s Disease should not use this tool. If you feel any symptoms related to vibration (such as tingling, numbness, and white or blue fingers), seek medical advice as soon as possible. SAVE THESE INSTRUCTIONS. Page 4 For technical questions, please call 1-888-866-5797. Item 63184...
  • Page 5: Compressor Hose 1

    1.5 CFM Components and Controls End of Unit Compressor Hose On/Off Switch (on end of unit) Clamps On/Off Air Hose Switch Fuse Air Nozzle Grip Pressure Gauge Nozzles Figure A Item 63184 For technical questions, please call 1-888-866-5797. Page 5...
  • Page 6: Fuse.

    Return the Nozzles to the small storage 7. Turn the Compressor On/Off bag attached to the Compressor Hose. Switch to the “ON” position. 17. Store in a dry location. Page 6 For technical questions, please call 1-888-866-5797. Item 63184...
  • Page 7: Rings After Using 20 Times

    Thread the assembly back into the front cover, being careful not to cross thread it. Item 63184 For technical questions, please call 1-888-866-5797. Page 7...
  • Page 8: Filter:

    2. Turn Power Switch to On (I) position. (O) position. 3. Run-down battery. 3. Recharge battery. 4. Blown Fuse. 4. Replace Fuse. Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect from battery before service. Page 8 For technical questions, please call 1-888-866-5797. Item 63184...
  • Page 9: Item

    LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO. Item 63184 For technical questions, please call 1-888-866-5797. Page 9...
  • Page 10 Gauge Screw M5  x   1 4 Air Hose Baseboard Filter Baseboard Sheath Screw M4  x   8 Rubber Pad Front Cover Battery Clamp Snap Ring Ø12 Power Cord Shaft Page 10 For technical questions, please call 1-888-866-5797. Item 63184...
  • Page 11 Item 63184 For technical questions, please call 1-888-866-5797. Page 11...
  • Page 12 Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
