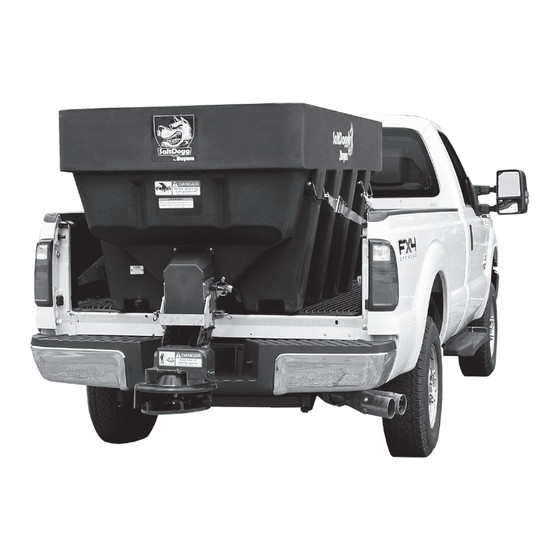

SHPE2000, SHPE2000RED, SHPE2000YEL
Series SaltDogg
®
Electric Drive Poly Hopper
Spreader
2.0 cubic yards
U.S. PATENT 9,562,333
Table of Contents
General Information .....................................................................1
Safety Precautions .......................................................................1
Warranty Information ...................................................................2
Installation Instructions ............................................................ 2-4
Spreader Operation .....................................................................5
Spreader Maintenance .................................................................5
Repair Parts & Drawings .........................................................6-10
General Information
Spreader models:
• SHPE2000- spreader with standard length chute
• SHPE2000X- spreader with extended length chute
Overall Length: 96 inches
Overall Width: 47-1/2 inches
Overall Height: (installed): 40 inches
Empty Weight: 437 lbs. (standard chute), 441 lbs. (extended chute)
Capacity Struck: 2.0 cu. yd.
Average Installation Time: 3 hrs.
Vehicle Requirements
• 3/4 or 1 ton pick-up truck above 8500# GVWR.
• 135 AMP or higher alternator is recommended.
Materials Recommended to Spread
CAUTION
Do not overload vehicle beyond the vehicle's GVWR or GAWR.
Check vehicle's load rating certification sticker for maximum
vehicle capacity.
Average Material Weights
Materials to use
Fine Salt-Dry
Coarse Salt-Dry
Sand/Salt up to 50/50 Mix-Dry
Note: To calculate the total spreader weight (including ice
control material), add the empty spreader weight plus the ice
control material and spreader accessories.
Installation Instructions
Weight (pounds per cubic yard)
2,250
1,431
2,700
Phone (440) 974-8888 • Fax (440) 974-0165
Toll-Free Fax 800-841-8003 • saltdogg.com
SHPE2000 SALT DOGG SPREADER WARRANTY
INFORMATION
This warranty replaces all previous warranties and no
employee of this company is authorized to extend addi-
tional warranties, or agreements, or implications
not explicitly covered herein.
Buyers Products Company warrants all parts of the
product to be free from defects in material and workman-
ship for a period of two (2) years. Parts must be properly
installed and used under normal conditions. Normal wear
is excluded.
Any part, which has been altered, including modifica-
tions, misuse, accident, or lack of maintenance will not
be considered under this warranty.
The sole responsibility of Buyers Products Company
under this warranty is limited to repairing or replacing any
part(s), which are returned, prepaid, 30
days after such defect is discovered, and returned part(s)
are found to be defective by Buyers Products Company.
Authorization from Buyers Products Company must be
obtained before returning any part. The following infor-
mation must accompany defective parts returned
to Buyers Products Company: RMA #, spreader model,
serial number, date installed, and distributor from whom
purchased.
Buyers Products Company shall not be liable for damage
arising out of failure of any unit to operate properly, or
failure, or delay in work, or for any consequential dam-
ages. No charges for transportation or labor performed
on any part will be allowed under this warranty.
1
9049 Tyler Blvd. • Mentor, Ohio 44060
—continued inside
Advertisement
Table of Contents
Summary of Contents for Salt Dogg SHPE2000
- Page 1 This warranty replaces all previous warranties and no employee of this company is authorized to extend addi- Spreader models: tional warranties, or agreements, or implications • SHPE2000- spreader with standard length chute not explicitly covered herein. • SHPE2000X- spreader with extended length chute Overall Length: 96 inches...
-
Page 2: Safety Precautions
Safety Precautions F. Attach the Chute Assembly to the spreader. First, hook the Chute to the spreader by openings in the Chute’s handle. WARNING Observe the following Safety Precautions before, during and after operating this spreader. By following these precautions and common sense, possible injury to persons and potential damage to this machine may be avoided. - Page 3 Fig. 4 2" x 6" WARNING Do not drill holes into fuel tanks, fuel lines, through electrical FIT TO BOX wiring, etc that may be damaged by drilling. 2. Install Control Box & Vehicle Wiring Harness (Fig. 7). NOTE: THIS IS A WIRE GROUND ELECTRICAL SYSTEM! NO 2"...
- Page 4 3014199 Fig. 7 Thoroughly clean battery terminals. Make sure battery 4. The SHPE2000 spreader is equipped with a dual terminals have no tarnish or corrosion. independent speed controller with warning indicators and a vibrator switch. To start the spreader, press the ON-OFF switch.
- Page 5 3. Lubricate bearing every 7-10 hours of operation using SHPE2000 has two discharge openings in the bottom of the general automotive grease. hopper. Material flow through these openings can be controlled 4. Inspect terminals/connectors every time you disconnect using two sliding baffles.
- Page 6 Repair Parts - Standard Chute Assembly Repair Parts - Extended Chute Assembly Bill of Materials Bill of Materials ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 3025063 CHUTE POLY, SHPE STD. LENGTH 3007526 CHUTE POLY. EXT. LENGTH 3033665 BRACKET WELDMENT, CHUTE 3006833 GEAR MOTOR 12 VDC.
- Page 7 Repair Parts-Hopper Assembly Bill of Materials ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION FCS025020075SS SCREW, CAP 1/4-20 X 3/4 SST 3008001 HOPPER POLY 2 CU. YA., BLACK SCREW, SHEET MTL #12x1.0 HEX WASHER 3025166 HOPPER POLY 2 CU. YA., RED 3007522 HD SST 3025168...
- Page 8 9240132 DECAL #2, DANGER BEFORE SVCE 3012898 DECAL, CHECK STRAPS 66050 SNAPPER PIN, 1/4 X 2, YLW ZINC 3022355 LABEL SERIAL NUMBER SHPE2000 3017979 LABEL: MULTIPLE PATENTS PENDING 3007527 CHUTE POLY EXT. ASSEMBLY Service Parts and Accessories 3028101 HARDWARE KIT SHPE2000...
