Instructions for 3B-R mini 128

This product is not a toy. It requires basic RC hobby assembling and flying skills to operate.

Please be careful during installation and operation. We are not responsible or liable for any

damage caused through use of our products.

Need help?

Do you have a question about the 3B-R mini 128 and is the answer not in the manual?

Questions and answers

Summary of Contents for BBB 3B-R mini 128

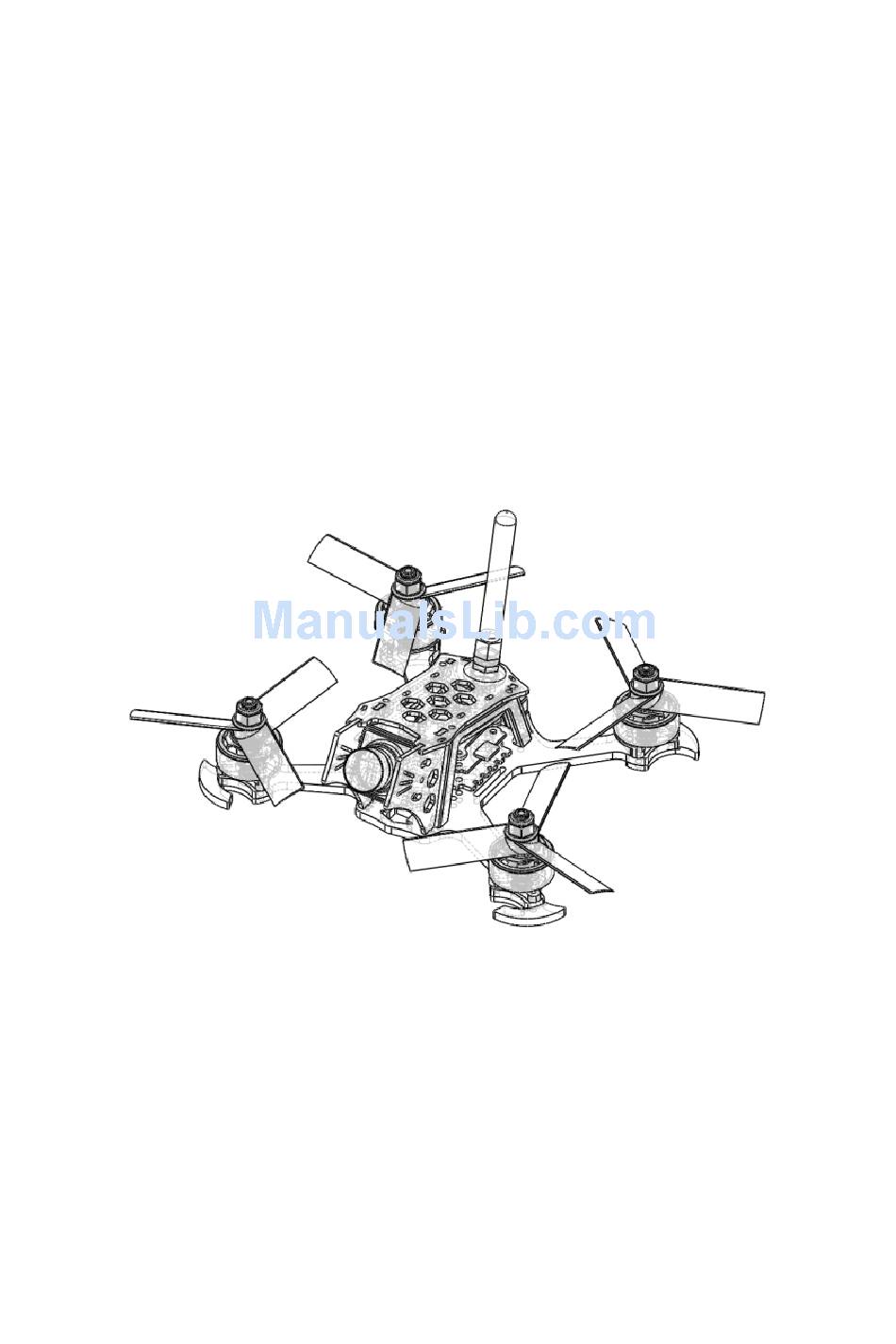

Page 1 Instructions for 3B-R mini 128 This product is not a toy. It requires basic RC hobby assembling and flying skills to operate. Please be careful during installation and operation. We are not responsible or liable for any damage caused through use of our products.
Page 2 www.3bhobby.com Thank you for choosing 3B-mini 128 multi-axis FPV flying. Main features: 1、Advanced Structure: The design concept of the 3B-214 competition frame (https://www.3bhobby.com) is used for the drone. In order to ensure the strength of the frame and to improve the appearance, the frame structure is CNC-machined by3K-3mm pure carbon base plate, which extends the life of the frame.
Page 3 www.3bhobby.com Please follow the step by step instructions below for assembly: List of Parts Serial Name Quantity Location Serial Name Quantity Location Antenna Accessory Kit 1 M2 black nylon nut Bag 5 SMA Adaptor with nut Accessory Kit 1 M2×5 nylon screw Accessory Kit 5 camera 3PIN adaptor Accessory Kit 1...
Page 4 www.3bhobby.com Step 3 Lower Frame 1、The M2×8(10) screw cannot be used without the motor protection board to avoid damage to the motor. 2、Make sure the motor wire direction is consistent with the arm, which is soldered onto the power distribution board. 3、Connect the drone to the PC to setup the parameters of the Flight Control and ESC.
Page 5 www.3bhobby.com Step 4 Final Assembly 1、Make sure the propellers are NOT installed when power on the TX, the drone, bind the receiver. 2、Connect the drone to the PC to setup the parameters of the Flight Control and ESC. Pay attention to the motor direction. (It is prohibited to operate the motor at high speed over 3 minutes under no load).
