Summary of Contents for Avermedia Document Camera

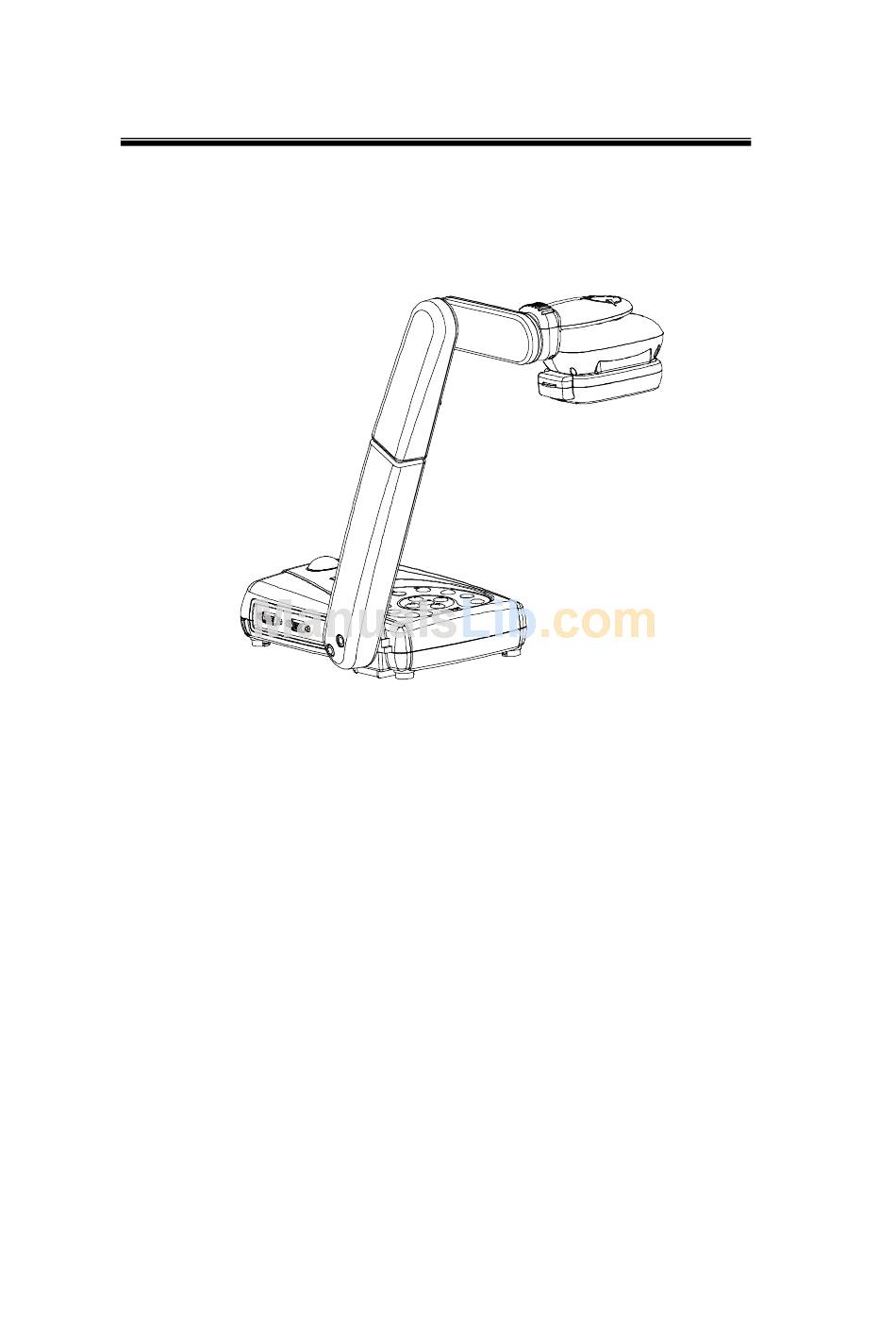

- Page 1 AVerMedia AVerVision300p ® User Manual AVerMedia ® Document Camera...
- Page 3 T R A D E M A R K S AVerMedia is registered trademarks of AVerMedia TECHNOLOGIES, Inc. IBM PC is a registered trademark of International Business Machines Corporation. Macintosh is a registered trademark of Apple Computer, Inc. Microsoft is a registered trademark and Windows is a trademark of Microsoft Corporation.
- Page 4 C O P Y R I G H T © 2006 by AVerMedia TECHNOLOGIES, Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of AVerMedia TECHNOLOGIES, Inc.
-
Page 5: Table Of Contents
Introduction ...1 Package Contents ...2 Optional Accessories ... 3 Technical Specifications...4 Installing and Setting Up the Hardware ...5 Connecting the Power Adapter ... 6 Connecting a VGA, Mac Display Monitor or LCD/DLP Projector ... 6 Connecting a TV ... 7 Connecting an IBM Compatible PC or Macintosh Computer ... -
Page 7: Introduction
® Thank you for purchasing the AVerMedia AVerVision300p. This document camera displays any documents, negatives, transparencies and 3D objects onto a TV, LCD or DLP projector making presentations a snap. The advanced features of the AVerVision300p make it a versatile and multifunctional product, making presentations easy. -
Page 8: Package Contents
Remote Control User Manual (batteries included) ® AVerMedia AVerVision300p Driver CD Anti-glare Sheet RCA Cable Power Adapter S-Video Cable Computer Extension Cable (VGA Cable) Power Cord * The power cord will vary depending on the standard power outlet of the country where it is sold. -
Page 9: Optional Accessories
34mm 28mm Microscopic Coupler Microscopic Adapter Microscopic Adapter Monitor Adapter Computer Adapter Light Box (for MAC) (for MAC) -
Page 10: Technical Specifications
Image Sensor VGA Effective Pixels Frame Rate White Balance Exposure Image mode Effect Analog RGB output H Sync. Signal V Sync. Signal Image Signal Level S-Video, Composite Video Output Image Capture Built-in Memory Optics Lens Shooting Area Zooming Power Source Consumption Lighting Lamp type... -
Page 11: Installing And Setting Up The Hardware
The ports on the back and side panel of the AVerVision300p enable you to connect the unit to a computer, graphics display monitor or LCD/ DLP projector, TV or other devices. Illustrated below are the ports that are located at the back and side panel of the AVerVision300p with their corresponding labels. -
Page 12: Connecting The Power Adapter
You can connect the power adapter to a standard 100V~240V AC power source. AVerVision300p enables you to display a presentation on a VGA / MAC display monitor, or LCD/DLP projector with an outstanding video quality. -
Page 13: Connecting A Tv
To display a presentation on TV, connect AVerVision300p to your TV by using the Video Cable or S-Video cable, switch the output mode to TV system by pressing the VGA / TV button on the remote control or control panel. If you are using a SCART RGB monitor, connect it by using the RCA to SCART cable. -
Page 14: Connecting A Computer Via Usb Connection
Download the saved images from AVerVision300p’s built-in memory to your computer or access the software application as a PC cam via the USB cable. Select the function through OSD, then connect it. (Refer to the section, Using the AVerVision Application, for more details.) Connecting an optional light box enables you to view x-rays, transparencies and negative slides. -
Page 15: Connecting To A Microscope
Connecting the AVerVision300p to a microscope enables you to examine microscopic objects on a larger screen without straining your eyes. -
Page 16: Adjusting The Avervision300P
This section provides illustrated useful tips on how to adjust the AVerVision300p to meet your needs. The camera head can be rotated 135 degrees from left to right. You can also manually adjust the focus from here to improve the quality of the pictures. Adjust the angle here at the ridged side 90 degrees... -
Page 17: Light And Document Positioning Pointer
A unique feature of the AVerVision300p is the four (4) laser positioning pointers that define the viewing area, enabling you to correctly position the object at the center under the camera’s viewing area. 3 various light and laser position pointer settings are provided as follows. -
Page 18: Using The Infrared Remote Control
Use the AVerVision300p Remote Control to enhance your presentation, switch between (3) three presentation modes and access various features. To use the remote control, first insert the batteries (2 size “AAA” batteries are provided) into the battery compartment at the back of the remote. Use the figure and descriptions below to help you use the remote control. - Page 19 (6) MIRROR (7) TIMER (8) REVERSE REVERSE (9) NIGHT VIEW (10) VGA/TV VGA/ (11) FREEZE (12) ZOOM +/ - (13) ZOOM RESET (14) MENU (15) ▲ ▼ ◄ ► (16) CAPTURE (17) DELETE Flip the image in Camera mode. Display, start and hide the on-screen display timer.
-
Page 20: Function Description
T h e t o u c h b u t t o n c o n t r o l p a n e l l o c a t e d o n t h e t o p s i d e o f t h e A V e r V i s i o n 3 0 0 p p r o v i d e s q u i c k a c c e s s t o c o m m o n l y u s e d f u n c t i o n s . -
Page 21: Led Panel
(9) ZOOM +/ - - Zoom in and zoom out the picture digitally in Playback mode. - Zoom in and zoom out the image optically and digitally in Camera mode. When it reaches the maximum AVERZOOM level of about 2 times, you can still continue to digitally zoom in the image up to 1600%. -
Page 22: Timer Function
The AVerVision300p enables you to control the pace of your presentation by displaying the remaining time on the countdown screen. This merely serves as a reminder. When the time is up, the timer blanks at the top right corner only and the presentation screen will not be affected in any way. -
Page 23: Using The Avervision Application
PC, or send them via emails. Note: 1. When a USB cable is connected between the document camera and the PC, the document camera features are controlled by the application software directly instead on the remote control. -
Page 25: Basic Setting
A. Basic Setting Function Digital Zoom and Pan Control Return to normal view (1X ) Linear/Fast zoom-in selection. Brightness adjustment Contrast adjustment Normal view without image rotate or mirror Rotate the image by 180°. Image mirroring Convert the image to Negative Convert the image to Black and White Back to the original image B. -
Page 26: Image Download From Avervision300P To Pc
PC. When you are finished downloading images to your PC and want to continue using the AVerVision300p in document camera mode, simply unplug the USB cable. If you prefer to use the AVerVision300p with the PC Cam applications after image download, go to Menu, again click on the "Advance"... -
Page 28: Menu Functions
The MENU functions of the AVerVision300p enable you to fine-tune your screen display, set the timer, select OSD language and more. Press the MENU button to call up and exit from the main menu or sub-menu display. Use the ▲or▼ buttons to select the items in the menu list. - Page 29 Main Menu Sub-Menu OSD EFFECT DEFAULT EXPOSURE WHITE BALANCE Description mode is better to be used in good light.) Use ▲or▼ buttons to display the image captured by the camera into negative, positive (true color), monochrome (black and white), mirrored image, or as a rotated image by 180º. Use ▲or▼...
- Page 30 Main Menu Sub-Menu OSD WHITE BALANCE RESOLUTION LANGUAGE IMG FORMAT IMG FORMAT IMG FORMAT USB SELECT Description To obtain a more accurate color balance, place a sheet of white paper under the camera. Select MEASURE then press ► button to calibrate the color temperature.
-
Page 31: Troubleshooting
3. Verify the setting of the display output device. 4. If you are presenting from a notebook or computer through the display output device, please check and switch the document camera source to PC Mode. I have set up the AVerVision300p and checked all the connections as specified in the manual, but I cannot get a picture on the preferred presentation screen. - Page 32 the box “Extend my Windows desktop onto this monitor”. Then go back one more time to your PC or Notebook and place the mouse on the desktop and right click again. This time choose “Graphics Options”, then “Output To”, then ®...
-
Page 33: Limited Warranty
For a period of time beginning on the date of purchase of the applicable product and extending as set forth in Section 6 of this Limited Warranty (the “Warranty Period”), AVerMedia Technologies, Inc. (“AVerMedia”) warrants that the applicable product (“Product”) substantially conforms to AVerMedia’s documentation for the product and that its manufacture and components are free of... -
Page 34: Limitation Of Liability
PERMITTED BY APPLICABLE LAW, AVERMEDIA DISCLAIMS ALL OTHER WARRANTIES WITH RESPECT TO THE PRODUCT, WHETHER EXPRESS, IMPLIED, STATUTORY OR OTHERWISE, INCLUDING WITHOUT LIMITATION, SATISFACTORY QUALITY, COURSE OF DEALING, TRADE USAGE OR PRACTICE OR THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN NO EVENT SHALL AVERMEDIA BE LIABLE FOR INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY NATURE INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS, DATA, REVENUE, PRODUCTION, OR USE, BUSINESS... - Page 36 P / N 3 0 0 A A B 6 S MADE IN TAIWAN...
