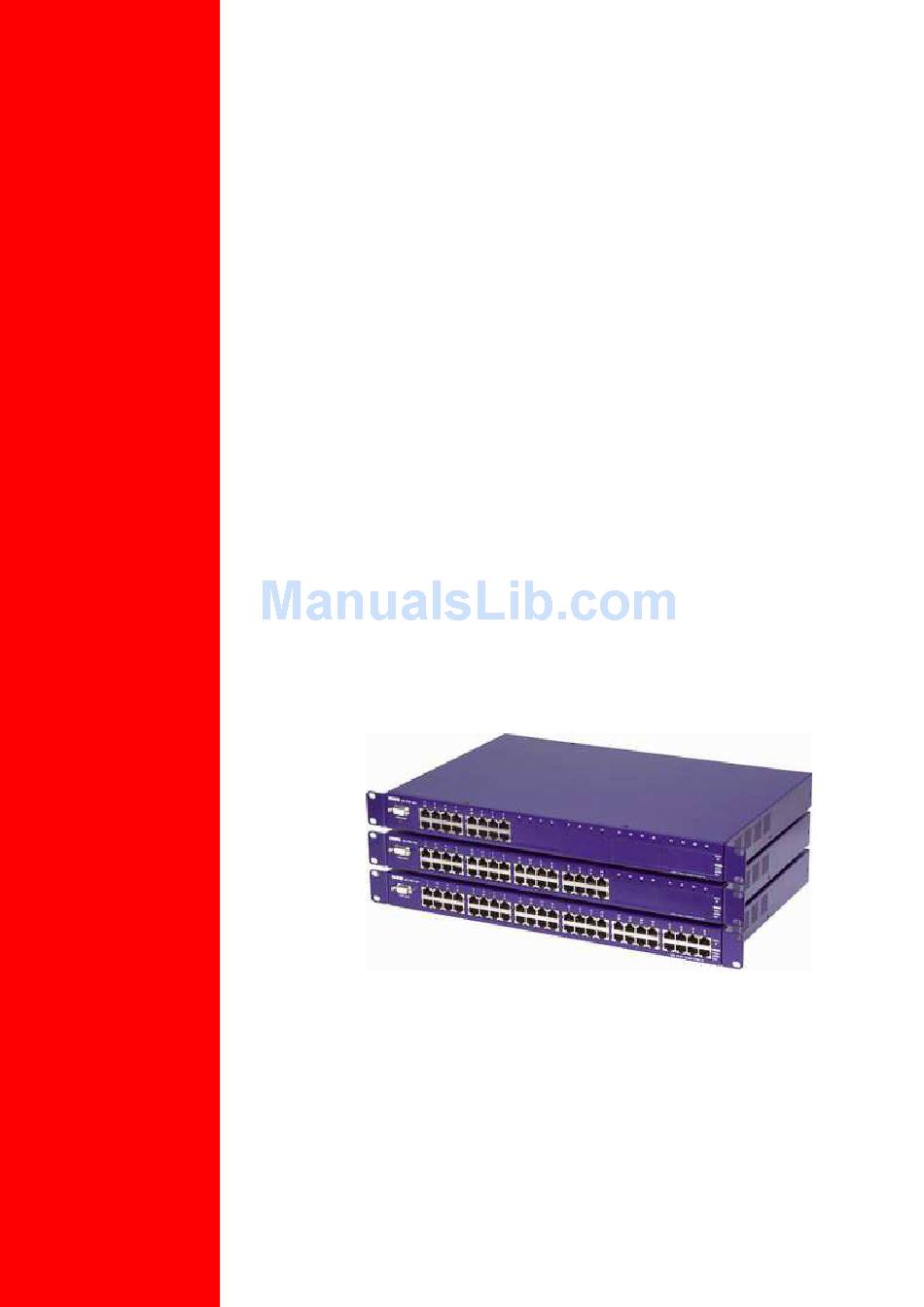

  • Page 1 PSE-608R(I)/616R(I)/624R Power Source Equipment USER’S MANUAL...
  • Page 2 User’s Manual PSE-608R(I)/616R(I)/624R Contents 1. Introduction................Features....................Package Contents................. 2. Hardware Description............Physical Dimension................Front Panel.................... LED Indicators..................Rear Panel.................... Power On....................Network Application................RJ-45 Remote Control Port..............3. Software Utility Installation..........4. GUI Management..............Display and Illustration................System Login..................

  • Page 3: Introduction

    User’s Manual PSE-608R(I)/616R(I)/624R 1. Introduction The PSE-608R(I)/616R(I)/624R PoE midspan, support 8/16/24 ports respectively in a 10/100/1000BaseTx Ethernet network, over TIA/EIA-568 Category 5/5e/6 cabling. DC operating power, for data terminal units, is fed over data pairs of the cabling (4/5 and 7/8).

  • Page 4: Package Contents

    If any item is missing or damaged, please contact your local dealer for service. 2. Hardware Description This Section mainly describes the hardware of the PSE-608R(I)/616R(I)/624R and gives a physical and functional overview. Physical Dimension PSE-608/608RI/616R physical dimension is: 430mm x 290mm x 44mm (Lx W x H), PSE-616RI/624R is 430mm x 400mm x 44mm (1U, 19”...

  • Page 5: Led Indicators

    Rear Panel The AC inlet, DC input terminal, and 4 Ventilation fan are located at the rear panel. The device will work with AC in the range 100-240V AC, 50-60Hz. Or work with DC (-42~-57VDC for PSE-608R/616R/624R, 40V~60VDC for PSE-608RI/616RI)

  • Page 6: Power On

    User’s Manual PSE-608R(I)/616R(I)/624R Power On Connect the power cord to the power socket on the rear panel of the PSE. The other side of power cord connects to the power outlet. The internal power supply of the PSE works with voltage range of AC in the 100-240VAC, frequency 50~60Hz, or with voltage range of DC in the -42~-57VDC (40~60V for PSE-608RI/616RI).

  • Page 7: Rj-45 Remote Control Port

    Internet Explorer or Mozila, to set the TCP/IP parameter. Before you use the web interface to set the PoE TCP/IP, verify that PSE-608R(I)/616R(I)/624R is properly installed on your network and PC on the network can access PoE via the web-browser.
  • Page 8 9. Key in ID (user name) and password to enter PoE TCP/IP parameter setting. Default ID and password is “admin” and “system”. 10. PSE-608R(I)/616R(I)/624R TCP/IP parameter has 4 pages interface (administrator setting, TCP Mode, UDP Mode and UART). You must change the administrator & TCP...
  • Page 9 User’s Manual PSE-608R(I)/616R(I)/624R 11. Administrator setting: you can assign nickname, IP setting, user name, password and view system information. Nickname: You can assign a name to the device. IP Address: You must assign the IP address reserved by your network. The default IP is 192.168.1.10.
  • Page 10 Remote Server IP Address: Unused. Clint mode inactive timeout: Unused. Server mode protect timeout: Set to 0(Disable) for normal operation. When you have finished the set up, click on Update to update your setting. PS: The PSE-608R(I)/616R(I)/624R don’t used in the Telnet terminal.
  • Page 11 User’s Manual PSE-608R(I)/616R(I)/624R 13. UDP Mode: This mode is not used in the PoE application.
  • Page 12 User’s Manual PSE-608R(I)/616R(I)/624R 14. UART: You must set UART Control to RS232,9600,8,N,1 for PoE operation. Mode: Set to RS232 for PoE operation. Baud rate: Set to 9600 bps for PoE operation. Character Bits: Set to 8 bits for PoE operation.
  • Page 13 User’s Manual PSE-608R(I)/616R(I)/624R 15. When you have configured your set up, you must reset the device to take effect.

  • Page 14: Software Utility Installation

    User’s Manual PSE-608R(I)/616R(I)/624R 3. Software Utility Installation Before you start to remote configuring PD, please install the software utility. Through the software utility, you can easily to control the PD that connect with PoE and view the PD parameter information. The software utility provides GUI interface and user can easily to start with it.

  • Page 15: Gui Management

    User’s Manual PSE-608R(I)/616R(I)/624R 4. GUI Management Display and Illustration Connect the PSE with a PC through the remote control port. Then, run the software utility (Netclient). You will see the main utility interface below. Tools bar PSE station selection & alarm indicator Display PSE station PSE station name&IP setting...

  • Page 16: System Login

    User’s Manual PSE-608R(I)/616R(I)/624R System Login Now Run the management software, the system will show the diagram below. enter the password, first enter the default setting which is “0000”...

  • Page 17: Modify Password

    User’s Manual PSE-608R(I)/616R(I)/624R Modify Password Click “File” and select “Modify PSW”, you can modify the password, the system permits 3 sets of password.

  • Page 18: Edit Station Tcp/Ip

    User’s Manual PSE-608R(I)/616R(I)/624R Edit Station TCP/IP Click “Setting”, and select “LAN Setting”, or click “LAN Setting” icon, the screen will enter IP Setting window.
  • Page 19 User’s Manual PSE-608R(I)/616R(I)/624R In the IP Setting display window, you can edit the station name, TCP/IP address and port number. Click the Edit icon to modify this parameter. In the Edit window, click the View icon to display TCP/IP parameter.

  • Page 20: Edit Remote Poe Ip

    User’s Manual PSE-608R(I)/616R(I)/624R Edit Remote PoE IP In the IP Setting display window, you can use “PoE IP Setting” icon to start the web-browser. To modify the remote PoE TCP/IP parameter, please reference RJ-45 Remote Control Port of section 2 Hardware Description (page 7).

  • Page 21: Gui Connect All

    User’s Manual PSE-608R(I)/616R(I)/624R GUI Connect All In the main page window, click “GUI” and select “Connect All” command or click “connect all” icon, if the Station Selection window shows the name icon and displays power status(green or red) light, it means that the PSE connection is correct. You can then select...
  • Page 22 User’s Manual PSE-608R(I)/616R(I)/624R GUI connect example: In the Station Selection window, the LED indicates real time connection of PSE. Green-----this connection and PSE power are normal. Red--------this connection is OK but PSE power is not correct. Orange---this connection is not working..

  • Page 23: Single Station Connect/Disconnect

    User’s Manual PSE-608R(I)/616R(I)/624R Single Station Connect/Disconnect In the IP Setting window, you can click Connect/Disconnect icon to enable/disable single station connection, the LED indicates real time status of TCP/IP. Green-----TCP/IP connection is OK. Red--------TCP/IP connection is not working. Gray-------TCP/IP parameter is not setting.

  • Page 24: Station And Status Window Select

    User’s Manual PSE-608R(I)/616R(I)/624R Station and Status Window Select The PSE management software can monitor 24 PSE simultaneously. In the GUI Disconnect All mode, only the TCP/IP Status display window can be used to set the TCP/IP parameter. In the GUI Connector All mode, there two display windows can choose - Port Status & Board Setting.

  • Page 25: Edit Port Name

    User’s Manual PSE-608R(I)/616R(I)/624R Edit Port Name Click “Setting”, and select “PoE Name” or click the “PoE Name” icon. The screen will enter IP Setting window. You can assign a name to the PSE port individually. In the “Module Select” window, select the suitable port that you require.

  • Page 26: Configuration

    User’s Manual PSE-608R(I)/616R(I)/624R Configuration . In the main page window, click “Config”, and select “Setup”, the screen will show the system control panel as below. Set icon: Apply the operation mode to PSE system. Set Enable/Set Disable icon: Change the Board Status window to set enable/disable.

  • Page 27: Factory Setting

    User’s Manual PSE-608R(I)/616R(I)/624R Factory Setting Click “Config”, and select “Factory” or click the “Factory” icon. The screen will show the factory setting control panel as below: then click “Y” for the Factory Setting.
  • Page 28 User’s Manual PSE-608R(I)/616R(I)/624R Factory setting as below: Operation Mode → Auto (Auto, Force & Shutdown) AC Disconnect → On (On & Off) DC Disconnect → Off (On & Off)

  • Page 29: Board Status

    User’s Manual PSE-608R(I)/616R(I)/624R Board Status Click “Config”, and select “GetBoardStatus”, or click “Board STATUS” icon, the screen will show current status of each port.

  • Page 30: Port Status

    User’s Manual PSE-608R(I)/616R(I)/624R Port Status In the main page window, click “StatusDisp”, and select “PortStatus”, or click the “PORT STATUS” icon, the screen will show current status of each port and current power supply status of each module. If all power modules are working normally, the “Sys. Power” will show a green light, if any...

  • Page 31: Gui Version

    User’s Manual PSE-608R(I)/616R(I)/624R GUI Version Click “StatusDisp”, and select “GUI Version”, the screen will show the version of the EMS utility...

  • Page 32: Gui Disconnect All

    User’s Manual PSE-608R(I)/616R(I)/624R GUI Disconnect All Click the “GUI”, and select “Disconnect All”, or click the “GUI disconnect all” icon to disconnect the communication between GUI and PSE.

  • Page 33: File Open And Save

    User’s Manual PSE-608R(I)/616R(I)/624R File Open and Save You may click “File” and select “Open”, or click the ”Open file” icon, to open the previous setting file. Click “Save”, or “Save file” icon, to save the current setting.

  • Page 34: Technical Specification

    User’s Manual PSE-608R(I)/616R(I)/624R 5. Technical Specification PARAMETER PSE-608R PSE-616R PSE-624R Data Ports PoE Ports Console Port 1× RJ45 console interface for management Output power DC 54V@600mA (AC input) (per port) Vo=Vi-1V (DC input) Power consumption 264W 528W 792W (maximum) AC Input...
  • Page 35 User’s Manual PSE-608R(I)/616R(I)/624R...
