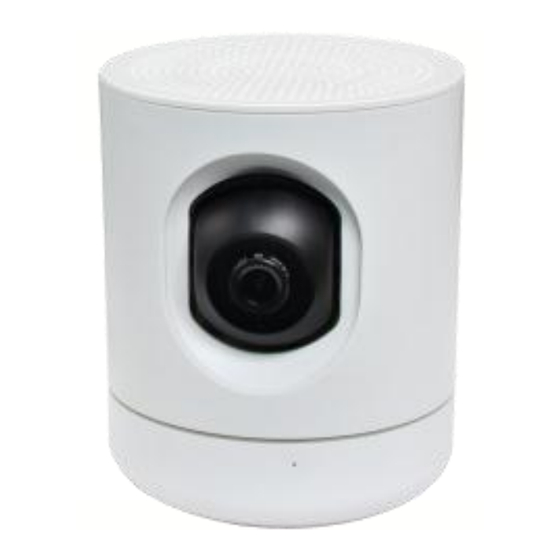

Zhuhai RaySharp Technology RS-CH772H1B-36-RF User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

User Manual

RS-CH772H1B-36-RF

Table of Contents

Need help?

Do you have a question about the RS-CH772H1B-36-RF and is the answer not in the manual?

Questions and answers

Summary of Contents for Zhuhai RaySharp Technology RS-CH772H1B-36-RF

Page 1: User Manual
User Manual RS-CH772H1B-36-RF...
Page 2 User Manual Contents Introduction ............................... 3 1. Overview ................................ 4 1.1 Product Description ..........................4 1.2 Operation Environment ........................... 4 2. Device Connection ............................5 3. Device Operation Instructions ........................6 3.1 Check Connection ........................... 6 3.2 Searching Device ............................. 6 3.3 Installation of Controls and Login to System ..................
Page 3 User Manual 8.1 SD Card（optional function） ......................19 8.2 Logs ............................... 20 8.3 Audio ..............................20 9. System Parameters ............................21 9.1 Basic Information ..........................21 10. Advanced ..............................23 10.1 System Update ............................. 23 10.2 Default Parameters ..........................23 10.3 System Maintenance ..........................
Page 4: Introduction
User Manual Introduction Thank you for using our network camera products.Our network camera productsare integrated and developed for network video monitoring, including Storage Network Bullet, Wireless Storage Network Bullet, IR Network Dome, IR Network Weather-Proof Cameras and High-Speed Network Ball. High-performance single SOC chips are used in media processor for audio/video acquisition, compression and transmission/transfer.
Page 5: Product Description
User Manual 1. Overview 1.1 Product Description An IP camera is a digital online surveillance camera embedded with Web server and capable of independent operation, giving user access to real-time monitoring through web browser or client software from any place across the world.
Page 6: Device Connection
User Manual 2. Device Connection IP camera can be connected in two ways: 1. Connection to PC Connect IP camera to PC via straight-through network cable, with power input connected to a DC 12V adaptor, and set the IP addresses of the PC and IP camera in one network segment. The IP camera will communicate with PC within one minute after being powered on if the network operates normally.
Page 7: Device Operation Instructions
User Manual 3. Device Operation Instructions 3.1 Check Connection The default factory IP address for IP camera is 192.168.1.125and the subnet mask is 255.255.255.0. Allocate to your computer an IP address in the same network segment as the IP camera, for example, 192.168.1.69, and a same subnet mask as that of the IP camera.
Page 8: Installation Of Controls And Login To System
User Manual acquired. Online device searching procedure 1. Run IPC Device Search by double clicking icon . It will search and display any online IPC and its IP address, port number, number of channels, device type and version, subnet mask, gateway, MAC address and connection pattern.
Page 9: Preview
User Manual 3.3.1 Preview Operate IE and enter the IP address of the camera (http://192.168.1.125) to open a login box as shown below: In the login box you can choose a language for the IE client. Enter your user name (admin by default) and password (123456 by default) and then press OK to open a preview frame as shown below: Some buttons in the preview frame are described below Can be opened (breathing) on/off (breathing) wouldn't light...
Page 10 User Manual : Preview frame ratio adjustment, toggling between Original Ratio and Automatic Ratio. : Preview control buttons - Zoon-In/Out, Open Video, Snap and Sound On/Off, Mircophonearranged from the left to the right. : Dynamic switching of bit stream for the preview frame. Yuntai control button, click on the preview page after the diagram below: Preview page pops up a new operating page, contains the PTZ, Preset, Cruise...
Page 11: Display Configuration
User Manual 3.3.2 Playback（optional function） Click record file to playback, select the corresponding date, then click the Search to go to below page Button function explanation：：Record file type；ALL、Normal、Alarm ： From left to right is play/pause, stop, frame playback(click one time, playback one Frame), slow playback, fast forward, audio control ：from left to right is scale up, Video clips(need to setup in the progress bar), screenshot, video download and zoom...
Page 12: Image Control
User Manual Name of channel: name of the IP camera Display of channel: Choose to display or conceal it. defaults to Disable Time display: Choose to display or conceal it. Blinking control: Choose 50Hz, 60Hz or disable it. Transparency: Choose transparency of display of name of channel and time on the preview frame (smaller value indicates higher transparency) OSD: the text in red color on the frame;...
Page 13: Video Blocking
User Manual 4.3 Video Blocking Click on Video Blocking in Display Configuration to open the following page: Procedure of setting video blocking: Check Enable Video Blocking Press down and hold the left mouse button and drag out a area for video blocking (up to four areas at one time) Click on Save to enable the video blocking area.
Page 14: Schedule
User Manual 5.2. Schedule Click Schedule under the menu Record, then go to the page as below As image: one grid in the table is 30 minutes, green is normal record, yellow is motion detection alarm. User can setup according to private requirement to choose different record type and time。 6.
Page 15: Wifiset
User Manual Default gateway: Default gateway of the device Preferred/Alternate DNS server: Set DNS server UPNP: Enable or disable UPNP function for the device (disable by default) 6.2 WiFiSet LAN search and add a wifi hotspot 6.3 transcode settings Click on Bit Stream Setting in Network Parameter Menu to open the following page: By default the available bit streams are: main bit stream, sub-bit stream and cell phone bit steam.
Page 16: E-Mail Configuration
User Manual Frame rate: When refresh rate is 50Hz, the maximum available frame rate is 25 fps. When refresh rate is 60Hz, the maximum available frame rate is 30 fps. Audio: Enable audio for each bit stream. I frame interval: Set I frame interval. Bitrate control: Set constant or variable bitrate for bit stream.
Page 17: Ddns Configuration
User Manual 6.5 DDNS Configuration Click on DDNS Configuration in Network Parameter menu to open the following page: DDNS configuration: Dynamic DNS configuration - used with server for access from an extranet. Enable DDNS: Enable or disable it. Address of server: Choose "3322". Name of host: Enter the name of active server User name: Name of the user Password: Password of the user...
Page 18: Rtsp
User Manual 6.7 RTSP Click on RTSP in Network Parameter menu to open the following page: RTSP Enabling: Enable or disable RTSP. RTSP is enabled by default. After it is disabled, it will not be found with ONVIF. RTSP Port: The default port number is 554, and can be changed to another value between 1024 and 65535. Modification to the parameter will restart the system.
Page 19: Alarm Parameter
User Manual FTP: FTP service setting - used with alarm function to upload images or videos snapped to the FTP server. FTP:Enable or disable it. User name:The user name for access to FTP service Password:The password for access to FTP service FTP Server: Enter the address of FTP server.
Page 20: Device
User Manual Push Notification 10. Liiumination Ring Doorbell default for the door bell ring 11. Audio Alert: Audio ( . Ringtone Siren) Duration: 10s.30s.60s (Note: When any object moves within the target area, a letter "M" in green color will be displayed on the preview frame) 8.
Page 21: Logs
User Manual 8.2 Logs Click on Logs in Device menu to open the following page: Log Type: Eight types of logs are available - system logs, network logs, parameter logs, alarm logs, user logs, recording logs, storage logs and all logs). Choose the starting and ending date/time for retrieval. Click on "Search"...
Page 22: System Parameters
User Manual 9. System Parameters System parameters include Basic Information, User Configuration and System Information. Their interfaces and functions are described below. 9.1 Basic Information Click on Basic Information in System Parameters mnu to open the following page: The device time, system time, date format and time format contained in the basic information can be manually set and saved.
Page 23: User Configuration
User Manual 9.2 User Configuration Click on User Configuration in System Parameters menu to open the following page: Here you can set user access authority and login password. 9.3 System Information Click on System Information in System Parameters menu to open the following page: Here some system information on the device will be displayed, including device type, MAC address and software version.
Page 24: System Update
User Manual 10. Advanced It includes System Update, Default Parameters and System Maintenance. Their interfaces and functions are described below. 10.1 System Update Click on System Update in Advanced menu to open the following page: Update will be unavailable if the update files do not match the target device. 10.2 Default Parameters Click on Default Parameters in Advanced menu to open the following page: Check relevant options and click on Save to recover the default factory settings for the options as checked.
Page 25: System Maintenance
User Manual 10.3 System Maintenance Click on System Maintenance in Advanced menu to open the following page: Here you can set regular restart or manual restart of the device. FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user' s authority to operate the equipment.
Page 26 User Manual...
Page 27 User Manual...
