INTRODUCTION
This covers the installation guide for AVerMedia® AVerTV and AVerMedia®
AVerTV Studio, which either include with A2, NICAM or SAP stereo standard. With
either product, you can watch TV, record your favorite program or video to your hard
drive, watch a TV replay, capture images, play music CD, and video conference on
your PC. If you purchased the AVerMedia® AVerTV Studio package, you can even
listen to FM radio!

PACKAGE CONTENTS

• TV Tuner/Capture Card •
• Installation CD •
• FM Radio Antenna (AVerMedia® AVerTV Studio only)
If you purchased the one with remote, your package will also include:
• •
Remote Control
(Batteries included)
•
Two-in-one Cable
(8-pin Mini-Din S-video/Remote connector)

System Requirements

System requirements are described very clearly on the package box. Before installing
the AVerMedia® AVerTV and AVerMedia® AVerTV Studio card and software,
make sure your PC meets the listed requirements.

HARDWARE INSTALLATION

Step 1. Installing the Card to the PC
1. Remove the system unit cover.
2. Insert the tuner/capture card in an empty
PCI expansion slot on the motherboard.
3. Replace back the system unit cover.

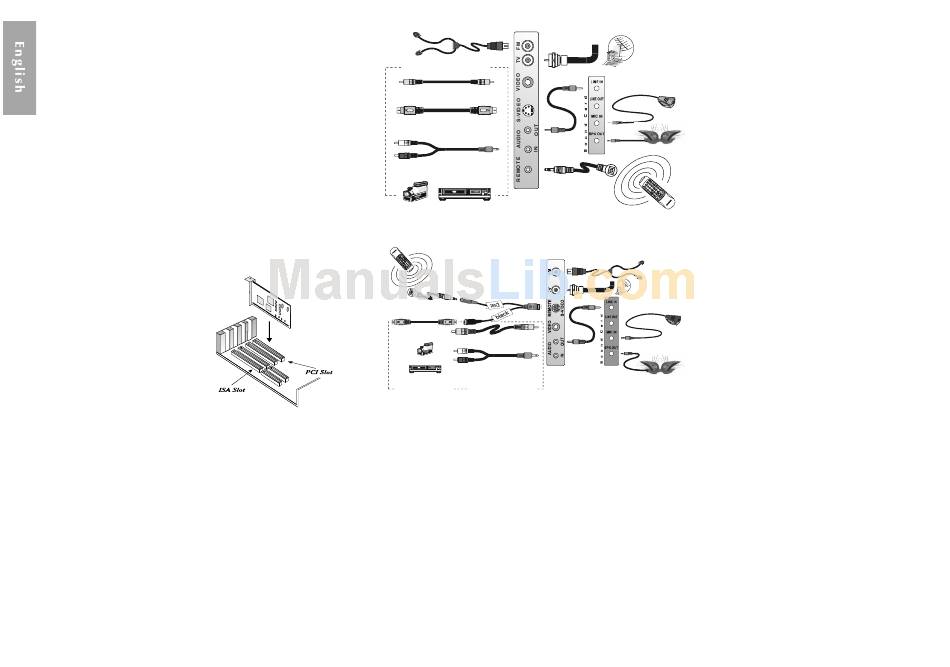

Step 2. Making the Connections
The AVerMedia® AVerTV and AVerMedia® AVerTV Studio cards have the same
connectors, except that AVerMedia® AVerTV Studio has an additional "FM" port. A
"remote" port will be available, if you purchase the one with a remote function.
The figure on the next page shows clearly, which cable should be connected to
each port.
1
Stereo Audio Cable
Quick Installation Guide
To Video/S-Video Out and Left & Right Audio Out
Infrared Sensor Cable
If you have the one with 8-pin Mini-Din s-video/remote connector, see the
diagram below for proper cable connection.
To Video/S-Video Out and
Left & Right Audio Out

INSTALLING THE DRIVER

After you have properly installed the card, turn on your computer. The
system will automatically detect the newly installed device on the first time
you reboot your computer. Simply follow the installation procedures and
restart the computer when you're instructed to do so.
FM Radio Antenna
(AVerMedia AVerTV Studio only)
TV Antenna/
Cable
Connecting to a Video Source
Video Cable
(not supplied)
S-Video Cable
(not supplied)
Stereo Audio
Cable
Audio Cable
(not supplied)
of Video Source
Infrared Sensor Cable
(option)
VCR
Camcorder
FM Radio Antenna
(AVerMedia AVerTV Studio only)
Two-in-one cable
Infrared Sensor Cable
(option)
S-Video Cable
(not supplied) Video Cable
(not supplied)
Stereo Audio
Cable
Camcorder
Audio Cable
(not supplied)
VCR
Connecting to a Video Source
of Video Source
2
Microphone
(Not Supplied)
External Amplified Speaker
TV Antenna
Microphone
(Not Supplied)
External Amplified
Speaker
