WIS NETWORKS WIS-SF800P Quick Setup Manual

Smart poe switch

Advertisement

Quick Setup Guide

Smart PoE Switch
Models:
WIS-SF800P/WIS-SG800P/WIS-SG900P
Version: 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WIS-SF800P and is the answer not in the manual?

Questions and answers

Summary of Contents for WIS NETWORKS WIS-SF800P

  • Page 1: Quick Setup Guide

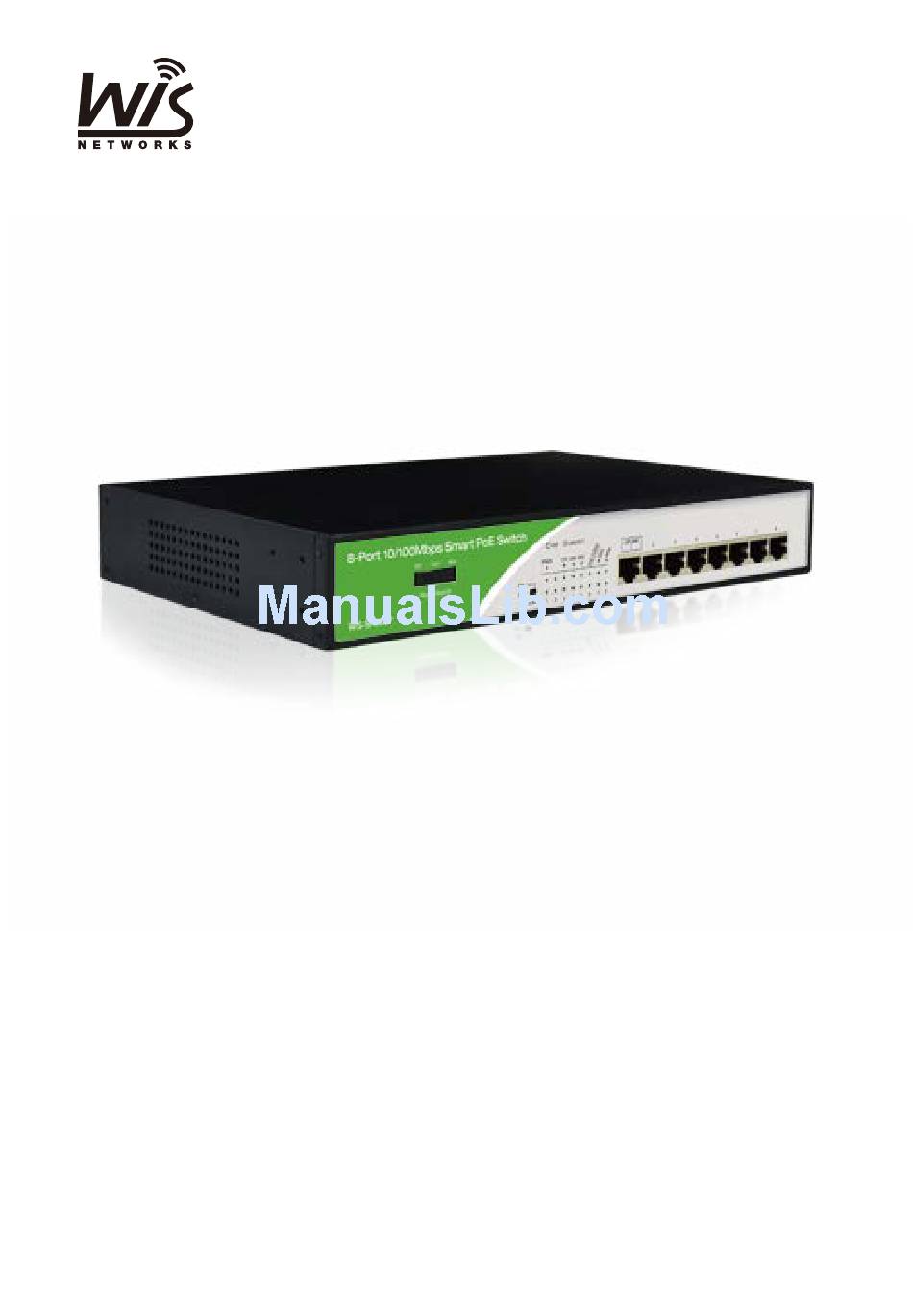

    Quick Setup Guide Smart PoE Switch Models: WIS-SF800P/WIS-SG800P/WIS-SG900P Version: 1.0...
  • Page 2: Front Panel

    Interface Front Panel Voltage Switch VLAN Switch LED Indicator 8*10/100Mbps RJ45 Ports Voltage Switch - Switch to 48V/24V/12V power output for all ports LED Indicator COLOR DESCRIPTION OFF : Switch is power off Green ON : Switch is power on OFF : NO device connected LNK/ACT Green...
  • Page 3: Rear Panel

    VLAN Switch - By default it is disabled. All the ports is equal to each other and reachable. - If enable the VLAN, the system works with VLAN isolation mode, that is port 2~8 CANNOT communicate to each other, but only available to communicate with port 1 (uplink). This makes avoid the network broadcast storm and better security.
  • Page 4: Network Example

    Network Example Internet Wireless Wired Wicontroller NMS WIS-R5100 Core Switch radius server 48VDC PoE 48VDC PoE WIS-SF800P WIS- CM712AC WIS- CM712AC iPad Desktop Laptop phone PS Vita Install the Switch Instructions before installing - Please do not put the switch near the water or in humid areas .
  • Page 5: Power Up The Switch

    Install on 19’’ rack 1. Check the rack stability and grounding 2. Mount the two bracket in the package to the two side of the switch with screws Bracket Screw P M 3 0 0 8 G 8 -P o rt G ig a b it P o E S...
  • Page 6: Safety Notices

    Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.
  • Page 7: Fcc Statement

    RoHS/WEEE Compliance Statement European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities.
  • Page 8: Limited Warranty

    Limited Warranty Wisnetworks warrants that the product(s) furnished hereunder (the “Product(s)”) shall be free from defects in material and workmanship for a period of two (2) years from the date of shipment by Wisnetworks under normal use and operation. Wisnetworks sole and exclusive obligation and liability under the foregoing warranty shall be for Wisnetworks, at its discretion, to repair or replace any Product that fails to conform to the above warranty during the above warranty period.

This manual is also suitable for:

Wis-sg900pWis-sg800p
