Atoms Labs AWSC37 Quick Start Manual

QUICK START GUIDE
HD Monitoring System Accessory Camera
AWSC37

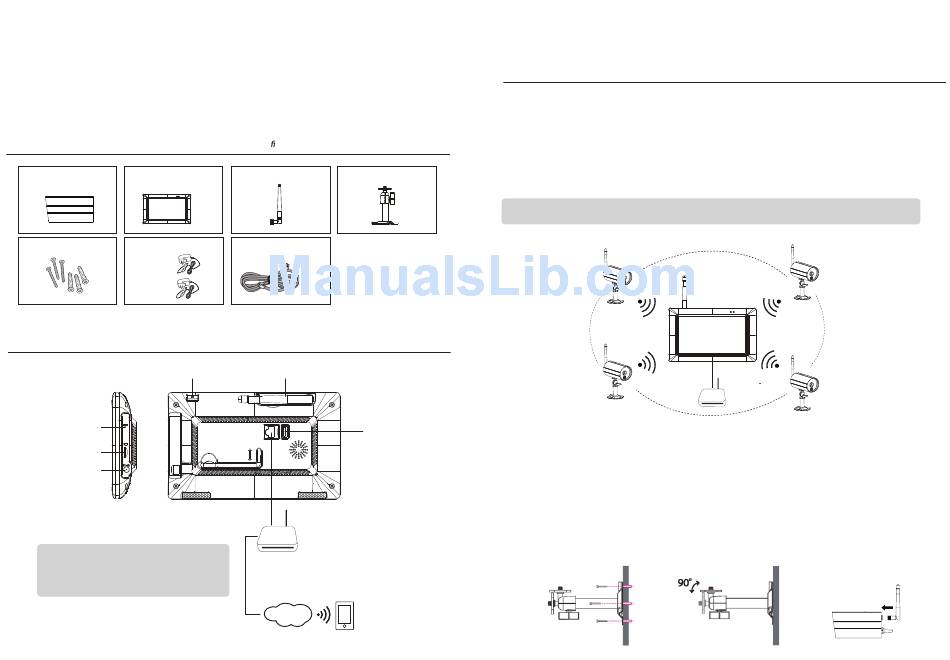

KIT CONTENT
*Quantity varied subject to con guration
*Digital Wireless Outdoor Digital Wireless Receiver
IR Camera Console
Screw Pack (For Camera ) Camera / Receiver Adaptor
Camera power
adapter-5V/1.5A
HDNVR power
adapter-12V/2A

PRODUCT OVERVIEW

Power Botton
Reset Botton
Memory Card Slot
Power Jack
Note: Before using the memory card/ HDD
for recording video, you MUST format the
memory card/ HDD on the console.
*Camera Stand
* Camera / Receiver Antenna
x 1
Ethernet Cable
x 1
x 1
Antenna
USB Port
Router
Connect system directly after the router. Do not
connect system to router through a hub or switcher.
Enable DHCP and UPnP on your router. TCP port
#6000 and #80 should be opened.
Internet
Mobile Device
INSTALLING YOUR DEVICES
A. Setting up your monitor
1. Insert the memory card and/or connect HDD device to USB port.
2. Twist on the antenna to the LEFT side of the console.
3. Connect the Ethernet cable from the BACK of the console to your router.
4. Connect the 12V power adaptor and power on the system.
5. Twist on the stand to the back of the console.
Note: Keep distance between device minimum 1 meter.
1 M+
B. Installing your camera
1. Secure the camera stand to a stable surface, celling or wall mount using three pcs screws.
2. Loosen the thumb screw of the camera stand and secure the camera body to the bracket.
3. Screw the antenna into rear of the camera.
4. Connect the supplied power adaptor to the camera and the power source. The RED LED
will light up which indicate the camera is ready for setup.
(1) (2)
1 M+
Monitor
1 M+
1 M+
Router
1 M+
(3)
Thumb Screw
