INSTRUCTION MANUAL

INTERRUPTIBLE AC INVERTER SYSTEM

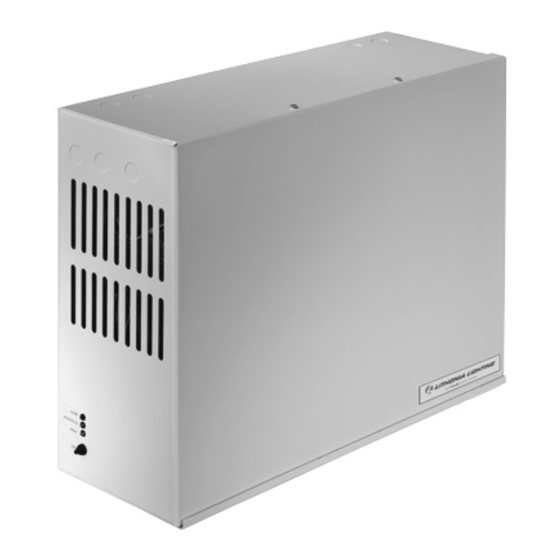

MODEL EAC ISSM 375 SM
FOR EMERGENCY LIGHTING POWER

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be followed, including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1.
DO NOT USE OUTDOORS.
2.
Do not mount near gas or electric heaters.
3.
Do not use this equipment for other than its intended use.
4.
The EAC ISSM 375 SM should be mounted securely and in locations and at heights where it will not readily
be subjected to tampering by unauthorized personnel.
5.
The use of accessory equipment and replacement parts not recommended by the original manufacturer
may cause an unsafe condition and void the warranty.
6.
The AC voltage rating of this equipment is specified on the product label. Do not connect the
EAC ISSM 375 SM equipment to any other voltage.
Use only the battery part number specified for use with the EAC ISSM 375 SM. Failure to do so may cause
7.
an unsafe condition, will void warranty, and result in non-compliance with UL specifications.
The EAC ISSM 375 SM uses a sealed valve regulated lead acid battery. Batteries can be punctured if not
8.
handled properly, therefore use caution when servicing batteries. In the event battery acid comes in contact
with eyes or skin, flush with fresh water and consult a physician immediately.
9.
Install in accordance with the National Electrical Code and local regulations.
10.
Installation and servicing should be performed by qualified personnel.
11.
Electricians and end-users need to ensure product system compatibility before final installation.

SAVE THESE INSTRUCTIONS

THIS UNIT CONTAINS A
RECHARGEABLE VALVE-REGULATED
LEAD ACID BATTERY. PLEASE
RECYCLE OR DISPOSE OF
PROPERLY.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EAC ISSM 375 SM and is the answer not in the manual?

Questions and answers

Summary of Contents for Power Sentry EAC ISSM 375 SM

  • Page 1: Instruction Manual

    EAC ISSM 375 SM equipment to any other voltage. Use only the battery part number specified for use with the EAC ISSM 375 SM. Failure to do so may cause an unsafe condition, will void warranty, and result in non-compliance with UL specifications.

  • Page 2: Installation Instructions

    1) Remove the front cover of the EAC ISSM 375 SM by removing the two (2) screws located at the top of cover. 2) Knock out the keyhole slots at the rear of the unit and use for mounting the EAC ISSM 375 SM securely to the wall. There is an additional round hole for a #10 screw in the cabinet.
  • Page 3 70 in/lbs for a Screw Stud terminal, and 65 in/lbs for an L Flag terminal. B. Install the battery into the EAC ISSM 375 SM with the terminal posts facing toward the front of the unit. NOTE: The EAC ISSM 375 SM battery is heavy. To avoid injury, exercise caution when handling the battery.
  • Page 4 Operation Normal Mode - AC power is present and operates the fixtures as intended. The EAC ISSM 375 SM is in the standby charging mode. The Ready (Yellow) Indicator will be lit providing a visual indication that the unit is in Standby Mode.
