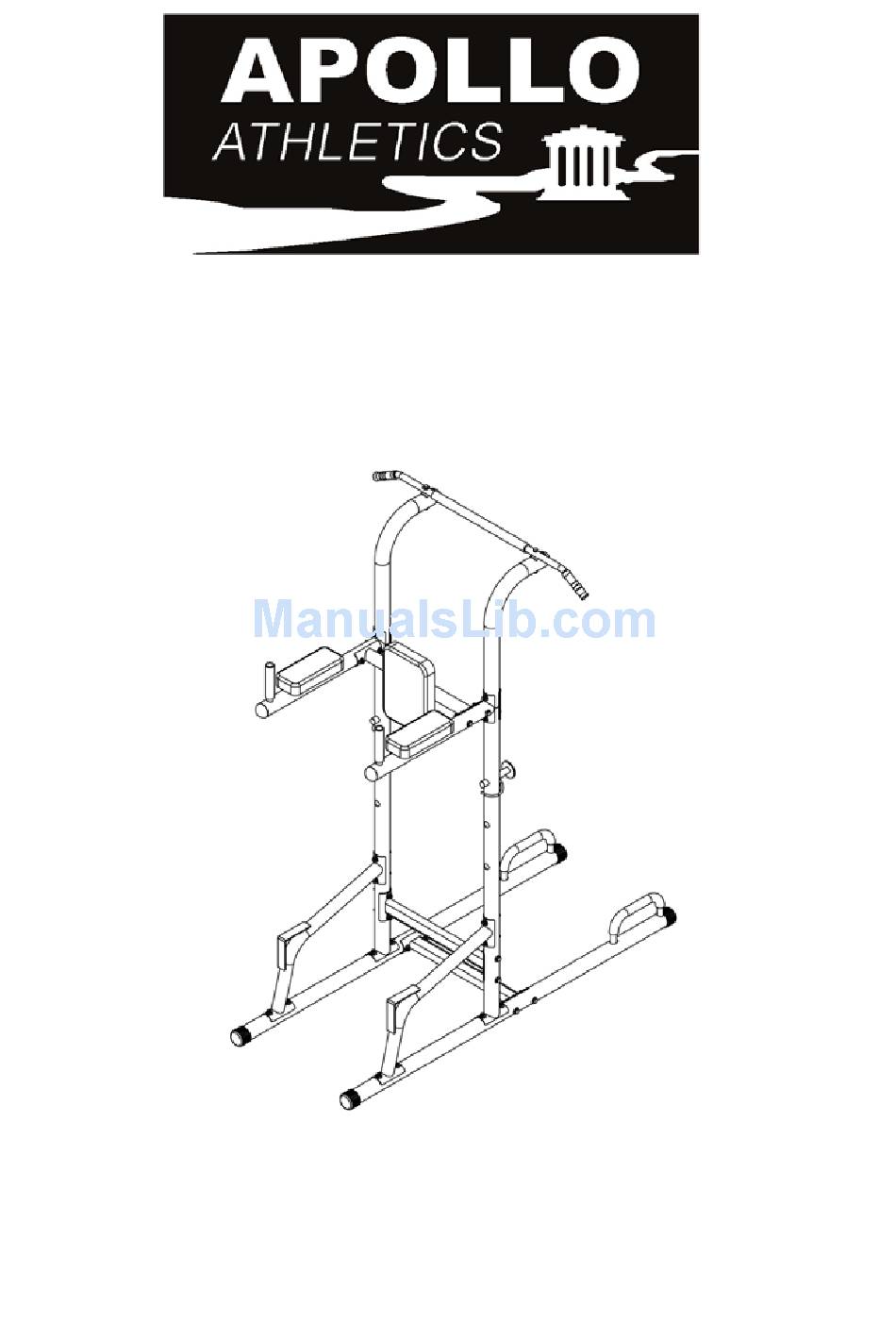

  • Page 1 POWER TOWER w n n e e r r ’ ’ s s M M a a n n u u a a l l...

  • Page 2: Important Safety Notice

    Important Safety Notice Pay attention to fixing and operation 1. Please keep the box and the manual after installing the machine. 2. Checking the stability of the screws regularly. 3. Please install the machine in a commodious place. 4. Putting the machine on the level ground, and use a mat to protect the floor. 5.

  • Page 3: Safety Instructions

    Safety Instructions ! WARNING: To reduce the risk of serious injury, read the following Safety Instructions before using theequipment. 1. The equipment should only be used after a thorough review of the Owner’s Manual. 2. We recommend that two people be available for assembly of this product. 3.
  • Page 4 Exploded View Diagram Part List...

  • Page 5: Assembly Instruction

    Assembly Instruction Step 1 Step 1 1. Slide the End Cap (19) onto the Base Frame (1). Slide the Foam (14) onto the Handle Bar (10). 2. Insert the Handle Bar (10) into the hole of the Base Frame (1). Secure the Handle Bar (10) using one M10x20 Hex Socket Bolt (26).
  • Page 6 Step 2 Step 2 1. Attach the lower Cross Frame (3) to the right Base Frame (1) with two M10x75 Hex Bolts (28), four 10 Arc Washers (32), and two M10 Nylon Lock Nuts (23). 2. Attach the lower Cross Frame (3) to the left Base Frame (1) with two M10x75 Hex Bolts (28), four 10 Arc Washers (32), and two M10 Nylon Lock Nuts (23).
  • Page 7 Step 3 Step 3 1. Insert the 60 Plug (20) into the Lower Upright (5). Insert the 25 Plug (21) into the Left/Right Hold Frame (8,9). 2. Insert the Left/Right Hold Frame (8,9) to the Upper Upright (2) and adjust the height of the Left/Right Hold Frame (8,9).
  • Page 8 Step 4 Step 4 1. Insert the 25 Plug (21) and the 60 Plug (20) to the Arm Frame (6). 2. Attach the Arm Frame (6) and the Long Arc Plate (12) to the Lower Upright (5) and the Upper Upright (2) with two M10x75 Hex Bolts (28), four 10 Arc Washers (32), and two M10 Nylon Lock Nuts (23).
  • Page 9 Step 5 Step 5 1. Attach the Backrest Frame (7) to the right Arm Frame (6) with two M10x75 Hex Bolts (28), four 10 Arc Washers (32), and two M10 Nylon Lock Nuts (23). 2. Attach the Backrest Frame (7) to the left Arm Frame (6) with two M10x75 Hex Bolts (28), four 10 Arc Washers (32), and two M10 Nylon Lock Nuts (23).
  • Page 10 Step 6 Step 6 1. Slide the Long Foam Roller (18) and the Comfort Grip (22) onto the Pull-Up Bar (11). 2. Insert the bolt of the Pull-Up Bar (11) into the hole of the Lower Upright (5). 3. Attach the Pull-Up Bar (11) and the Short Arc Plate (13) onto the Lower Upright (5) with one M10x105 Hex Blot (29), two M10 Nylon Lock Nuts (23), and three 10 Arc Washers (32).
