SEC-CON22

Speed Dome Controller

Table of Contents

Need help?

Do you have a question about the SEC-CON22 and is the answer not in the manual?

Questions and answers

Summary of Contents for Konig SEC-CON22

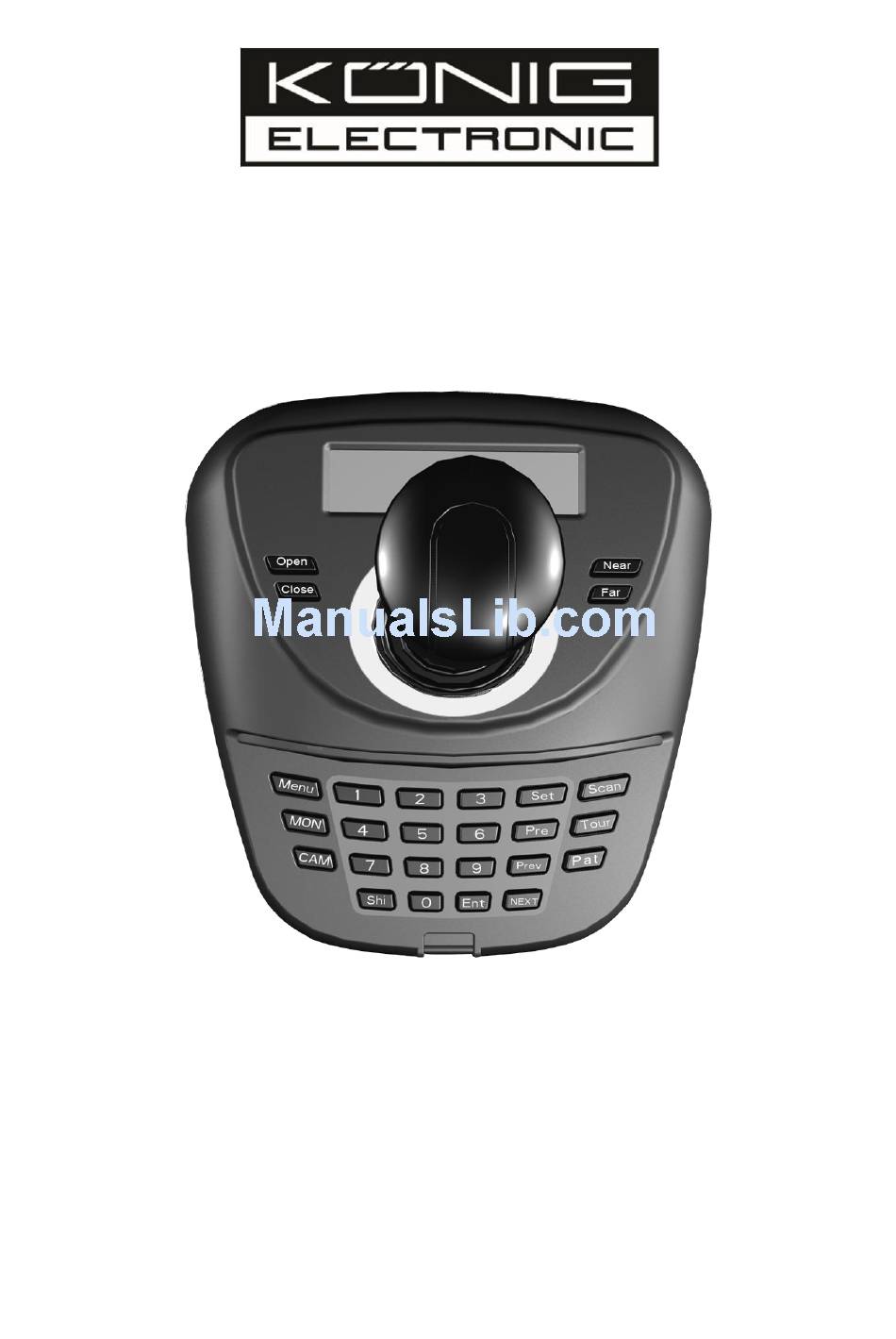

Page 1 SEC-CON22 Speed Dome Controller...
Page 2 Contents 1. Summary ------------------------------------------------------------------------------------------------------------------- 3 Notice ---------------------------------------------------------------------------------------------------------------------- 3 Characteristic 1.2 Function & -----------------------------------------------------------------------------------------------3 Technical Data ------------------------------------------------------------------------------------------------------------3 Keyboard connection ------------------------------------------------------------------------------------------------------- 4 2.1. RS485 interfaces-------------------------------------------------------------------------------------------------------------- 4 2.2 Connect matrix -----------------------------------------------------------------------------------------------------------------4 2.3 Direct connect with Dome--------------------------------------------------------------------------------------------------5 2.4 Keyboard connection in the System-----------------------------------------------------------------------------------------5 instruction 3.
Page 3: Summary
1. Summary The keyboard is a universal keyboard of security monitoring series, which can control the ball-type integrated camera of all kinds protocols matrix, which has been equipped with Joystick which can control the revolving of the camera and the zoom magnification of lens; with the LCD screen and the function of back-light;...
Page 4: Keyboard Connection
2.Keyboard Connection There is interface on the back of the keyboard, which equipped with kinds of communication Interface RS485 and infrared emission, which can connect with and control kinds of peripheral equipments. 2.1. RS485 interfaces Rs485 interfaces are on the 2bit ribbon cable connection of the keyboard.RS485 A+ B-) can connect with the dome when the keyboard controls the dome directly;RS485 A+B-can connect with DVR or other keyboards when the keyboard controls the dome by matrix Power/RS485...
Page 5: Keyboard Connection In The System
2. 3 Keyboard connection in the system Indirect control the dome when connect with matrix（as figure 2-4.1）。contrariwise will control the domes directly，Parallel connect the keyboard and dome to the bus of RS-485，all the keyboard can control any dome among them, under this way, the add of the main keyboard should be “1” and baud rate should be 9600bps（as figure 2-3.1）...
Page 6: Keyboard Operation Instruction
3. Keyboard operation instruction LCD screen lens control 3D joystick Number keys Function keys Figure 3-1.1 Attention please because different system have some different special operation ways, so should consider the actual requirement when operation in some special systems ３.1 Electrify When the power is on, the keyboard will automatically check the baud rate、protocol of the keyboard、aim dome and the aim monitor, and all the info.
Page 7: Joystick Controls Dome
3. 3 Joystick Controls Dome Functions of the Joystick: Dome rotation control and Object dome menu setup。 ●When operate the joystick at will to any direction Dome will rotate at the same direction ,and the direction will be displayed below right corner as for the next menu；...
Page 8: Pattern
3.6.3 Pattern ●design path setup：【SET】+【N 】+【PATTERN】+path+【SET】+ 0 +【 PATTERN】 Press【SET】key，input the number of design scan（1-4），press【PATTERN】key，enter the path setup state， when ending press 【SET】key first，then press【0】key，then 【PATTERN】key， ●starting the design scan：【N】+【PATTERN】input the design scan number（1-4），press【PATTERN】key to starting， 3.6.4 Cruise starting：...
Page 9: Keyboard Id Setup
1. Keyboard setup 2. Dome setup 3. Protocol select ‘ 4. Exit menu Picture 4.1-1 ● Save the setting After setting the function you need, press【ENTER】to save the setting. After finishing the setting, the TFT will display“Success”. ● Back to Previous menu Press the【PREV】key to back to the previous menu.
Page 10 If the NO you input is beyond the range1~64, it will display Error as picture（4.1.1-6）. Error Picture 4.1.1-6 5、Press 【PREV】or use the shake toward to LEFT to back to previous menu. Warning:： The camera ID default is 1. only one keyboard in a system, it must set to ID as “1”. Several keyboards work together at most is 4 keyboards, and it must has one keyboard ID is ID1, otherwise all the keyboard can not work.
Page 11: Dome Setup
Success Picture4.1.3-2 Attention: when calibrating the joystick, pls make sure the joystick is in the midpoint position 4.1.4 Keyboard information display Enter the keyboard information display menu as LCD(Picture 4.1.1-2) Press【2】to check the keyboard information as LCD(Picture 4.1.4-1) 4.2 Dome set up 4.2.1 Preset set up Enter the main menu as picture （4.1.1-1）...
Page 12: Dome Scan Setup
Under commonly mode, Dome can not control by operate the keys and move the joysticks ; While enter the dome preset menu, the keyboard navigate keyboard can directly control the dome and lens control zone also can control the dome’s lens. Press【2】enter the “Show the preset”...
Page 13: Tour Setup
4.2.3 Pattern set up Enter the menu as the picture (4.1.1-1) Press【2】 enter the dome setting menu as the picture （4.2.1-1)； And then press【3】 enter the pattern setting as picture 4.2.3-1 show 1. Pattern num: 2. Set pattern 3. Run pattern Picture4.2.3-1 After enter the menu, the system need input the pattern information you want, you can put in the NO1~4 and Press the 【ENTER】.
Page 14: Protocol Setup
Picture 4.2.4-2 Press【3】Run the TOUR Attention： This model have no the insert tour preset function 4.3 Protocol set up Enter the menu as picture （4.1.1-1）, Press 【3】enter the Protocol setting as picture (4.3-1) 1. Matrix/DVR 2. Dome Picture 4.3-1 4.3.1 Pelco Matrix model Press【1】...
Page 15 ●Distance of RS485 bus transmission While use the 0.56mm (24AWG) twisted cable as the communication, the farthest distance it can reach as follow based on the different Baud rate: Baud rate Farthest Distance 2400bps 1800M 4800bps 1200M 9600bps 800M 19200bps 600M If user selects thinner cables, or installs the dome in an environment with strong electromagnetic interference, or connects lots of equipment to the RS485 Bus, the maximum transmitting distance will...
Page 16 RS485standards. The new connection achieves reliable data transmission (refer to picture 4-1.4) 120Ω Main Controller 15 # 120Ω Picture 4-1.3 120Ω 120Ω 120Ω Picture 4-1.4 Keyboard shortcut operation manual Working Mode shortcut Operation object Function Press 【 SET】 for 2 seconds Keyboard IR remote ON/OFF Press 【MENU】for 2...
Page 17 the preset Input preset ID, press【Preset】to 【N】+ 【PRESET】 High speed dome call the preset 【SHI】+【1】+【ENT】 High speed dome ON/OFF water Wiper 【SHI】+【2】+【ENT】 High speed dome ON/OFF auxiliary light Adjust image object position, press to input 【SET】 + 【1】 + 【SCAN】 High speed dome 【1】...
