Vtron L-PH4618 User Manual

Lcd display panel. l-xxxxx8 series

Table Of Contents

Advertisement

Table of Contents

User Manual

VTRON LCD Display Panel

V1.0

VTRON

http:// www.vtron.com

E-Mail: info @ vtron.com

All rights reserved

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the L-PH4618 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vtron L-PH4618

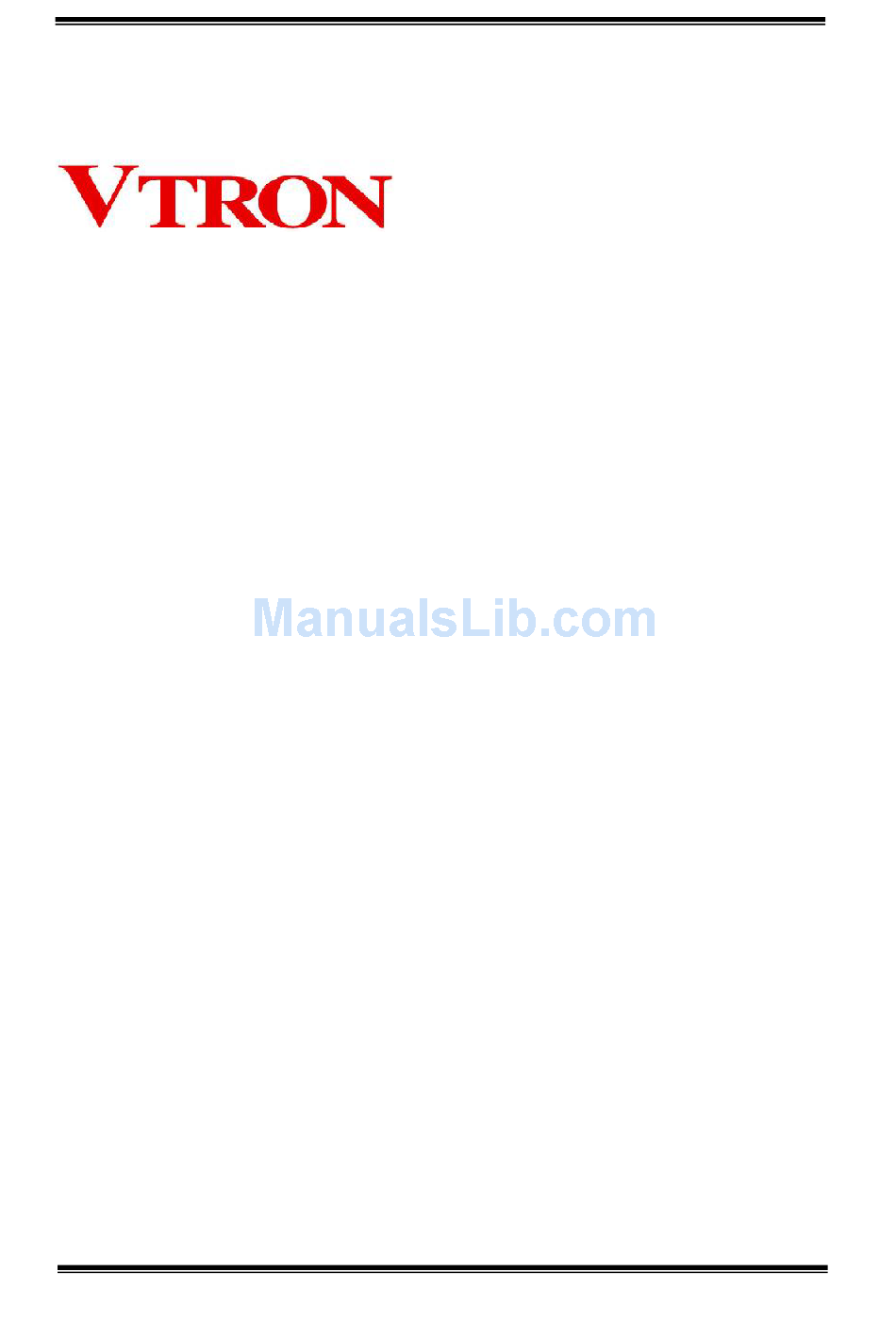

Page 1 User Manual VTRON LCD Display Panel V1.0 VTRON http:// www.vtron.com E-Mail: info @ vtron.com All rights reserved...
Page 2 Black Mura problems, which may result in some damages to the panel. In such case, VTRON has the duty to help repair the product. But VTRON assumes no liability for such kind of damages, so the necessary fee is needed...
Page 3 User Manual VTRON LCD Display Panel Safety Precautions This product has passed strict tests before delivery. However, improper use may cause electric shock or fire. To ensure safety, extend the service life of this product and maximize its performance, please read carefully the following items before using this product, and strictly observe the relevant safety precautions.
Page 4 User Manual VTRON LCD Display Panel  Locate the panel in the place with good ventilation, moderate temperature and free from dampness and direct sunshine.  The opening on the enclosure is used for the heat dissipation of the components inside.
Page 5 User Manual VTRON LCD Display Panel Contents 1. Display Panel Overview ..................... 1 1.1 System Features and Functions ....................1 1.2 Technical Parameters ........................2 1.2.1 Display Panel Parameters..................... 2 1.2.2 Interface Parameters ......................5 1.2.3 Product Outline Dimensions ....................6 1.3 Interface Overview........................
Page 6: Display Panel Overview
The VCMS (VTRON LCD Display Management System) software is the application administration system developed, designed and produced by VTRON for the large-screen video wall. It is used to control the hardware equipment in the large-screen display wall system so as to realize the administration and control of various signal windows and application windows of the wall.
Page 7: Technical Parameters
User Manual VTRON LCD Display Panel 1.2 Technical Parameters 1.2.1 Display Panel Parameters 46″ Screen size Screen aspect ratio 16:9 Physical resolution 1920× 1080 Dot pitch (mm) 0.530(H) × 0.530 (V) Display area (mm) 1018.08 (H) × 572.67 (V) L-PH4618(L) ；Typ.500cd/m...
Page 8 User Manual VTRON LCD Display Panel Power supply 100~240VAC，50～60Hz Weight 21 Kg Screen size 55″ Screen aspect ratio 16:9 Physical resolution 1920× 1080 Dot pitch (mm) 0.630(H) × 0.630 (V) Display area (mm) 1209.6 (H) × 680.4 (V) Brightness ；Typ.500cd/m L-PH5518(L) Min.400cd/m...
Page 9 User Manual VTRON LCD Display Panel Rows(M) × Columns (N) Video wall Quantity of rows and columns without limitation Signal input DRGB DVI-D Input/output loop control DB9F RS232 interface Temperature 0-40℃ Operating environment Relative humidity 20﹪-85﹪ -10℃-55℃ Temperature Storage environment 10﹪-90﹪...
Page 10: Interface Parameters
User Manual VTRON LCD Display Panel 1.2.2 Interface Parameters  Signal input channel DRGB port Digital Connector type DVI-D Signal format TMDS Dot clock range 27MHz ~148.5MHz Horizontal scanning frequency range 36.25KHz~67.5KHz Vertical scanning frequency range 50Hz~60Hz Resolution range 640× 480~1920× 1080...
Page 11: Product Outline Dimensions
User Manual VTRON LCD Display Panel 1.2.3 Product Outline Dimensions Outline dimensions of L-PH4618 display panel: - 6 -...
Page 12 User Manual VTRON LCD Display Panel Outline dimensions of L-PH4618 (L) display panel: - 7 -...
Page 13 User Manual VTRON LCD Display Panel Outline dimensions of L-PH4628/L-PH4628 (L) display panel: - 8 -...
Page 14 User Manual VTRON LCD Display Panel Outline dimensions of L-PH5518 (L) display panel: - 9 -...
Page 15 User Manual VTRON LCD Display Panel Outline dimensions of L-PH5528/L-PH5528 (L) display panel: - 10 -...
Page 16: Interface Overview
PC audio port (currently unavailable) Video input ports Video output ports(currently unavailable) Audio output ports YPbPr ports SV-Y/C input ports Audio input ports Note: Please use the cable provided by VTRON. Otherwise, the signal quality may be affected. - 11 -...
Page 17: Remote Control
User Manual VTRON LCD Display Panel 2. Remote Control Precautions for remote control  The remote control shall be pointed directly to the receiving window. Any object between the remote control and the receiving window may affect the normal operation of the remote control.
Page 18 User Manual VTRON LCD Display Panel Key name Function description Standby The key for switching between normal state and standby state Mute The key used to enable/disable sound function Number keys The number entry key The key used to freeze/defreeze the image...
Page 19 User Manual VTRON LCD Display Panel Stop Rotate Previous Next Reverse Forward Battery installation method for remote control: Remove the battery box cover, install two AAA (1.5V each) cells, ensuring that the battery polarity is consistent with the polarity marks (+ and -) inside the battery box.
Page 20: Osd Menu Operation
User Manual VTRON LCD Display Panel 3. OSD Menu Operation  Signal source selection Press the “Source” key on the remote control, and the “input signal source” menu will be displayed on the screen. Press the “ ” and “...
Page 21 User Manual VTRON LCD Display Panel  Picture menu Select to display the picture menu. Fig.3-1 Picture Menu Special hint: 1) The hue function is available for NTSC signal only. 2) The contrast, brightness, saturation, hue and sharpness you adjust will be automatically saved as the user mode.
Page 22 User Manual VTRON LCD Display Panel Saturation Adjust the picture saturation Setting range: 0-100 Adjust the picture hue Setting range: 0-100 Sharpness Adjust the picture sharpness Setting range: 0-100 Aspect ratio Adjust the image display aspect Including full, 4:3, caption, movie...
Page 23 User Manual VTRON LCD Display Panel Mute: the key to enable/disable sound. Volume +/-: You can press the “Volume +/-” key on the remote control to adjust the volume. Table 3-3 Function Description of Sound Menu Option Function Description Sound mode...
Page 24 User Manual VTRON LCD Display Panel Table 3-4 Function Description of Function Menu Option Function Description OSD language Set OSD language Chinese and English are available OSD duration Adjust the OSD duration 4 options: 15s, 30s, 45s and 60s OSD transparency...
Page 25 User Manual VTRON LCD Display Panel Table 3-5 Function Description of PC Menu Option Function Description Auto Adjust Automatically adjust the picture display effect H-Position Horizontal position adjustment Setting range: 0-100 V-Position Vertical position adjustment Setting range: 0-100 Clock Adjust the picture sampling clock frequency...
Page 26: Connection Diagram For Display Panel (2× 2)
User Manual VTRON LCD Display Panel 4. Connection Diagram for Display Panel (2× 2) - 21 -...
Page 27: Loop Connection Diagram
User Manual VTRON LCD Display Panel 5. Loop Connection Diagram The signal will be input from the loop connection input interface and the output through the loop connection output interface to the downstream display panel. - 22 -...
Page 28: Installation Of Display Panel
All installation operation should be done by qualified engineers of VTRON or its agents. For more information about installation of LCD display panels on site, please consult VTRON engineers.
Page 29: Use Of Display Panel
User Manual VTRON LCD Display Panel 7. Use of Display Panel Use Instructions  If the display panel gives out any unusual noise, smoke or smell, plug off the power connector immediately, and turn to the qualified technician for help.
Page 30 User Manual VTRON LCD Display Panel  Avoid exposing the LCD module to direct sunshine or UV radiation.  The operating environment shall meet the following conditions: At least 100mm clearance shall be maintained above, below and in front of the combined LCD display wall.
Page 31: System Startup/Shutdown
User Manual VTRON LCD Display Panel 7.1 System Startup/Shutdown Startup sequence: 1. Check if the main power supply for the whole display wall system is ON. 2. Check if the power switch on the LCD display panel back plate is ON.
Page 32: Display Signal Source
User Manual VTRON LCD Display Panel 7.2 Display Signal Source You can operate and manage all the input signal source contents through professional control software, and display these signal source contents on the LCD display panel. For more information about control software configured onsite and its operation instructions, please consult the system/equipment administrator.
Page 33 User Manual VTRON LCD Display Panel Routine Inspection  Check if the system is properly grounded every month.  Check if the connecting wire and power cable are broken or worn out, if the connector and plug-ins are loose, eroded and oxidized every month.
Page 34: Contact Us
User Manual VTRON LCD Display Panel 9. Contact us About after sales service matters please contact after sales department of VTRON GROUP CO.,LTD. VTRON GROUP CO.,LTD. No. 233 Kezhu Road, Guangzhou Hi-Tech Industrial Development Zone (Guangzhou Science City), Guangzhou 510670, China...
