Summary of Contents for IOT UOI-BX01

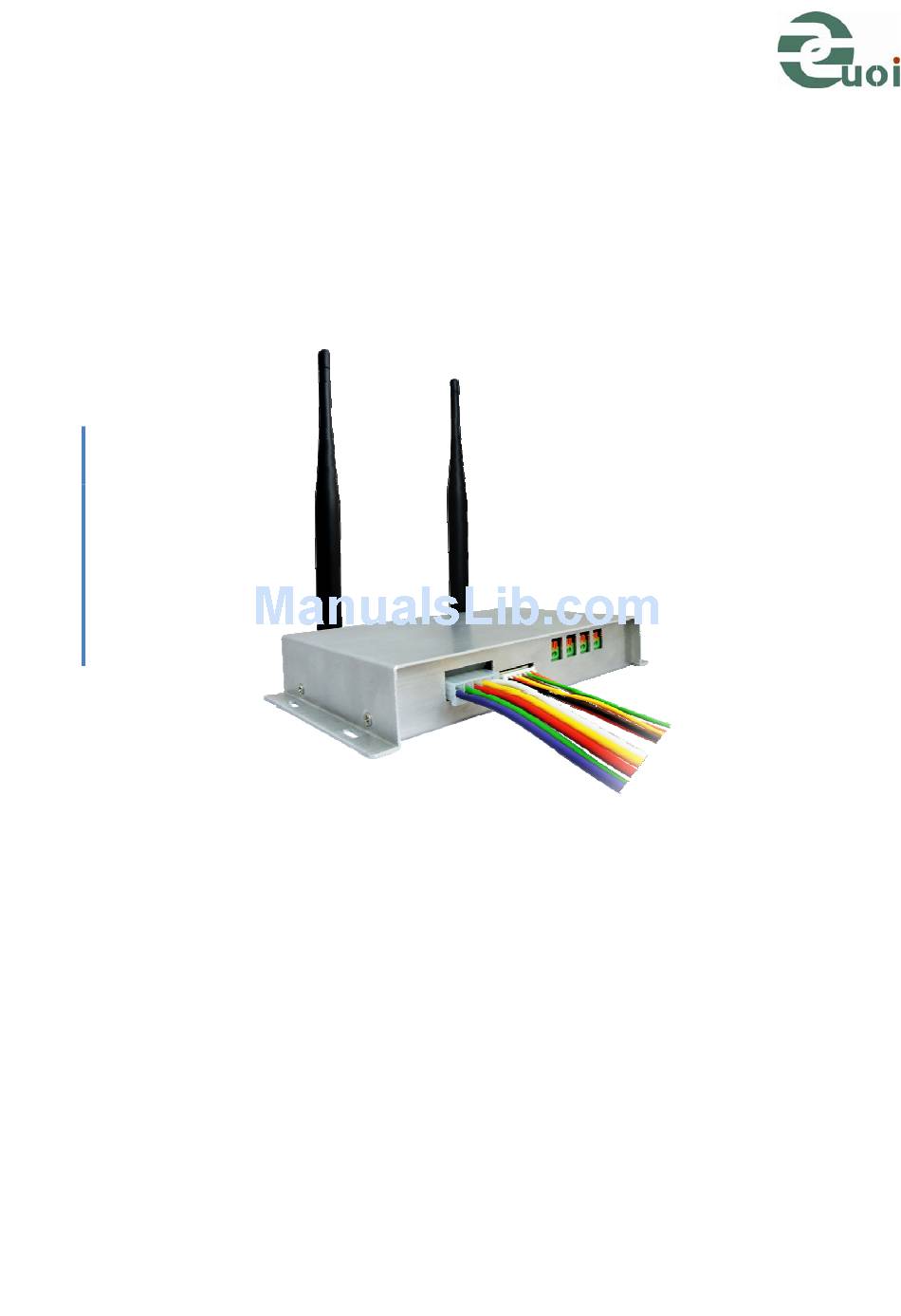

- Page 1 Rolling Door Remote Controller V2.0 User Manual WiFi 控制器 UOI-BX01 聯順聯網股份有限公司 *Specifications are subject to change without notice ...
- Page 2 Content ....................................0 Install Requirement ................................0 Notice ....................................0 Product Appearance Graphic ............................1 Installation Description ..............................2 Case Description ................................3 APP Download ..................................4 1. Establish new Home IOT/ IOT equipment......................... 4 1‐1 Confirm following steps............................4 1‐2 Following steps to setting RollingDoor Controller....................7 1‐3 Enter in Device................................9 1‐4 Apply iCloud Account.............................. 11 2. APP Description............................... 12 2‐1 Menu..................................12 2‐2 iCloud sign in / out..............................12 ...
-
Page 3: Preface
Preface Thanks for buying our Home IOT products. To ensure you have a good understanding to the product, please read the manual completely before you use. This manual is seen as the operated instructions not equal to product’s certification. This manual’s copyright belongs to UOI Technology Corp. Unauthorized is prohibited reprint. Specifications are subject to change without notice. Content Wireless antenna X2 Rolling Door Control Quick Installation & User Control Cables X1 Manual ... - Page 4 Case Description NO. FUNCTION NO. FUNCTION 1 Antenna connection 8 WAN network port 2 Reset Button 9 Control Cables Port Private iCloud LED 3 10 Relay Out Port (Private iCloud LED twinkled when the device exists) iCloud Sever LED 4 11 ALARM IN 1 (iCloud lights twinkled when the connection succeeded) Network LED (Only in wireless mode) 5 12 ALARM IN 2 (LED turns if the device connected to the wireless sharing device) Signal LED (Only in wireless mode) 6 13 ALARM IN 3 (Device connected to a wireless sharing device. Weak signal : LED constant light / Medium signal : Lights twinkled) 7 LAN network port ...
-
Page 5: Installation Description
Installation Description Rolling Door Controller Connected Diagram 2 ... - Page 6 Traditional Rolling Door Controller Connected Diagram Traditional Rolling Door Controller Motor COM STOP DOWN Power Motor Power CUT Power PURPLE GREEN WHITE YELLOW Power Rolling Door Controller Quick Rolling Door Controller Diagram Quick Rolling Door Controller Controller Power Power Rolling Door Controller * Turn off the power before doing the process of construction * AC110V/220V * Traditional rolling door take as two‐ways press fasten method. The motor’s stop line connects with controller’s red line. Controller’s green line connects with manual switching stop line. Controller’s white line control the rolling door up and the yellow line control it down. Up and down buttons hooked up. * The connected way of traditional Rolling door make as two‐ways control see as above * Rolling door quick connected method need to hooked up on the rolling door control, please confirm the controller‘s stop switching is N.C or N.O switch, most of the rolling door is N.O. * After the controller is powered off, press the up and down button of the roller door will come out jog condition when the red and green lines reversed. 3 ...
-
Page 7: App Download
Following steps to establish home IOT. Setup your Home IOT parts to wireless mode, it will create a new wireless network of home IOT. If you need to add new equipment to Home IOT, select your Home IOT and add devices to the Home IOT network. - Page 8 Set W‐Fi function from APP Select “SIOT Setting‐XXXXXX” Keyword: E23455678 Open IOT APP Select the network connected way (Please check Step 5 if you use wired network) 5 ...
- Page 9 Select Wireless network or Home IOT Account Support Wireless AP function / and key in password Setting SSID Account & password (Using Home IOT, please check Step 6) Wait for reset about one minute after Setting name for your device finished setting 6 ...
-
Page 10: Enter In Device
12 Enter in device Select your Home IOT name Open IOT APP Select your own iCloud device Check the Lighting Controller Icon 7 ... - Page 11 Setting device Completed! Setting your new password at the first access Control the device through the local terminal Default password: admin connection 8 ...
-
Page 12: Apply Icloud Account
13 Apply iCloud Account This function only operates in local Network. Check the Rolling Door Select Wifi Home IOT and open App Controller Icon Click the gear Icon at Select your own iCloud device the right bottom side 9 ... - Page 13 Log in your iCloud Account & Password. (Finish setting please sees as step 9) Enter in the Sever setting account page. Choosing following selections as below: iCloud Account & Password(See as step 6 ) Modify iCloud password (See as step 7 ) Need to finish iCloud Account & Password before making any modify (Finish setting and go to step 9) 10 ...
- Page 14 After completed application it will After completed your account, check that may not a automatically input to device duplicated account Eight‐digit password accepted 14 Enter in iCloud Click Login from the main menu Login iCloud by key in Account & Password 11 ...
-
Page 15: App Description
2. App Description 21 Menu No. Description Select the controlling device 1 1 iCloud Account Log in / Out 2 Refresh 3 APP Version 4 2 3 ... -
Page 16: Connection Setting
23 Connection Setting NO. Description Device settings (you must click from the local side) 1 Setting Home IOT SSID and password 2 Setting Home IOT password 3 Select the connection of Home IOT and Wi‐Fi wireless sharing device 4 Enter iCloud Account & password (Note 1) 5 Modify iCloud password (Device must sign in iCloud Account) (Note 1) 6 Apply new Account” (First time user) (Note 1) 7 Device will reset after finished setting 8 Note 1: The way for applying iCloud Account, please see section 1‐4 13 ... -
Page 17: Logo Exchange
24 Logo Exchange 1 2 3 NO. Description Hold the Device List and Smart doorbell Icon for 2 seconds to exchange 1 the name and icon logo Change device name 2 Chang device icon(Note2) 3 Embedded Icon 4 Use your mobile camera to take pictures 5 Select the photos from device 6 Note 2:：UOI‐RD02 do not support this function 14 ... -
Page 18: Rollingdoor Controller
1. Rolling Door Controller Operate Description 31 Rolling Door Controller 4 3 1 NO. Description 1 Control the rolling door go UP/STOP/DOWN Setting the connected device (See section 3‐3 ) 2 3 Alarm display 4 Device image 5 Video display area(See section 4‐2) 6 Relay Switching 7 Setup ... -
Page 19: Video Settings
32Video Settings 321 Video equipment within linking group Press the icon about 3 sec, setting menu will show up Select “Video equipment within linking group” Select and confirm iCloud video equipment After Confirmed, go back to previous page 16 ... -
Page 20: Connect Ipcamera Equipment
322 Connect IPCAMERA Equipment Press the icon about 3 sec, setting menu will show up Select “IP CAMERA equipment” Login IP, Account, Port, Password and click preview After Confirmed, go back to previous page 17 ... -
Page 21: Dvr Connected Equipment
323 DVR Connected Equipment Press the icon about 3 sec, setting menu will show up Select “DVR equipment” After Video Confirmed, go back to previous page Login IP, Account, Port, Password and click preview 18 ... -
Page 22: Function Setting
33Function Setting No. Desccription 1 Alarm Switching 2 Notifiction for N.O or N.C 3 RollingDoor Controller Version 3 低功率電波輻射性電機管理辦法 第十二條 型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或 變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改 善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。 低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 19 ... - Page 23 FCC/IC Caution: 1. This device complies with Part 15 of the FCC rules/ Industry Canada licence‐exempt RSS standard(s). Operation is subject to the following two conditions : 1) this device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation. 2. This Transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. 3. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE : (For Mobile Device Configuration) FCC Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. ...
