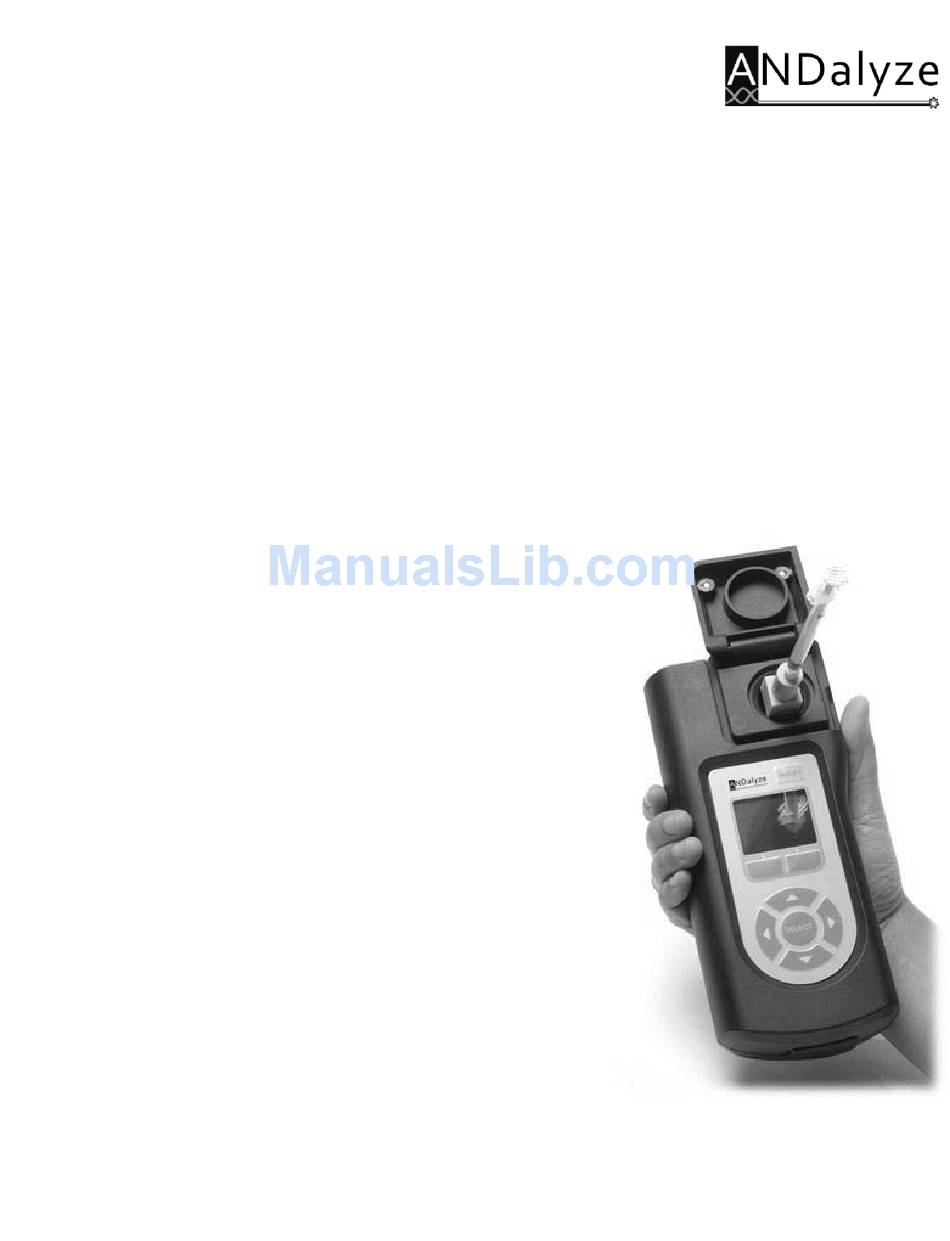

- Page 1 Document: AND‐Prod‐1100‐8‐2013 AND1100 Fluorimeter for Water Testing User Manual August, 2013 Edition 2 © ANDalyze, Inc., 2011. All rights reserved. Printed in US ...
- Page 2 2 Safety Information……………………………………………….………………………………………………………………… 3 2.1 Use of Hazard Information 2.2 Precautionary labels 2.3 Chemical and Biological Safety 3 General Information…………………..………………………………………………………………………………………… 4 3.1 Overview of Product 3.2 General Features 3.3 Analyte Sensors 3.4 Operating Environment & Storage 3.5 Water Testing Guidelines 4 Set‐Up and Operating Procedures………………………………………………………………………………………… 6 4.1 Charging the Battery 4.2 Home Testing Screen 4.3 Sensor Screen 4.4 Site Screen 4.5 Start Option 4.6 Menu Screen 4.7 Firmware Update 4.8 InstraComm Lite 5 Site Set‐Up and Management.………………………………………………………………………………………………. 11 5.1 New Site Set‐Up 5.2 On‐Site Calibration 5.3 Selecting a Site 5.4 Deleting a Site 5.5 Re‐Calibrating a Site 6 Maintenance……………………………………………………………………………………………………………………….… 13 7 Customer Service Contact Information………………………………………………………………………………….. 14 8 Consumables and Replacement Items…………………………………………………………………………………… 14 9 Technical Specification for AND1100 Fluorimeter…………………………………………………………………. 15 10 Limited Warranty………………………………………………………………………………………………………………… 16 ANDalyze Inc. 800 Boylston Street, Prudential Tower, Floor 16, Boston, MA 02199 USA Tel. +1 857.453.6740 www.andalyze.com Page 2 of 16 ...
- Page 3 AND1100 Fluorimeter for Water Testing July 1, 2013 2 Safety Information Please read this entire manual before unpacking, setting up or operating this equipment. Pay attention to all danger, warning and caution statements. Failure to do so could result in serious injury to the operator or damage to the equipment. Make sure that the protection provided by this equipment is not impaired, do not use or install this equipment in any manner other than that specified in this manual. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the manufacturer may be impaired. 2.1 Use of Hazard Information DANGER: Indicates a potentially or imminently hazardous situation which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation that may result in minor or moderate injury. Important: Indicates a situation which, if not avoided, may cause damage to the instrument. Information that requires special emphasis. Note: Information that supplements points in the main text. ...
- Page 4 AND1100 Fluorimeter for Water Testing July 1, 2013 2.3 Chemical and Biological Safety DANGER: Potential Chemical/ Biological Exposure Hazards. Handling chemical samples, standards and reagents can be dangerous. Users of this product are advised to familiarize themselves with safety procedures and the correct use of chemicals, and to carefully read all relevant Material Safety Data Sheets. ‐ Normal operation of this instrument may involve the use of hazardous chemicals or biologically harmful samples. ‐ The user must observe all cautionary information printed on the original solution containers and safety data sheet prior to their use. ‐ All waste solutions must be disposed in accordance with local and national law. ‐ The type of protective equipment must be selected according to the concentration and amount of the dangerous substance at the specific workplace. 3 General Information 3.1 Overview of Product The AND1100™ Fluorimeter enables field testing to be done in two short steps, eliminating or significantly reducing test expenditures, complexity and wait times experienced in traditional heavy metals water testing. The Fluorimeter uses an extremely sensitive measurement technique to determine the levels of heavy metal contaminants. ANDalyze’s proprietary Catalytic DNA sensors use a DNAzyme reaction that fluoresces in the presence of a target contaminant substance such as lead. The fluorescence of the reaction is measured to determine the concentration of the target heavy metal and is reported in parts per billion (ppb). Using the product to test for metals is a simple, quantitative test that allows for detection at or below US EPA ...
- Page 5 AND1100 Fluorimeter for Water Testing July 1, 2013 3.2 General Features ‐ Fluorescence Based Sensing ‐ Reaction produces quantitative fluorescence based results. ‐ Sensor Kit ‐ Each disposable color‐coded sensor is designed for a specific heavy metal test target. Kits provide sampling tubes, syringes and cuvettes. ‐ Rugged & Convenient Construction ‐ Tough, light weight, impact‐resistant shell protects electronics and sensors. ‐ Key Pad ‐ Quick, simple menu navigation and one button push for sample analysis. ‐ Data Capture & Reporting ‐ Time and date stamped with sample number. Stores over 240,000 test results and over 75 site locations. Data downloadable through a USB cable. ‐ Water and Dust Resistant ‐ Enclosure rating ‐ IP54 ‐ Portable ‐ Battery operated and rechargeable through USB cable or traditional adapter. Note: See full technical specifications in section 9. 3.3 Analyte Sensors To help differentiate the materials specific to each analyte, the packaging has been individually labeled and the sensor housings and buffer caps have been color coded. For Example: Green – Lead (Pb) Orange – Uranium (U) Blue – Copper (Cu) Gray – Mercury (Hg) Etc. Note: In some cases the same sensor is used for multiple ranges but different buffers and/or methods will accompany the sensor in the ki t. 3.4 Operating Environment and Storage Important: The following conditions are necessary to ensure correct instrument operation and accurate ...
- Page 6 AND1100 Fluorimeter for Water Testing July 1, 2013 3.5 Water Testing Guidelines Note: This is a drinking water test kit. If you are testing other matrices such as surface water, ground water or industrial water; contact ANDalyze customer service for additional application notes. Water Sampling ‐ For best results use freshly collected sample (unpreserved) for analysis. We recommend that you use the sample within 1 hour (maximum of 2 hours) of collection to minimize any metal loss to the walls of the sample container. This is particularly important for testing trace lead levels. ‐ Once the sample is mixed with ANDalyze sample buffer, test within 15 minutes. pH Range ‐ Tests have shown that environmental samples preserved in acid to a pH < 2 cannot usually be brought to an appropriate pH when mixed with the ANDalyze buffer. These samples must be first neutralized with NaOH to a suitable pH before mixing with ANDalyze buffer. Please contact ANDalyze customer service for instructions related to pre‐treatment of highly acidic or highly basic samples. 4 Set‐Up and Operating Procedures 4.1 Charging the Battery Important: Before using the instrument assure that the fluorimeter device is charged. To Confirm the Battery Level: 1. Turn Power ON by pressing and Holding the ON/OFF button. (See Horizontal Arrow on Photo to Right) 2. Once device is initiated, confirm the battery indicator status is green (See Vertical Arrow on Photo to Right). The battery indicator should not be red (as seen in the photo to right) ...
- Page 7 AND1100 Fluorimeter for Water Testing July 1, 2013 4.2 Home Testing Screen Options can be accessed by: ‐ Using the up/down buttons and pressing SELECT button when the arrow is to the left of the desired option. ‐ OR by pressing the button located just below the screen under the desired options at bottom. Selectable Options: 1) Sensor ‐ Selects which Sensor will be tested. 2) Site ‐ Uses site specific calibrations for accurate tests. 3) Start ‐ To begin a test of the indicated metal. 4) Menu ‐ To change or view internal settings. 4 3 4.3 Sensor Screen Selecting the Sensor option allows the user to change the sensor which the meter will detect. Once selected, the Color of the area surrounding the name of the sensor and the photo of the sensor at the right on the Home Screen will match the color of the sensor itself used for testing. ...
- Page 8 AND1100 Fluorimeter for Water Testing July 1, 2013 4.6 Menu Screen The Menu Screen can be accessed by pressing the button located below the screen under Menu. Selectable Options: 1. Results 5. About 2. Settings 6. Date/Time 3. Options 7. Help 4. Advanced Options are selectable using the arrow keys and pressing Select button or by pressing the button located below the screen under the Select. Results ‐ Displays the results of the previous four tests. ‐ Scroll up or down to view additional results About ‐...
- Page 9 AND1100 Fluorimeter for Water Testing July 1, 2013 Options Power Save: This sets the minutes when the display will turn black to save power. Settable from 1 to 5 minutes. Power Off: This is the minutes which the unit will turn itself off after it goes into power save mode. Sensor Lot: Turning this option ON allows the user to Settable from 6 to 15 minutes. enter the lot number of the sensors at the time of a site calibration. This helps to identify when a new site Cuvette Removal: Turning this ON will cause a calibration is required (new lot batch). screen to appear after each test reminding the user to remove the cuvette from the sample chamber. Temperature: Turning this option ON allows the user to enter the temperature of the sample water at the Test Instructions: In the ON position, 4‐step time of a site calibration. This helps to identify when a instructions will display in order when Test is new site calibration is required (significant change in selected from the home screen. After the 4 step, water temperature). the test will begin. In the OFF position, the testing begins immediately. Temperature Units: Switch between Celsius and Fahrenheit for temperature entry and displays. ...
- Page 10 AND1100 Fluorimeter for Water Testing July 1, 2013 Scale: Slope of the line that correlates the rate of fluorescence Delay: Points from the start of the test which increase vs. concentration. This value is determined by the 3‐ are not used for calculations. This is used point calibration. Some sensors have a default scale that is when there is a delayed reaction in certain automatically calculated from other sensor’s scales. In this sensors. case, “Auto” will be indicated in the default scale field. A new 3‐point calibration will supersede the default settings. R2: R‐Squared is a statistical term indicating how good one term is at predicting another. In Offset: Intercept of the line that correlates the rate of our case, this is derived from the best fit line fluorescence increase vs. concentration. Also automatically created by the 3‐point lab calibration. Values determined by the 3‐point calibration. closer to 1 are better. 3‐Point Lab Calibration Factory Reset Using the left/right keys in the The Reset option will restore the setting of that Advanced menu, Select the specific sensor to factory settings. Calibrate option. Using the left/right keys in the Advanced menu, Select the Reset option. ...
- Page 11 AND1100 Fluorimeter for Water Testing July 1, 2013 4.8 InstraComm Lite This software allows users to launch and record live sample results, download all sample results from the instrument and perform related configuration tasks. The InstraComm application was developed by Autonomous Innovations, Inc. and a complimentary "Lite" version has been made available with the purchase of ANDalyze's AND1100. To download your complimentary version of InstraComm Lite, please visit andalyze.com and log in to register your device. For additional information and operating instructions see InstraComm Lite Solutions Notes (Available separately). 5 Site Set‐Up and Management This section provides information concerning the set‐up and management of Sites. As different sample locations contain different water characteristics (sample matrix) it is recommended to create a new site for each sample area. This allows the user to track and compare the results at each location while also normalizes the results through an on‐site calibration. 5.1 New Site Set‐Up Sites are important because each water sample contains differences which affect testing results. It is recommended that each location is site calibrated. So by creating, calibrating and selecting that site in the future, this calibration can be used repeatedly. Please see the specific Testing and Calibration Manual for detailed instructions. To create a new site: 1. Scroll to the “Site” field and 2. Using the up‐down 3. Enter the name of the location (8 press “Select”. keys, select “New Site”. characters max) and press “Save”. ...
- Page 12 AND1100 Fluorimeter for Water Testing July 1, 2013 5.2 On‐Site Calibration When testing water at a new location, the instrument has to be calibrated for accurate readings. Completing the On‐Site Calibration requires two separate solutions and tests. At the end of the process, the fluorimeter is calibrated for testing water at that site and also provides the lead test results for this site. A calibration may only be accurate when originally performed. Do not rely on a calibration to be accurate over long time periods as environmental samples can vary greatly. The On‐Site calibration process adjusts for changes in sample matrix (such as ionic strength and pH) by calculating the recovery of a known spike in that matrix. When a user performs an on‐site calibration for Lead, for example, the fluorimeter software calculates the ppb of lead in the sample (a) and the ppb of lead in sample spiked with 25 ppb lead (b) using the calibration curve from the 3 point calibration (initially completed at factory or in laboratory). It then calculates an accuracy factor based on % recovery. Accuracy factor = 25/b‐a. This factor is stored for a particular site that the user enters. The sample concentration displayed after an on‐ site calibration = a * accuracy factor. Important: On‐Site calibration must be performed if testing is being done: ‐ At a new location which has not been previously saved. ‐ To adjust for significant changes in sampling temperature. ‐ When beginning to use a new lot of sensors. See the specific Testing and Calibration Manual for detailed instructions. 5.3 Selecting a Site 1. On the Home screen select the Site option. 2. Using the up‐down keys highlight the desired site and press Select. 3. On the Site/Sensor Details, choose Select. ...
- Page 13 AND1100 Fluorimeter for Water Testing July 1, 2013 5.5 Re‐Calibrating a Site 1. When in the Site/Sensor Details screen, using the left‐right keys, scroll to Calibrate and select. 2. Follow instruction to calibrate. 6 Maintenance CAUTION: Always disconnect power from the instrument before attempting any cleaning operations. Important: Under no circumstances should the instrument, display or the accessories be cleaned with solvents such as white spirit, acetone, etc. Fluorimeter ‐ Clean the enclosure, sample cell compartments and all accessories with a soft damp cloth. A mild soap solution can also be used. Do not get excess water in the sample cell compartments. Do not insert a brush or sharp object into sample cell compartment to avoid damaging the mechanical components. Dry the cleaned parts carefully with a soft cotton cloth. Display ‐ Take care not to scratch the display. Do not touch the screen with ballpoint pens, pencils or similar pointed objects. ‐ Clean the display with a soft, lint‐free and oil‐free cotton cloth. ‐ Diluted window cleaner liquid can also be used. ...
- Page 14 AND1100 Fluorimeter for Water Testing July 1, 2013 7 Customer Service Contact Information Contact us by Email: info@andalyze.com By Telephone: 888 388 0818 (Toll Free in US) or +1 857 453 6740 By Fax: +1 857 386 1277 Business Service Hours: 9:00am to 5:00pm Eastern Standard Time (USA) Monday through Friday Company Address: ANDalyze Inc. 800 Boylston Street Prudential Tower, Floor 16 Boston, MA 02199 USA Website: www.andalyze.com 8 Consumables and Replacement Items ‐ Fluorimeter Kit o Capable of measuring multiple metals. o Kit Includes: Fluorimeter USB to MINI‐B Cable 100µL Fixed Volume Pipette and Tips ...
- Page 15 AND1100 Fluorimeter for Water Testing July 1, 2013 9 Technical Specification for AND1100 Fluorimeter The AND1100 Fluorimeter is a platform centric hand‐held device for heavy metals testing for drinking water and industrial water supplies. It uses an extremely sensitive measurement technique to determine the levels of heavy metal contamination. Instrument Specifications: Light Source: Light Emitting Diode Detector: Photomultiplier Tube Filters: Excitation 485nm Emission 535nm Certifications: AND1100 Fluorimeter CE Marked: Complies with the following European Union Directives: Low Voltage Electrical Equipment Directive 2006/95/EC Electromagnetic Compatibility (EMC) Directive 2004/108/EC Power Specifications Power: Battery Operated Power Recharging: via USB cable Power usage: The battery lasts over 225 tests on a full charge (at 45 seconds/test). Mechanical Specifications Dimensions: Width: 3.6 inches/9.14 cm Depth: 8.0 inches/ 20.3 cm Height: 2.25 inches/ 5.72 cm Weight: 1.25 lb/565 g IP rating ...
- Page 16 AND1100 Fluorimeter for Water Testing July 1, 2013 10 Limited Warranty for Fluorimeter Device ANDalyze provides the following limited warranty for the ANDalyze AND1100 Fluorimeter device (the “Fluorimeter Device”). ANDalyze warrants that the Fluorimeter Device (including the software used on the Fluorimeter Device), when used in accordance with the user documentation, will operate in all material respects in conformity with the specifications stated in the user documentation for a period of ninety (90) days from the date of your receipt (the “Warranty Period”). If it does not, your sole remedy and ANDalyze’s total liability for such material nonconformity in the Fluorimeter Device will be, at ANDalyze’s option and discretion, to repair or replace the Fluorimeter Device at ANDalyze’s expense or to refund the purchase price (but not any taxes, export or shipping fees) and subject to the limitations in The foregoing remedy is subject to the Limitation of Liability as described wherein. To qualify, you must notify ANDalyze during the Warranty Period of any problems that you experience with the Fluorimeter Device. ANDalyze will have no liability for any nonconformity of which you fail to notify ANDalyze prior to the expiration of the Warranty Period. This warranty does not apply to (i) Fluorimeter Device which has been used in a manner other than as authorized under these Terms and the documentation provided with the Fluorimeter Device (including the product brochure and fluorimeter specifications); (ii) any software on the Fluorimeter Device that has been modified by you or any party other than ANDalyze or which has been improperly installed to the extent such modification or improper installation caused the breach of warranty; (iii) failures caused by accident, neglect, failure to maintain a suitable operating environment, tampering, or any other event other than ordinary use. ANDalyze Inc. 2109 S Oak Street, Suite 102 Champaign, IL 61820 USA Email: info@andalyze.com Telephone: +1 888 388 0818 or +1 217 328 0045 ANDalyze Inc. 800 Boylston Street, Prudential Tower, Floor 16, Boston, MA 02199 USA Tel. +1 857.453.6740 www.andalyze.com Page 16 of 16 ...
