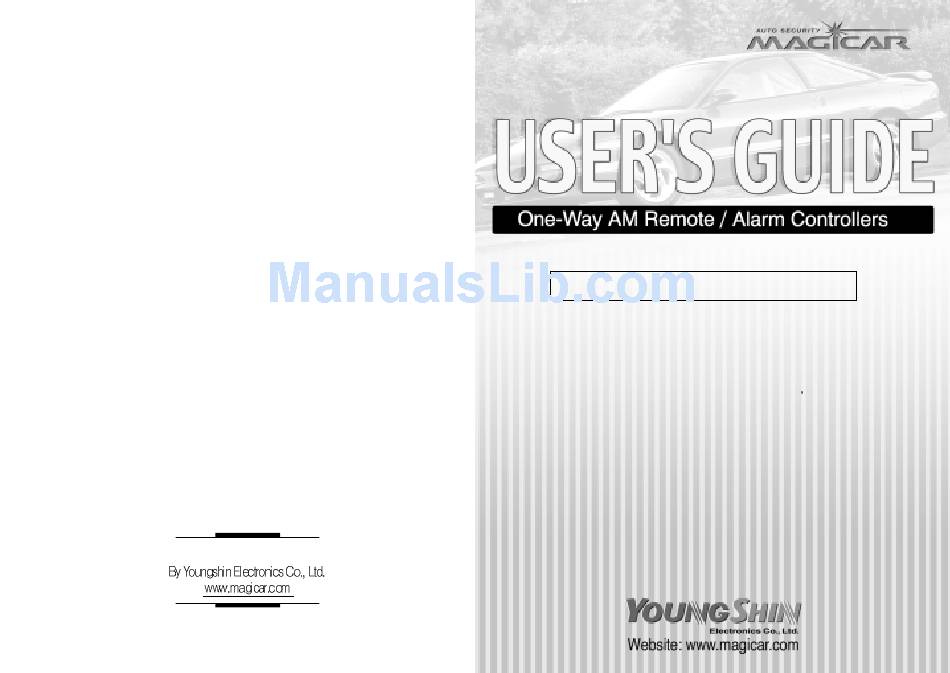

USER'S GUIDE
FCC ID : O44J1WENR
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
CAUTION : Changes or modifications not expressly approved by the party
responsible for compliance could void the user s authority to
operate this device.
Advertisement
Related Manuals for Magicar M861A
Summary of Contents for Magicar M861A
- Page 1 FCC ID : O44J1WENR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 2 User’s GUIDE User’s GUIDE TABLE OF CONTENTS Page 4 Safety Information Page 4 Remote : Page 5 Remote Button Functions Page 5 Remote Learning Routine Page 6 Keyless Entry Page 6 Alarm Mode Page 7 Trunk Release Page 7 Panic Mode Page 7 Valet Mode Page 8...
- Page 3 Magicar system should be in Valet Mode. Siren Chirps for Lock /Unlock - on/off 0.5 sec Whenever you loan your vehicle to an individual who is not familiar with Magicar, 0.5 sec Valet Mode - on/off please put the vehicle in Valet mode. This will prevent the vehicle barrower from...
- Page 4 Trunk Release Within a 7 second period after cycling the ignition for the 3 time, Press the button for a 0.5 second. The parking lights will flash Press the button for 2 seconds, in order to unlock and release your trunk door. once to confirm that the transmitter has been programmed.
- Page 5 OPTIONAL PROGRAMMABLE FEATURES These additional features may be programmed to the Magicar system by your authorized Magicar dealer. INSTALLATION GUIDE Ignition Lock This programmable option enables your vehicle to automatically lock the doors once INSTALLATION GUIDE TABLE OF CONTENTS the key is in the ignition for 30 Seconds.(Also you can lock the doors, If you step on the brake pedal within 30 Seconds) In addition, the vehicle will automatically unlock Installation Tips &...
- Page 6 1-2. Use Digital Multimeter for testing Use a Digital Multimeter for all testing of wires in the vehicle. This should be done M861A Wiring Digram on all wires even if you feel that you know exactly what they are and how they should test.
- Page 7 C0N1 C0N2 No 1 (Red) : (+)12V Input Solder this wire to the vehicle’s 12V constant. This wire must be supplied power all of the time and must be able to withstand high current draw. No 2 (Green/ White) : (+)Output for parking Light Positive parking light output.
- Page 8 External Actuator No 3 (Red/Black) : Negative Trigger Door Open Sense No 4 (Red) : Positive Trigger Door Open Sense Dome Light Dome Light Door Door Trigger SW Trigger SW +12V +12V CON3-3(-) Door Trigger CON3-4(+) Door Trigger < External Actuator> Please make sure you have found a correct door sensing wire that monitors all doors.
- Page 9 When Magicar systems are installed, please pay attention to stretch out the wire of start or run by remote or key. The vehicle can also be shut off with remote by use of antenna.
- Page 10 How to set Options Canceling (Going to factory default) Option Mode You can only program one option at a time. You will have to repeat the procedure for Press buttons for 2 seconds (The siren and signal lights will chirp and flash one time each). every option you would like to change.
