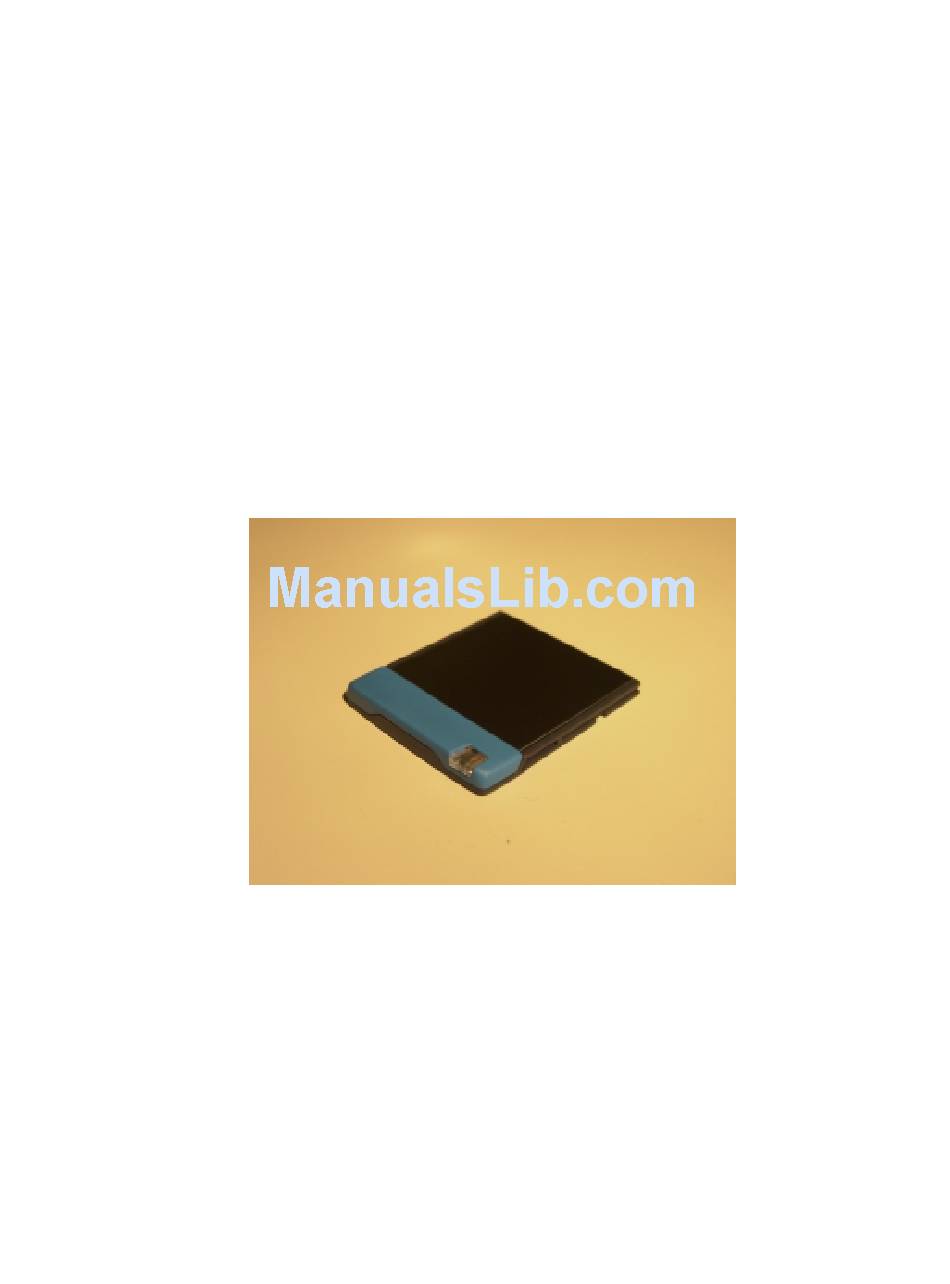

- Page 1 LSE039R2 Bluetooth Compact Flash Card with Software for Windows Pocket PC Release 1.3 User’s Manual...
- Page 2 DISCLAIMER: This manual is published by National Semiconductor Sweden AB, without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information or improvements to equipment may be made by National Semiconductor Sweden AB at any time and without notice. Such changes will however be incorporated into new editions of this manual.
- Page 3 Table of contents Introduction ______________________________________________________ 5 Features _______________________________________________________________ 5 Bluetooth Capability Statement _____________________________________________ 5 System Requirements ____________________________________________________ 5 SW and HW compatibility and limitations ______________________________________ 6 Installation _______________________________________________________ 7 Uninstall previous SW versions _____________________________________________ 7 Install new SW __________________________________________________________ 7 Insert the CF Card _______________________________________________________ 7 Using the Bluetooth Profile Wizard____________________________________ 8 Serial Port Connection ____________________________________________________ 8...
- Page 4 10 Regulations (LSE039R2 Bluetooth Compact Flash Card)_________________ 18 10.1 European Compliance ____________________________________ 18 10.2 FCC (US) Compliance ___________________________________________________ 18 10.3 Exposure to Radio Frequency Radiation _____________________________________ 19 10.4 Important Safety Information ______________________________________________ 19 10.4.1 Safety Warnings!______________________________________________________ 19 10.4.2 Operating Environment _________________________________________________ 20...
-
Page 5: Introduction
1 Introduction Thank you for purchasing this LSE039R2 Bluetooth Compact Flash Card. It will provide a fast and reliable wireless connection with other Bluetooth enabled computers (PC’s), Handheld or Pocket PC’s etc. This User’s Manual will guide you through the installation steps necessary to make your... -
Page 6: Sw And Hw Compatibility And Limitations
1.4 SW and HW compatibility and limitations The enclosed software for Pocket PC release 1.3 also supports the following Bluetooth compliant products from National Semiconductor Sweden AB: • LSE041 R2 Bluetooth PC Card. Fully compatible without limitations. -
Page 7: Installation
2 Installation 2.1 Uninstall previous SW versions First, if present, remove any old SW versions installed: 1. Remove the CF Card and run \StartMenu\SppLoader.exe until it says "Serial Ports are disabled”. 2. Uninstall any previous installation of the Bluetooth Pocket PC SW by using ActiveSync from a connected PC. -
Page 8: Using The Bluetooth Profile Wizard
3 Using the Bluetooth Profile Wizard The Bluetooth Profile Wizard has six different sub-wizards used to configure your device. They are: • Serial Port Connection • Dial Up Networking • Pairing • LAN Access • Serial Port Management • Local Configuration To start one of the sub-wizards, select the corresponding icon and press Next at the bottom of the screen. -
Page 9: Pairing
4. Select a device and press Next. Next will only be enabled if a device that is supporting DUN has been selected. 5. On the last screen, a confirmation will be shown, indicating success or failure. Instruction is also given on how to create a dial up connection on this port. Press Finish to exit sub-wizard. 6. -
Page 10: Serial Port Management
7. Selecting Yes, will start the Pairing sub-wizard. Selecting No, will return to the main wizard start screen. 3.5 Serial Port Management The Serial Port Management sub-wizard is used to add and remove virtual serial ports from the system. Also, a modem is created and attached to each serial port that is added. Configuration 1. -
Page 11: The File Transfer Application
- Without SDP, the FileTransfer client will only do an inquiry and then display all found devices. When connecting, RFCOMM server channel 5 will be used. (This will work with current versions of the PC and Pocket PC based FileTransfer from National Semiconductor Sweden AB.) 4. Click Search and wait for the search procedure to complete. -
Page 12: Advanced Configuration Using The Control Panel
1. Use the Serial Port Connection sub-wizard to connect a virtual serial port on your local device to the remote Bluetooth printer device supporting the Serial Port Profile (SPP). 2. Start the printing software and choose the previously configured virtual serial port as the printer port. - Page 13 1. Run \Settings\Connection\BlueCard 2. Select SerialPort , and select COM5 for use with a modem. If COM5 is unavailable, select COM7 . 3. Enter bdaddress , server_channel and port type manually, a) Click Search - The target device, a Bluetooth phone or a LAN Access Point, must be in discoverable mode and within range.
-
Page 14: Troubleshooting Guide
8 Troubleshooting Guide 8.1 Support information Start the Bluetooth Profile Wizard and select the “About” option to display the current Bluetooth SW and HW version installed on your local machine. 8.2 Installation Problem: You cannot uninstall the old BlueCard installation, or you cannot install the new BlueCard installation, because the installer says that some files are in use. -
Page 15: File Transfer
8.5 File Transfer Problem: When FileTransfer application is started you get the error "Failed to attach to Bluetooth stack..." Solution: Another application may hold the Bluetooth stack. Close it and try again. The CF card may not be inserted. Insert it and try again. -
Page 16: Technical Specifications
9 Technical Specifications 9.1 Radio Specifications Frequency range 2.402 - 2.4800 GHz, programmable for specific national regulations. RF output power 0 dBm, Power Class 2 Receiver sensitivity Better than -70 dBm at 0.1% BER Frequency spectrum Frequency Hopping Spread Spectrum (FHSS) utilization Modulation Gaussian Frequency Shift Keying (GFSK) -
Page 17: Mechanical
9.5 Mechanical Physical interface Type I Compact Flash Card slot Dimensions 47.8 x 42.9 x 6.0 mm Weight 15 g 9.6 Environmental Operating temperature ±0º C to +55º C Storage temperature -20º C to +70º C Humidity 5-95% non-condensing 9.7 Standards Supported Supported specification Bluetooth 1.1 9.8 Compliance Regulative compliance... -
Page 18: European Compliance
• Council Directive 93/68/EEC of 22 July 1993 on the harmonization of the CE marking requirements. A “Declaration of Conformity” in accordance with the relevant standards to confirm compliance with the above-mentioned directives has been made and is on file at National Semiconductor Sweden AB, Sundbyberg, Sweden. -
Page 19: Exposure To Radio Frequency Radiation
• Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help Any changes or modifications not expressly approved by Wireless Solutions Sweden AB could void the user’s authority to operate the equipment. -
Page 20: Operating Environment
Use only approved accessories. Do not connect incompatible products. Connecting to other devices When connecting to any other device, read its user’s guide for detailed safety instructions. Do not connect incompatible products. Chemicals Do not store or use the Compact Flash in places where it may be exposed to chemicals or chemical vapors. - Page 21 Always obey any special regulations in force in any area and always power off your Bluetooth Compact Flash device whenever it is forbidden to use it, or when it may cause interference or danger. When connecting the Compact Flash to another device, read it’s users guide for detailed safety instructions.
