USER OPERATING INSTRUCTIONS
ZAP 800 and 8800 Series 3 Commercial Door Shaft-Mounted Motor Operators
Tucker ZAP PATENT NUMBER / TITLE / REGISTRATION DATE:
USA 8,182,381
| Drive arrangement | May 22, 2012
USA 8,115,438
| Aperture closure member control arrangements | Feb. 14, 2012
USA 8,033,374
| Drive arrangement | Oct. 11, 2011
USA 7,633,253
| Control and monitoring arrangements for an aperture closure member | Dec. 15, 2009
USA 7,437,971
| Drive arrangement | Oct. 21, 2008
USA 7,333,308
| Control arrangement | Feb. 19, 2008
USA 7,005,884
| Monitoring apparatus for monitoring electrical drive current for an electric motor | Feb. 28, 2006
USA 6,188,198
| Aperture closures | Feb. 13, 2001
920.1035.00_USER OPERATING INSTRUCTIONS
Toll Free:
1-855-8 TUCKER
Tel:
412-823-2537
LLC
Fax:
412-816-1862
Technical Support:
Email:
sales@tuckerzap.com
Mexico 243645
Canada 2445152
Canada 2440772
Canada 2560530
Canada 2641641
Canada 2445123
Canada 2338191
1-888-467-5751
| Aparato de monitoreo | Feb. 6, 2007
| Monitoring apparatus | June 25, 2013
| Control arrangement | June 21, 2011
| Drive arrangement | May 21, 2013
| Aperture closures | April 26, 2011
| Drive arrangement | Feb. 16, 2010
| Aperture closures | Dec. 30, 2008
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Tucker ZAP 8800
- Page 1 Location:11075 Parker Drive Email: sales@tuckerzap.com Irwin, PA 15642 USER OPERATING INSTRUCTIONS ZAP 800 and 8800 Series 3 Commercial Door Shaft-Mounted Motor Operators Tucker ZAP PATENT NUMBER / TITLE / REGISTRATION DATE: USA 8,182,381 | Drive arrangement | May 22, 2012 Mexico 243645 | Aparato de monitoreo | Feb.
- Page 2 IMPORTANT- SAFETY INSTRUCTIONS WARNING: - To reduce the risk of severe injury or death READ AND FOLLOW ALL INSTRUCTIONS Never let children operate or play with door controls. Keep the remote control (where provided) away from children. Personnel should keep away from a door in motion and keep the moving door in sight until it is completely closed or opened.
- Page 3 IMPORTANT- MESURES DE SÉCURITÉ AVERTISSEMENT: - Pour réduire les risques de blessures mortelles LISEZ CETTE NOTICE ET CONFORMEZ-VOUS AUX MISES EN GARDE Ne laissez jamais les enfants manoeuvrer les commandes de la porte. Ne laissez pas la télécommande à portée des enfants. Surveillez la course de la porte jusqu’à...

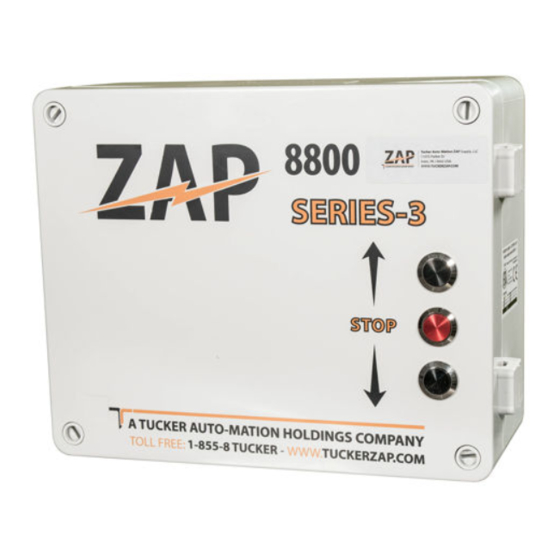

- Page 4 ZAP MOTOR-CONTROL SYSTEMS FOR COMMERCIAL DOORS The system includes model 800 or model 8800 wall-mounting Control Unit with case mounted control buttons, Jackshaft Motor Operator and Manual Override kit. MOTOR-CONTROL UNITS Model 8800 Motor Operator MANUAL OVERRIDE RELEASE MODEL 800 The model 800 Control Unit will power...
- Page 5 The system may be operated by any of the following items: 1. Model 800 and 8800 Control Unit push buttons. Operation is as follows: Press and hold either the upper OPEN or lower CLOSE push button until the door starts to move.
- Page 6 CONTROL UNIT OPERATION 1. If the door is open and the CLOSE button is pressed, the door will close. 2. If it is closed and the OPEN button is pressed it will open. 3. If the door is opening and the STOP button is pressed it will stop. 4.
- Page 7 TO OPEN THE DOOR MANUALLY The door should be fully closed if possible. Pull the Manual Override Release Lever to release the drive and lift the door manually. Press the Manual Override Release Lever down to reengage the drive. However if the drive is reengaged with the door in a different position then the door may have to be cycled open and close for at least one complete cycle to enable the controller to synchronize the door position.
- Page 8 There are no user accessible adjustments on the controller other than the following case push button programming options: PROGRAMMING USING THE CASE LID BUTTONS The following functions may be used providing the Control Unit is fitted with an optional Plug-in Beeper Module.
