Summary of Contents for Samyoung SY4050-LM

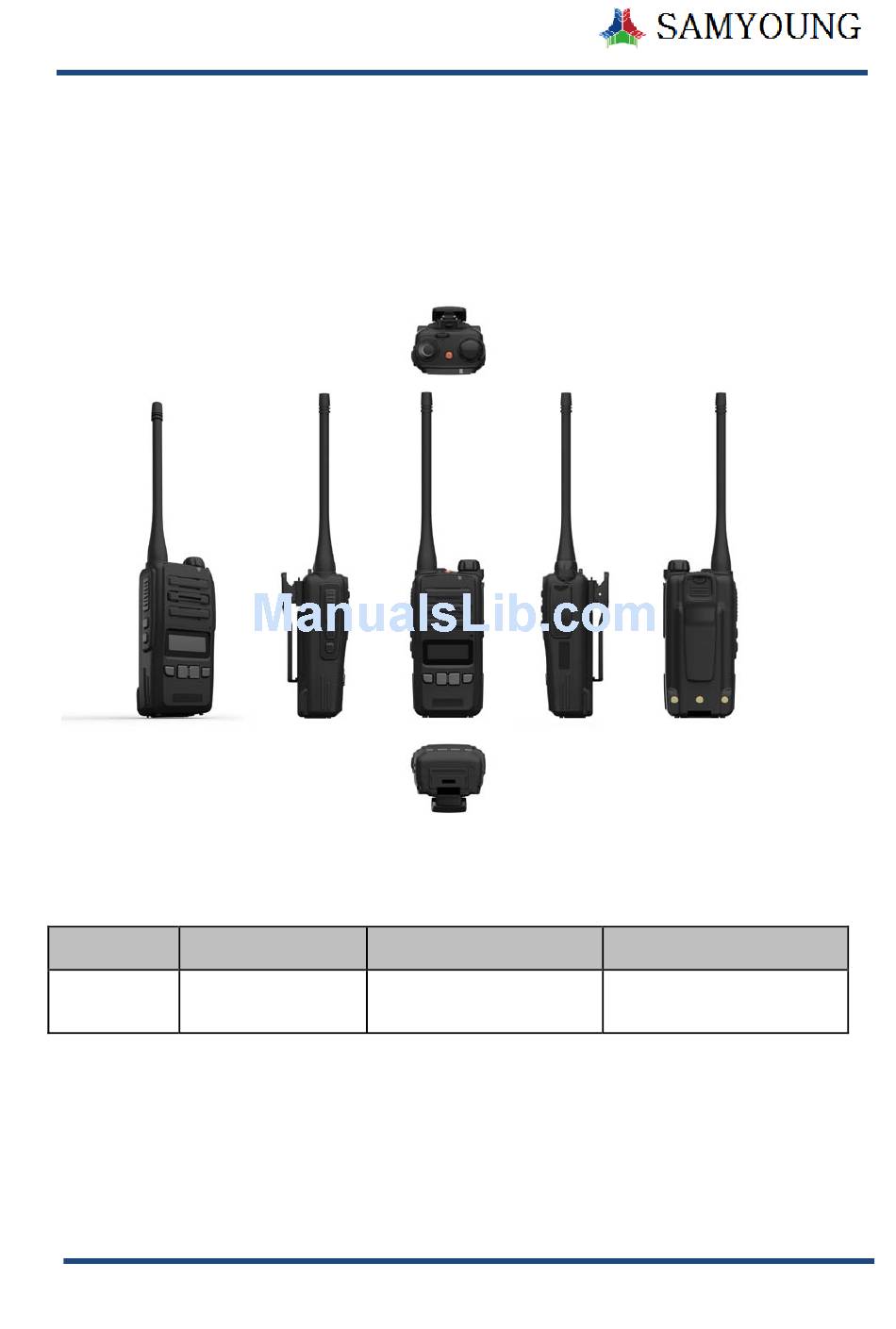

- Page 1 SY4050-LM DMR/FM Terminal User Manual Date Prepared by Checked by Approved by 04-Mar-2015 SAMYOUNG TECH. CO.,LTD 110 Gumdan-ro, Seo-gu, Incheon 404-300 Korea TEL : +82-32-561-6700 FAX : +82-70-4694-9646 http:/ www.sytcl.co.kr Copyright ⓒ 2015 SAMYOUNG TECH.CO.,LTD...
- Page 2 Add specification CONTENTS ============================================================== 1. Radio Overview ......................3 2. Status Indication ......................4 3. Menu Navigation ......................6 4. Basic Operation ......................7 5. Call Services ........................7 6. Features and Operations ....................9 ============================================================== Copyright ⓒ 2015 SAMYOUNG TECH.CO.,LTD...
-
Page 3: Radio Overview
Part Name Part Name PTT Key Speaker Back Key Belt Clip Soft Key-1 Microphone Battery Soft Key-2 Menu/Enter/OK Power/Volume Battery Latch Control Knob Antenna Down Key Emergency Alarm Key LED Indicator Up Key Accessory Jack Copyright ⓒ 2015 SAMYOUNG TECH.CO.,LTD... -
Page 4: Status Indication
2.1 LED Indicator The top LED indicator will help you easily identify the current radio status. LED Indicator Radio Status Blinks YELLOW Receiving, Carrier detected Glows YELLOW Receiving, Call match Blinks ORANGE Channel scanning Glows RED Transmitting Copyright ⓒ 2015 SAMYOUNG TECH.CO.,LTD... - Page 5 Digital and Analog mixed channel is displayed with M(ex, M003) Call Indicates Outgoing Individual Call Indicates Incoming Individual Call Indicates Outgoing Group Call Indicates Incoming Group Call Indicates Outgoing All Call Indicates Incoming All Call Copyright ⓒ 2015 SAMYOUNG TECH.CO.,LTD...
-
Page 6: Menu Navigation
Power Level High/Low SQ Level Normal/Open/Tight Keypad Lock On/Off Backlight Off/On/Timed Off/On Tone Off/On Language English/Chinese Radio Info Radio Id Serial Number Model Name Model Number Freq Range SW Ver BB Ver Last Pro Date Copyright ⓒ 2015 SAMYOUNG TECH.CO.,LTD... -
Page 7: Basic Operation
After the radio is powered on, you can make and receive calls. To ensure optimal volume of the receiving radio, keep the microphone about 2.5 to 5 centimeters away from your mouth when transmitting. Individual call It is a voice call between an individual user and another individual user. Copyright ⓒ 2015 SAMYOUNG TECH.CO.,LTD... - Page 8 4. Radio-1 press and hold down PTT key to make a call. The LED lights up solid red. The second LCD line shows the outgoing individual/group call icon at the left corner and also shows the target user alias or number. 5. Radio-1 speak clearly into the microphone Copyright ⓒ 2015 SAMYOUNG TECH.CO.,LTD...
-
Page 9: Features And Operations
LCD shows “SOS Fail” The radio exits the Emergency Alarm mode and returns to the Home screen in the predefined period by CPS 6.3 Sending a Quick text message Copyright ⓒ 2015 SAMYOUNG TECH.CO.,LTD... - Page 10 User can optimize the operation of your radio via the following configuration according to your actual needs and preferences. Tx Power Level SQ Level(note, applicable in Analog FM mode only) Keypad Lock Backlight Copyright ⓒ 2015 SAMYOUNG TECH.CO.,LTD...
-
Page 11: Specifications
-30°C~+60°C Store temperature -40°C~+85°C Antenna impeadence 50Ω Audio output power ≤1000mW@16Ω Battery capacity 7.4V 2600mAh standard Li-ion battery 2 lines BW graphic IEC61000-4-2 level3 Dust & Water proof IEC60529-IP67 Dimension(H*W*D) 105*51*33mm(not including antenna) Weight 270g Copyright ⓒ 2015 SAMYOUNG TECH.CO.,LTD... - Page 12 ETSI TS 102 361-1, -2, -3 Vocoder type AMBE+2 7.3 Receiver Digital sensitivity(5% BER) 0.22uV Adjacent channel selectivity >63dB Intermodulation distortion >70dB Spurious rejection >70dB Blocking >90dB Hum and noise -40dB Audio response +1dB ~ -3dB Conducted spurious emission -57dBm Copyright ⓒ 2015 SAMYOUNG TECH.CO.,LTD...
- Page 13 ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3kHz to 300 GHz. ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields-RF and Microwave. Copyright ⓒ 2015 SAMYOUNG TECH.CO.,LTD...
- Page 14 Body Worn configuration. Battery Pack shall not be exposed to excessive heat such as sunshine, fire or the like. Always use Samyoung Co.,Ltd authorized accessories. The information listed above provides the user with the information needed to make him or her aware of RF exposure, and what to do to assure that this radio operates with the FCC RF exposure limits of this radio.
-
Page 15: Fcc Information
—Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications to this transceiver, not expressly approved by Samyoung co.,Ltd, could void your authority to operate this transceiver under FCC regulations. Copyright ⓒ 2015 SAMYOUNG TECH.CO.,LTD...
