Alldaq ADQ-610 cPCi Manual

Isolated 4 or 8 channel voltage output board
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Manual
Rev. 1.0
EN
ADQ-610 cPCI
Isolated 4 or 8 channel voltage output board

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADQ-610 cPCi and is the answer not in the manual?

Questions and answers

Related Manuals for Alldaq ADQ-610 cPCi

  • PCI Card Alldaq ADQ-22 PXI Manual
    PCI Card Alldaq ADQ-22 PXI Manual
    Digital i/o boards with up to 32 isolated digital inputs, up to 32 isolated digital outputs, 16 ttl digital i/os, adq-link, optional 8 change-over relays (36 pages)

Summary of Contents for Alldaq ADQ-610 cPCi

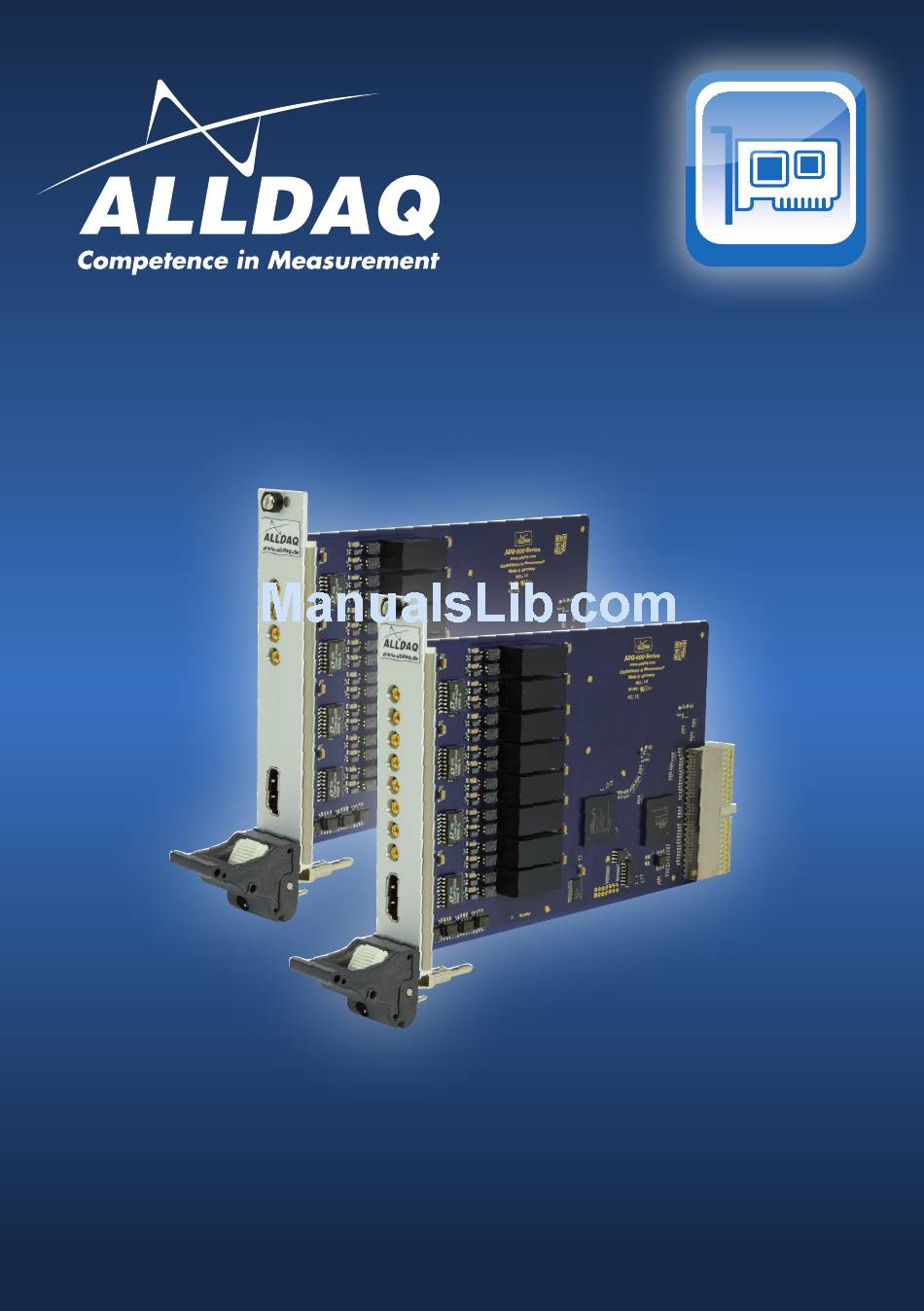

  • Page 1 Manual Rev. 1.0 ADQ-610 cPCI Isolated 4 or 8 channel voltage output board...
  • Page 2 Manual ADQ-610 series Rev. 1.0 Imprint Manual ADQ-610 series Rev. 1.0 Date: 08/04/2016 Manufacturer and Support ALLNET and ALLDAQ are registered trademarks of the ALLNET GmbH Computersysteme. For questi- ® ® ® ons, problems and product information please contact the manufacturer directly:...
  • Page 3 2.1 Installing the board ������������������������������������������������������ 9 2.2 Software installation ��������������������������������������������������� 10 2.2.1 Installation under Windows ������������������������������������������� 10 2.3 Test program ����������������������������������������������������������� 10 2.4 ALLDAQ Manager ������������������������������������������������������� 11 2.5 Balancing/Calibration ���������������������������������������������������� 12 2.5.1 Factory balancing ��������������������������������������������������� 12 2.5.2 User balancing������������������������������������������������������ 12 2.5.3 DAkkS calibration ���������������������������������������������������...
  • Page 4 Manual ADQ-610 series Rev. 1.0 3.3.2.1 Single value input/output ����������������������������������������� 20 3.3.2.2 Streaming Operation ��������������������������������������������� 20 3.3.2.3 Interrupt modes ������������������������������������������������� 21 3.3.2.3.1 Bit change �������������������������������������������������� 21 4. Appendix ����������������������������������������������������������� 23 4.1 Specifications ���������������������������������������������������������� 23 4.2 Pinouts ���������������������������������������������������������������� 26 4.2.1 MMCX connectors (analog outputs) ������������������������������������ 26 4.2.2 HDMI connector (ST9) ������������������������������������������������...

  • Page 5: Introduction

    The device may not be taken into operation if it is damaged. In case of doubt please contact our technical service department. Please read – before installing the device – this manual watchfully! Scope of delivery • ALLDAQ board of ADQ-610 series for CompactPCI (3 U) • Driver software and documentation under: www.alldaq.com/downloads Optional as bundle including: • Special terminal block for ADQ-610 series (ADQ-TB-COAX-HDMI-HUT)

  • Page 6: Location Of Installation And Mounting

    Introduction Manual ADQ-610 series Rev. 1.0 • Never connect devices with voltage-carrying parts, especially not with mains voltage. • The user must take appropriate precautions to avoid unforseeable misuse. For damages caused by improper use and subsequent damages any liability by ALLNET GmbH ®...

  • Page 7: Short Description

    1 x 8 bit port Table 1: Overview ADQ-610 series The D/A converter boards of the ALLDAQ ADQ-610 series are for high-precise voltage output, e. g. for testing of embedded systems in the context of hardware in the loop (HiL) simulations or for generating audio signals.

  • Page 8: System Requirements

    A function library (API) with example code for high-level language programming is included Please note the corresponding help files included with the SDK. LabVIEW Support A library with virtual instruments (VIs) for easy access to the ALLDAQ hardware is included with the ALLDAQ SDK. MATLAB Support...

  • Page 9: Initial Operation

    Manual ADQ-610 series Rev. 1.0 Initial operation Initial operation Installing the board Please read the manual of your computer prior installing the board regarding the installation of additional hardware components. Handling the board should be done with care to ensure that the device will not be damaged by electrostatic discharge (ESD), mechanical stress or current surges.

  • Page 10: Software Installation

    64 bit systems in the target directory of your download. After successful installation the ALLDAQ-Manager can be found in the info area of the taskbar (usually at the bottom right cor- ner) or by the Windows Start menu. By the ALLDAQ-Manager you have access to the software developer kit (SDK), several utility programs and help files.

  • Page 11: Alldaq Manager

    Initial operation ALLDAQ Manager By the ALLDAQ-Manager you have central access to the parameters of the ALLDAQ driver system, the software developer kit (SDK), software tools and help files. The ALLDAQ-Manager can be found in the info area of the taskbar (usually at the bottom right corner of the desktop) or by the Windows Start menu.

  • Page 12: Balancing/Calibration

    Manual ADQ-610 series Rev. 1.0 Balancing/Calibration By the ALLDAQ-Manager you can select which balancing data record (factory or user balancing) should be activated when booting the computer. You can change the setting via the ALLDAQ- Manager. 2.5.1 Factory balancing The ADQ-610 series will be balanced before delivery. The balancing data will be stored into an EEPROM.

  • Page 13: Functional Groups

    Manual ADQ-610 series Rev. 1.0 Functional groups Functional groups Block diagram ADQ-614/618 Timer AO_0+ 0110101001101110 & AO_0- Control logic Value FIFO AO_0..7 Isolation Timer AO_7+ 0110101001101110 & AO_7- Control logic Value FIFO Isolation TRIG_AO0 Trigger logic Ext. Trigger TRIG_AO7 GND_TRIG TTL-I/Os DIO_7…0 Bit-change...

  • Page 14: Analog Output

    Functional groups Manual ADQ-610 series Rev. 1.0 Analog output Nyquist´s sampling theorem (Oversampling) Nyquist´s sampling theorem basically applies also to analog output. This means, that the output rate for a periodic signal, whose maximum frequency component should be f , must be at Pmax least twice as high, i. e. 2 • f or higher.

  • Page 15: Wiring

    Manual ADQ-610 series Rev. 1.0 Functional groups ADQ-614 ADQ-618 PC interface CompactPCI (CompactPCI Serial / PCI-Express in preparation) Analog outputs 8 voltage outputs 8 voltage outputs Output voltage range ±10 V Resolution 16 bit Output rate 500 kS/s Output current ±15 mA per output Capacitive load max.

  • Page 16: Output Voltage Range

    Functional groups Manual ADQ-610 series Rev. 1.0 3.2.1.1.1 Output voltage range The output voltage range is ±10 V. The load for each channel is 15 mA max. The capacitive load at the output should not exceed 1 nF to ensure a stable signal. Individual modifications of the output stage on request.

  • Page 17: Isolation Voltage

    Manual ADQ-610 series Rev. 1.0 Functional groups 3.2.1.1.2 Isolation voltage Note, that the maximum voltage potential U this is the sum of the common-mode voltage and the output voltage may not exceed the isolation voltage of U = 700 V . Else the board can be be damaged irreversible.

  • Page 18: External Trigger D/A Section

    Functional groups Manual ADQ-610 series Rev. 1.0 3.2.1.2 External trigger D/A section The ADQ-610 series provides 8 external digital trigger inputs which are isolated from PC ground and against the analog outputs. With it you can trigger each D/A channel independently or synchronously.

  • Page 19: Timer-Controlled Output

    Manual ADQ-610 series Rev. 1.0 Functional groups 3.2.2.2 Timer-controlled output With the timer-controlled output you can output signal curves continuously. The so-called value FIFO is a fast buffer memory per channel which enables a continuous operation of all channels at maximum output rate. Figure 10: Timer-controlled output Please note the order of operation as described in the online help.

  • Page 20: Bi-Directional Digital I/Os

    Functional groups Manual ADQ-610 series Rev. 1.0 Bi-directional digital I/Os The ADQ-610 series provides one bi-directional 8 bit wide digital I/O port (DIO_7..0). If the digital port is configured as input the pins can be monitored on bit-change and can generate an interrupt event.

  • Page 21: Interrupt Modes

    Manual ADQ-610 series Rev. 1.0 Functional groups 3.3.2.3 Interrupt modes On demand the digital I/O port configured as input can be monitored on bit change and can be evaluated as an interrupt event. Programming is done in the operation mode „ interrupt“. 3.3.2.3.1 Bit change In the operation mode „bit change“...
  • Page 22 Appendix Manual ADQ-610 series Rev. 1.0 Appendix...

  • Page 23: Appendix

    Manual ADQ-610 series Rev. 1.0 Appendix Appendix Specifications Conditions: T = 23°C if not otherwise specified; warm-up time: 30 minutes. In line with continuous tests we monitor the long-term stability of the specifications regularly. Analog outputs Element Condition Specification Number of channels ADQ-618 8 differential voltage outputs ADQ-614 4 differential voltage outputs Signal curves free definable, for periodic signals we recommend 5 values per period, rectangular signals up to 250 kHz...
  • Page 24 Appendix Manual ADQ-610 series Rev. 1.0 Trigger inputs for analog outputs Element Condition Specification Number via HDMI 8 external trigger inputs isolated Level max. -0,5..+5.5 V (different input level on request) Input level VCC = 5V min. 2.2 V VCC = 5V max. 0.8 V Input current typ.
  • Page 25 Manual ADQ-610 series Rev. 1.0 Appendix Element Condition Specification Power consumption 8 AO 500 kS/s, 8 DIO +3.3 V: tbd. cPCIS models +5 V: max. 1.3 mA; +12 V: max. 1.5 A Power consumption 8 AO 500 kS/s, 8 DIO +3.3 V: tbd. PCIe models +5 V: max. 1.3 mA;...

  • Page 26: Pinouts

    Appendix Manual ADQ-610 series Rev. 1.0 Pinouts 4.2.1 MMCX connectors (analog outputs) AO_0+ AO_0+ AO_0- AO_0- AO_1+ AO_1+ AO_1- AO_1- AO_2+ AO_2+ AO_2- AO_2- AO_3+ AO_3+ AO_3- AO_3- AO_4+ AO_4+ AO_4- AO_4- AO_5+ AO_5+ AO_5- AO_5- AO_6+ AO_6+ AO_6- AO_6- AO_7+ AO_7+ AO_7-...

  • Page 27: Hdmi Connector (St9)

    Manual ADQ-610 series Rev. 1.0 Appendix 4.2.2 HDMI connector (ST9) HDMI connector type HEC for digital I/Os and trigger inputs. VCC_OUT (+5 V) GND_TRIG TRIG_AO7 TRIG_AO6 TRIG_AO5 TRIG_AO4 TRIG_AO3 TRIG_AO2 TRIG_AO1 TRIG_AO0 GND_PC DIO_7 DIO_6 DIO_5 DIO_4 DIO_3 DIO_2 DIO_1 DIO_0 GND_PC Figure 14: HDMI connector for digital I/Os and trigger inputs...

  • Page 28: Terminal Block For Adq-610

    Appendix Manual ADQ-610 series Rev. 1.0 4.2.3 Terminal block for ADQ-610 Special terminal block for the ADQ-610 series. The connection to the board is made by 8 MMCX female connectors and a HDMI connector. The analog channels can be connected alternatively via 8 BNC female connectors or Phoenix type clamps.

  • Page 29: Accessories

    8 x Coaxial cable from MMCX male connector to BNC male connector (1 m) ADQ-CR-HDMI-MM-1m (Art. No. 127015) HDMI cable to connect the digital-I/Os and trigger signals with the terminal block (1 m) Manufacturer and support ALLNET and ALLDAQ are registered trademarks of the ALLNET GmbH Computersysteme. ® ®...

  • Page 30: Important Notes

    The warranty terms valid for your country can be found on the homepage of your distributor. If you have questions or problems applying the warranty you can contact us during our nor- mal opening hours under the following phone number +49 (0)89 894 222 – 74 or by email: support@alldaq.com. Appendix...
  • Page 31 Manual ADQ-610 series Rev. 1.0...
  • Page 32 Manual ADQ-610 series Rev. 1.0...
  • Page 33 Important notes ....30 ALLDAQ Manager ....11 Initial operation ....9 Analog output.
  • Page 34 Manual ADQ-610 series Rev. 1.0 Safety instructions ....5 Sampling theorem (Nyquist) ..14 Scope of delivery ....5 Single value mode.
  • Page 35 Manual ADQ-610 series Rev. 1.0...
  • Page 36 ALLNET GmbH Computersysteme ® Division ALLDAQ Maistrasse 2 D-82110 Germering E-Mail: support@alldaq.com Phone: +49 (0)89 894 222 74 Fax: +49 (0)89 894 222 33 Internet: www.alldaq.com...
