Summary of Contents for Fortress Auto WB060

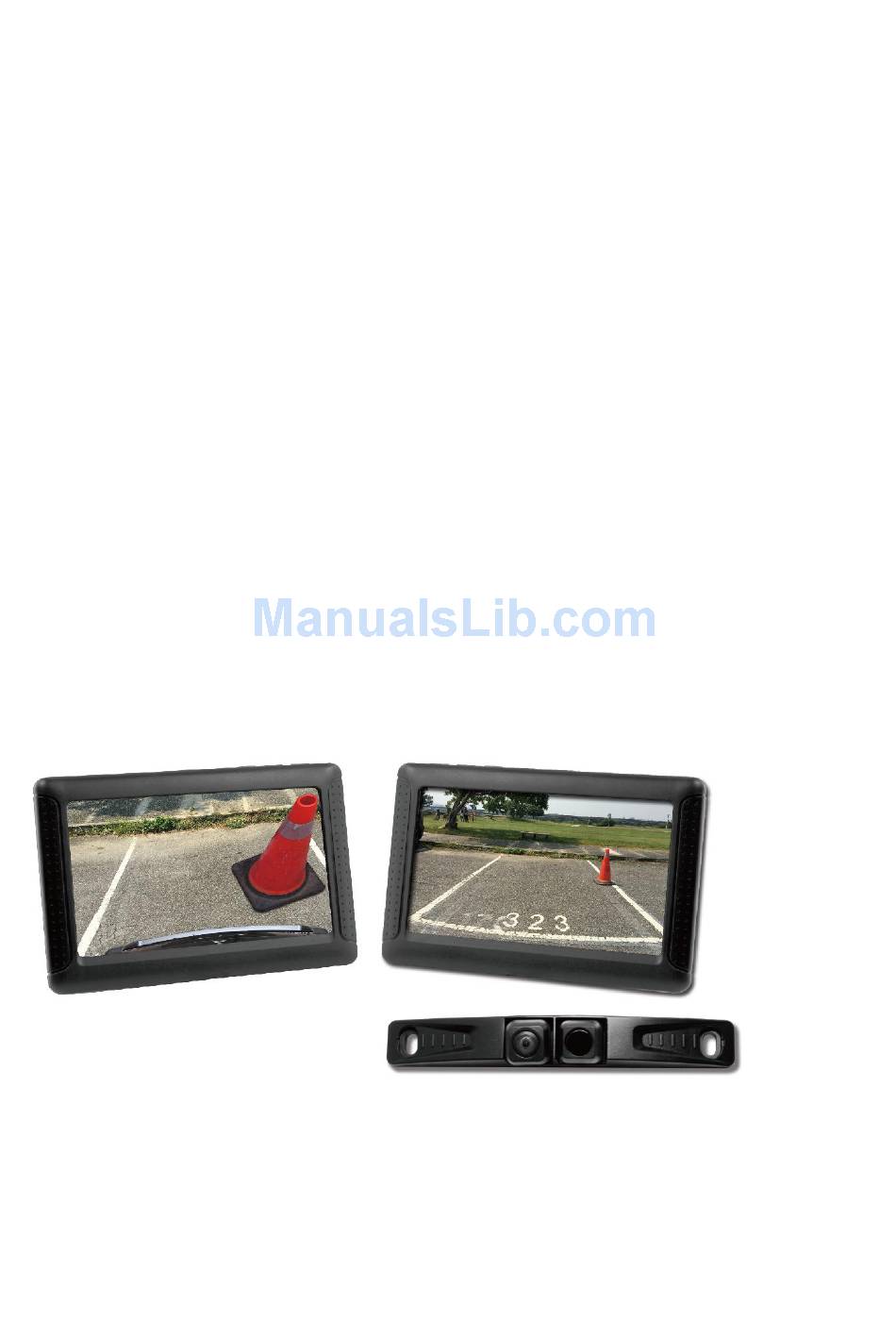

- Page 1 The Multi-Angle Digital Wireless Parking Camera...
- Page 2 1. The Multi-Angle Wireless Camera System 1.1. Parts Wireless Camera Wireless Receiver The system spot movement—From left to right/ up to down The system spot movement is marked with yellow frame The system will display a yellow mark or icon when setting is confirmed 1.2.
- Page 3 2. Introduction 2.1. Multi-Angle Wireless Camera is installed on the tail of the automobile. When you put into reverse gear, the system will operate automatically. You can monitor the environment through the screen when you are reversing. Besides, Wireless Camera is equipped with 58kHz ultrasonic device. When approaching obstacles around 120cm.
- Page 4 2.2. Interface 2.2.1. Normal View / Top-Down View Wireless Camera can detect the distance and switch into Normal View / Top-Down View automatically. When obstacles is further than 120cm will display normal view： When approaching obstacles around 120cm. It will switch to Top-Down View automatically：...
- Page 5 Settings 2.2.2. Name Function Switch Unit Settings Menu Setting item Setting title Setting item a. Setting item corresponding button corresponding button b. High brightness display when setted a. High brightness display when setted YES，Default Exit b. Back to Camera mode Note：...
- Page 6 Guide Line Guide line setting/display. Buttons function (1)Guide Line Setting Name Function Switch Unit YES，Default Adjust Press ENTER and adjust the guide line Press△、▽ Key to move the spot into position[Guide Line] [Save]、 Save Press ENTER and saved, then exit setting. Press△、▽...
- Page 7 B. Guide line adjustment (horizontal) Name Function Switch Unit Press △ Key moved up for one pixel. Press ▽ Key moved down for one pixel. Adjustment Press ENTER Key switch to next adjustment point(position) Left side guide line front point adjustment Name Function Switch Unit...
- Page 8 D. Left side guide line back point adjustment Name Function Switch Unit Press △ Key moved right for one pixel. Press ▽ Key moved left for one pixel. Adjustment Press Switch Unit ENTER Key to adjust up/down for the guide point. Name Function Switch Unit...
- Page 9 Name Function Switch Unit Press △ Key moved up for one pixel. Press ▽ Key moved down for one pixel. Adjustment Press ENTER Key switch to next adjustment point(position) F. Right side guide line back point adjustment Name Function Switch Unit Press △...
- Page 10 2.2.2.2 Guide Line Default Name Function Switch Unit Press Enter Key to change the display ON / OFF ON: Guide line display on. OFF: Guide line display off. 2.2.2.3 Brightness Name Function Switch Unit Adjustment the brightness press△、▽ key，press△ to increase，press▽to decrease the level of brightness Brightness Brightness level from 1~8, brighter as level increased...
- Page 11 3. Product and accessories. Name Items Wireless Camera Wireless Receiver Stand Cable tie Wire clip Screws & Cover Screwdriver...
- Page 12 4. Precautions. Parking system just for reference only, for your safety, please confirm the actual surroundings. Please pay attention to camera installation, red line then positive, black line then negative. This product is waterproof, do not rinse directly with water cannons. ...
- Page 13 “USER MANUAL” Compliance Statement § 15.21 & 15.105 EB937 FCC ID：2AJNIEB937 WB060 FCC ID：2AJNIWB060 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
