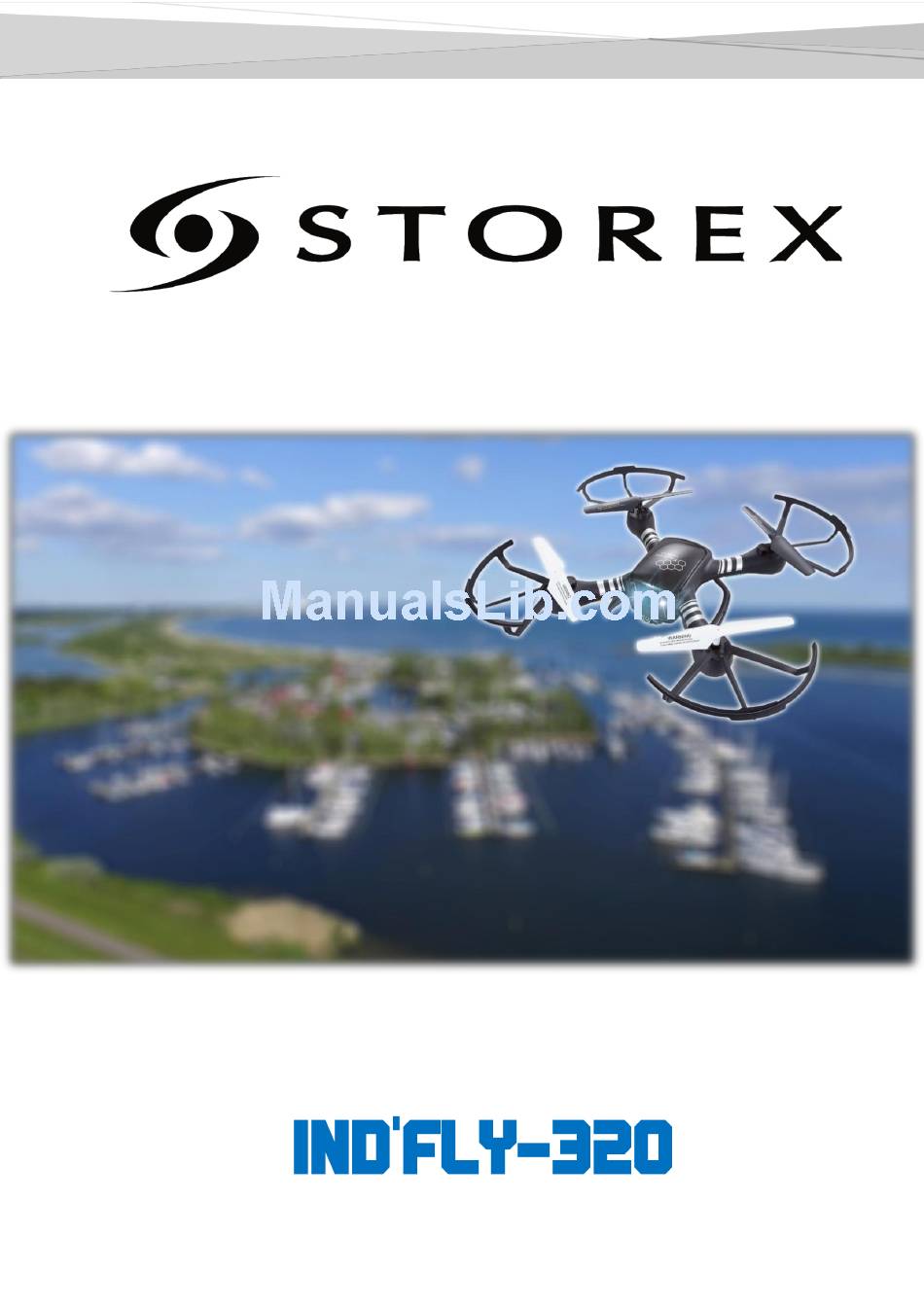

Summary of Contents for Storex IND'FLY-320
- Page 3 TABLE OF CONTENTS SAFETY INFORMATION ..........................3 .................................4 ENERAL ................................4 ECURITY ........................4 OWER SUPPLY OF THE PRODUCT ....................4 ELECT THE LOCATION OF THE PRODUCT ...............................4 LEANING ............................5 ROUBLESHOOTING – E ..........................5 ECURITY NVIRONMENT ..............................5 ÉGISLATION ..................6 RESENTATION AND DETAILS OF THE PRODUCT .....................
-
Page 4: Safety Information
Make sure that all connections are good, and keep children and pets away during the upgrade of the firmware, system calibration and configuration parameters. STOREX is not responsible for damage(s) or injury caused directly or indirectly from the use of this product in the following conditions: 1. -
Page 5: G Eneral
ENERAL Do not shake the product as it may damage it. Use only parts and accessories (power supply ...) recommended by the manufacturer. The product images may vary from the actual product. ECURITY To prevent fire or electric shock, do not place the unit near liquid-filled objects. If a heavy object or liquid is dropped on the device, have it checked by qualified personnel before using it again. -
Page 6: T Roubleshooting
CE marking in effect at the time of its release. Traceability of the components of your STOREX product was performed; It showed us that the product complies with the environmental directive (ROHS) in effect at the time of its release. -
Page 7: P Resentation And Details Of The Product
RESENTATION AND DETAILS OF THE PRODUCT The IND'FLY is designed for flight enthusiasts. Before being shipped from the factory, it is configured and fully tested. Your IND'FLY includes four installed propellers. When replacing your propellers, each kit of 4 is composed of 2 propellers which rotate clockwise and 2 propellers which rotate counterclockwise. - Page 8 Antenna LED On/Off Speeds Joystick left- Joystick right- Elevation- Tilt-Left/Right Rotation Direction C Direction B Direction A Direction D Power button NOTE:The remote control may differ from actual model but the functions remain the same. ONTENT OF THE BOX Drone Radio transmitter Smartphone holder ECESSARY CONTENT...
-
Page 9: Battery Installation
IND’FLY OW TO USE BEFORE FLING Battery installation : 1. Open the battery compartment cover from the transmitter. 2. Install 4 AA batteries in accordance with the +/- poles. 3. Close the battery compartment cover from the transmitter. 1. Move the left 2. - Page 10 Control the drone : JOYSTICK LEFT JOYSTICK RIGHT • Push upward to go up • Push upward to go forward • Push downward to go backwards Push downward to go down • Climb Front Rear Descent • Push to the left to rotate to the left •...
- Page 11 Install the camera : 2. Fix the camera in the 1. Connect the camera cable to the drone with the drone inserting the tabs into specified connector. the notches. Install the smartphone holder : 1. Insert the attachment 2. Adjust the size of the inside the smartphone support according to the holder (push strongly).
- Page 12 SPECIFICATIONS OF THE DRONE Settings Values Operating temperature -10°C~50°C consumption autopilot 3.12W Take-off weight <1000g Max. speed roll 200°/s Max. tilt angle 45° Up and down Max. ±6m/s Max. speed flight 10m/s Resolution camera 640 x 480 Weight 800g Weight of the battery 1000g...
-
Page 13: W Arranty Conditions
ARRANTY CONDITIONS The guarantee offered by STOREX is of 2 years for the product and 3 months for its accessories (cables, power supply ...). STOREXguarantees your product against defects in manufacture or assembly. This warranty applies only to the end user and is not transferable if the unit is resold. The... -
Page 14: W Arranty Registration
To facilitate your support during any interview with our support team, we invite you to register the warranty for your product on our website at: http://garantie.storex.eu In case of failure, please contact STOREX support to repair your product under warranty, or please send your request by e-mail at: support@storex.eu...
