The Model UHH-BTG Wireless Mobile Wireless Gateway transforms the

wireless signal from any Dwyer Instruments, Inc. universal handheld probe or

module into a Bluetooth SIG, Inc, Wireless Technology. Using this gateway, any

iOS

Firmware version 5.X or later or Android

smartphone or tablet can become the base instrument for measuring or logging.

Once the gateway is paired with a phone or tablet, our Mobile Meter™ app or any

other Dwyer Instruments, Inc. approved apps can detect available probes or

modules. Wireless gateways can detect probes or modules that are 50 feet away

or even greater distances depending on the environment. The wireless signal from

the gateway to the mobile device adds at least another 25 feet of sensing distance.

Model UHH-BTG is compact in size and clips on to most standard belts. The

rechargeable battery can be charged using the same mini-USB cable and charger

as the probes or modules. LED lights indicate the battery status and whether the

gateway is communicating properly.

NOTICE

This device complies with Industry Canada license-exempt RSS

standard(s). Operation is subject to the following two conditions:

(1) This device may not cause harmful interference. and (2) this device must accept

any interference received, including interference that may cause undesired

operation.

Cet appareil est conforme à des règlements d'Industrie Canada exempts de licence

standard RSS (s). Son fonctionnement est soumis aux deux conditions suivantes:

(1) Ce dispositif ne doit pas causer d'interférences nuisibles, et (2) cet appareil doit

accepter toute interférence reçue, y compris les interférences pouvant entraîner un

fonctionnement indésirable.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numériqué de la classe B est conformé à la norme NMB-003 du

Canada.

Shop for Data Logging products online at:

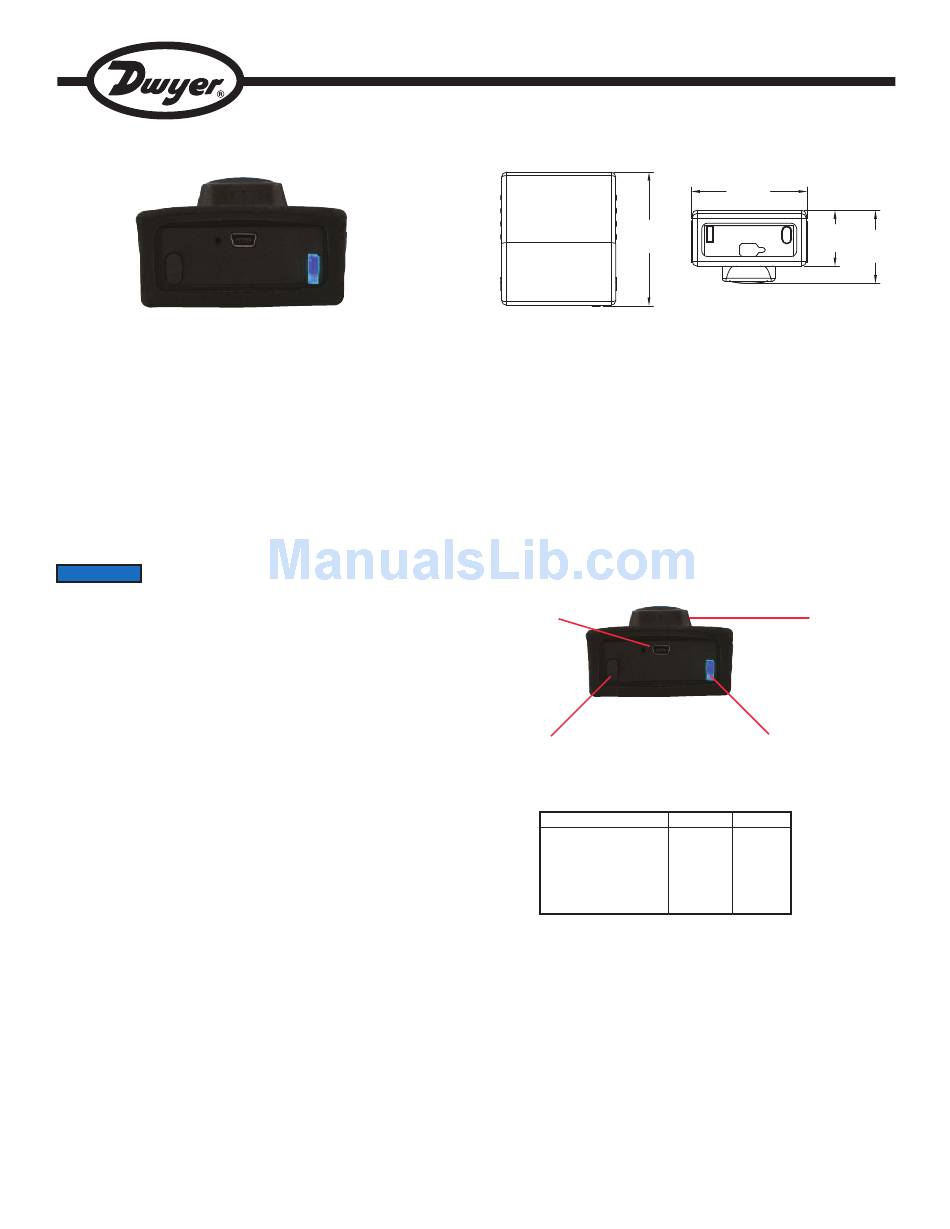

Model UHH-BTG Wireless Mobile Gateway

Specifications - Installation and Operating Instructions

Firmware version 3.X or later

www.

2-13/16

SPECIFICATIONS

Wireless Protocol: Conforms to Bluetooth SIG, Inc. low energy wireless

technology.

Wireless Distances: 50´ (15 m) or greater.

Response Time: 1 s.

Temperature Limits:

Ambient: 5 to 125°F (-15 to 51°C);

Battery Charging: 32 to 113°F (0 to 45°C).

Power Requirements: 3.7 V YT562447 lithium ion battery, installed functional,

user replaceable.

Weight: 2.5 oz (70.87 g).

Agency Approvals: CE with CE approved charger, RoHS, FCC.

USB Charger

Connector

Power Button

LED Status

Paired or pairable to

phone or tablet

Communications to

mobile device or probes

Charging or powering off

Low battery

iOS

Android

DataLoggerStore

Bulletin TE-UHH-BTG

2-7/16

[61.98]

[71.50]

Bi-Color LED

Figure 1

Blue LED

Red LED

Slow blink

Off

Rapid blink

Off

Solid

Off

Slow Blink

is a registered trademark of Cisco Systems, Inc.

is a registered trademark of Google, Inc.

1.888.610.7664

.com

1-3/16

[29.86] 1-17/32

[39.15]

Belt Clip

Table of Contents

Need help?

Do you have a question about the UHH-BTG and is the answer not in the manual?

Questions and answers

Summary of Contents for Dwyer Instruments UHH-BTG

Page 1 25 feet of sensing distance. user replaceable. Model UHH-BTG is compact in size and clips on to most standard belts. The Weight: 2.5 oz (70.87 g). rechargeable battery can be charged using the same mini-USB cable and charger Agency Approvals: CE with CE approved charger, RoHS, FCC.
Page 2 The Mobile Meter™ app will need to be downloaded and installed to the mobile device from Google play or Apple iTunes store. In order to pair the Model UHH-BTG Wireless Mobile Gateway to your phone or tablet, you must first turn on the gateway by pushing the power button on the top of the gateway (see Figure 1 to locate the power button).
Page 3 In the Preference Menu, you can select which parameter will be displayed larger on In order to end a log file, press the Save Log button on the bottom of the screen. the screen, the function of the parameter, engineering units, and logging method. You can either view the log file, share the log file, or close the log file.
Page 4 MAINTENANCE/REPAIR Upon final installation of the Model UHH-BTG, no routine maintenance is required. The Model UHH-BTG is not field serviceable and should be returned if repair is needed. Field repair should not be attempted and may void warranty. WARRANTY/RETURN Refer to “Terms and Conditions of Sale” in our catalog and on our website. Contact customer service to receive a Return Goods Authorization number before shipping the product back for repair.
