SHALOSH ECO Operating instructions

Andreas Köpke

Felsenmeer AG

8/12/2017

Table of Contents

Need help?

Do you have a question about the SHALOSH ECO and is the answer not in the manual?

Questions and answers

Summary of Contents for Felsenmeer SHALOSH ECO

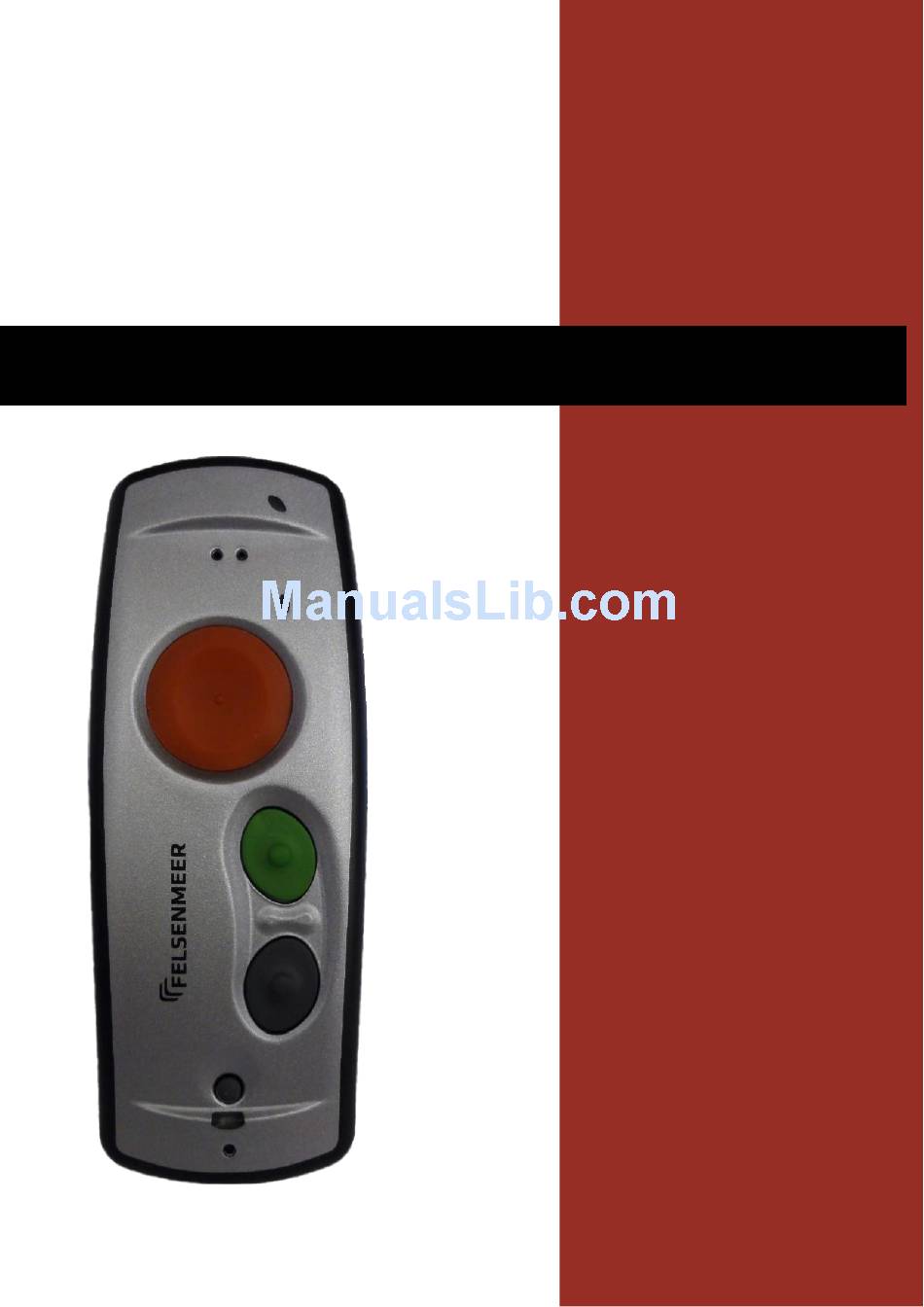

Page 1 2017 SHALOSH ECO Operating instructions Andreas Köpke Felsenmeer AG 8/12/2017...
Page 2 SHALOSH ECO Operating instructions...
Page 3 Table of Contents 1 Table of Contents 1 TABLE OF CONTENTS 2 INTRODUCTION 3 OPERATION AND FUNCTIONAL MODE 4 OPERATING ELEMENTS 5 USE IN DAILY ROUTINE 5.1 S TART OF SHIFT 5.1.1 S WITCHING ON 5.1.2 D EVICE TEST 5.2 N ORMAL OPERATION 5.2.1 D EVICE AND CONNECTION STATUS...
Page 4 SHALOSH ECO Operating instructions 8.2.1 P REREQUISITES 8.2.2 F ITTING 8.2.3 C HARGE 8.2.4 C ONFIGURE 8.3 D ISPOSAL 9 OVERVIEWS 9.1 O PERATING ELEMENTS AND FUNCTIONS 9.2 F AULTS AND THEIR SOLUTION 9.3 C ONFIGURATION TEMPLATE CUSTOMIZATION 9.3.1 A UTOMATIC ALARMS 9.3.2 A...
Page 5: Introduction
This is where our personal emergency call device comes into play: Felsenmeer’s SHALOSH is used to safeguard lone workers. It can automatically detect an accident and call for help or also be used directly to report a dangerous situation.
Page 6 SHALOSH ECO Operating instructions If the lone worker loses the device, SHALOSH can trigger an alarm. For this, a special holster is needed. Geofencing With geofencing, you can define allowed and prohibited are- as. If the lone worker is outside of allowed areas or in at least one prohibited area, an alarm can be triggered.
Page 7: Operating Elements
Operating elements 4 Operating elements The operating elements are explained in this screen, their meaning and use are explained in this document. Status LED Front speaker Alarm LED (red) Alarm button Green button Black button On/off switch Charging LED Microphone 5 Use in daily routine 5.1 Start of shift 5.1.1 Switching on...
Page 8: N Ormal Operation
SHALOSH ECO Operating instructions sound signal “low high low” until the button is pressed. This also triggers the process to accept a call. The announcement “press alarm button” is issued. Again, a sound signal is issued until the large red button is pressed. In case of an emergency, help can be summoned directly.
Page 9: C Alling And Hanging Up
Use in daily routine 5.2.2 Calling and hanging up SHALOSH can be called like a normal phone. The status LED lights up green and SHALOSH is ringing. Calls are answered by pressing the green button. Green button: If the lone worker takes the call with the green button, then Begin, accep t, h and s free SHALOSH works like a normal phone, i.e.
Page 10: D Eadman Or Time Alarm
SHALOSH ECO Operating instructions 4. Change to “acoustic locating” mode to inform colleagues within earshot. The same time is a ls o u sed for speed dia l 5. End alarm: the lone worker or a helper presses the black and can be cha nged.
Page 11: Fall
Use in daily routine In this case, SHALOSH can trigger a no movement alarm: if the lone The “res t p eriod” can b e con figured. The worker does not move for thirty seconds, then a pre-alarm is trig- 30s are a n example.
Page 12: G Eofencing
SHALOSH ECO Operating instructions 5.3.8 Geofencing Geofencing is used to highlight areas which either should not be accessed or should not be left. Such a situation is illustrated in in the picture. SHALOSH ought to remain on the premises (green zone). On these premises, there is, however, an area which is too dangerous to be accessed and thus must not be entered.
Page 13: End Of Shift
Alarm chains next half hour. If this message does not arrive, then Control Center will start an alarm. If SHALOSH has no mobile phone network and Control Center will soon trigger an alarm, then SHALOSH will start a pre-alarm: The lone worker now has to find a location with network coverage and press the black button.
Page 14: H Azards And Conditions
SHALOSH ECO Operating instructions If the worker normally moves much, you can use the no movement alarm. If the worker normally walks instead of running or jumping, it is pos- sible to set the fall detection to the most sensitive setting. If jumps or sprints part of the normal sequence, then it is best to choose a lower sensitivity.
Page 15: W Orking Conditions And Environment
If this is not possible or appropriate, then the use of a gateway must be checked. Felsenmeer Gateway receives the alarms via ISM and forwards them. Voice connections, however, are not possible.
Page 16: Safety Instructions
SHALOSH ECO Operating instructions during an accident and how the device serves as safeguard for the lone worker. Exemplary alarm chains can be found in section 9.3, they have to be adopted to the relevant situation. 7 Safety instructions To ensure the intended use as well as the safety, reliability and per- formance of the device, please read the following instructions be- fore first commissioning.
Page 17: Commissioning
Commissioning If stored for a longer period, the rechargeable battery has to be re- charged every 3 months. The change of a used rechargeable battery may only be carried out by expert staff. Dispose the device at a collection point for electronic waste. The power units of the charging cradle have to be plugged into ac- cessible plug sockets.
Page 18 SHALOSH ECO Operating instructions 8.2.2 Fitting • Remove band/sleeve, open device. It consists of: back cov- er, motherboard and front cover. The motherboard may stick on the back cover, remove gently. Take care when handling: Ensure ESD protection, do not touch contacts! •...
Page 19 Overviews 8.3 Disposal Please dispose these devices and components at a public collection point for electronic waste; they must not be disposed of with household waste. 9 Overviews 9.1 Operating elements and functions The following depiction provides an overview of operating elements and their functions.
Page 20 SHALOSH ECO Operating instructions Function Element Status LED For switch on: Colour change red-green-blue If device error: Yellow: Sensor error, repair necessary Red: GSM/UMTS Module error, if it happens re- peatedly then repair needed Blue: SIM card or PIN In normal operation:...
Page 21 Overviews In configuration mode: Alarm LED Flashes five times per second red During device test: Flashes twice per second red If device error: Steady red In normal operation: Steady red: Incoming calls from headquarters If pre-alarm: Flashes once per second red: Pre-alarm active If alarm: Alarm triggered and in process.
Page 22 SHALOSH ECO Operating instructions In normal operation: Black button Rejects incoming call Starts time interval again for the time alarm Long keystroke (>3s) dials speed dial number Alternatively, a short keystroke tells the Control Center that everything is ok. If pre-alarm: Ends the pre-alarm Tells the Control Center that everything is ok.
Page 23 Device does not charge - LED switched off at charging cradle. Plug in power unit Connect power unit to power Inform Felsenmeer partner - defect charging cradle or power unit Device does not charge - LED switched on at charging cradle. Inform Felsenmeer partner - check charging contacts, rechargeable battery.
Page 24 Announcement “test failed” and status LED lights up yellow (amber): Wait until device switches off and try again. A test step must not last longer than two minutes. If occurring repeatedly: Inform Felsenmeer partner. Repair by Felsenmeer. Announcement “configure device", alarm LED flashes quickly: In- form Felsenmeer partner, import configuration.
Page 25 Overviews 9.3.1.3 Lack of movement Black button within __ s No movement Movement Pre-alarm for __ s within _ s No reaction Alarm 9.3.1.4 Deadman or time alarm Black button within __ s No key for _ Pre-alarm No reaction Alarm 9.3.1.5 No response...
Page 26 SHALOSH ECO Operating instructions SOS call Alarm button for 10s Alarm message...
Page 27: Alarm Process
Overviews 9.4 Alarm process 9.4.1 Variant: First message, then call Forwarding th e a larms ca n occur in th ree Alarm ways: Per tex t mes sage Per internet (eith er http or TCP/IP) Per Ga tew ay – can be active in para llel to the other varian ts or only if th ere is currently no mo- Message per...
Page 28 SHALOSH ECO Operating instructions 9.4.2 Variant: Message and call-back This varian t shou ld on ly be us ed if a Alarm switchb oard is used an d it rea cts on the message b y ins tiga ting a p hon e confer- ence.
Page 29: Technical Data
Technical data 10 Technical data Size 115 mm x 43 mm x 26 mm, plus clip Weight approx. 100 g (with clip) Protection class IP 65 (dustproof and splash water resistant) Battery type 3.7 V Lithium-Polymer rechargeable battery, 1.2 Operating duration Talk time up to 8 hours Operating time •...
Page 30 SHALOSH ECO Operating instructions 11 Legal Notice Felsenmeer AG Opfikonerstrasse 45 8304 Wallisellen Switzerland © Copyright Felsenmeer AG All rights reserved. Subject to errors and misprints.
