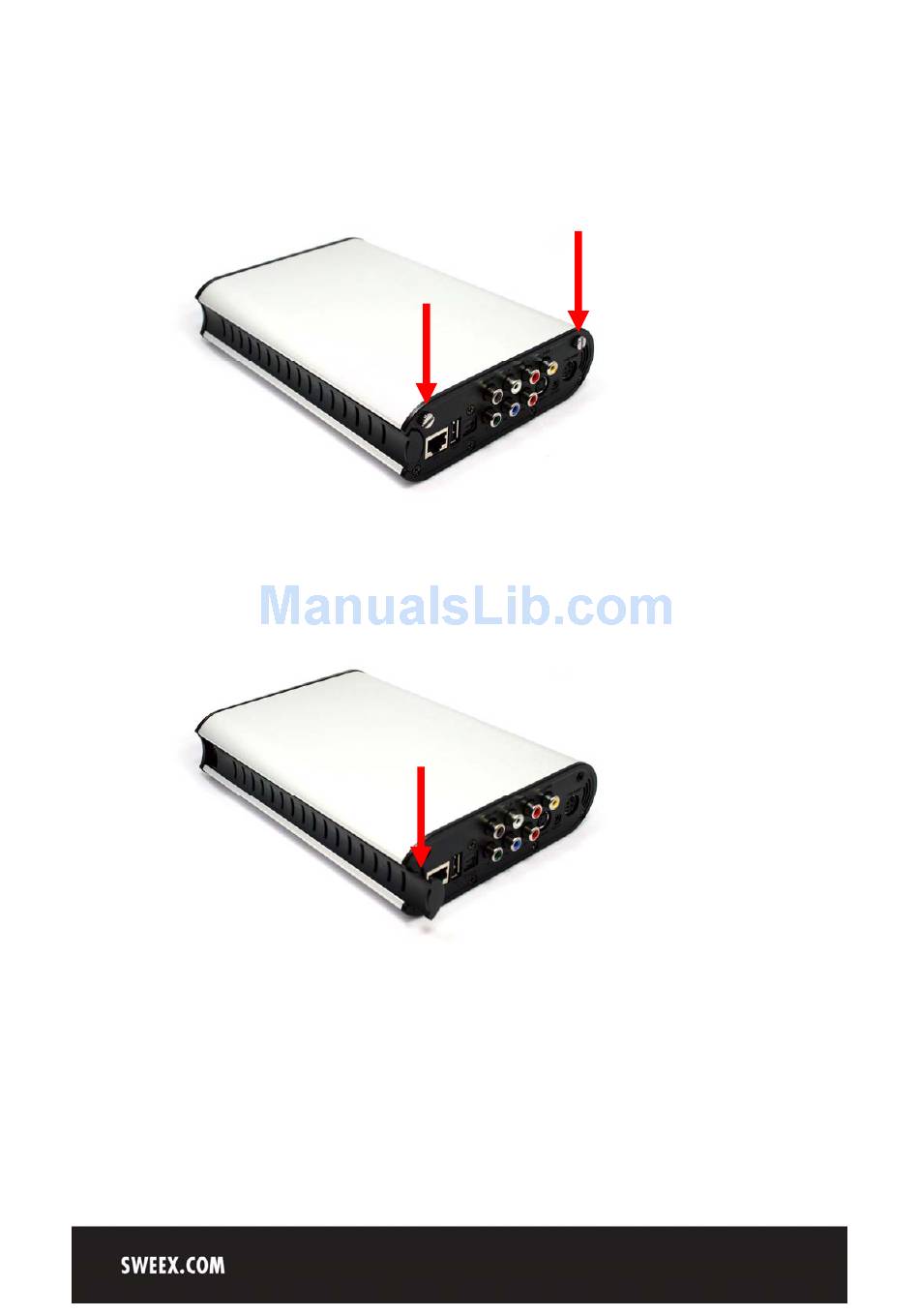

- Page 1 Instructions for connecting a hard drive into the Sweex Media Center with LAN Place the device on a table and remove the screws. Pull the plastic handle to release it just a few centimetres.
- Page 2 Remove the cap. Open the top of the case like you would open a book.
- Page 3 Remove the top. Fasten the IDE flatcable and the power cable to the harddisk. The cables can only be connected in one way.
- Page 4 Fasten four screws on both sides of the harddisk. Two on each side. Put the top back on. Begin by placing the top in the rail at the right side. As indicated here. Don’t fully close it yet. You have to place the cap first.
- Page 5 First place the cap. Leave it as indicated below. Then close the top, like you would close a book. Then push the cap to close it. Fasten the screws. The hard drive is now connected.
